Toyota RAV4

2005-11 → 2012-12 · chassis ACA3#,ALA3#,GSA33,ZSA3# · catalogue 662230 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp Cleaner

24 part groups · 3 illustrations

Illustrations

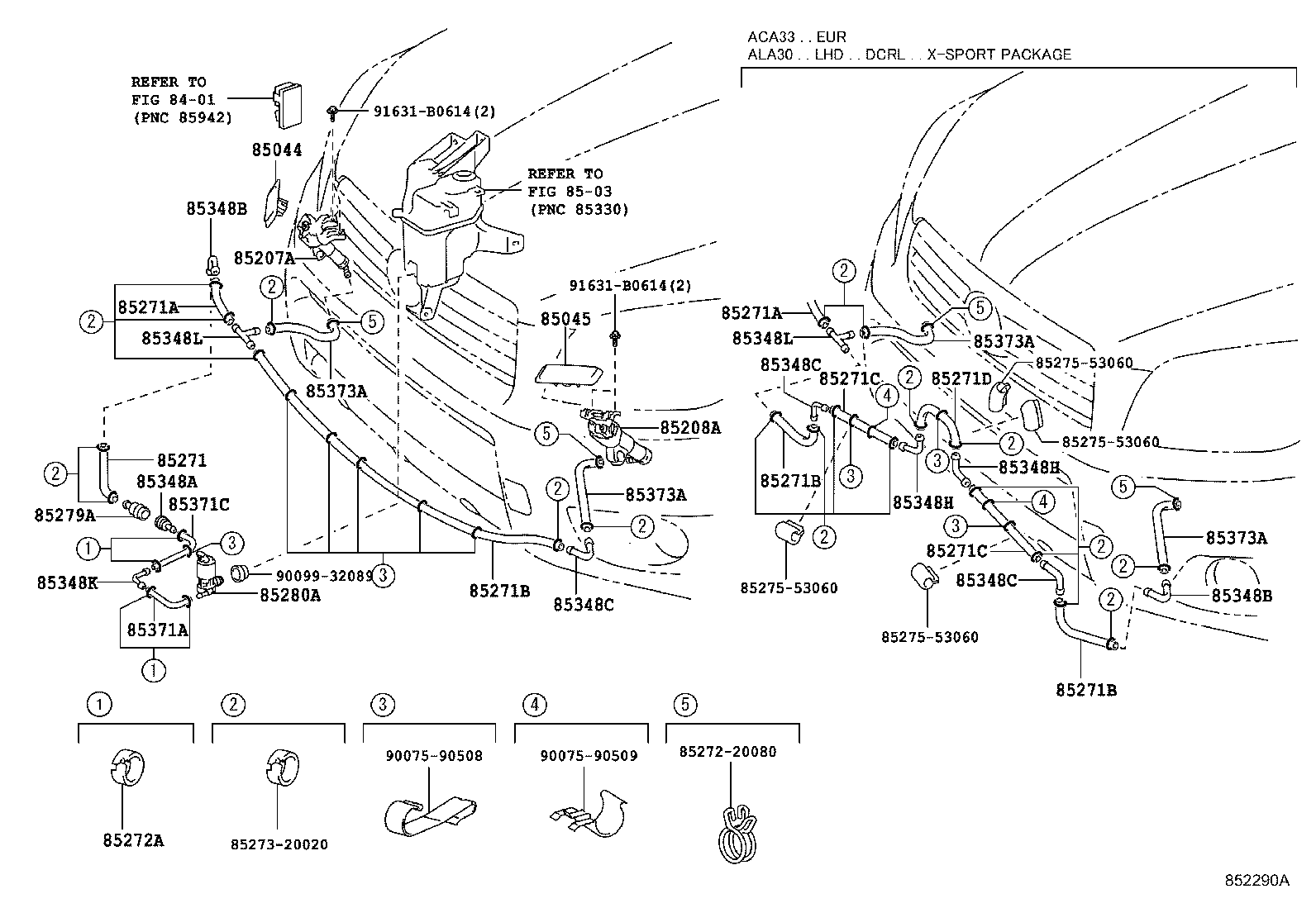

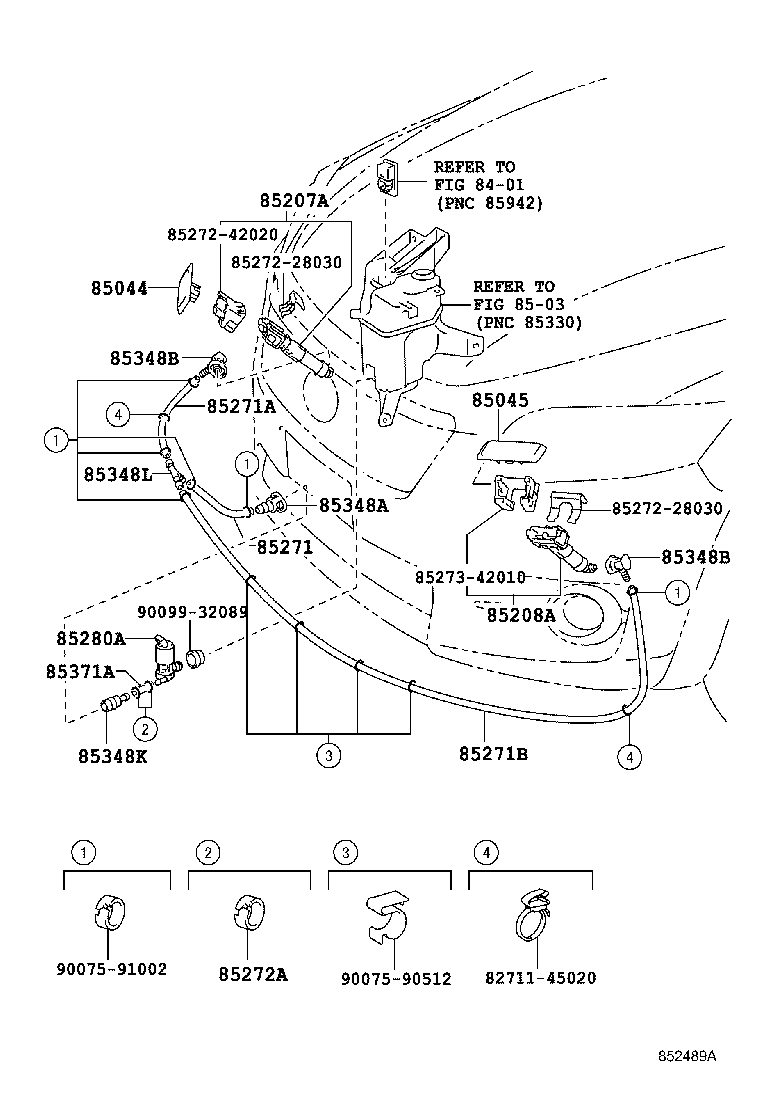

Figure 851660C 851660C 2005-11 → 2008-12 Figure 852290A 852290A 2008-12 → — Figure 852489A 852489A 2010-02 → —

Part groups

PNCDescription
85044 Nozzle Sub-assy, TYPE1 H/Lamp Washer, RH
85045 Nozzle Sub-assy, TYPE1 H/Lamp Washer, LH
85207A Actuator Sub-assy, Headlamp Washer, RH
85208A Actuator Sub-assy, Headlamp Washer, LH
85271 Hose, Headlamp Cleaner, NO.1
85271A Hose, Headlamp Cleaner, NO.2
85271B Hose, Headlamp Cleaner, NO.3
85271C Hose, Headlamp Cleaner, NO.4
85271D Hose, Headlamp Cleaner, NO.5
85271E Hose, Headlamp Cleaner, NO.6
85272A Clamp, Headlamp Cleaner, NO.1
85279A Joint, Headlamp Cleaner Hose
85280A Motor And Pump Assy, Headlamp Cleaner
85348A Joint, Headlamp Cleaner Hose, NO.1
85348B Joint, Headlamp Cleaner Hose, NO.2
85348C Joint, Headlamp Cleaner Hose, NO.3
85348H Joint, Headlamp Cleaner Hose, NO.4
85348K Joint, Headlamp Cleaner Elbow, NO.1
85348L Joint, Headlamp Cleaner Elbow, NO.2
85348Z Joint, Headlamp Cleaner Hose, NO.5
85350C Joint, Headlamp Cleaner Hose, NO.6
85371A Hose, Headlamp Cleaner(FROM MOTOR TO JOINT)
85371C Hose, Headlamp Cleaner, NO.1
85373A Hose, Headlamp Cleaner Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
