Toyota RAV4

2005-11 → 2012-12 · chassis ACA3#,ALA3#,GSA33,ZSA3# · catalogue 662230 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

8 part groups · 3 illustrations

Illustrations

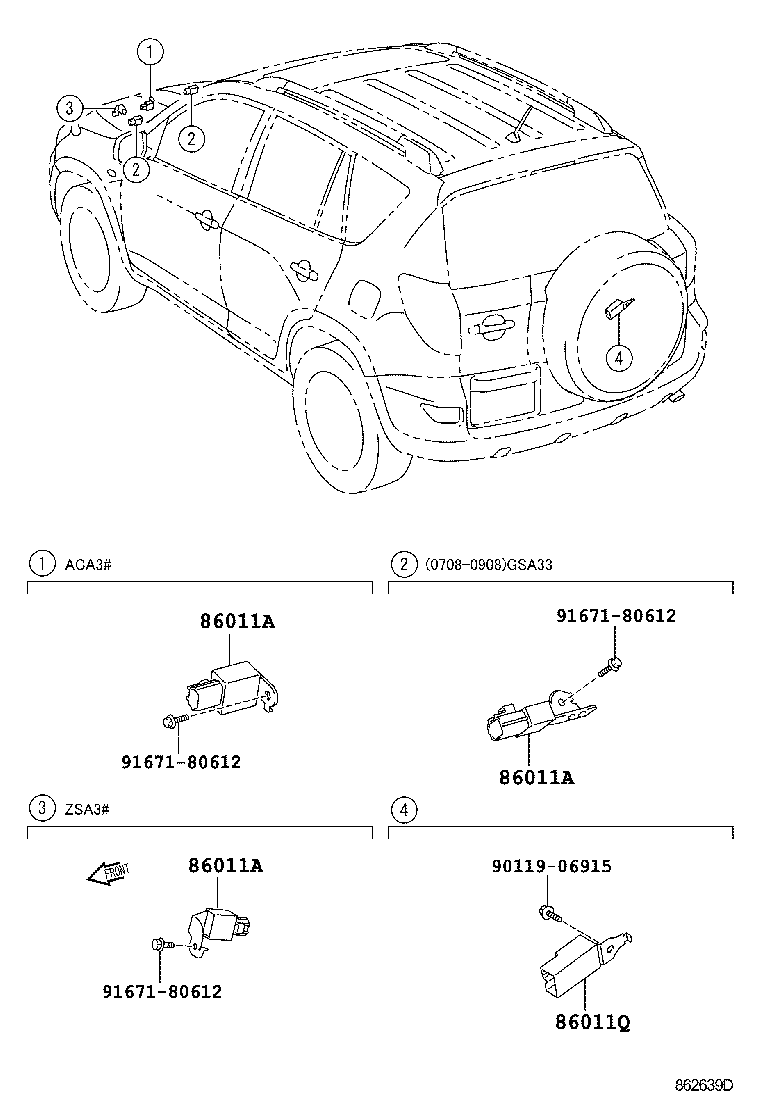

Figure 862640C 862640C 2005-11 → — Figure 862641B 862641B 2005-11 → — Figure 862639D 862639D 2005-11 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011Q Condenser, Radio Setting
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86190C Adapter Assy, Stereo Jack, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86221D Panel, Radio Receiver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
