Toyota RAV4
2005-11 → 2012-12 · chassis ACA3#,ALA3#,GSA33,ZSA3# · catalogue 662230 · Europe
Supported model
Data version 2013-01
Mirror
12 part groups · 6 illustrations

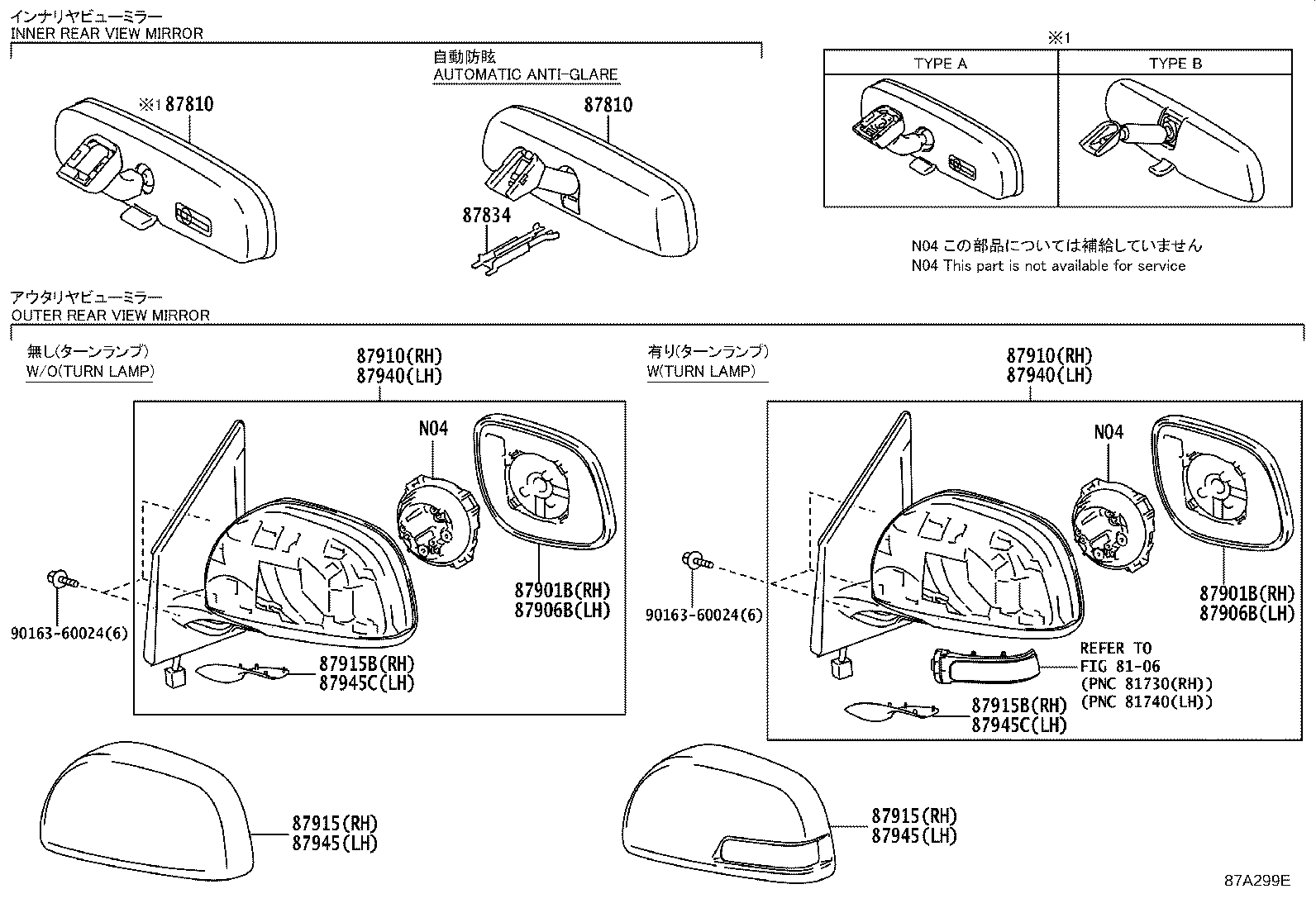

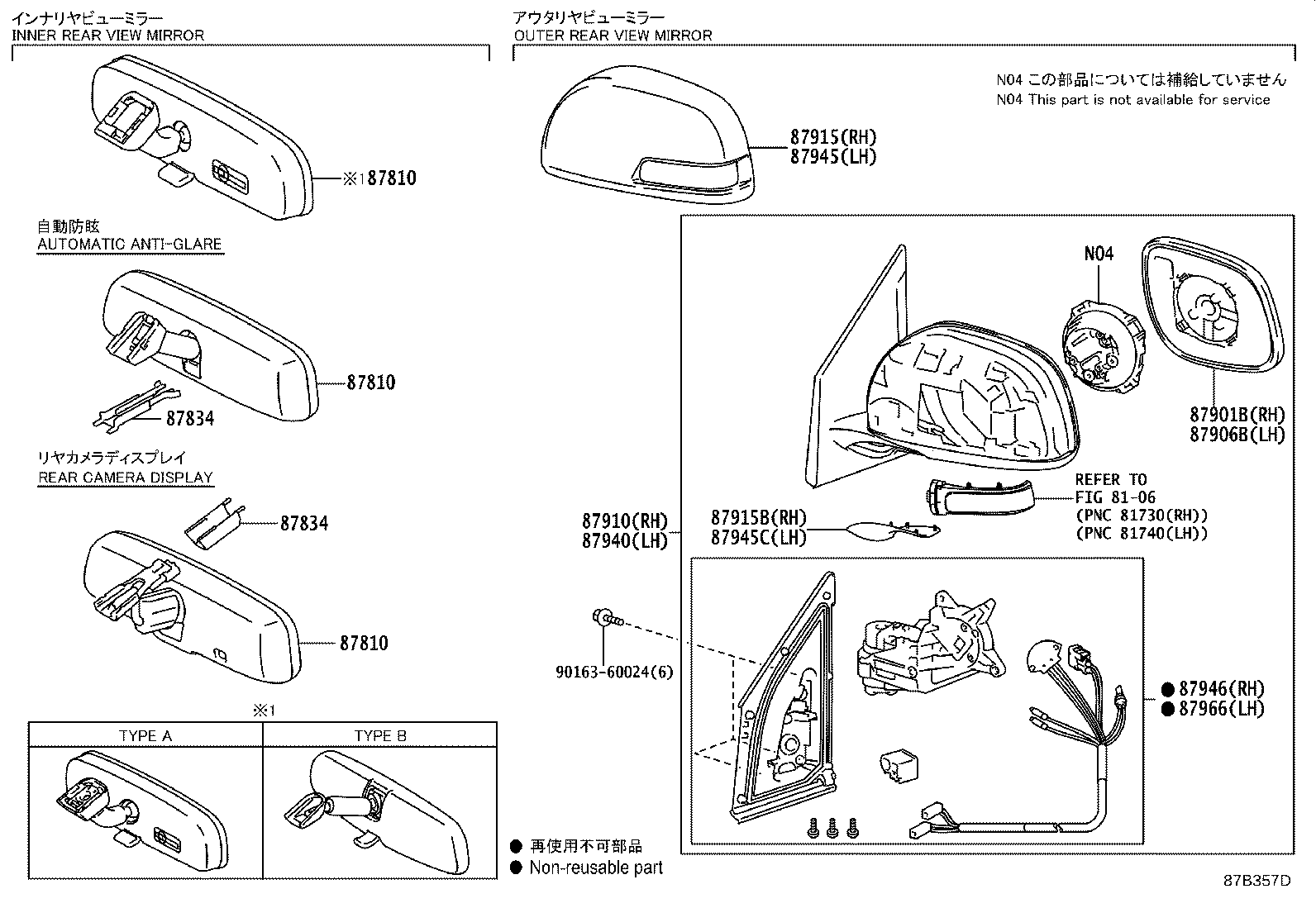

Part groups
| PNC | Description |
|---|---|
| 87810 | Mirror Assy, Inner Rear View |
| 87834 | Cover, Inner Rear View Mirror Stay Holder |
| 87901B | Mirror Sub-assy, Outer Rear View, RH |
| 87906B | Mirror Sub-assy, Outer Rear View, LH |
| 87910 | Mirror Assy, Outer Rear View, RH |
| 87915 | Cover, Outer Mirror, RH |
| 87915B | Cover, Outer Mirror, Lower RH |
| 87940 | Mirror Assy, Outer Rear View, LH |
| 87945 | Cover, Outer Mirror, LH |
| 87945C | Cover, Outer Mirror, Lower LH |
| 87946 | Retractor, Outer Mirror, RH |
| 87966 | Retractor, Outer Mirror, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
