Toyota RAV4

2005-11 → 2012-12 · chassis ACA3#,ALA3#,GSA33,ZSA3# · catalogue 662230 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

25 part groups · 13 illustrations

Illustrations

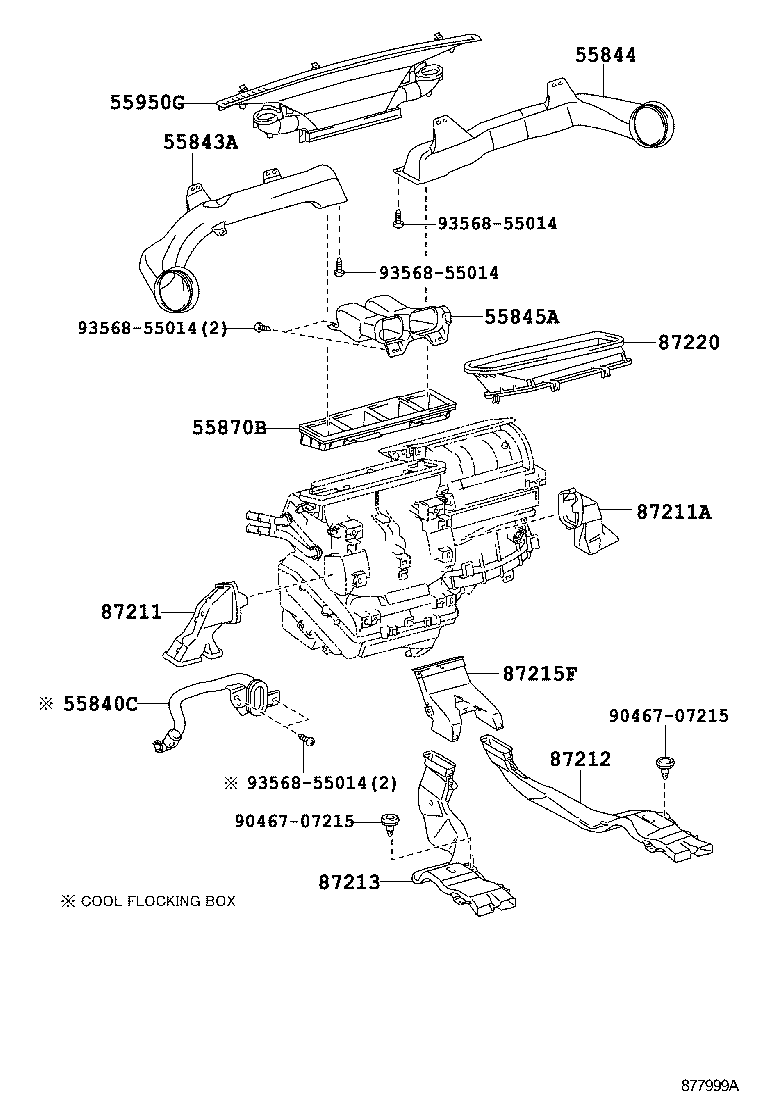

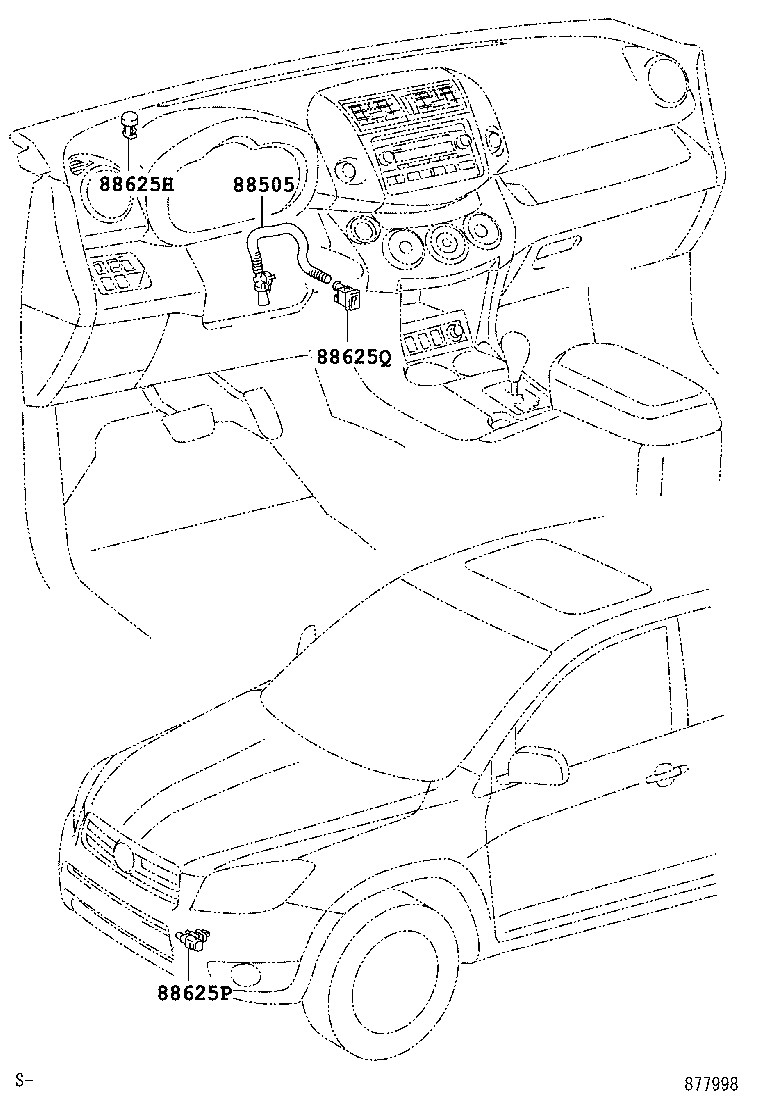

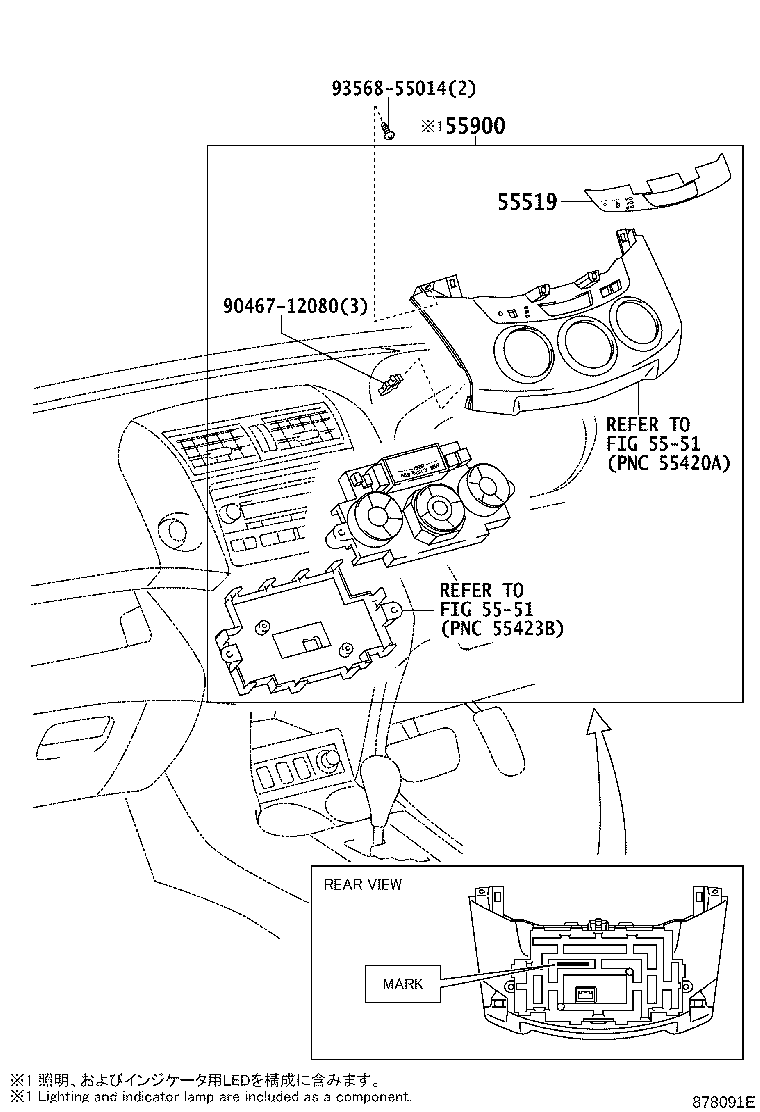

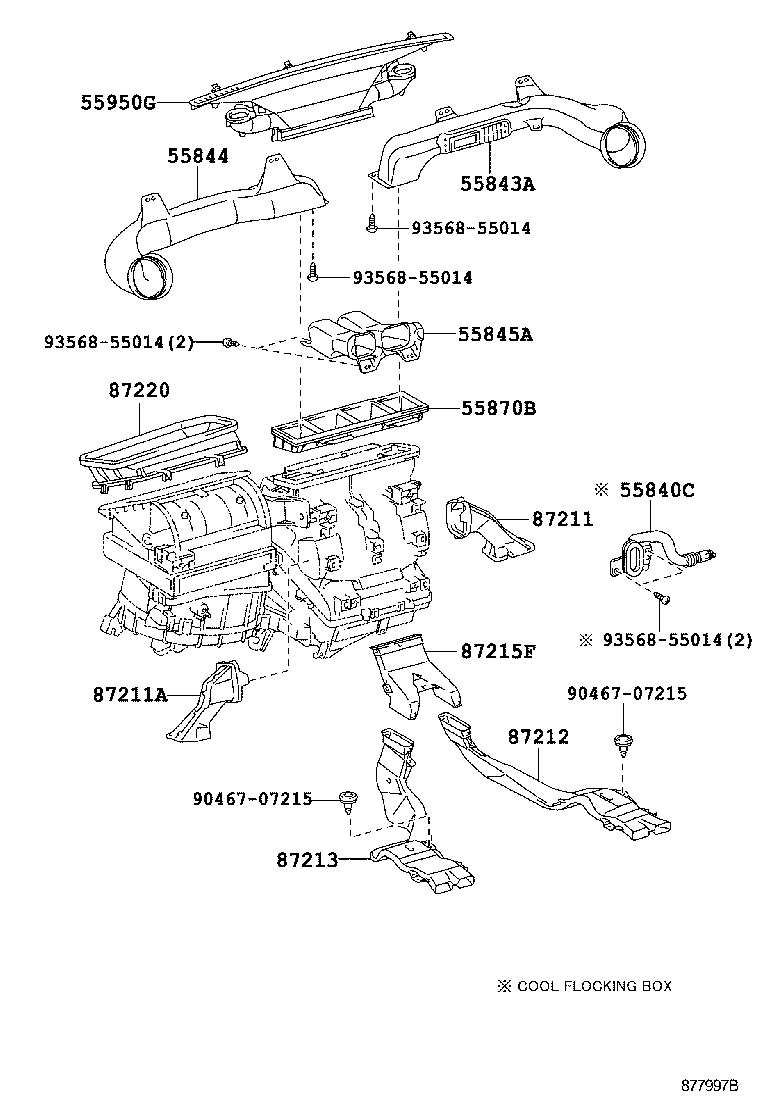

Figure 877996C 877996C 2005-11 → 2008-08 Figure 877996C 877996C 2005-11 → 2008-12 Figure 877996C 877996C 2008-08 → — Figure 877996C 877996C 2008-12 → — Figure 877996C 877996C 2009-08 → — Figure 878091E 878091E 2005-11 → 2008-08 Figure 878091E 878091E 2005-11 → 2008-12 Figure 878091E 878091E 2008-08 → — Figure 878091E 878091E 2008-12 → — Figure 878091E 878091E 2009-08 → — Figure 877999B 877999B 2005-11 → — Figure 877997B 877997B 2005-11 → — Figure 877998 877998 2005-11 → —

Part groups

PNCDescription
55519 Plate, Heater Control Name
55840C Duct Assy, Heater TO Register, NO.6
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55870B Duct Assy, Heater TO Register
55900 Control Assy, Air Conditioner
55900B Bulb, Air Conditioner Control
55901 Base Sub-assy, Heater Control
55902B Control Sub-assy, Heater
55903A Control Sub-assy, Heater, NO.3
55906D Cable Sub-assy, Heater Control, NO.2
55909A Cable Sub-assy, Airmix Damper Control
55910B Bulb, Heater Control
55950G Nozzle Assy, Defroster
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87215F Duct, Air, Rear NO.3
87220 Duct Assy, Air
88505 Duct Sub-assy,Air Conditioner
88625H Thermistor, Cooler (SOLAR SENSOR)
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
