Heating & Air Conditioning - Water Piping

16 part groups · 7 illustrations

Illustrations

Figure 878030A

878030A 2005-11 → —

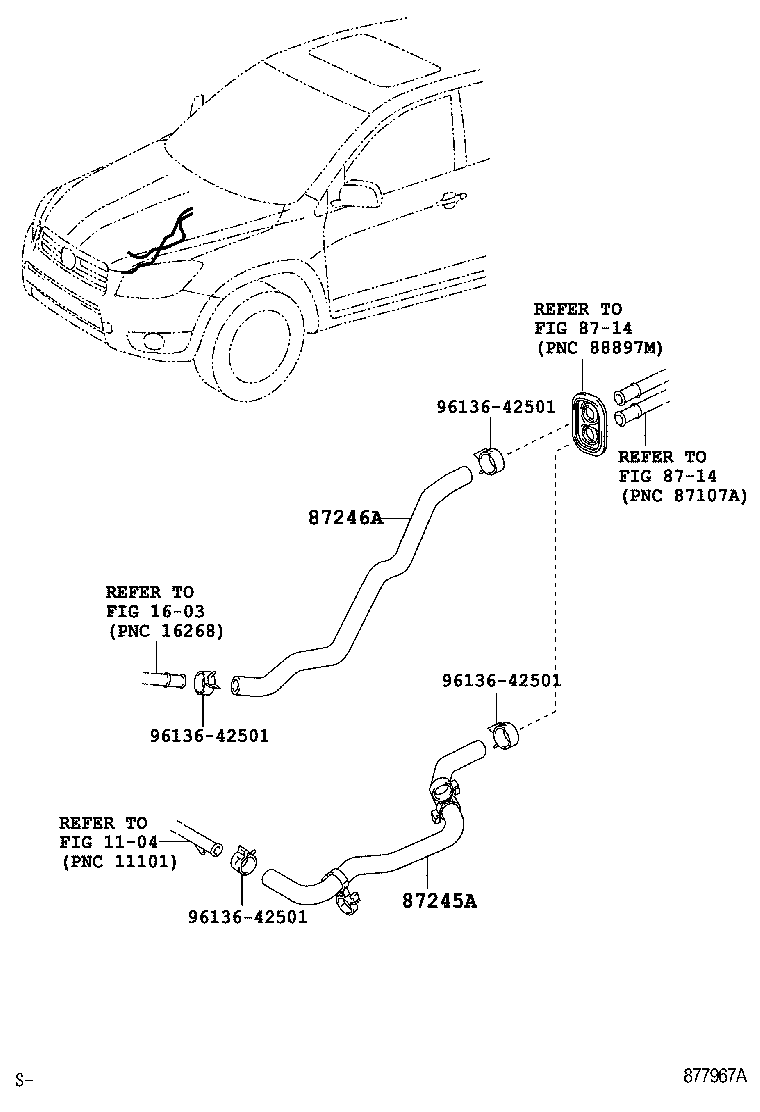

Figure 877967A

877967A 2005-11 → —

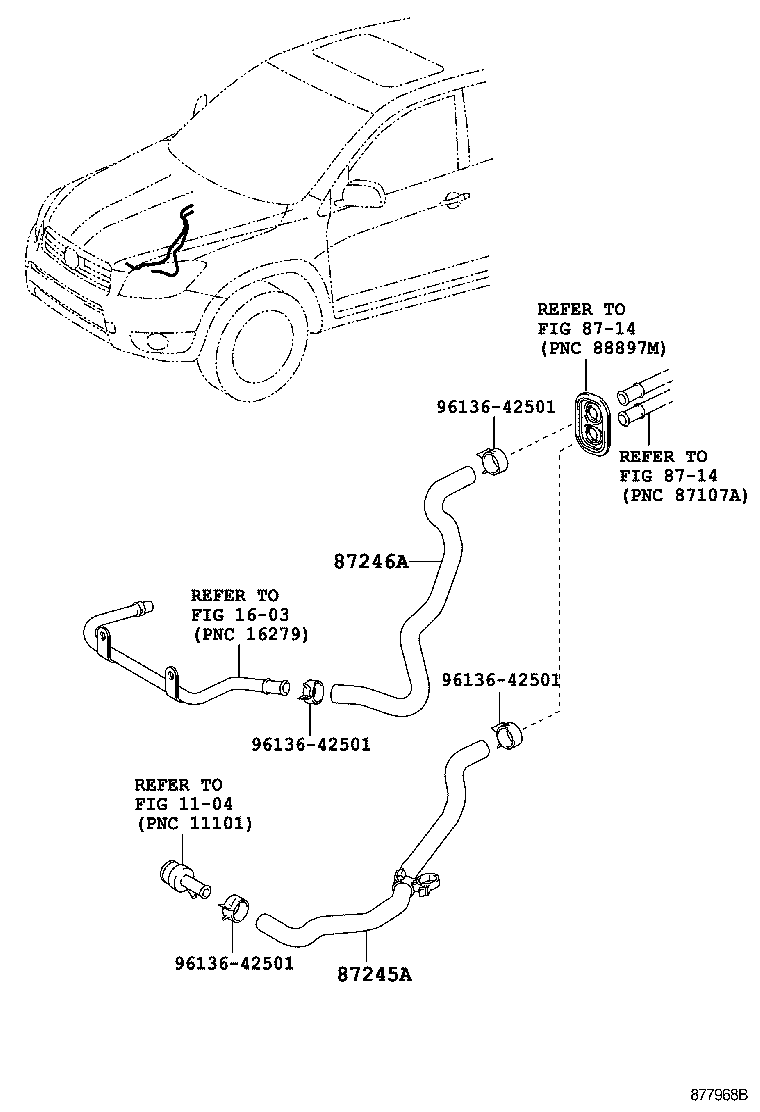

Figure 877968B

877968B 2005-11 → —

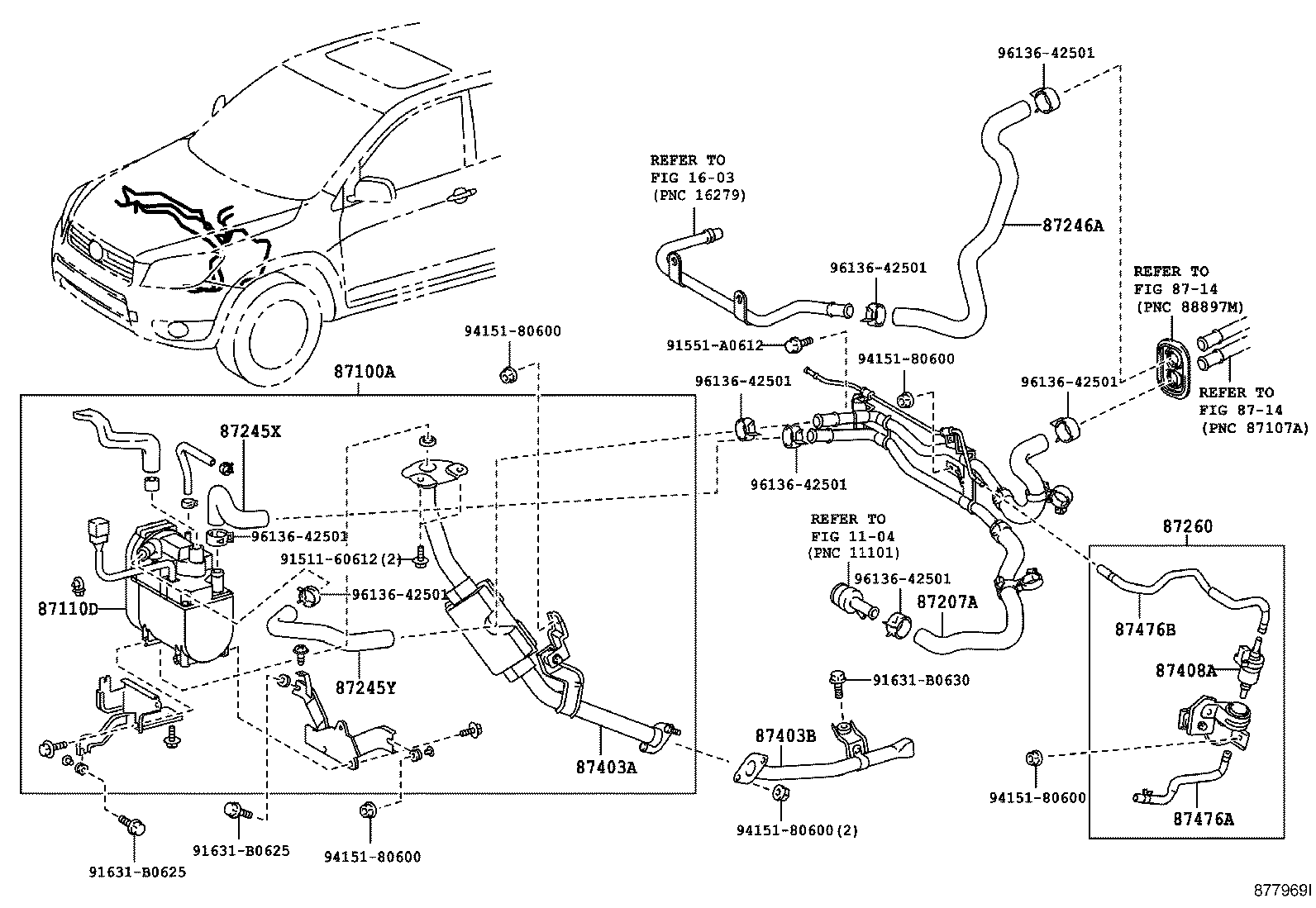

Figure 877969I

877969I 2005-11 → —

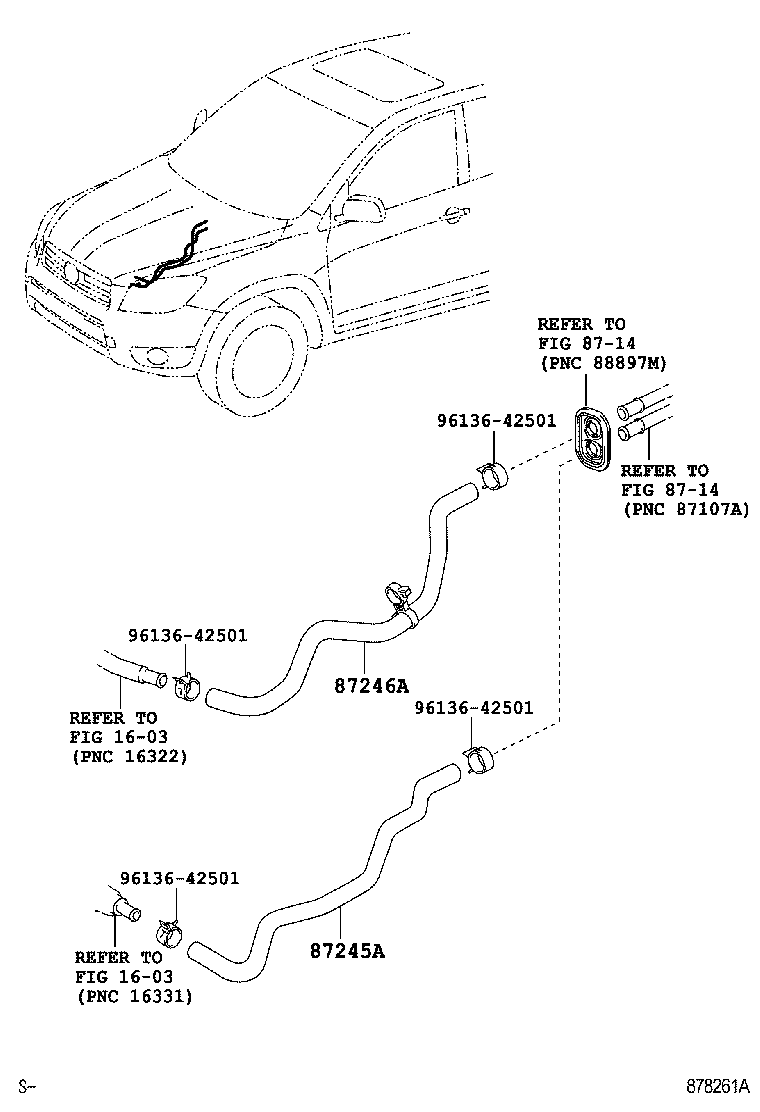

Figure 878261A

878261A 2007-08 → —

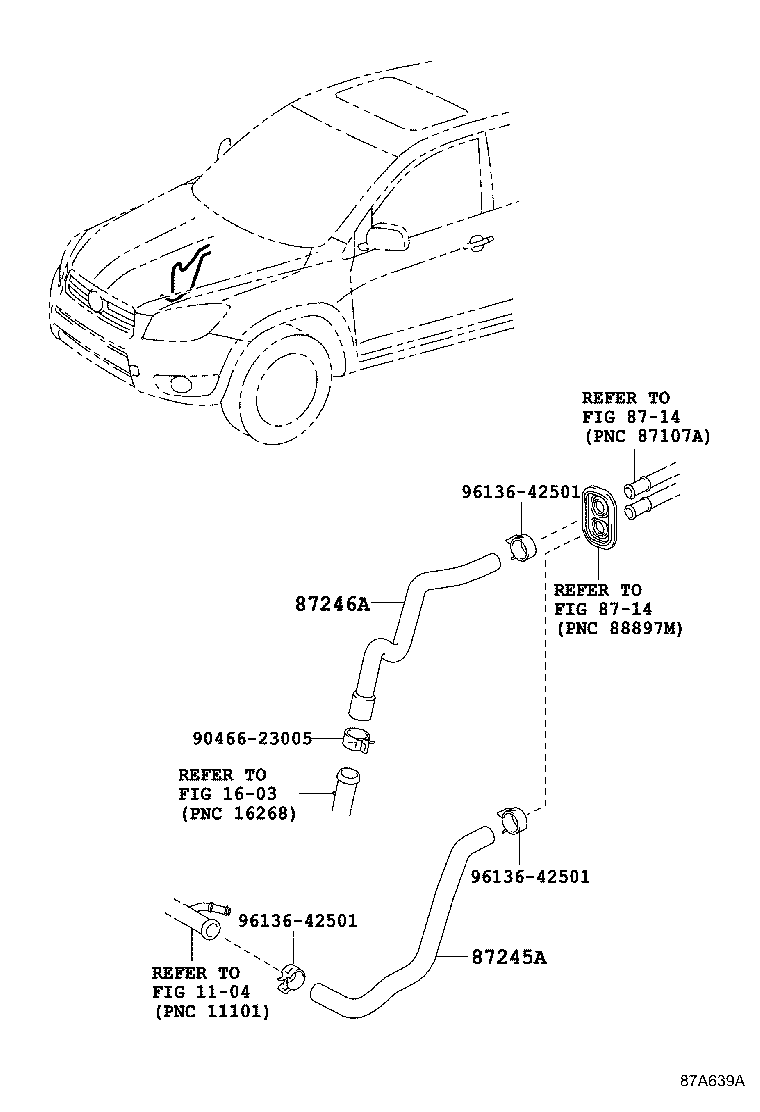

Figure 87A639A

87A639A 2008-12 → —

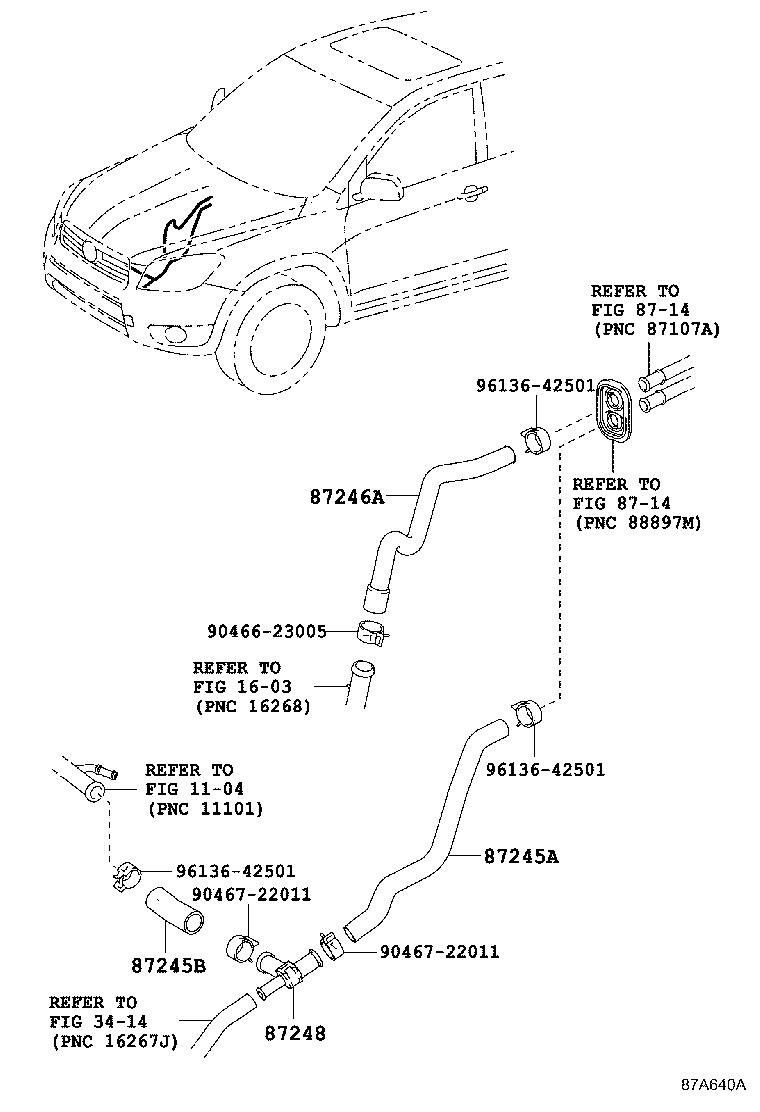

Figure 87A640A

87A640A 2008-12 → —

Part groups

PNC	Description
87100A	Heater & Accessory Assy
87110D	Heater Assy
87207A	Pipe & Hose Sub-assy, Water A
87245A	Hose, Heater Water, Inlet A
87245B	Hose, Heater Water, Inlet B
87245X	Hose, Heater Water
87245Y	Hose, Heater Water
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87248	Pipe Sub-assy, Water
87260	Pump Assy, Heater
87403A	Pipe Sub-assy, Exhaust
87403B	Pipe Sub-assy, Exhaust
87408A	Pump Sub-assy, Fuel
87476A	Hose, Heater Fuel, NO.1
87476B	Hose, Heater Fuel, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
