Heating & Air Conditioning - Cooler Piping

8 part groups · 7 illustrations

Illustrations

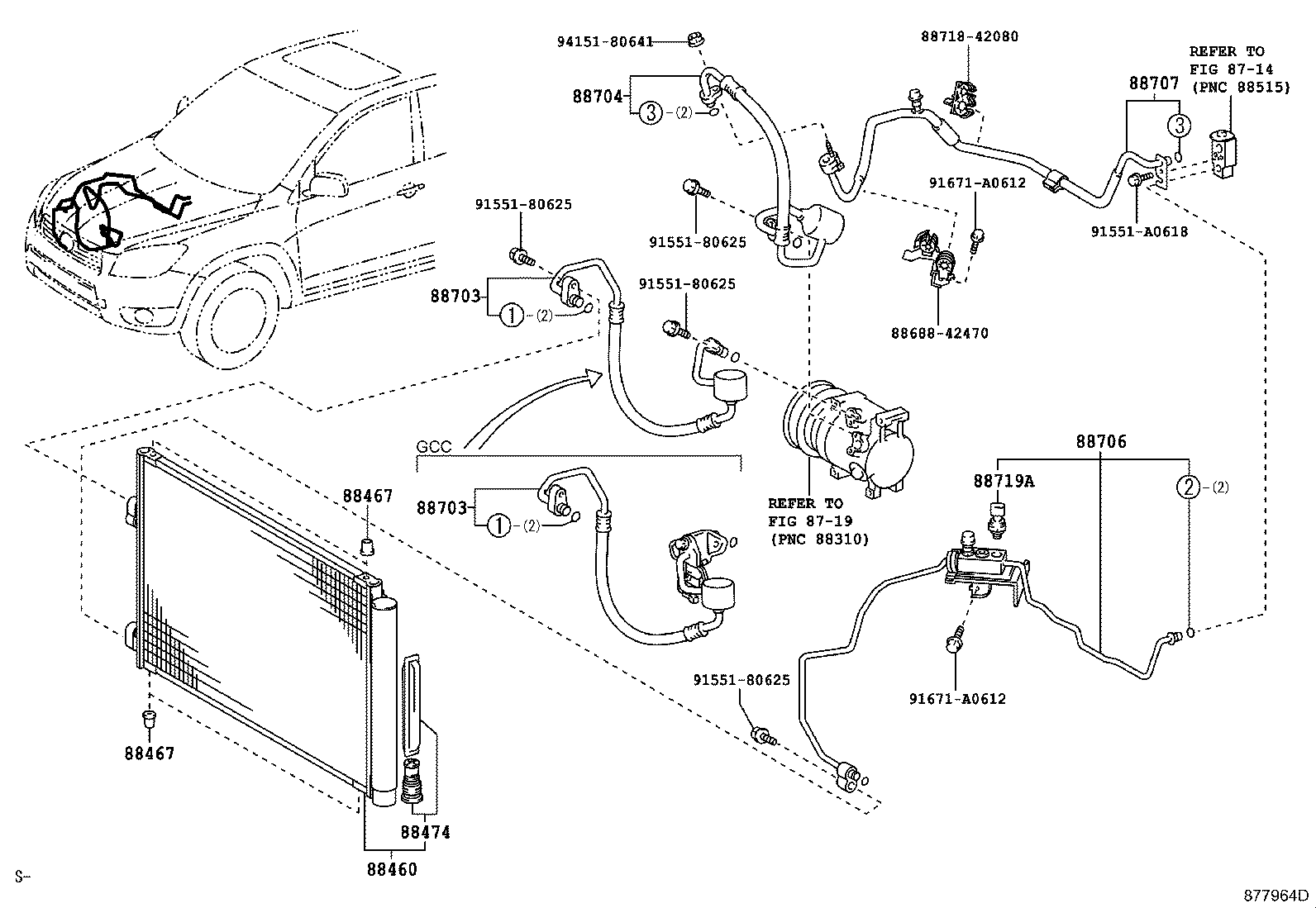

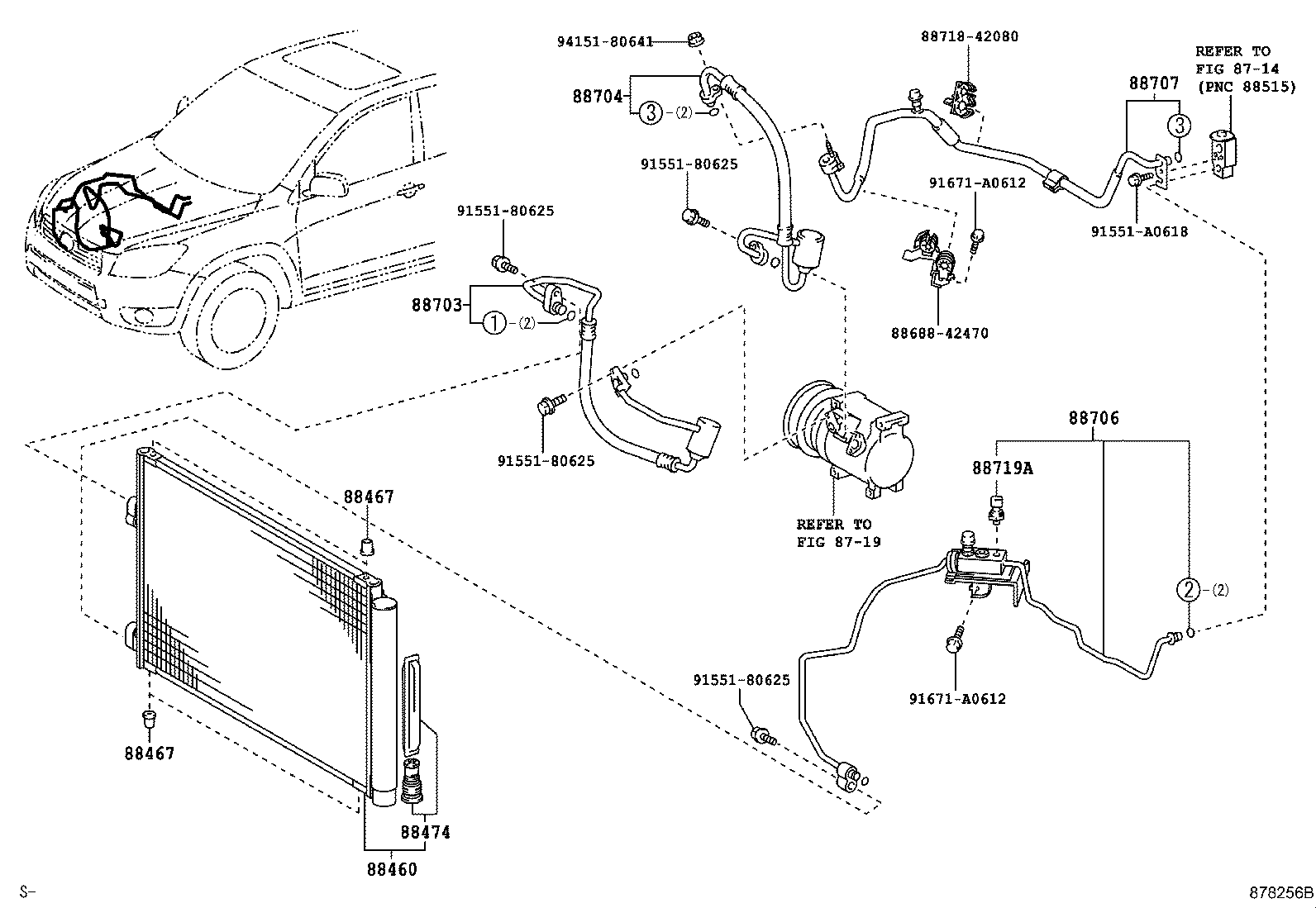

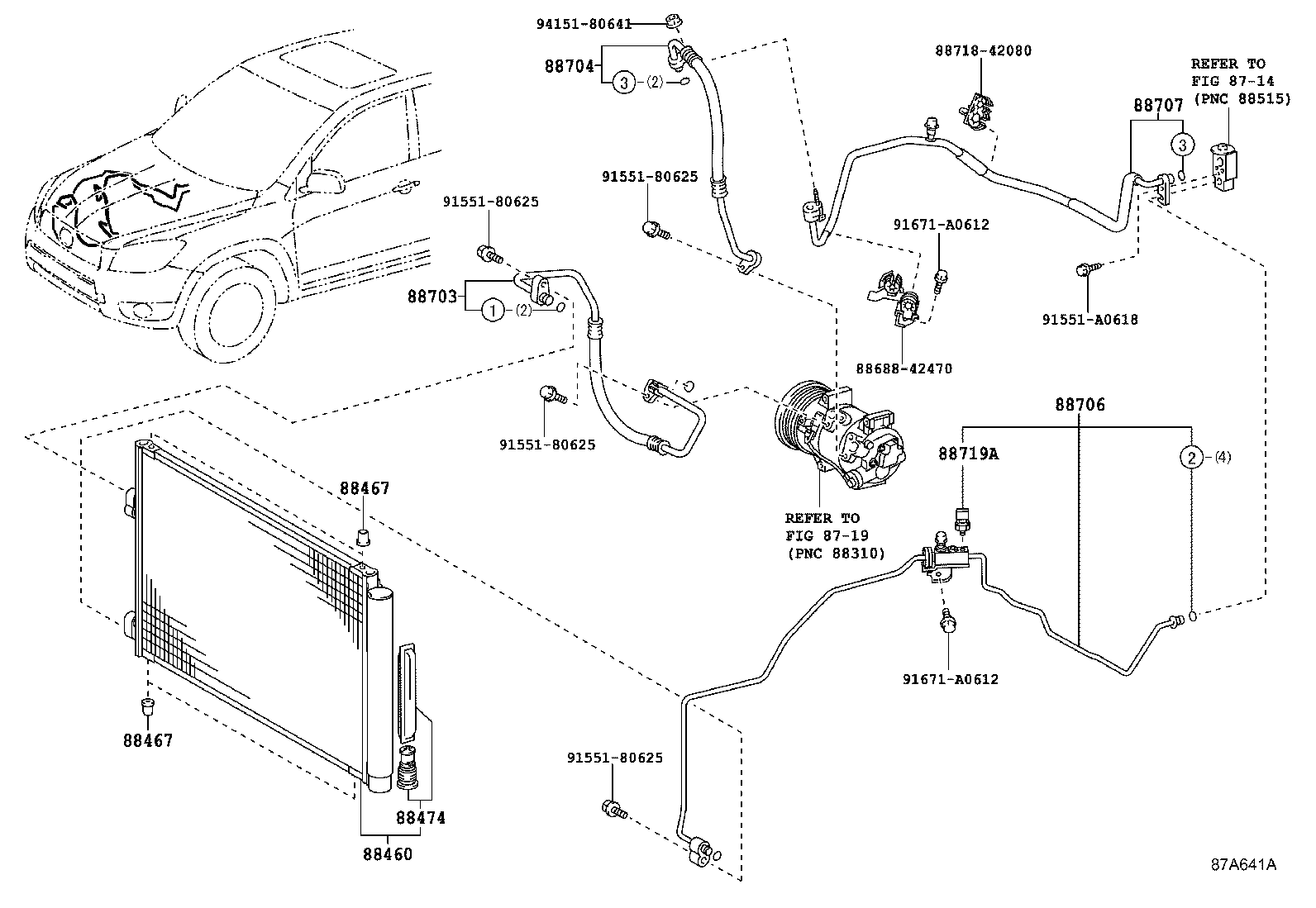

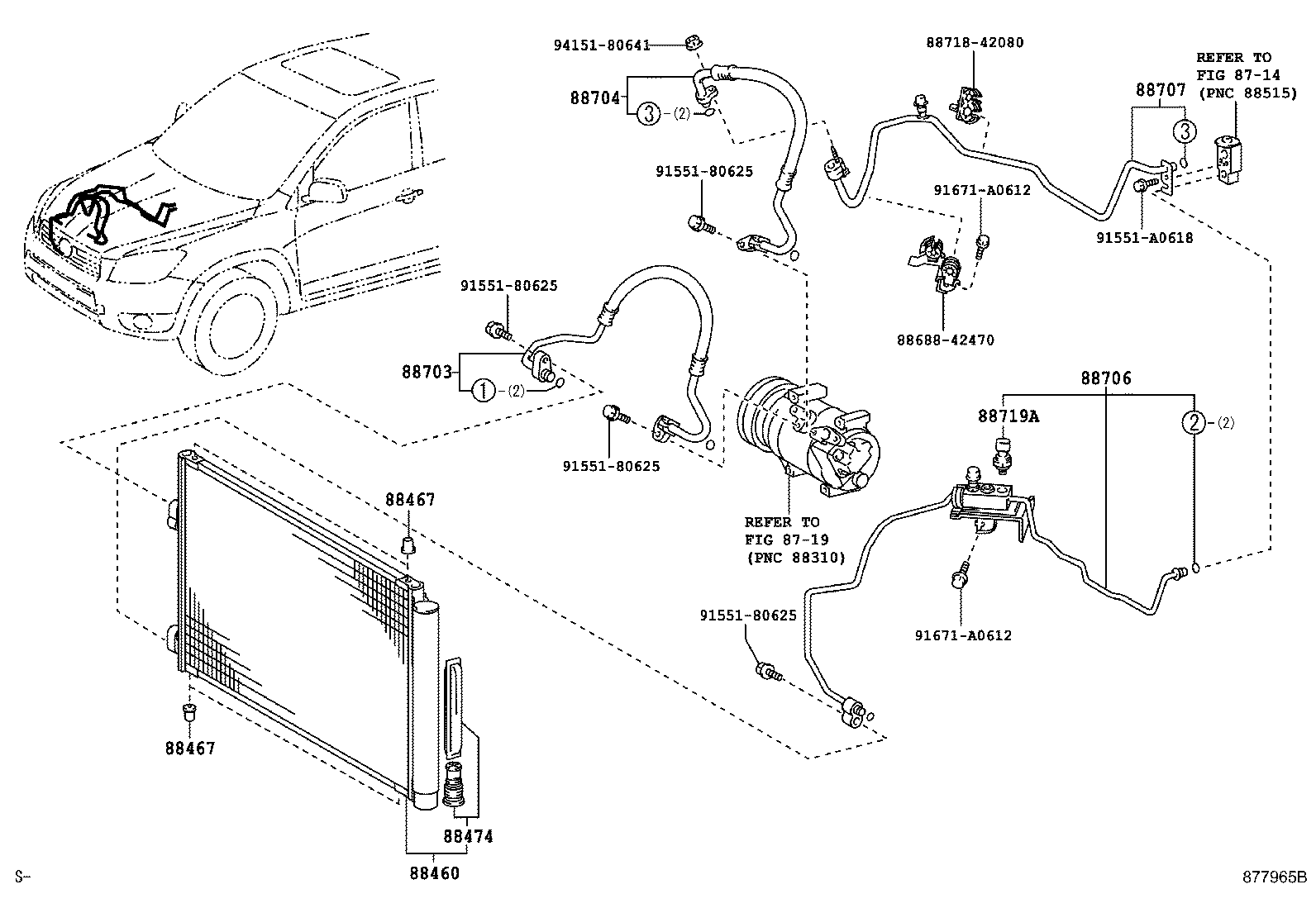

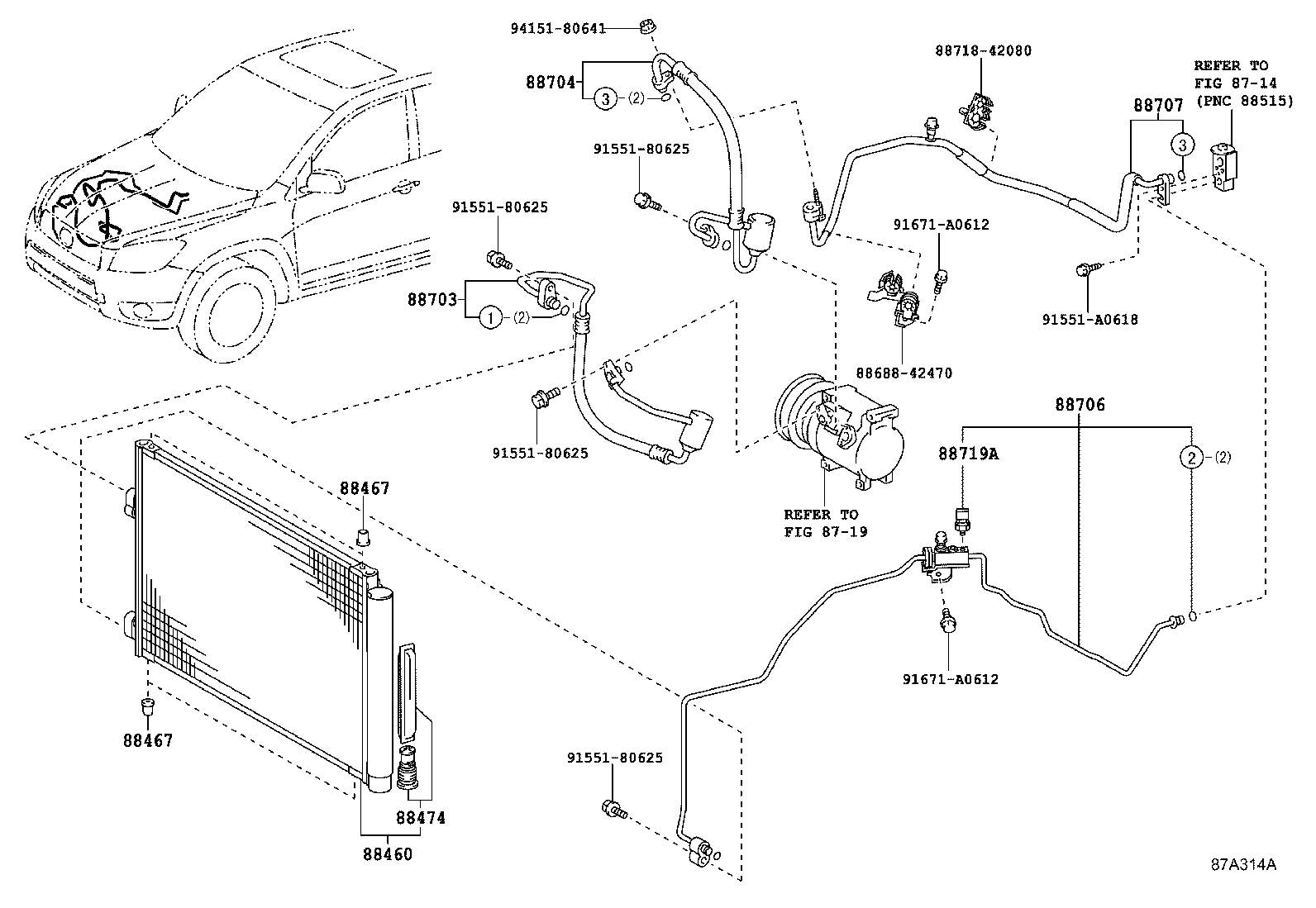

Figure 878029D 878029D 2005-11 → — Figure 877964D 877964D 2005-11 → — Figure 877965B 877965B 2005-11 → — Figure 878256B 878256B 2007-08 → 2008-08 Figure 87A314A 87A314A 2008-08 → — Figure 87A641A 87A641A 2008-12 → — Figure 878026A 878026A 2005-11 → —

Part groups

PNCDescription
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88474 Dryer, Cooler
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88706 Pipe Sub-assy, Liquid
88707 Pipe Sub-assy, Suction
88719A Sensor, Air Conditioner Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
