Toyota RAV4 (JPP)
2018-11 → present · chassis AXAA5#,AXAH5#,AXAL5#,MXAA5# · catalogue 662250 · Europe
Supported model
Data version 2023-10
Standard Tool
12 part groups · 3 illustrations

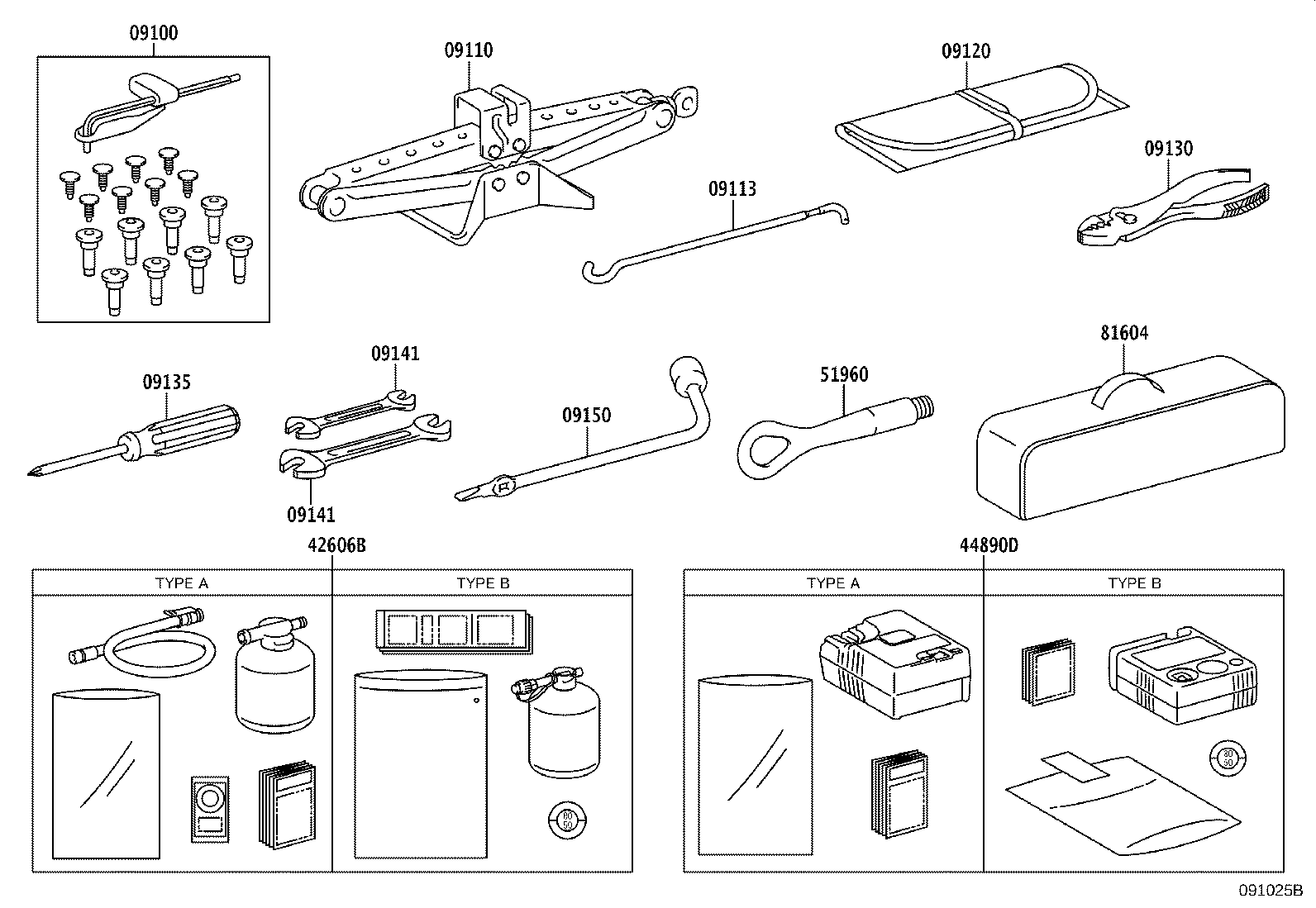

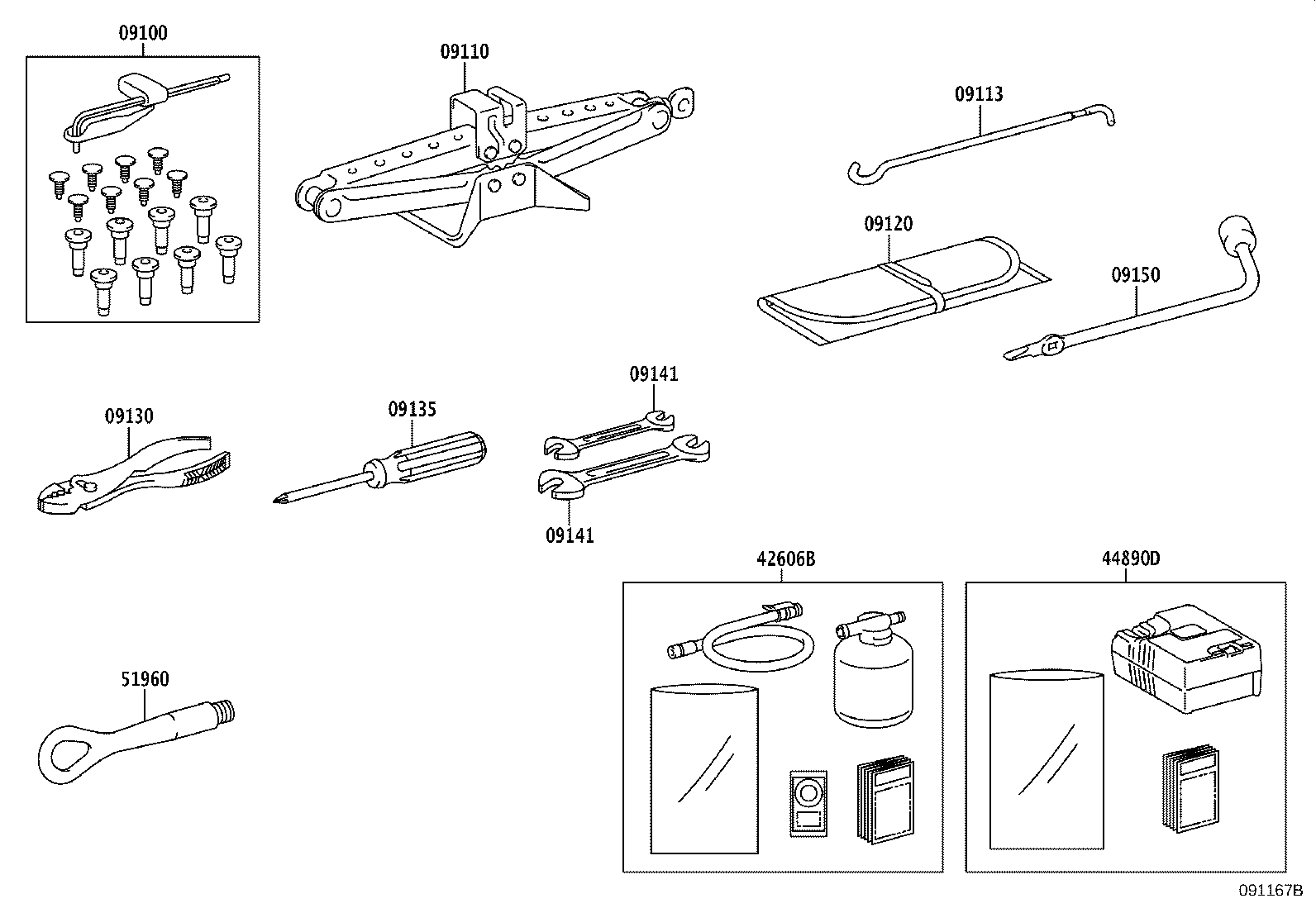

Part groups
| PNC | Description |
|---|---|
| 09100 | Tool Set, Standard |
| 09110 | Jack Assy |
| 09113 | Handle, Jack |
| 09120 | Bag, Tool |
| 09130 | Pliers |
| 09135 | Driver, Screw |
| 09141 | Spanner |
| 09150 | Wrench, Hub Nut Box |
| 42606B | Repair Kit, Tubeless Tire |
| 44890D | Compressor Assy, Air |
| 51960 | Hook Assy, Front |
| 81604 | Reflector Set, Triangle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
