Toyota RAV4 (JPP)

2018-11 → present · chassis AXAA5#,AXAH5#,AXAL5#,MXAA5# · catalogue 662250 · Europe

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 6 illustrations

Illustrations

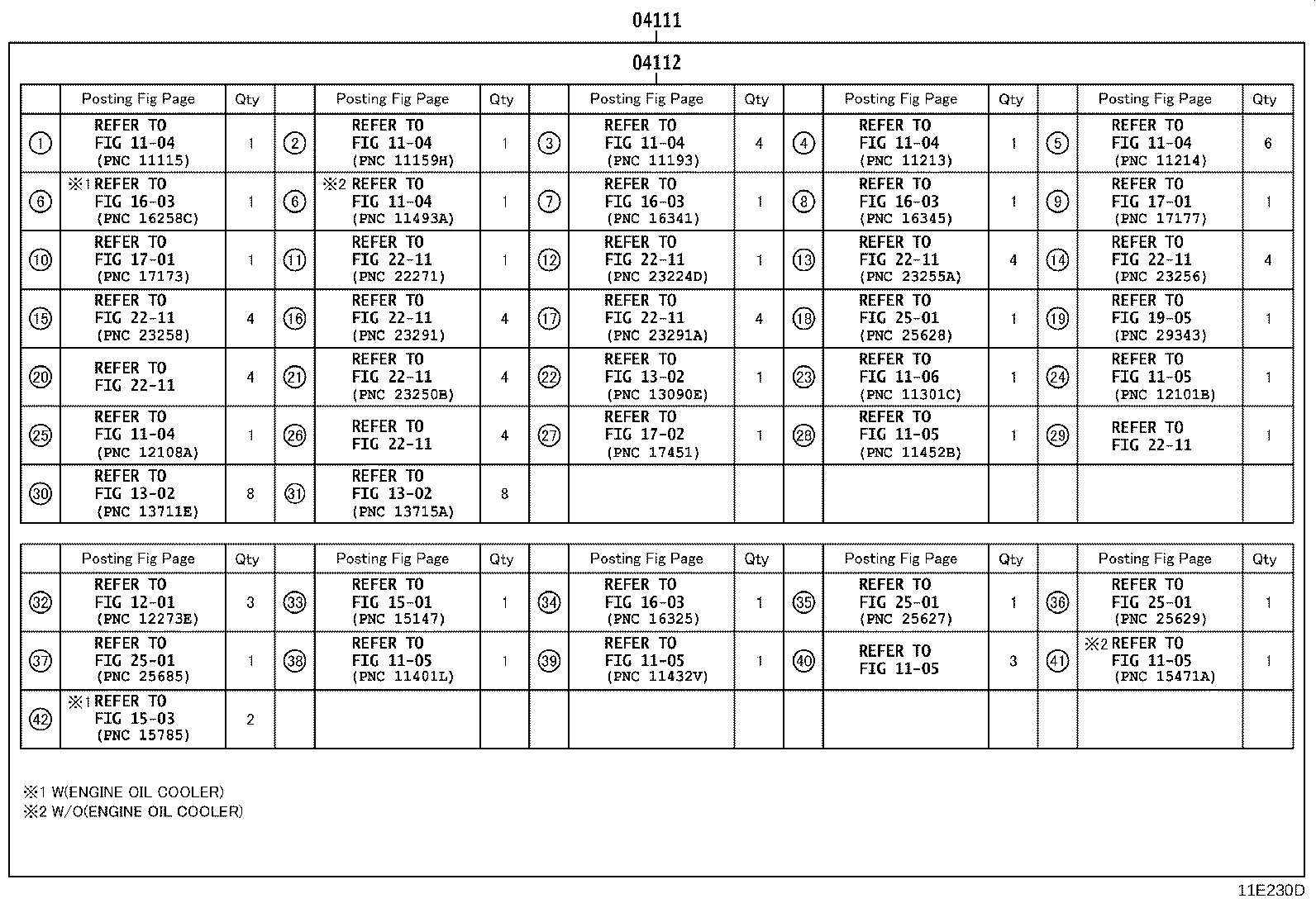

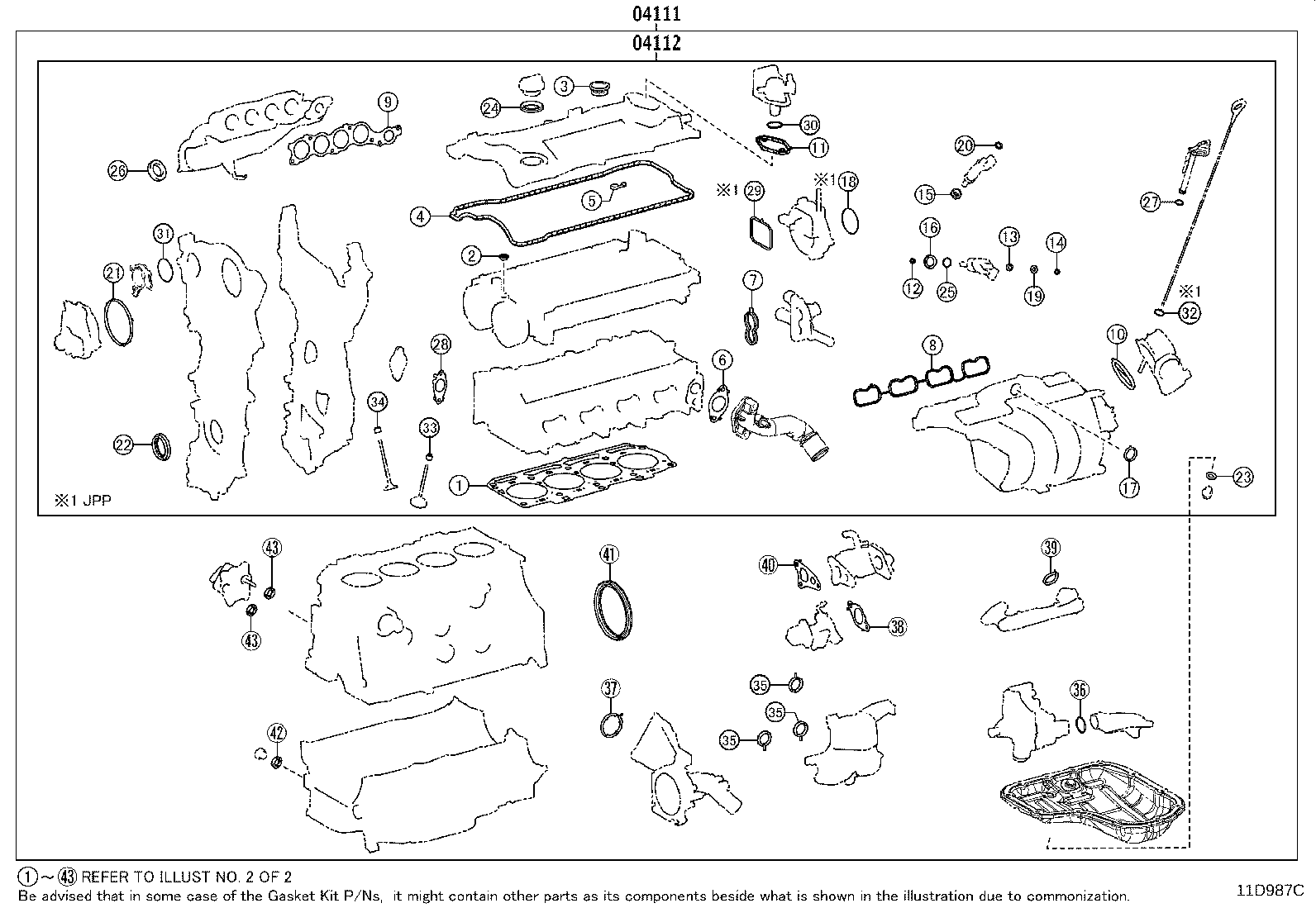

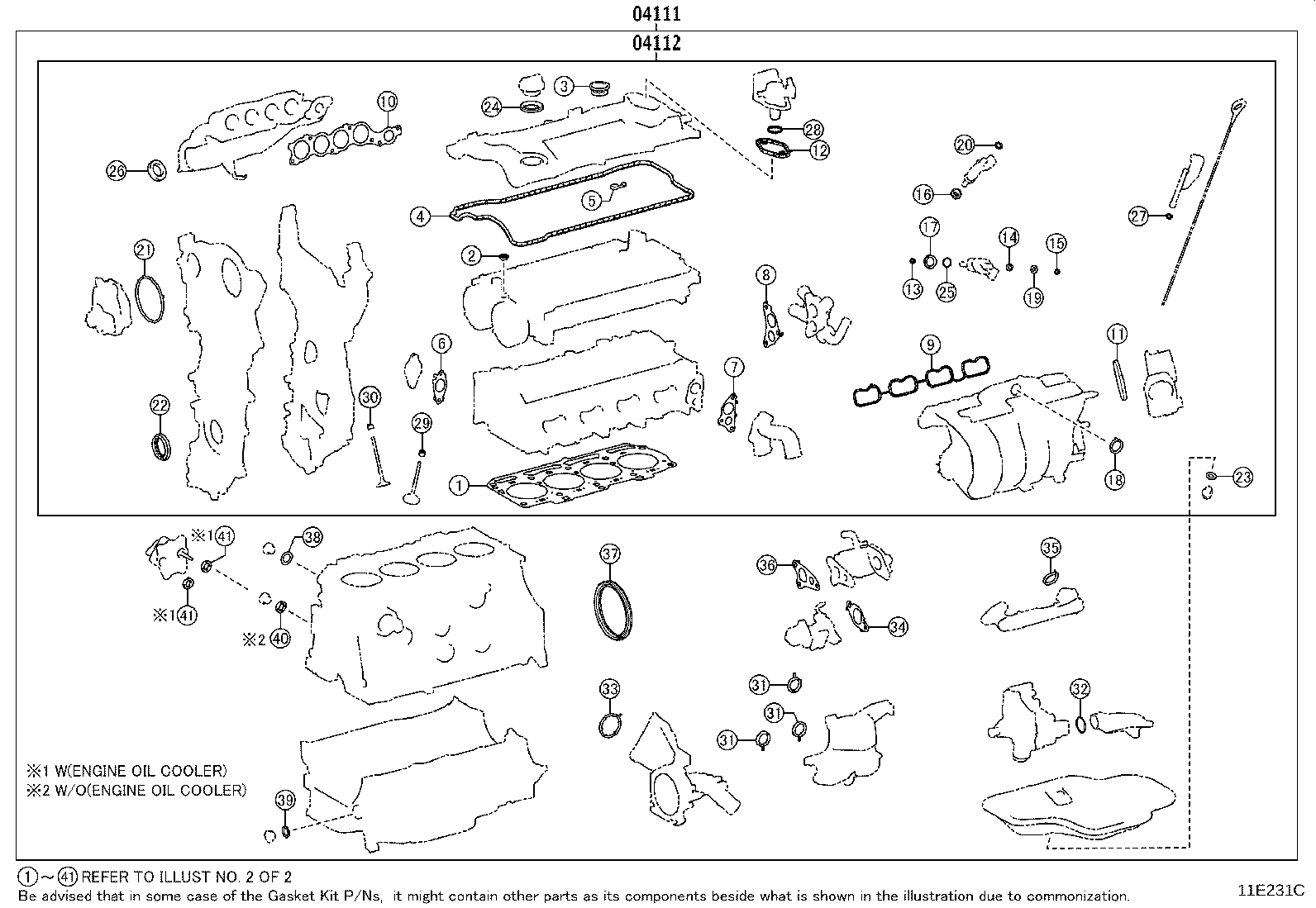

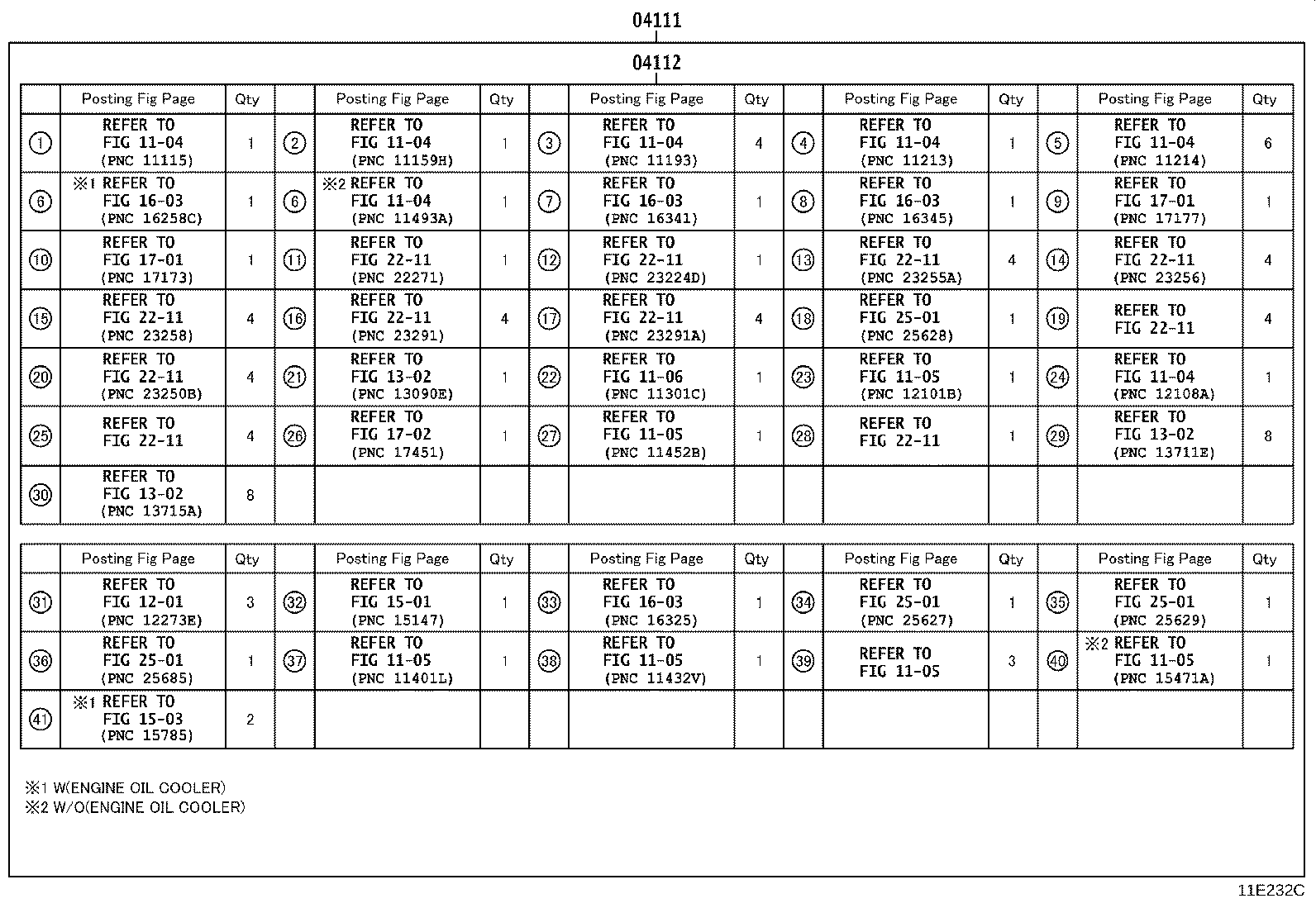

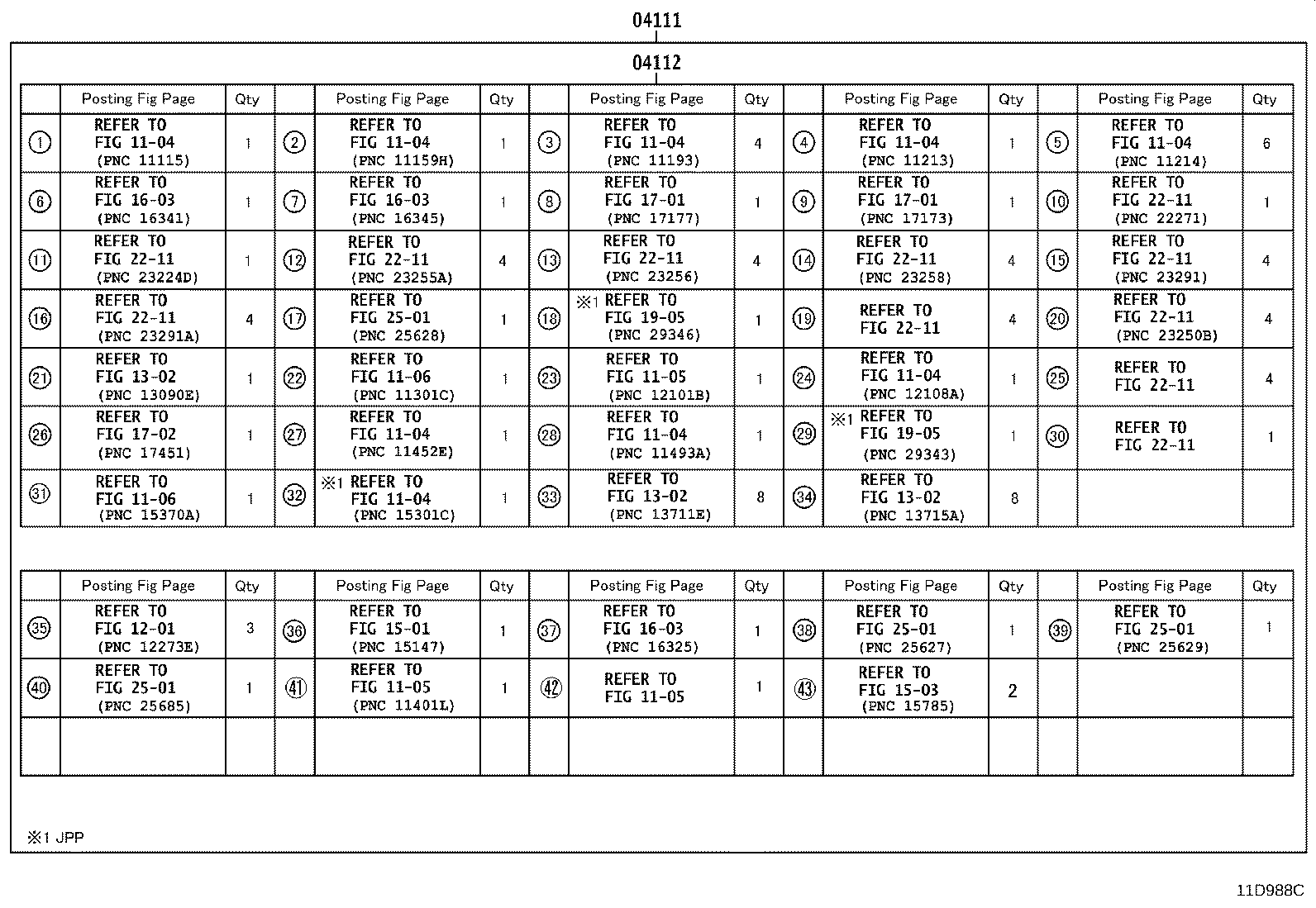

Figure 11E229B 11E229B 2018-11 → — Figure 11E231C 11E231C 2018-11 → — Figure 11E230D 11E230D 2018-11 → — Figure 11E232C 11E232C 2018-11 → — Figure 11D987C 11D987C 2018-11 → — Figure 11D988C 11D988C 2018-11 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
