Toyota RAV4 (JPP)
2018-11 → present · chassis AXAA5#,AXAH5#,AXAL5#,MXAA5# · catalogue 662250 · Europe
Supported model
Data version 2023-10
Cylinder Head

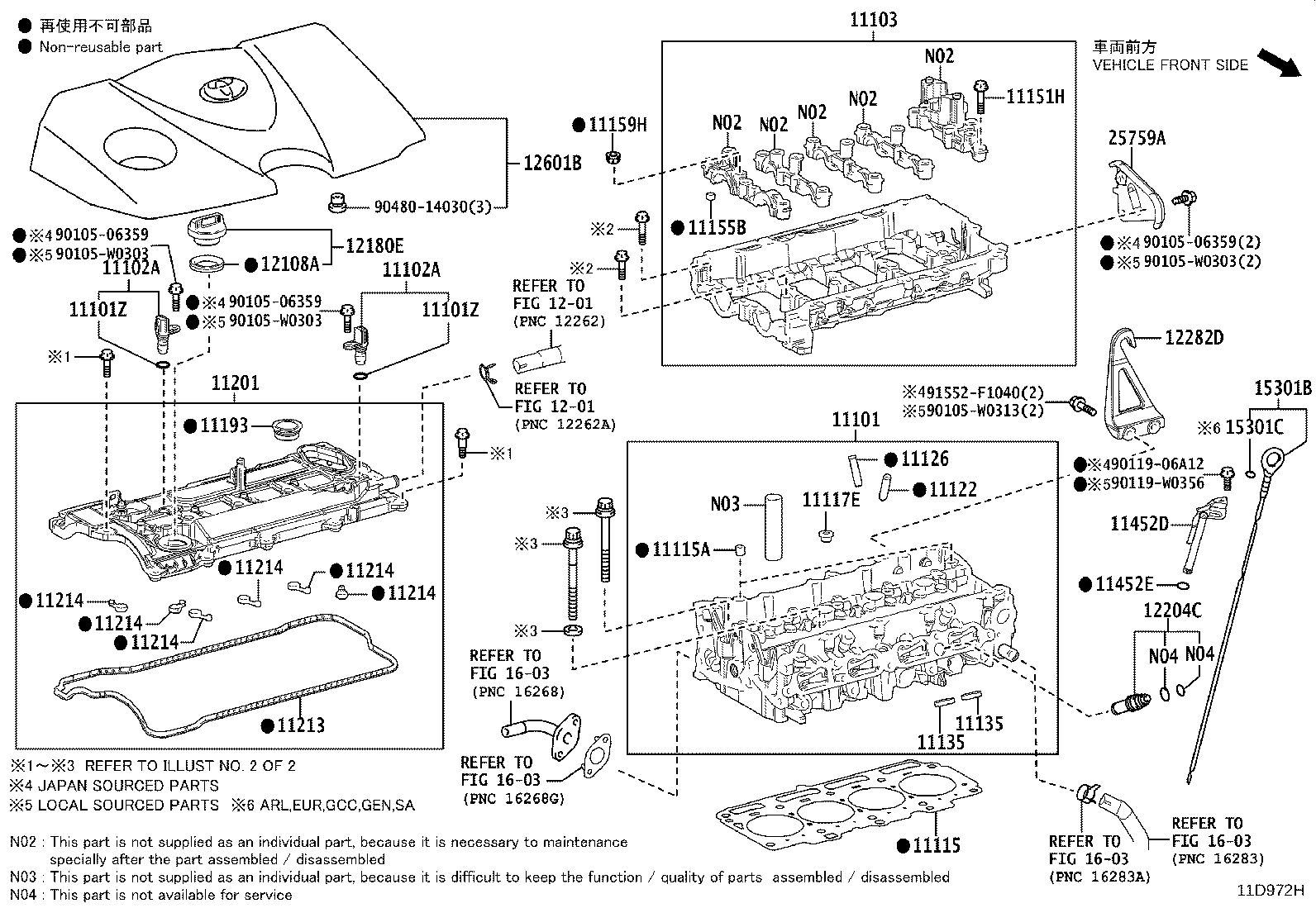

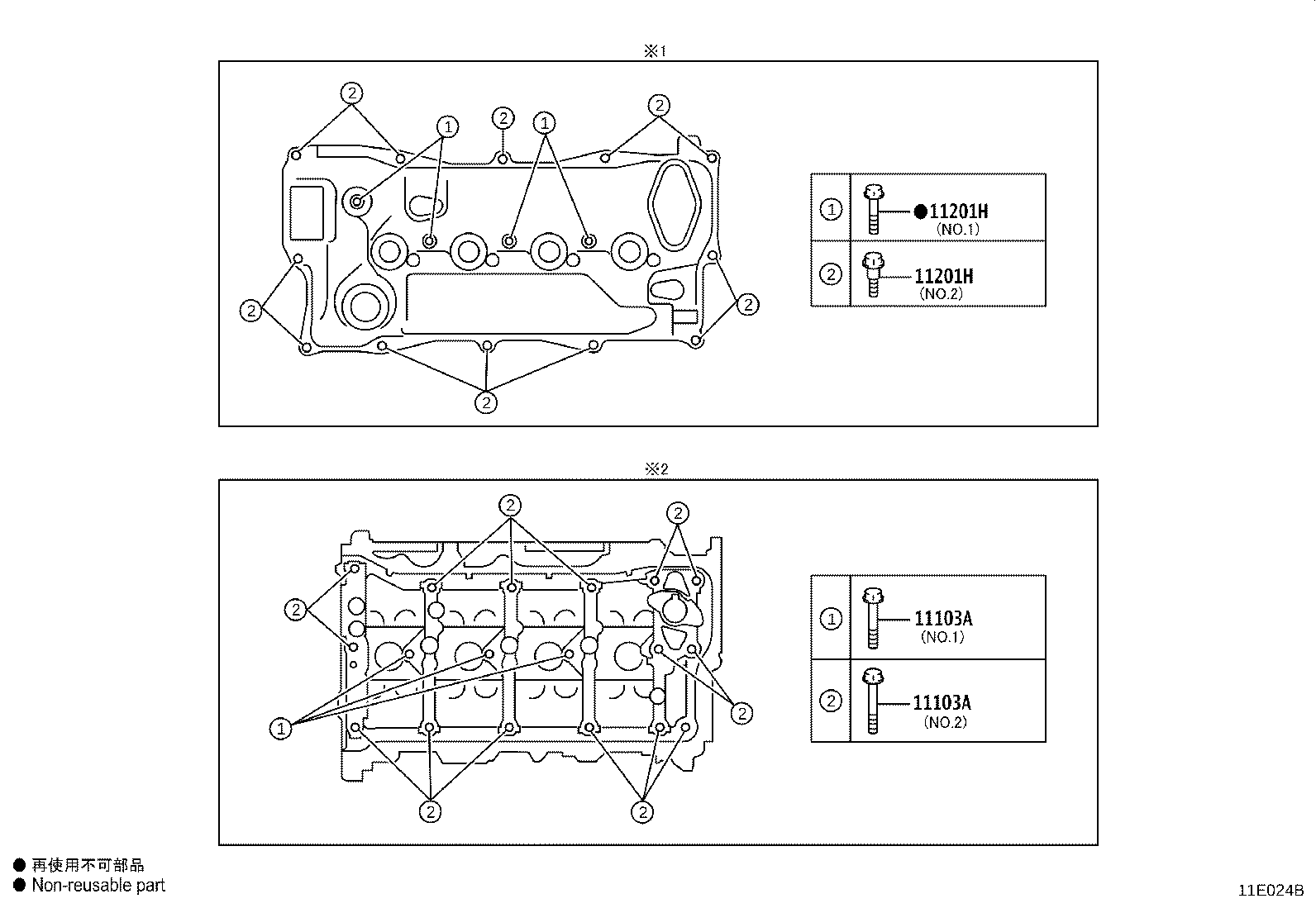

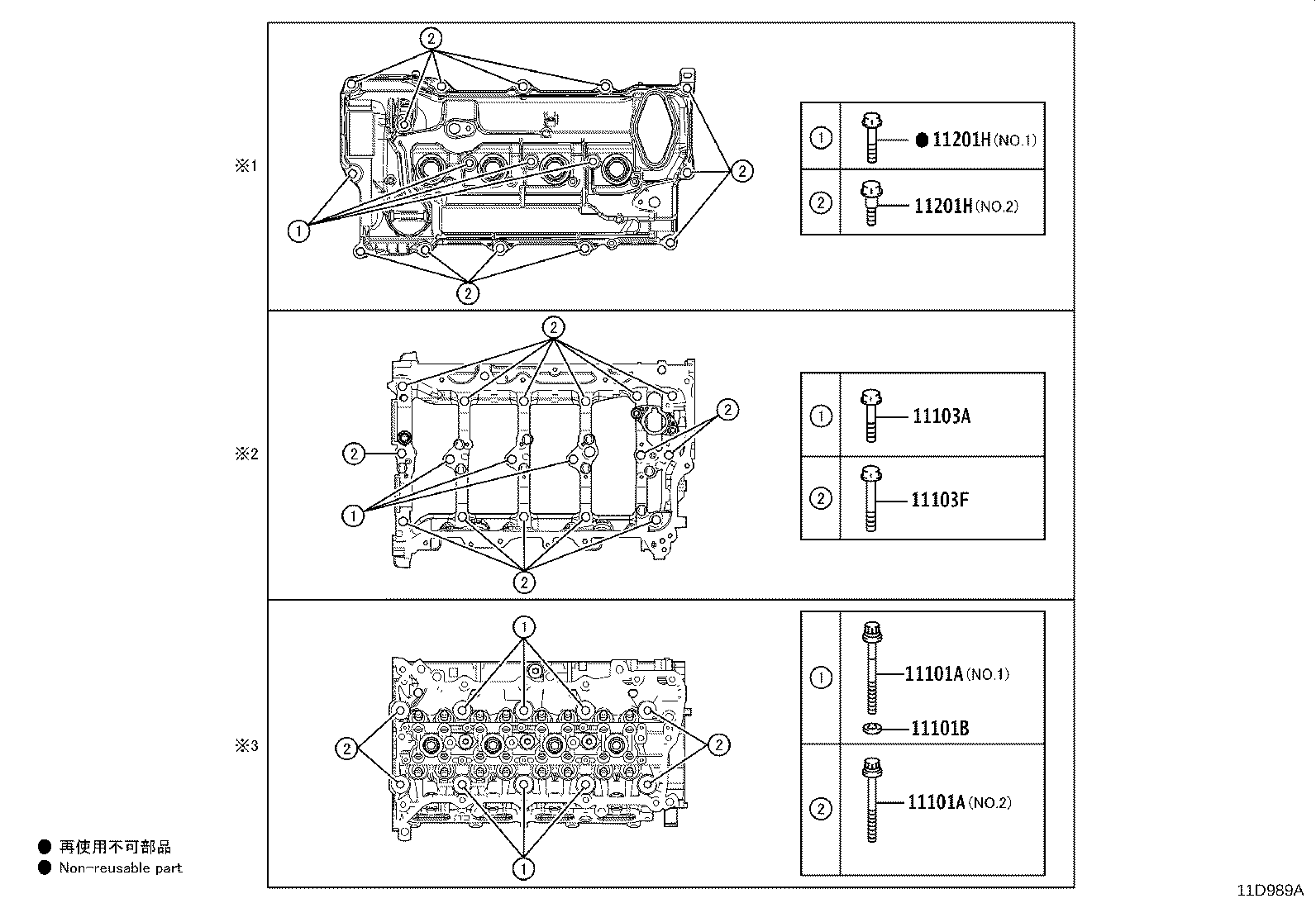

36 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11101 | Head Sub-assy, Cylinder |
| 11101A | Bolt(FOR CYLINDER HEAD SET) |
| 11101B | Washer, Plate(FOR CYLINDER HEAD SET) |
| 11101Z | O Ring, Cam Position Sensor |
| 11102A | Sensor, Camshaft Position |
| 11103 | Housing Sub-assy, Camshaft |
| 11103A | Bolt(FOR CAMSHAFT HOUSING SET) |
| 11103F | Bolt(FOR CAMSHAFT HOUSING SET) |
| 11115 | Gasket, Cylinder Head |
| 11115A | Pin, Ring |
| 11117E | Plug, W/Head Straight Screw, NO.1 |
| 11117G | Plug, W/Head Straight Screw, NO.3 |
| 11122 | Bush, Intake Valve Guide |
| 11126 | Bush, Exhaust Valve Guide |
| 11135 | Seat, Exhaust Valve |
| 11151H | Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING) |
| 11155B | Pin, Ring |
| 11159H | Gasket, Camshaft Bearing Cap Oil Hole |
| 11193 | Gasket, Spark Plug Tube |
| 11201 | Cover Sub-assy, Cylinder Head |
| 11201H | Bolt(FOR CYLINDER HEAD COVER) |
| 11213 | Gasket, Cylinder Head Cover |
| 11214 | Gasket, Cylinder Head Cover, NO.2 |
| 11452D | Guide, Oil Level Gage |
| 11452E | Ring, O(FOR OIL LEVEL GAGE GUIDE) |
| 11492B | Plate, Water Seal |
| 11493A | Gasket, Water Seal Plate |
| 12108 | Cap Sub-assy, Oil Filler |
| 12108A | Gasket(FOR OIL FILLER CAP) |
| 12180E | Cap Assy, Oil Filler |
| 12204C | Valve Sub-assy, Ventilation |
| 12282D | Hanger, Engine, NO.2 |
| 12601B | Cover Sub-assy, Engine, NO.1 |
| 15301B | Gage Sub-assy, Oil Level |
| 15301C | Ring, O(FOR OIL LEVEL GAGE) |
| 25759A | Bracket, Vacuum Surge Tank |
