Toyota RAV4 (JPP)

2018-11 → present · chassis AXAA5#,AXAH5#,AXAL5#,MXAA5# · catalogue 662250 · Europe

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

10 part groups · 5 illustrations

Illustrations

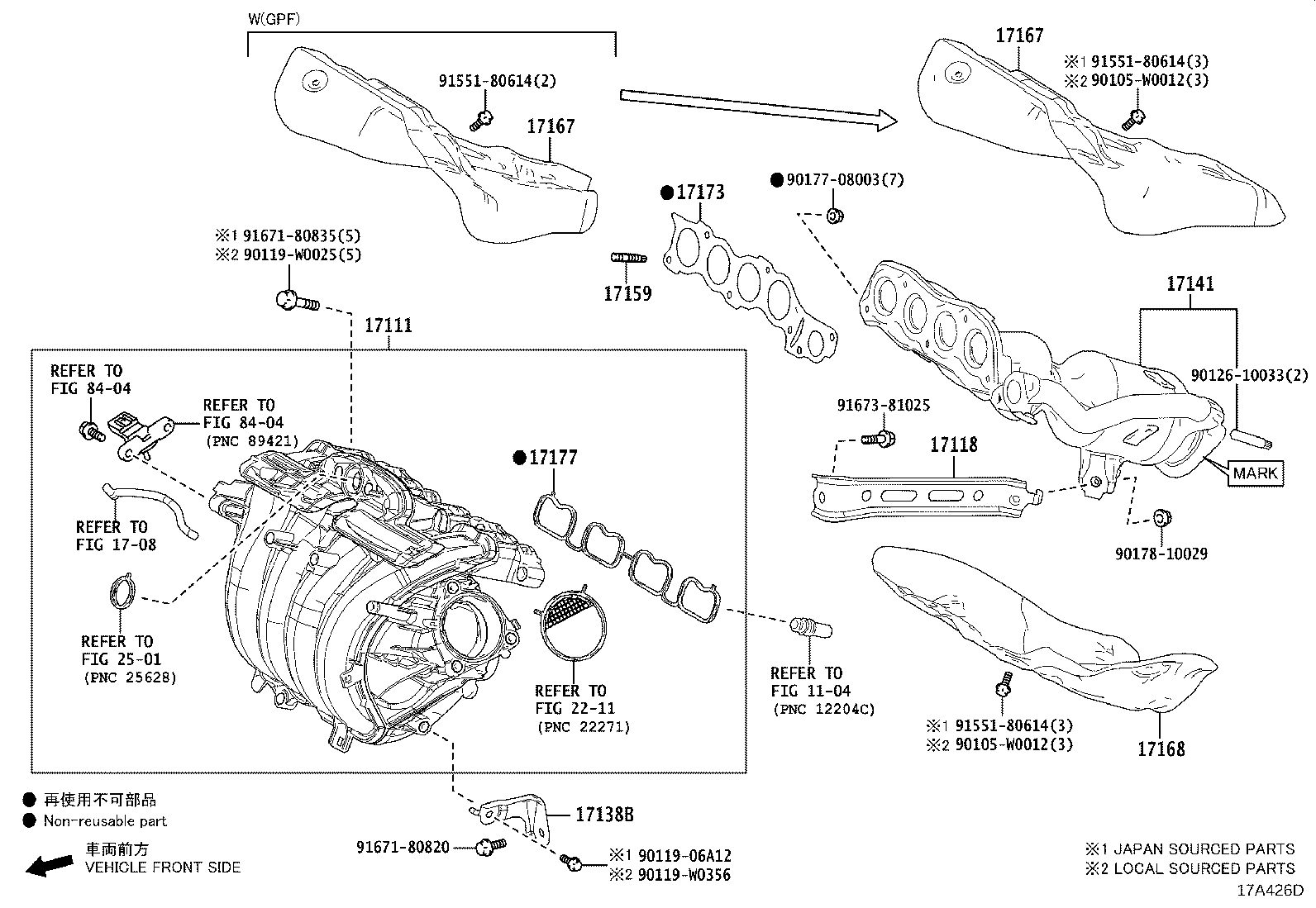

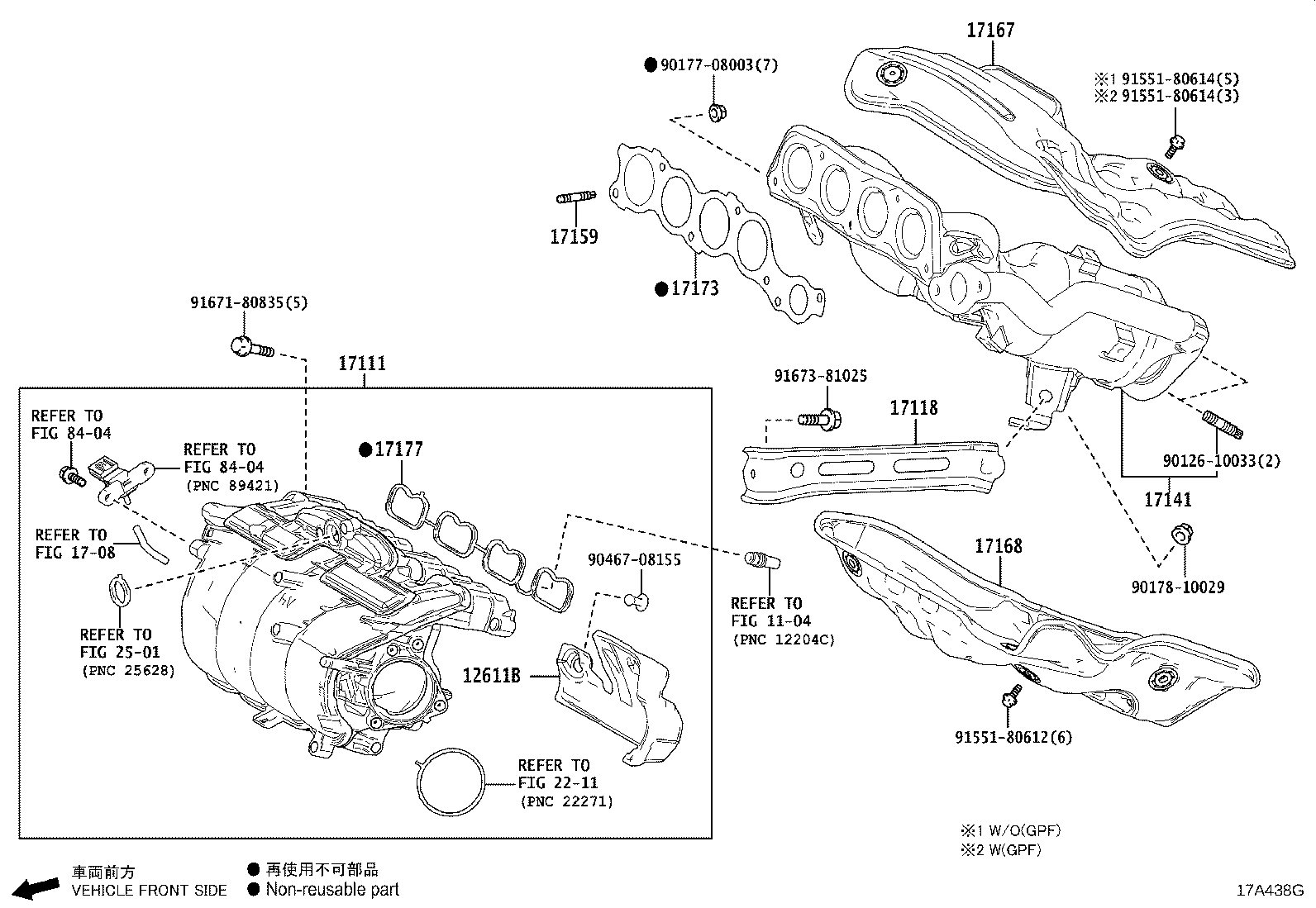

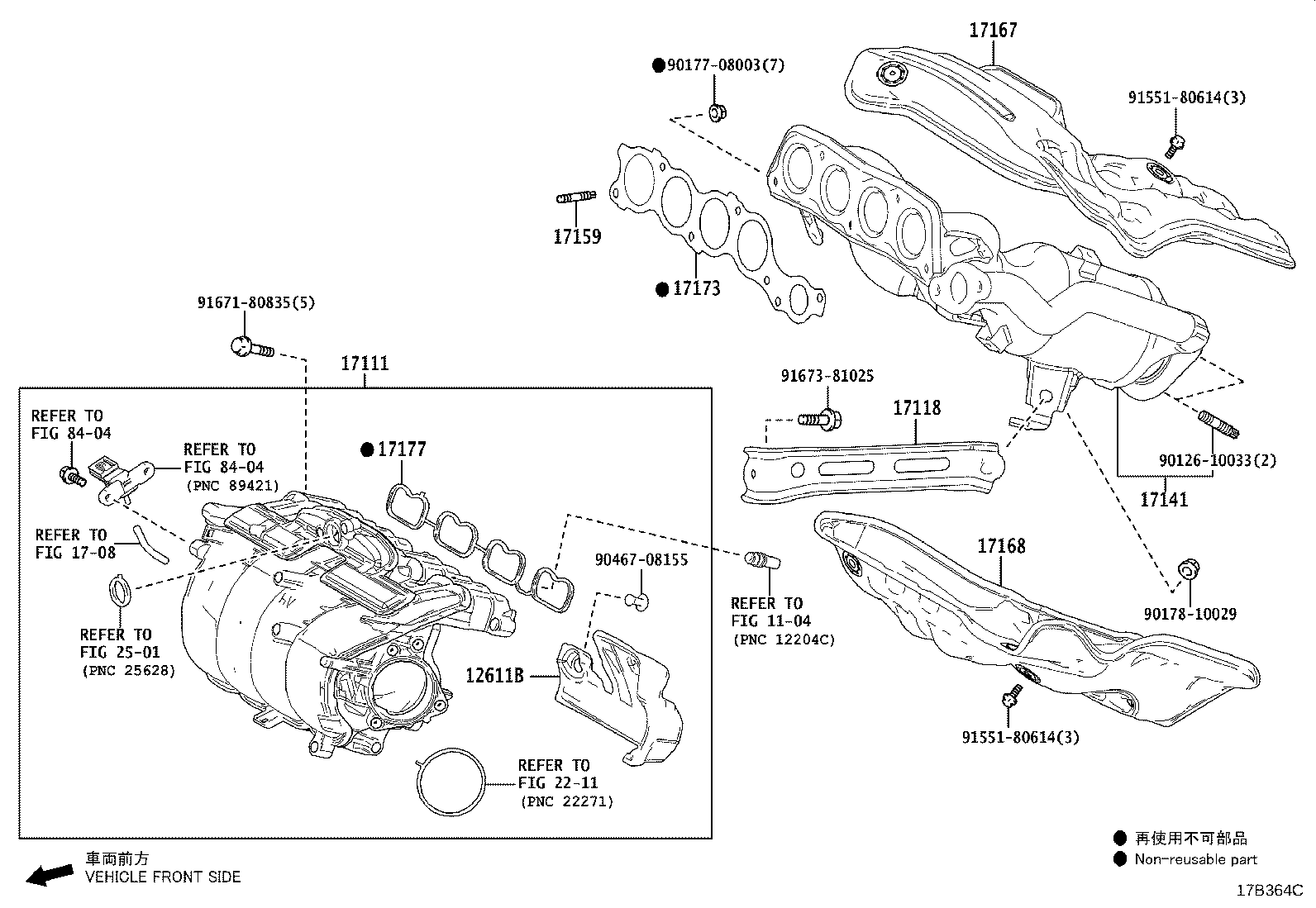

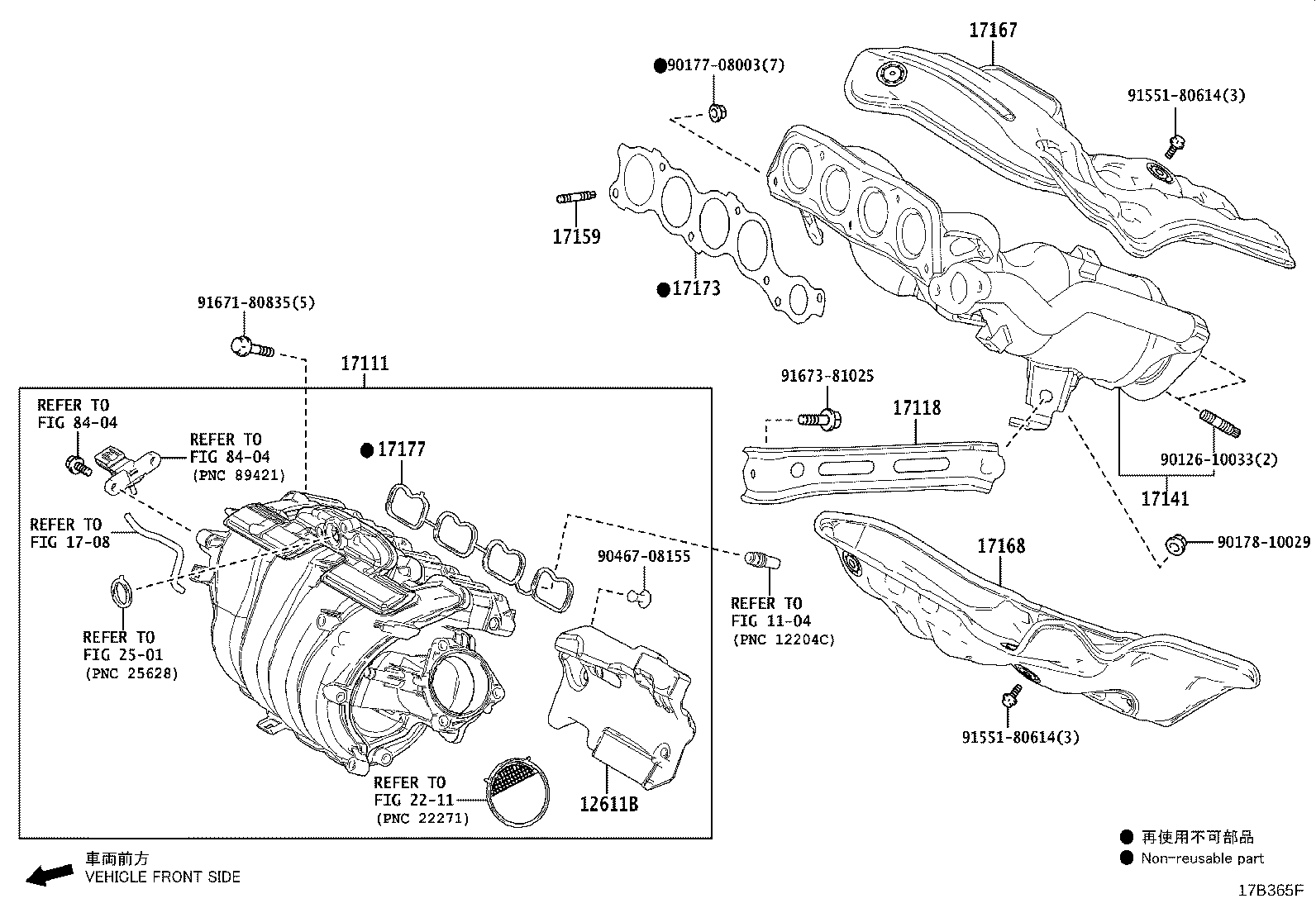

Figure 17A437C 17A437C 2018-11 → 2020-07 Figure 17B365F 17B365F 2020-07 → — Figure 17A438G 17A438G 2018-11 → 2020-07 Figure 17B364C 17B364C 2020-08 → — Figure 17A426D 17A426D 2018-11 → —

Part groups

PNCDescription
12611B Cover, Engine, NO.1
17111 Manifold, Intake
17118 Stay, Manifold
17138B Stay, Intake Manifold
17141 Manifold, Exhaust
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
