Exhaust Pipe

12 part groups · 7 illustrations

Illustrations

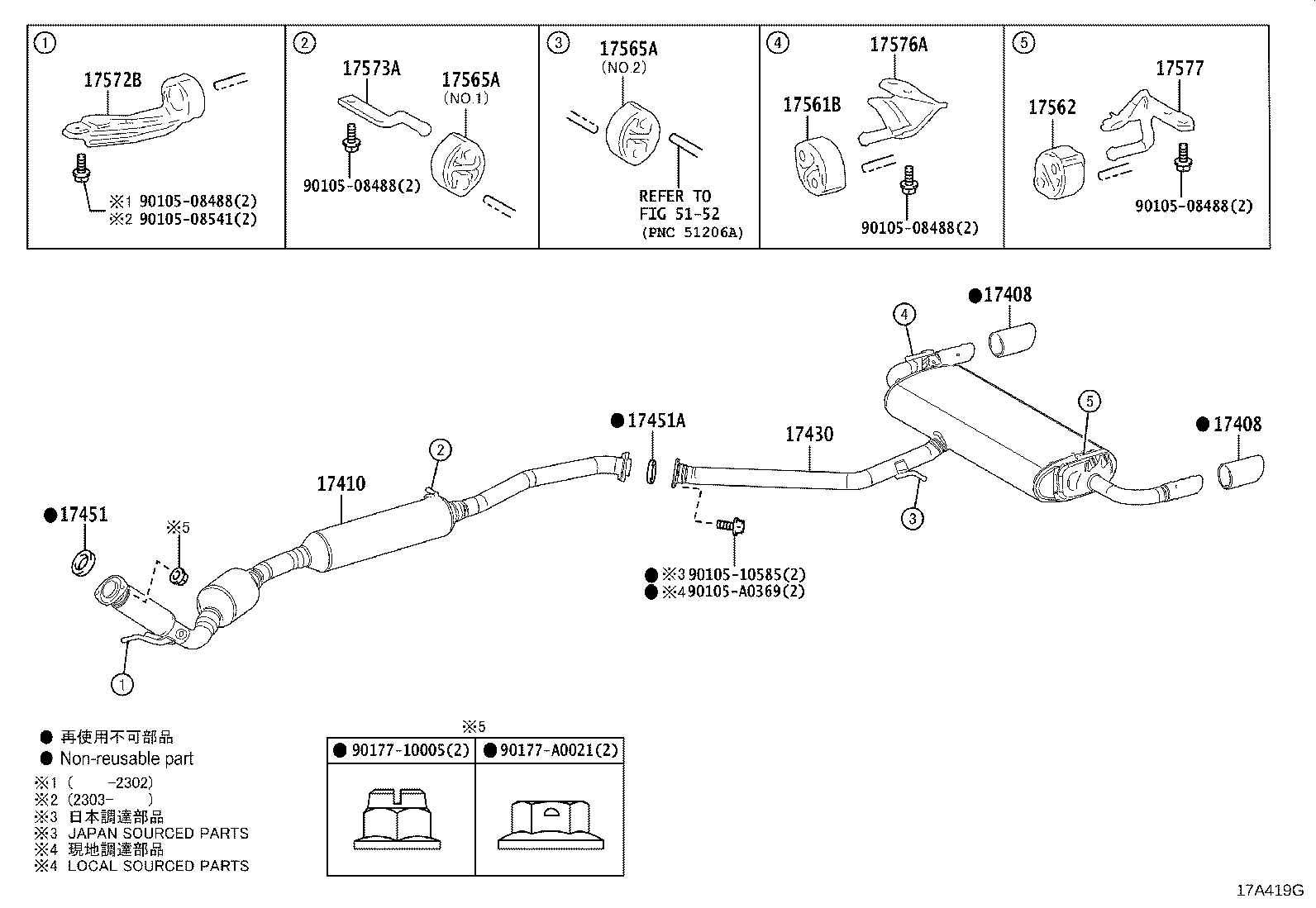

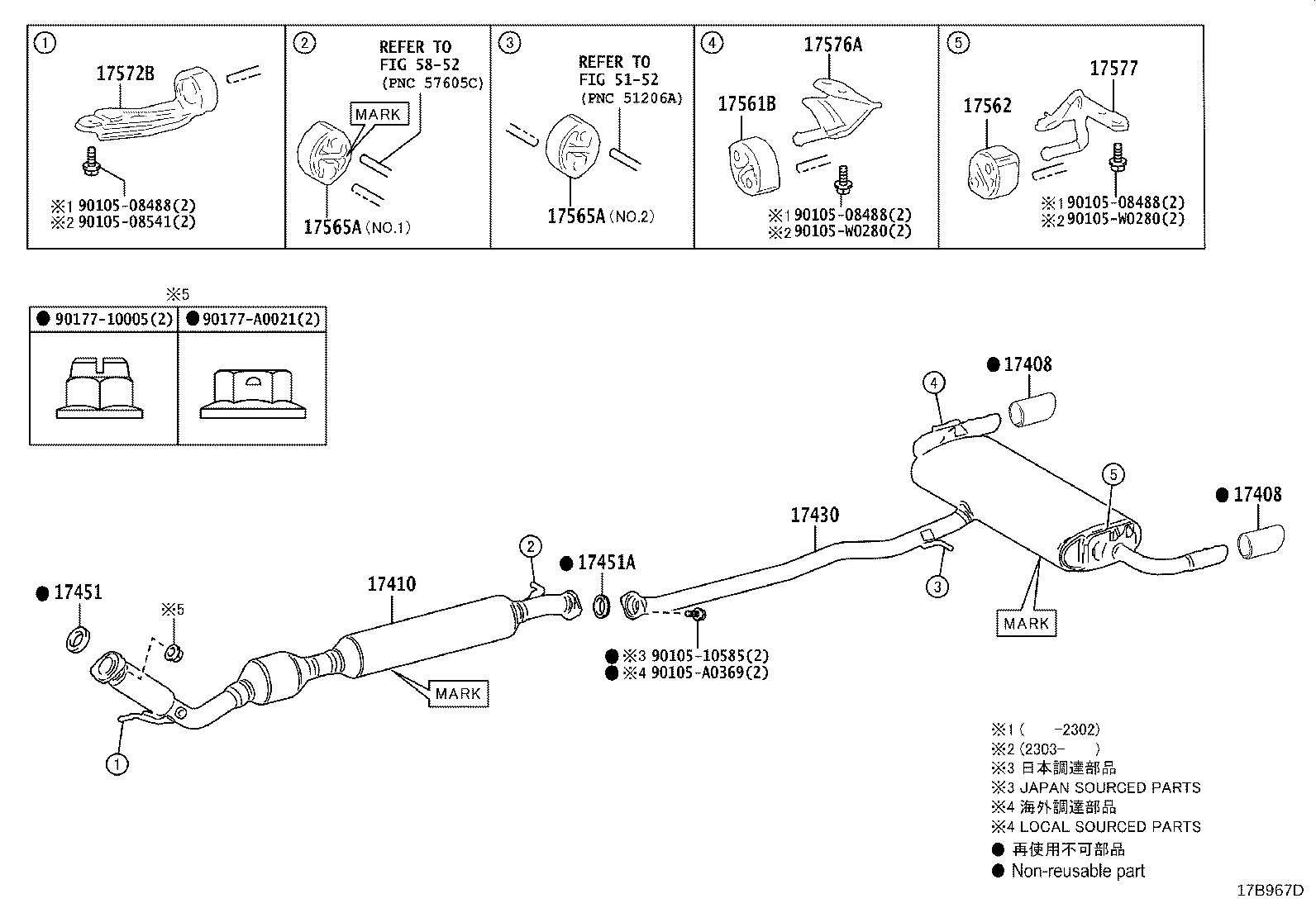

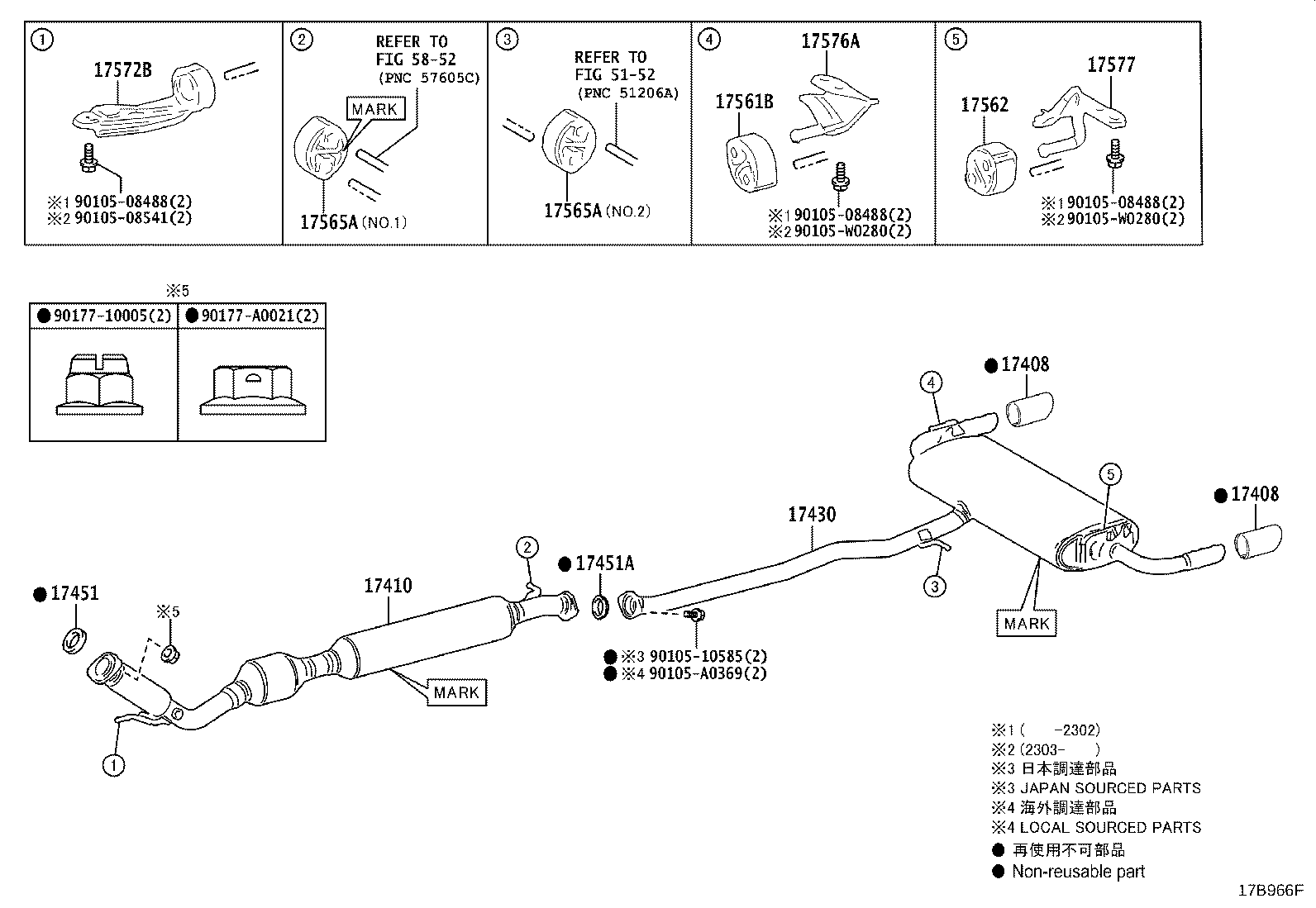

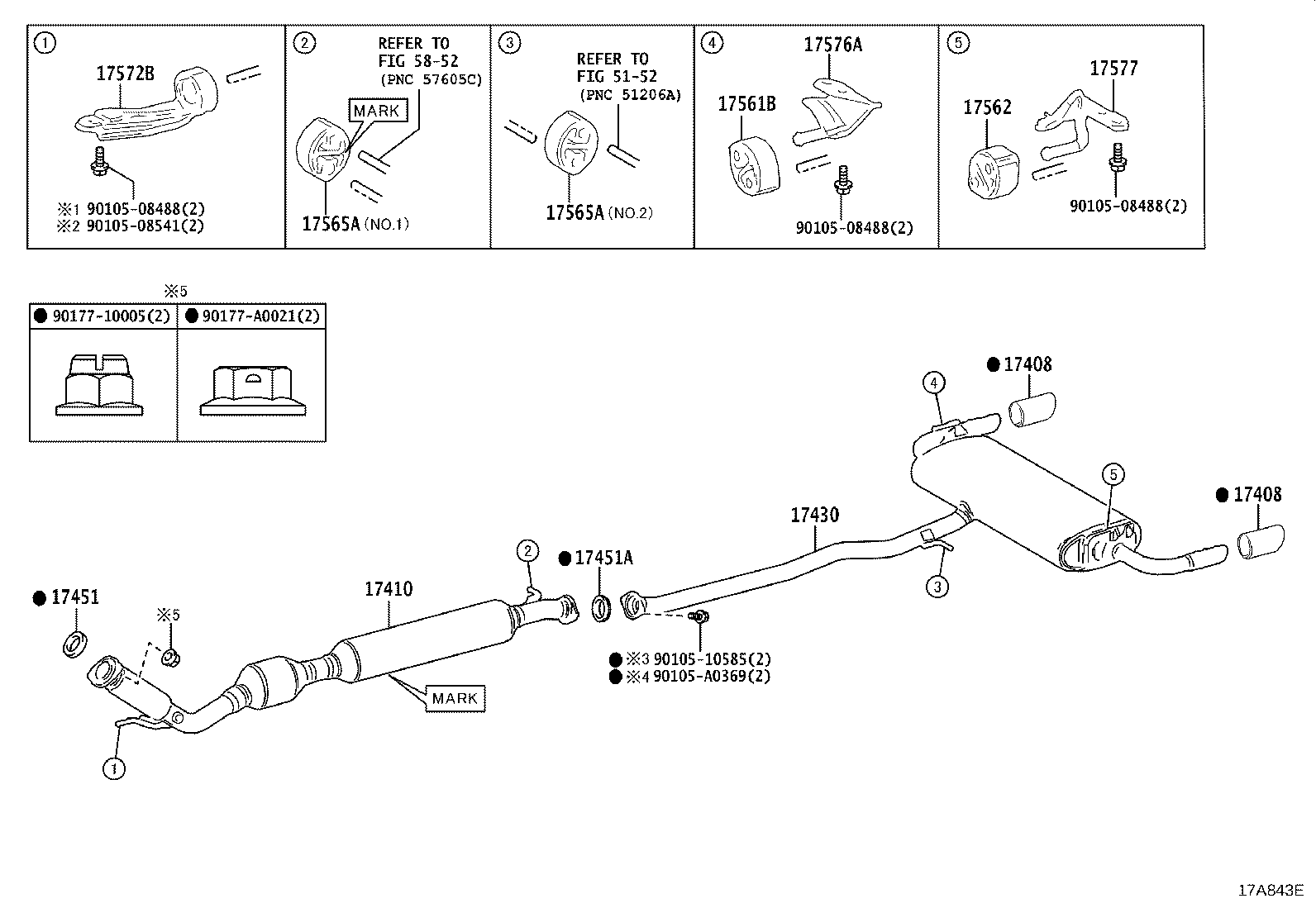

Figure 17A430F 17A430F 2018-11 → 2021-09 Figure 17A430F 17A430F 2018-11 → — Figure 17B966F 17B966F 2021-09 → — Figure 17A419G 17A419G 2018-11 → — Figure 17A843E 17A843E 2018-11 → 2021-09 Figure 17A843E 17A843E 2018-11 → — Figure 17B967D 17B967D 2021-09 → —

Part groups

PNCDescription
17408 Baffle Sub Assy, Exhaust Tailpipe
17410 Pipe Assy, Exhaust, Front
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17561B Support, Exhaust Pipe, NO.1
17562 Support, Exhaust Pipe, NO.2
17565A Support, Exhaust Pipe, NO.4
17572B Bracket, Exhaust Pipe Support, NO.2
17573A Bracket, Exhaust Pipe Support, NO.3
17576A Bracket, Exhaust Pipe Support, NO.6
17577 Bracket, Exhaust Pipe Support, NO.7
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
