Toyota RAV4 (JPP)

2018-11 → present · chassis AXAA5#,AXAH5#,AXAL5#,MXAA5# · catalogue 662250 · Europe

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

12 part groups · 5 illustrations

Illustrations

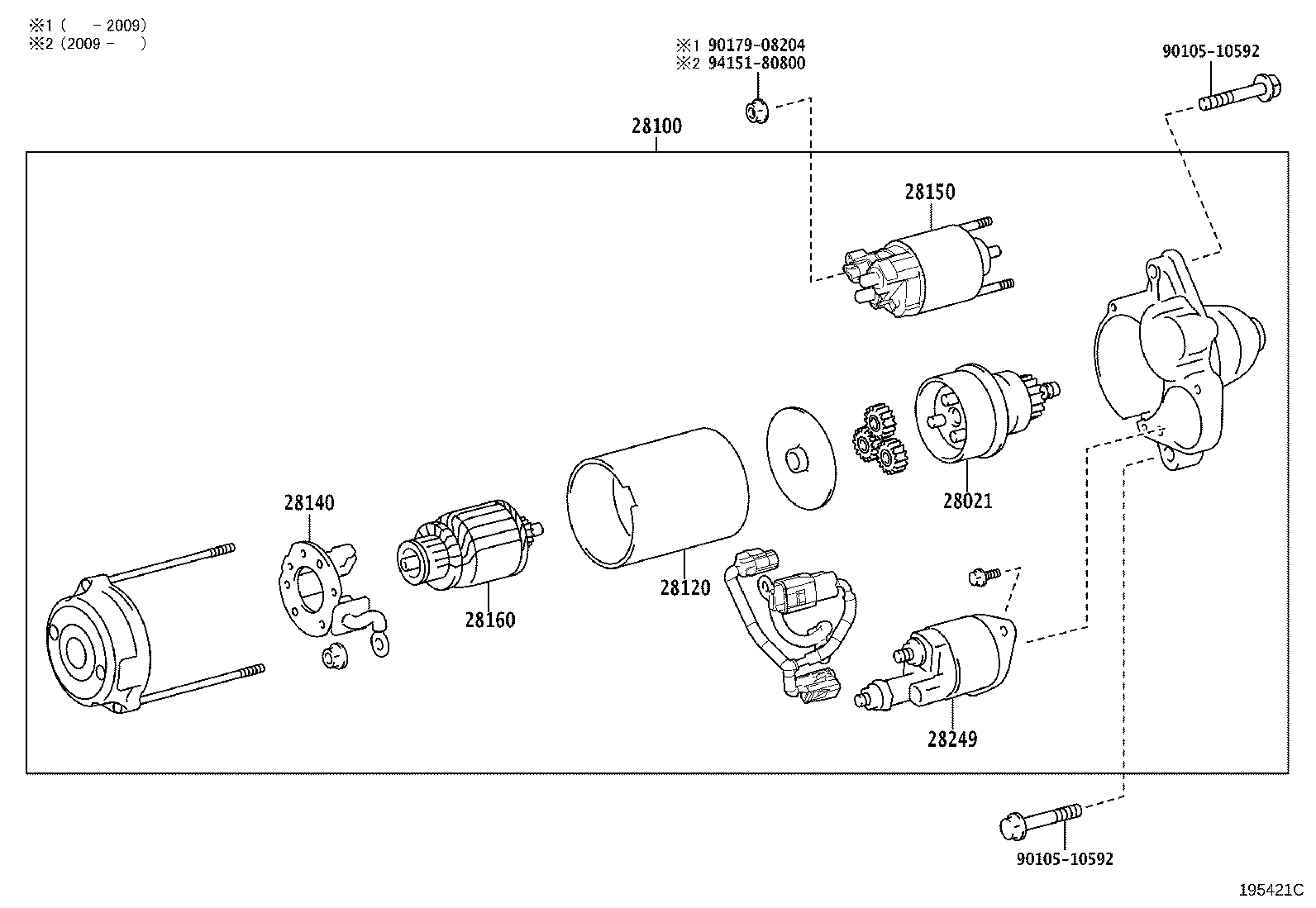

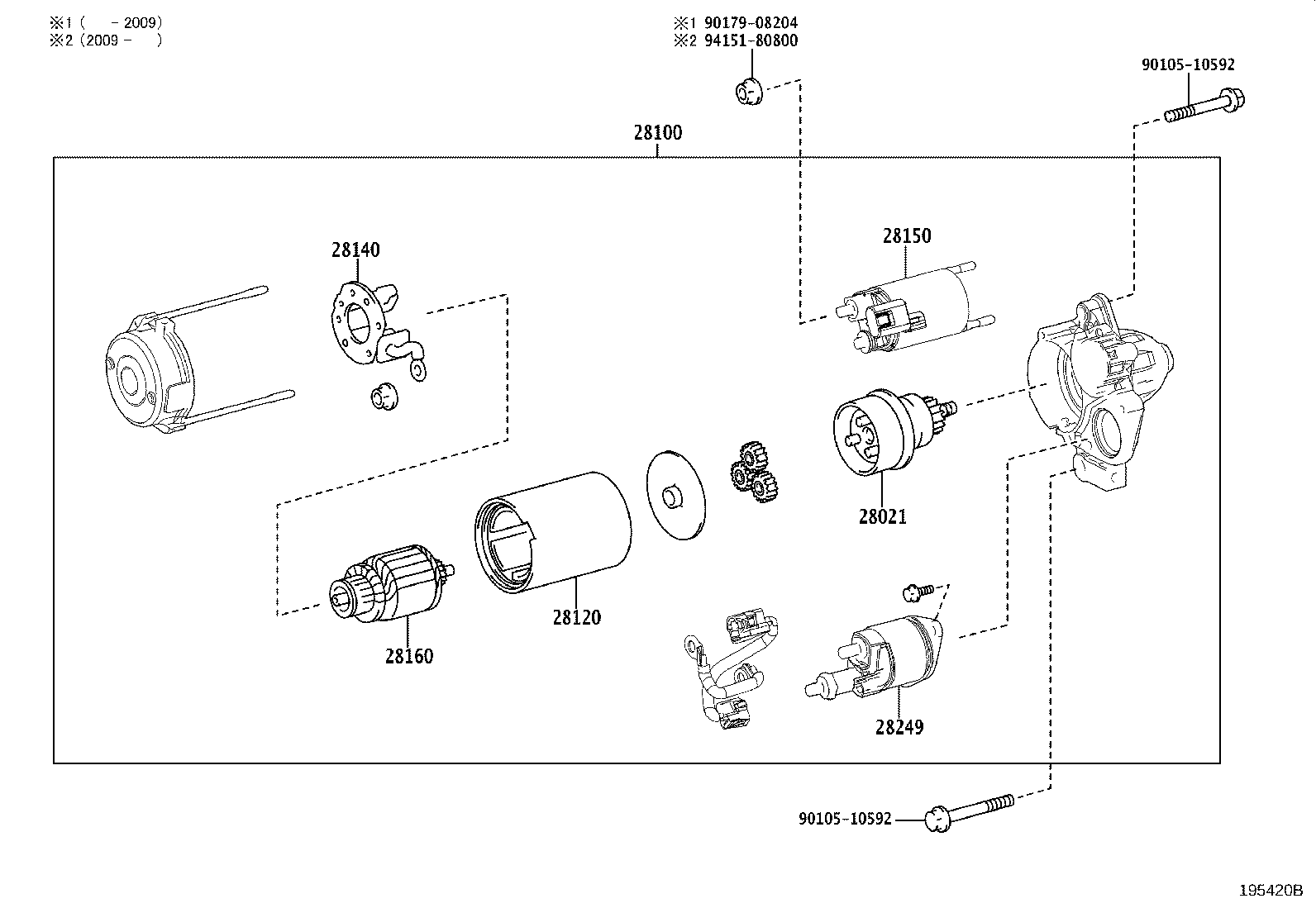

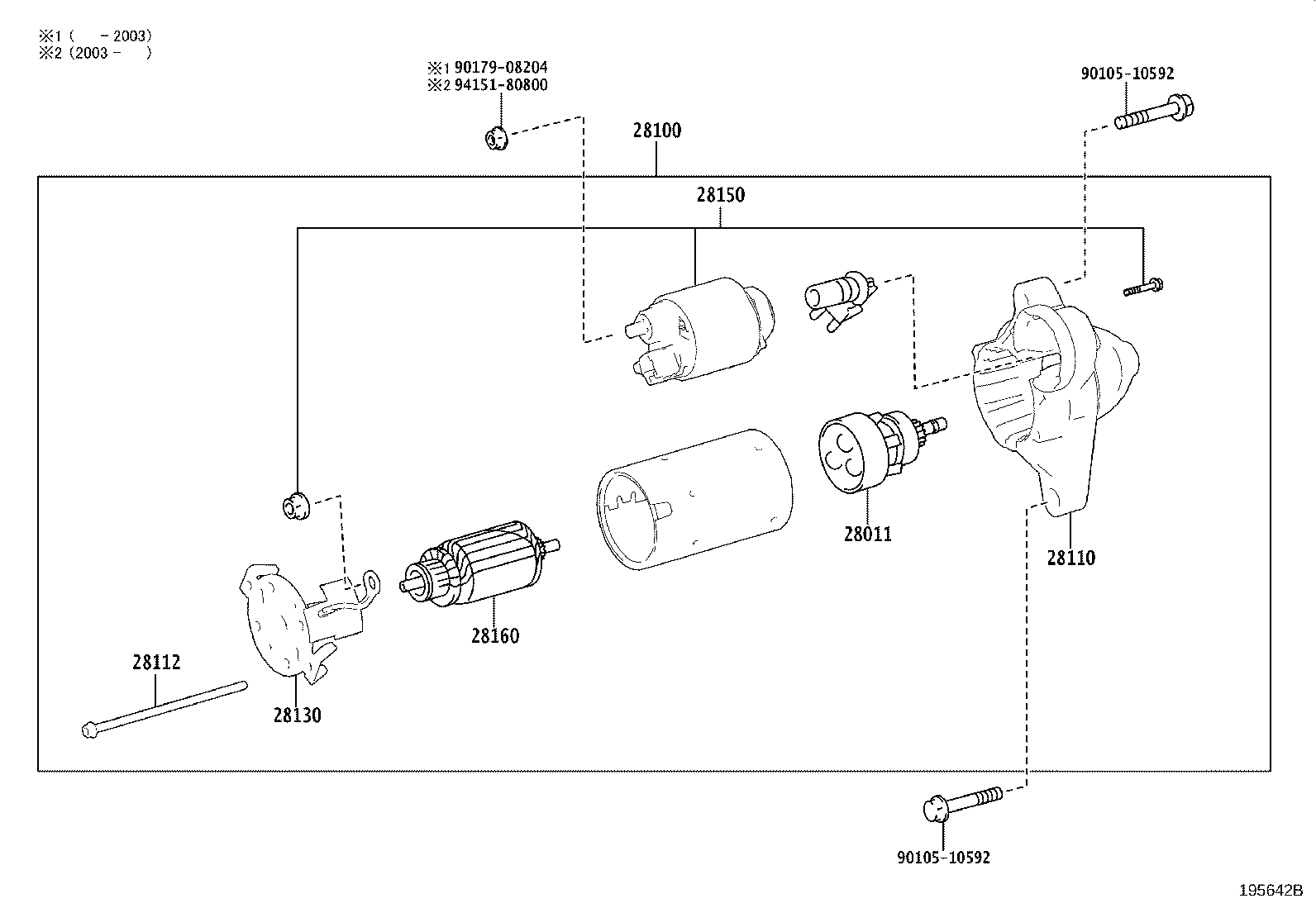

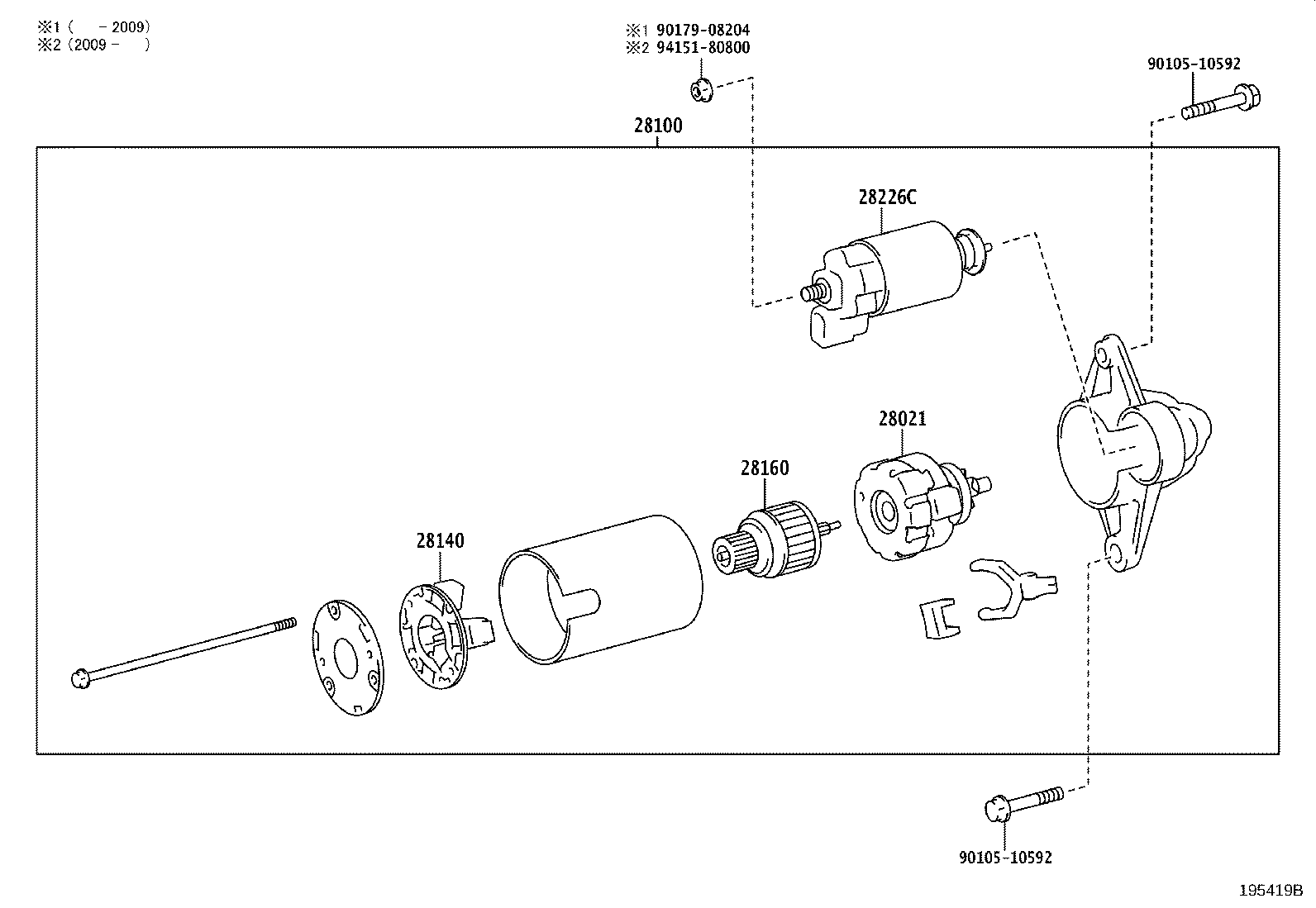

Figure 195418B 195418B 2018-11 → — Figure 195419B 195419B 2018-11 → — Figure 195420B 195420B 2018-11 → — Figure 195421C 195421C 2018-11 → — Figure 195642B 195642B 2019-10 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28021 Clutch Sub-assy, Starter Center Bearing
28100 Starter Assy
28110 Housing Assy, Starter Drive
28112 Bolt, Housing Set
28120 Yoke Assy, Starter
28130 Frame Assy, Starter Commutator End
28140 Holder Assy, Starter Brush
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28226C Starter Kit, Repair Service, NO.2
28249 Relay, Starter Inrush Current Reduction
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
