Toyota RAV4 (JPP)
2018-11 → present · chassis AXAA5#,AXAH5#,AXAL5#,MXAA5# · catalogue 662250 · Europe
Supported model
Data version 2023-10

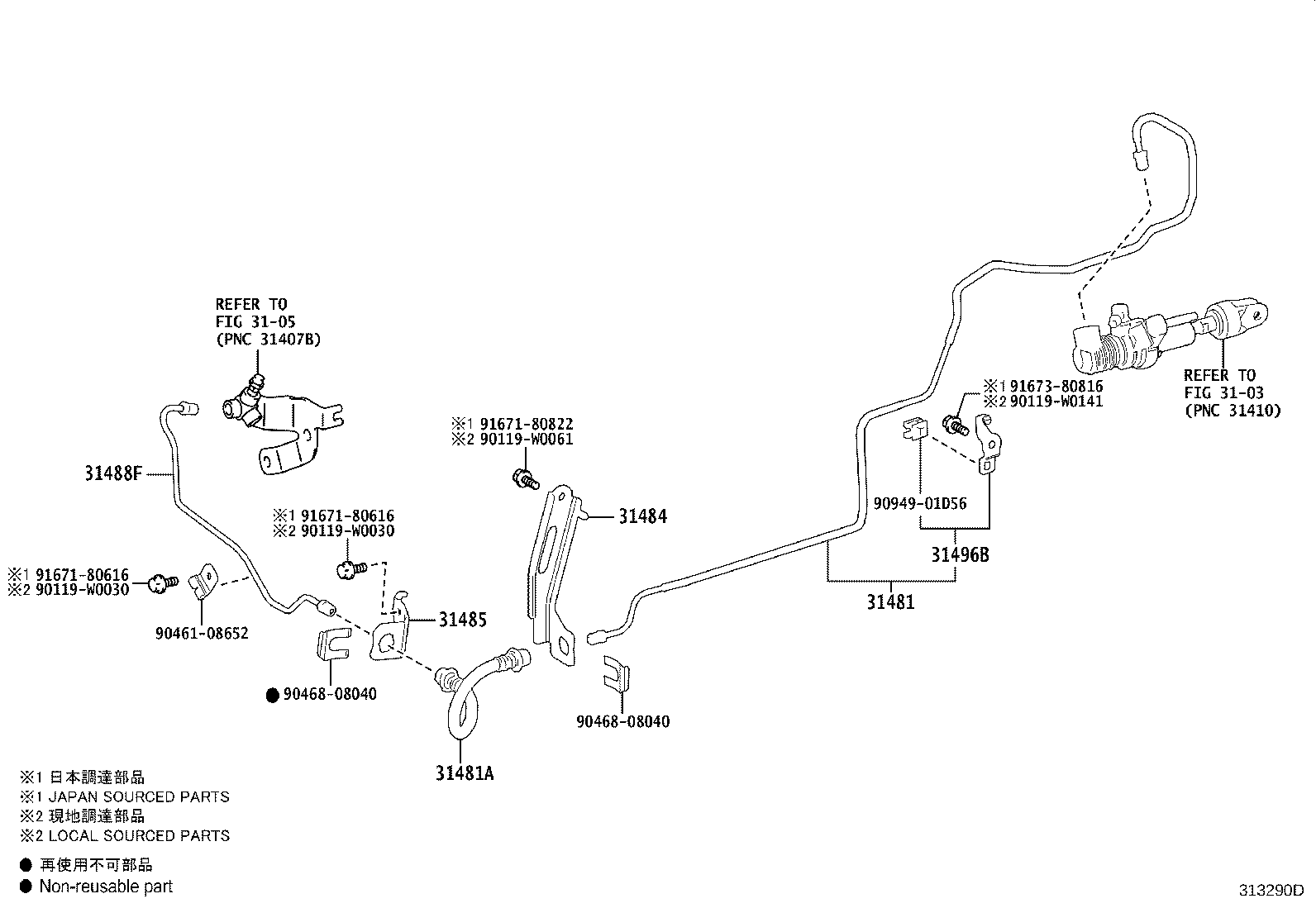

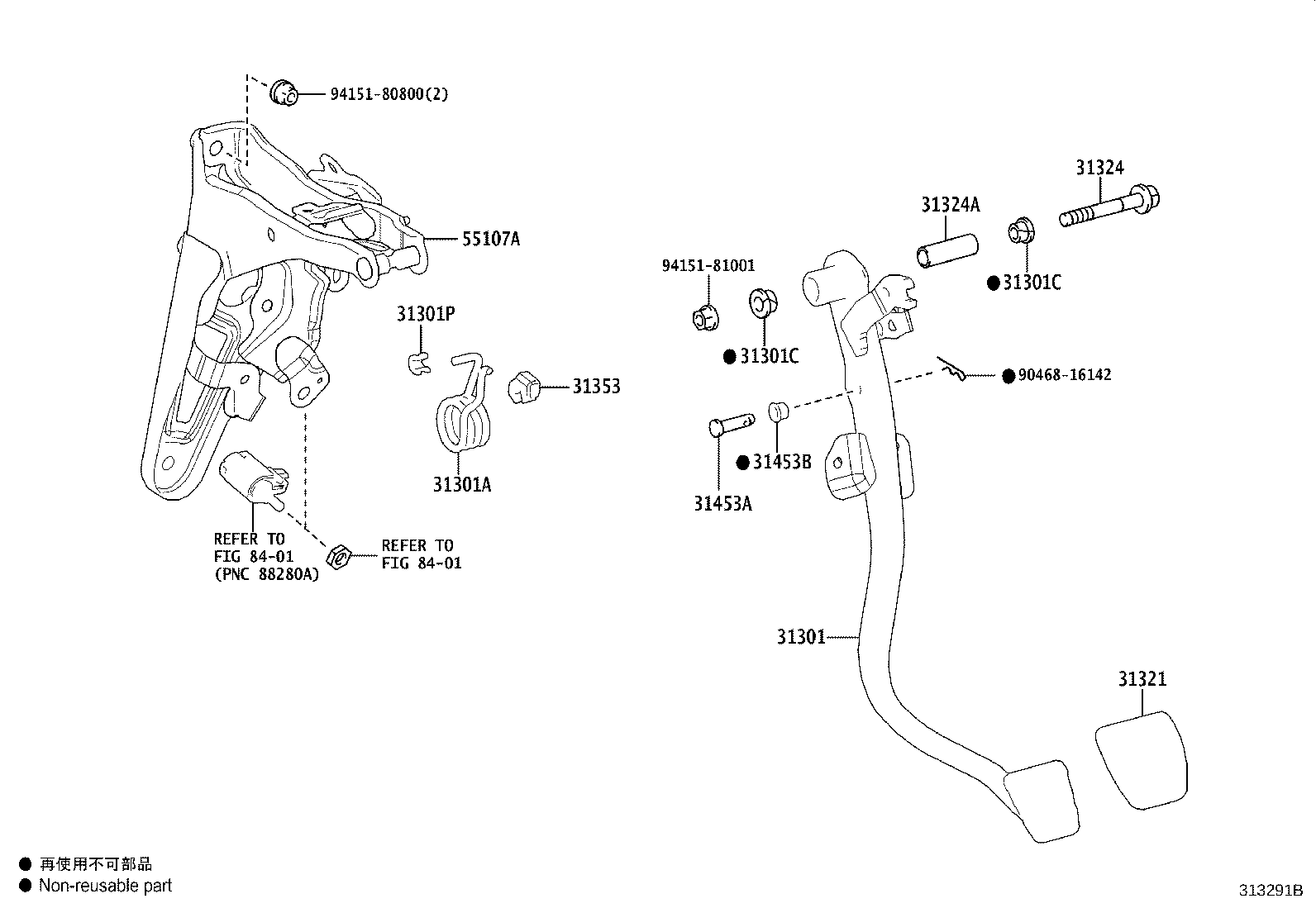

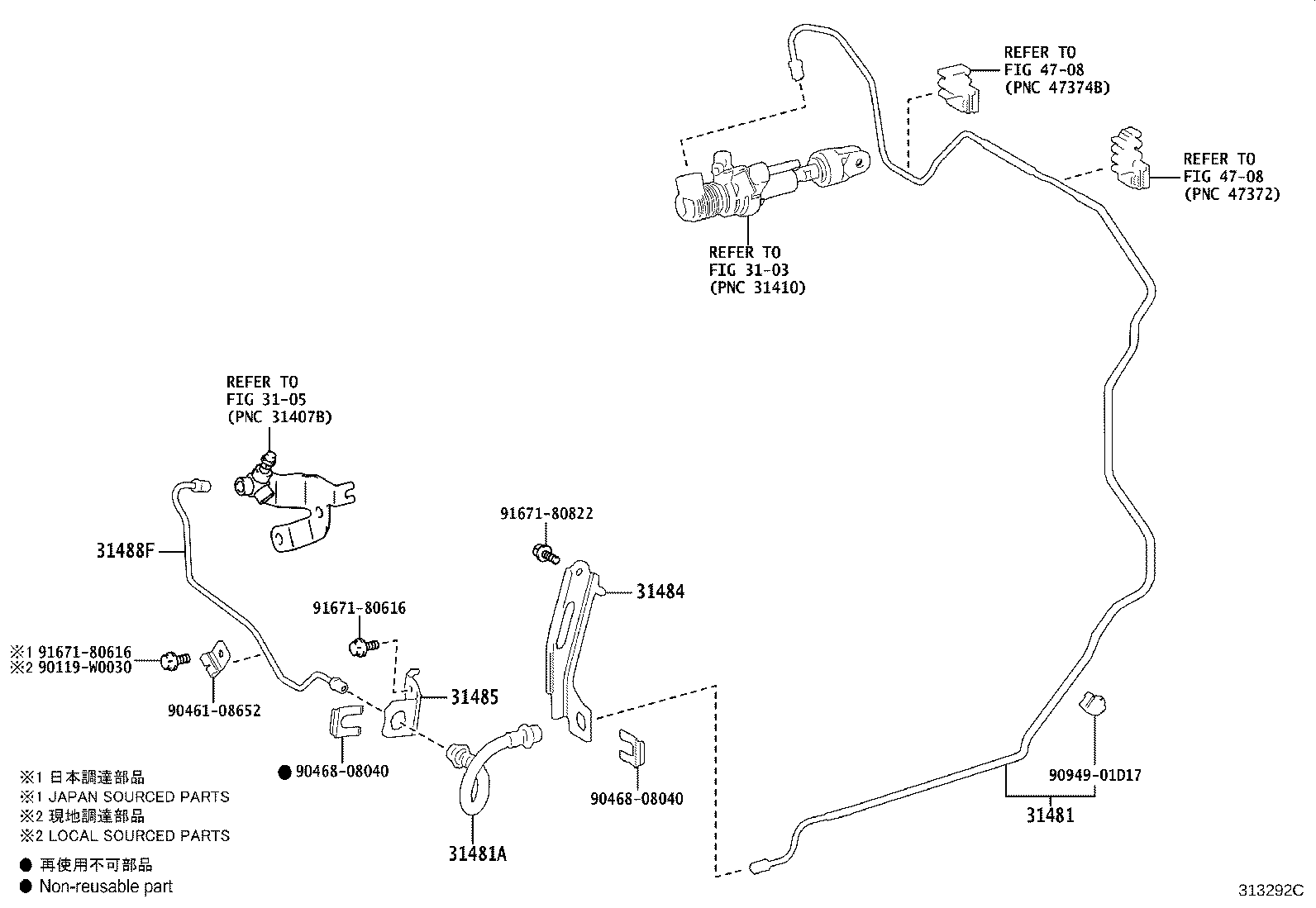

Clutch Pedal & Flexible Hose
18 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 31301 | Pedal Sub-assy, Clutch |
| 31301A | Spring(FOR CLUTCH PEDAL) |
| 31301C | Bush(FOR CLUTCH PEDAL) |
| 31301P | Bush(FOR CLUTCH PEDAL TURNOVER) |
| 31321 | Pad, Clutch Pedal |
| 31324 | Shaft, Clutch Pedal |
| 31324A | Collar, Clutch Pedal Shaft |
| 31353 | Holder, Clutch Pedal Spring |
| 31453A | Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |
| 31453B | Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |
| 31481 | Tube, Clutch Master Cylinder TO Flexible Hose |
| 31481A | Hose, Clutch, NO.1 |
| 31484 | Bracket, Flexible Hose(FOR CLUTCH) |
| 31485 | Bracket, Flexible Hose, NO.2(FOR CLUTCH) |
| 31488F | Tube, Bleeder TO Flexible Hose |
| 31496B | Clamp, Clutch Tube |
| 55105D | Bracket Sub-assy, Clutch Pedal |
| 55107A | Support Sub-assy, Clutch Pedal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
