Toyota RAV4 (JPP)
2018-11 → present · chassis AXAA5#,AXAH5#,AXAL5#,MXAA5# · catalogue 662250 · Europe
Supported model
Data version 2023-10

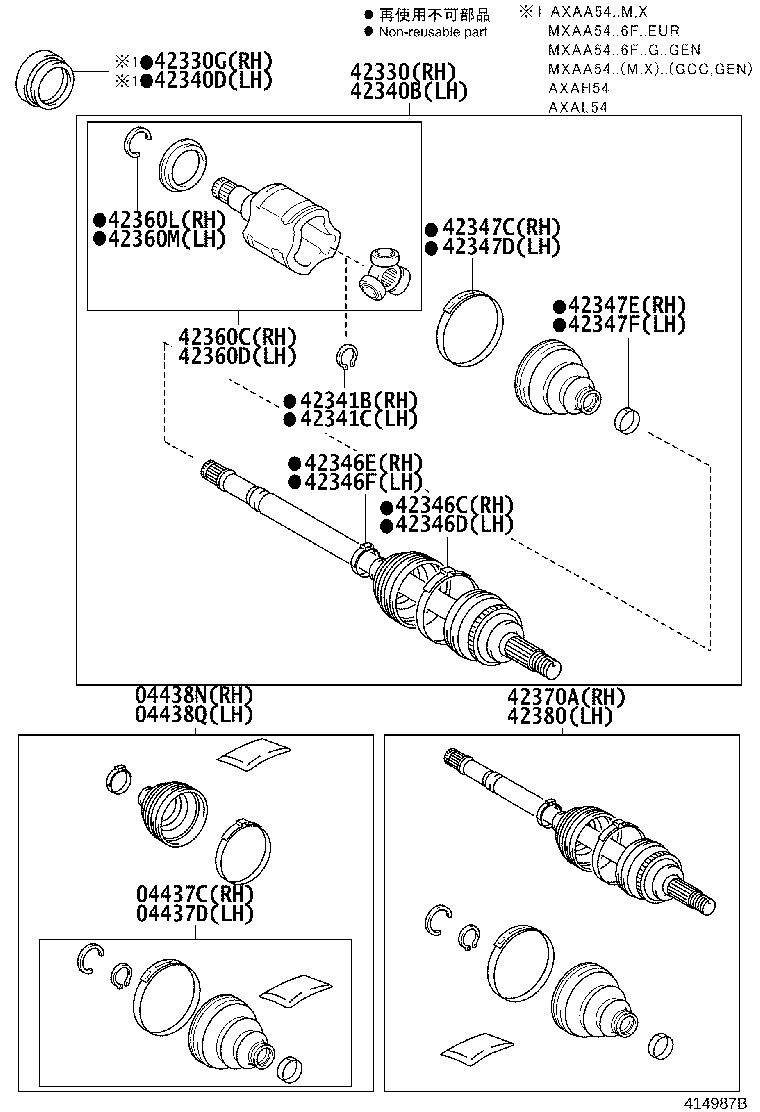

Rear Axle Shaft & Hub
33 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 04437C | Boot Kit, Rear Drive Shaft Inboard Joint, RH |
| 04437D | Boot Kit, Rear Drive Shaft Inboard Joint, LH |
| 04438N | Boot Kit, Rear Drive Shaft, IN & Outboard Joint, RH |
| 04438Q | Boot Kit, Rear Drive Shaft, IN & Outboard Joint, LH |
| 42311N | Nut(FOR REAR AXLE SHAFT RH) |
| 42311U | Bolt, Hub(FOR REAR AXLE RH) |
| 42312B | Nut(FOR REAR AXLE SHAFT LH) |
| 42312E | Bolt, Hub(FOR REAR AXLE LH) |
| 42330 | Shaft Assy, Rear Drive, RH |
| 42330G | Oil Seal, Rear Drive Shaft, RH |
| 42340B | Shaft Assy, Rear Drive, LH |
| 42340D | Oil Seal, Rear Drive Shaft, LH |
| 42341B | Ring, Snap (FOR REAR DRIVE SHAFT RH) |
| 42341C | Ring, Snap (FOR REAR DRIVE SHAFT LH) |
| 42346C | Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH) |
| 42346D | Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH) |
| 42346E | Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH) |
| 42346F | Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH) |
| 42347C | Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH) |
| 42347D | Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH) |
| 42347E | Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH) |
| 42347F | Clamp, NO.2 (For Rear Drive Shaft Inboard Joint Boot LH |
| 42360C | Joint Assy, Rear Drive Shaft Inboard, RH |
| 42360D | Joint Assy, Rear Drive Shaft Inboard, LH |
| 42360L | Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT RH) |
| 42360M | Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT LH) |
| 42370A | Shaft Assy, Rear Drive Outboard Joint, RH |
| 42380 | Shaft Assy, Rear Drive Outboard Joint, LH |
| 42421E | Bolt (FOR REAR AXLE BEARING CASE RH) |
| 42422A | Bolt (FOR REAR AXLE BEARING CASE LH) |
| 42431 | Disc, Rear |
| 42450A | Hub & Bearing Assy, Rear Axle, RH |
| 42450B | Hub & Bearing Assy, Rear Axle, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
