Toyota RAV4 (JPP)
2018-11 → present · chassis AXAA5#,AXAH5#,AXAL5#,MXAA5# · catalogue 662250 · Europe
Supported model
Data version 2023-10

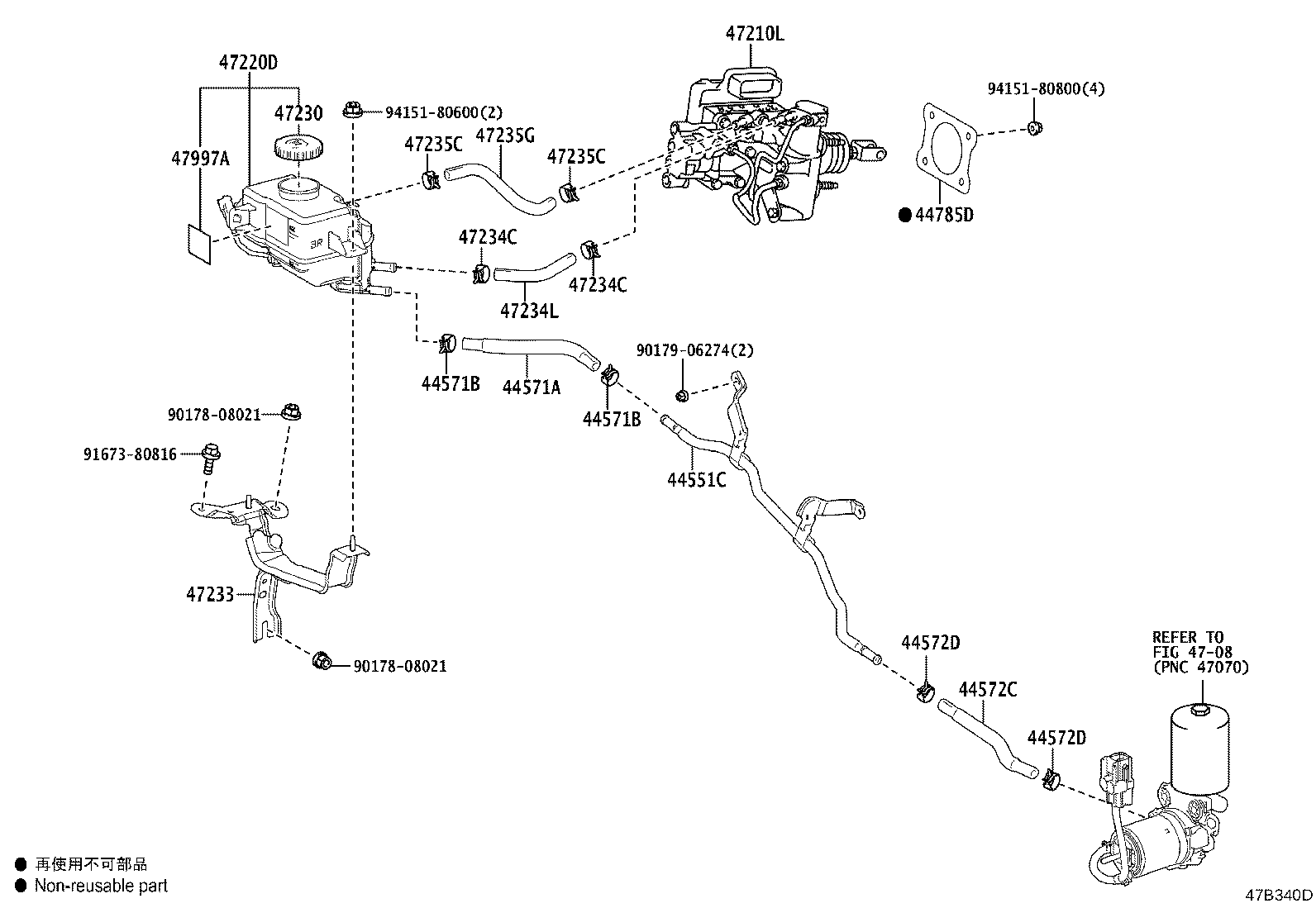

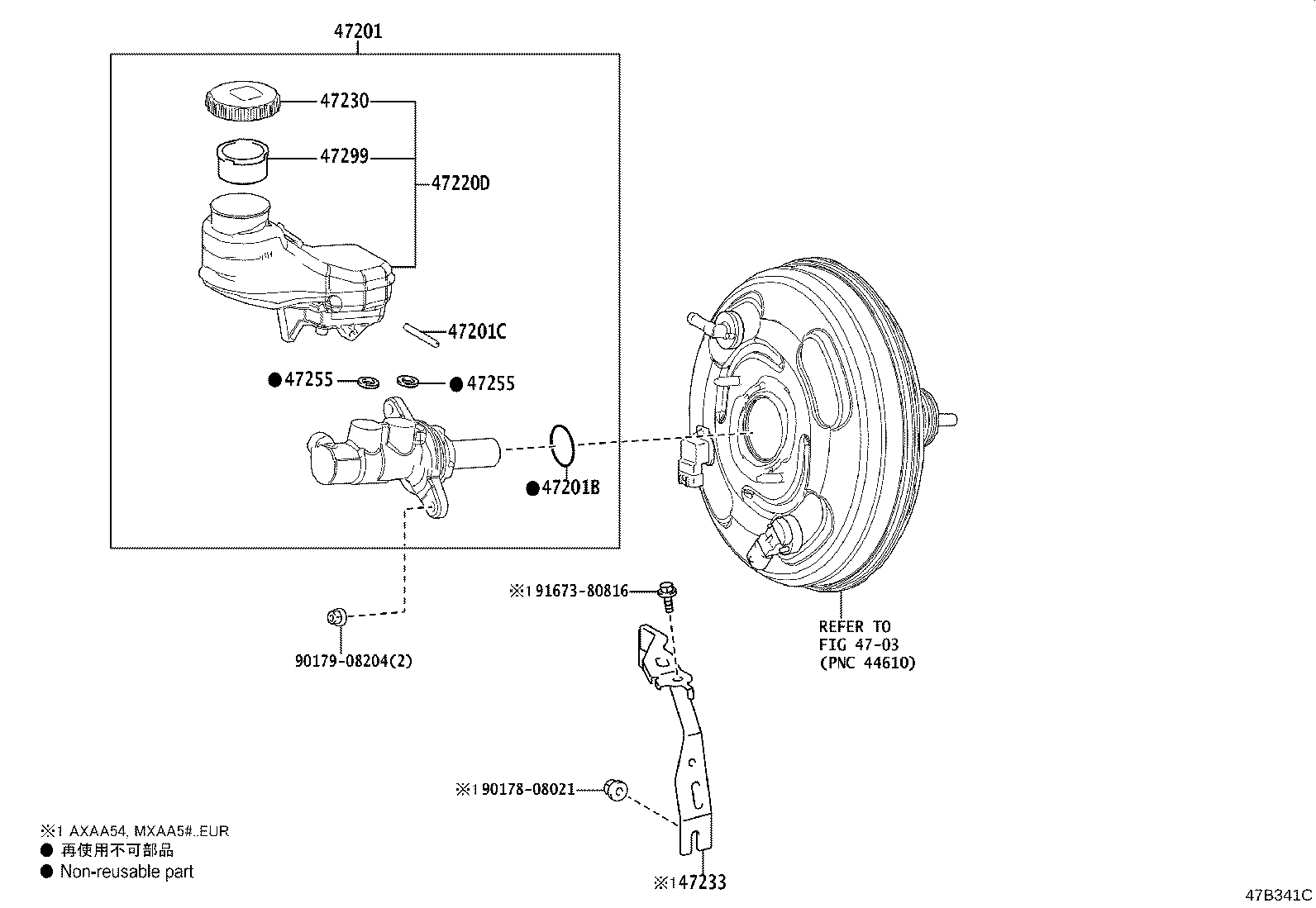

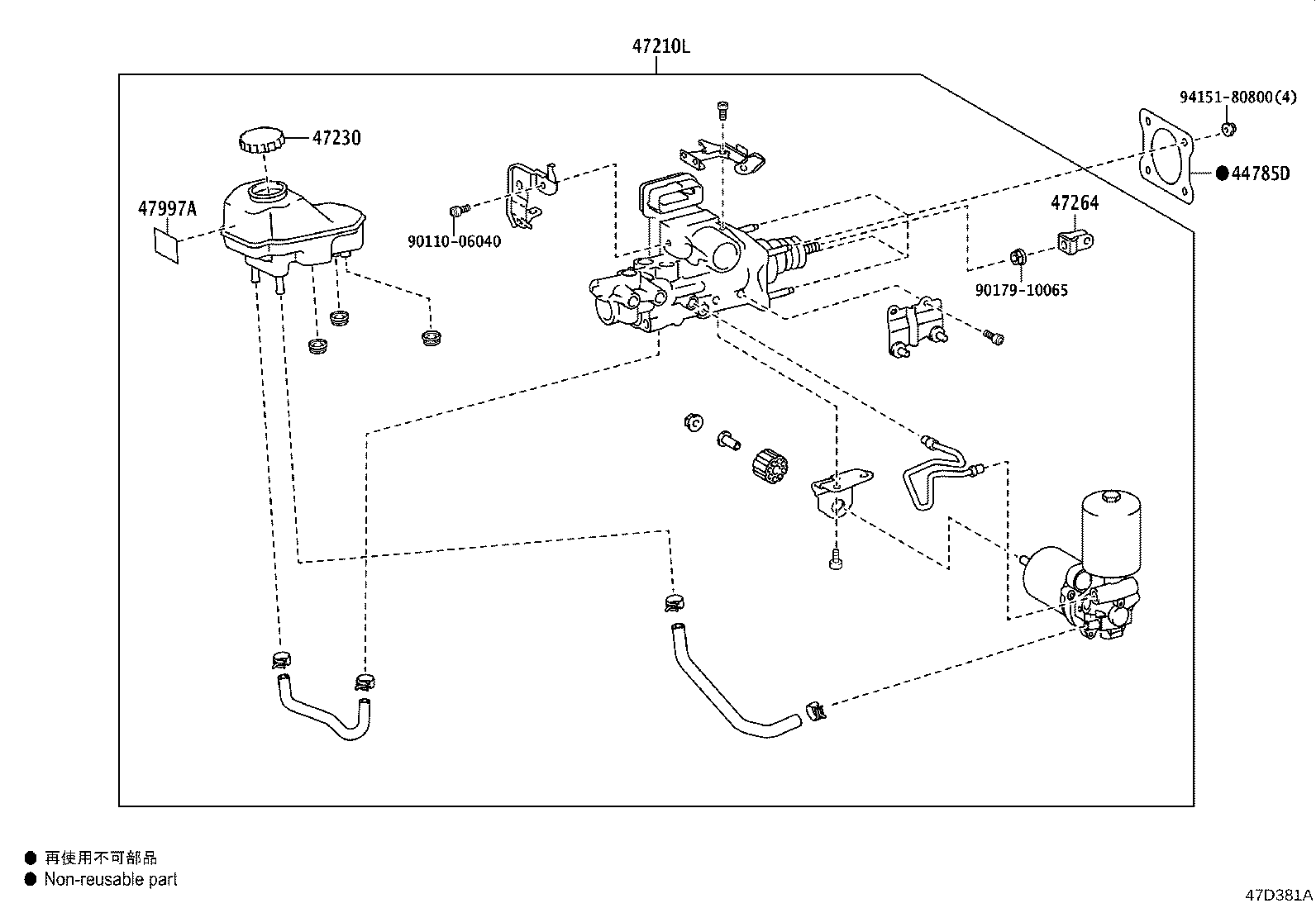

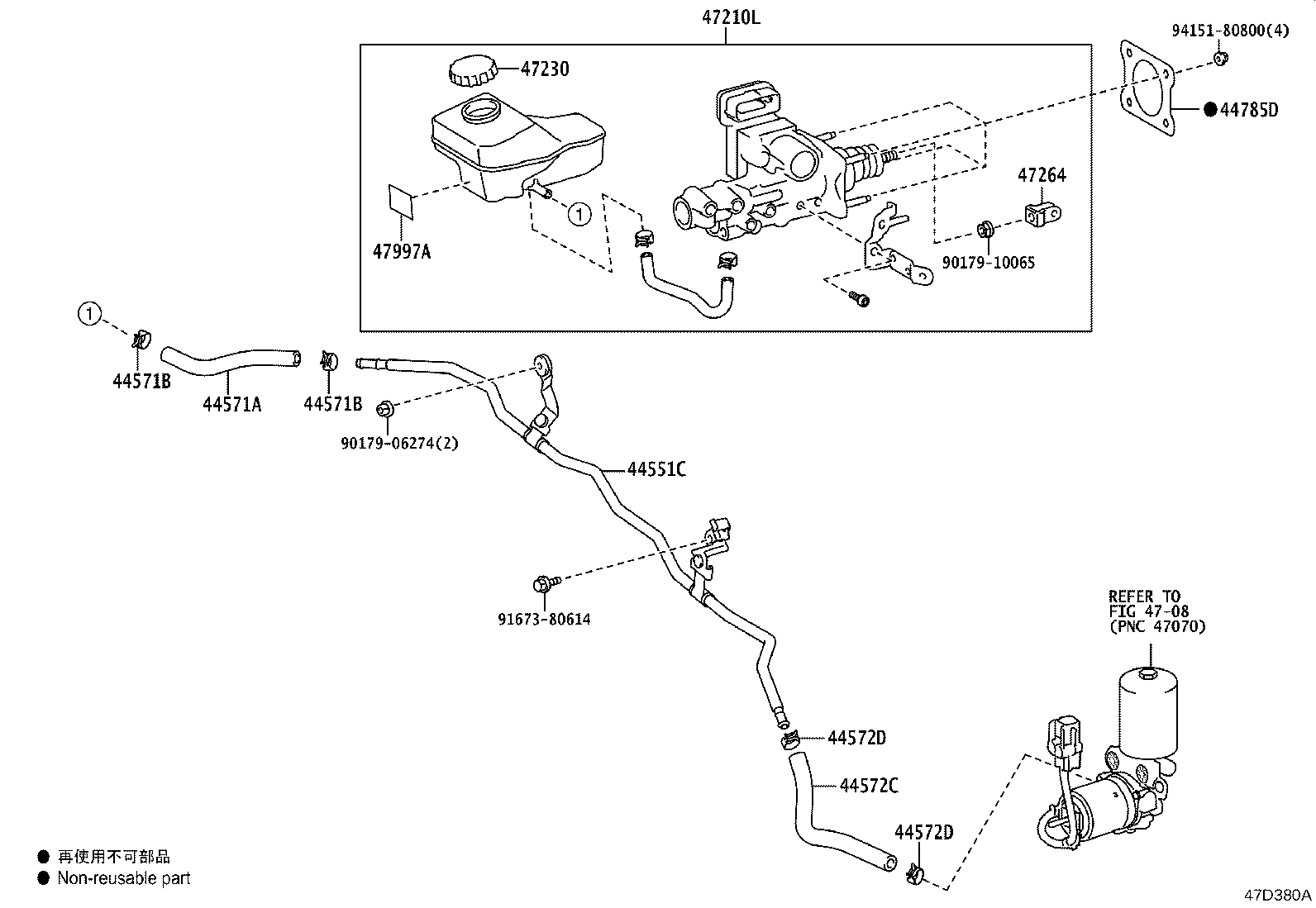

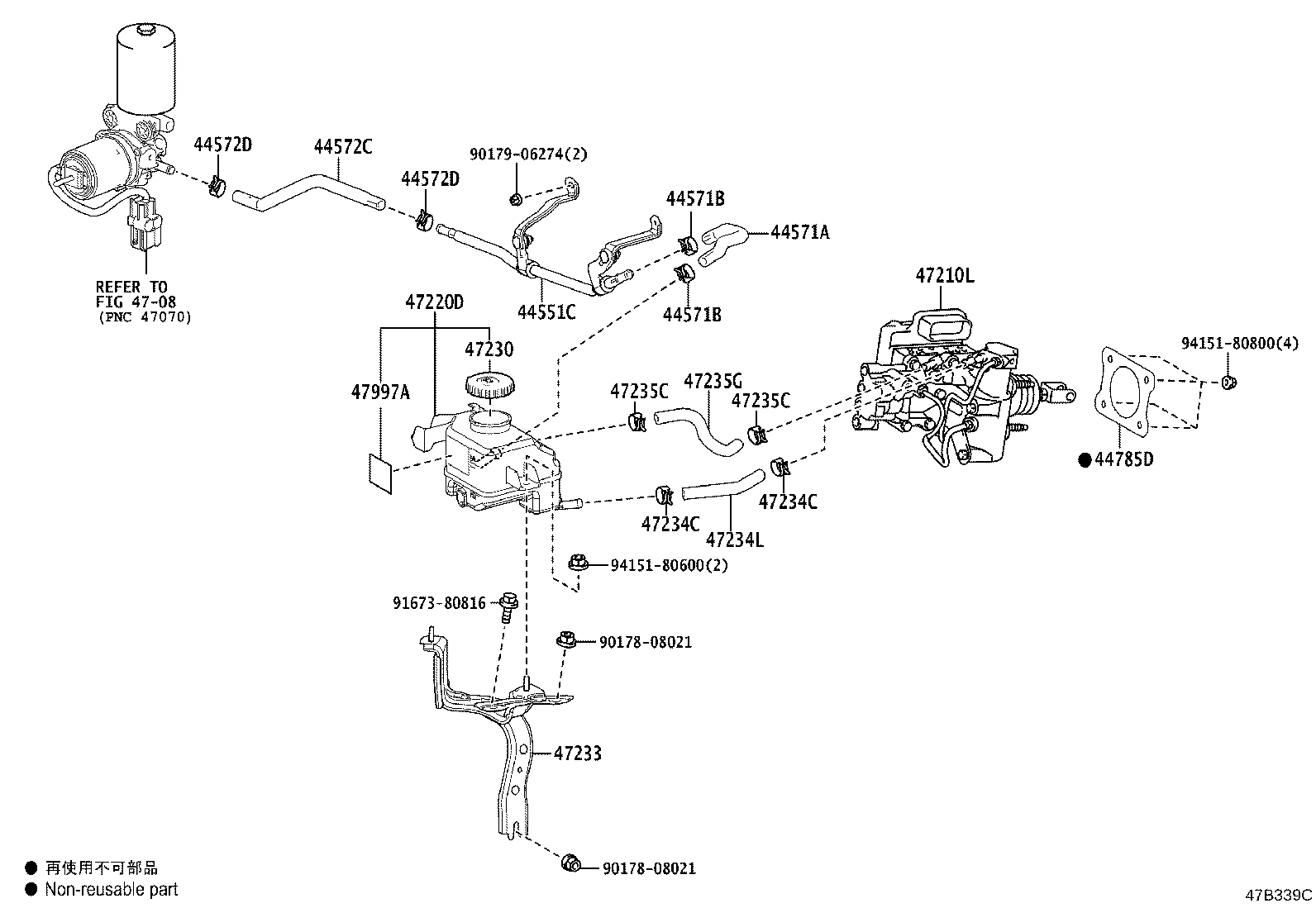

Brake Master Cylinder
21 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 44551C | Tube, Brake Actuator, NO.1 |
| 44571A | Hose, Brake Actuator, NO.1 |
| 44571B | Clip, Hose(FOR BRAKE ACTUATOR HOSE NO.1) |
| 44572C | Hose, Brake Actuator, NO.2 |
| 44572D | Clip, Hose(FOR BRAKE ACTUATOR HOSE NO.2) |
| 44785D | Gasket, Brake Master Cylinder |
| 47201 | Cylinder Sub-assy, Brake Master |
| 47201B | Ring, O(FOR BRAKE MASTER CYLINDER) |
| 47201C | Ring Pin, Brake Master Cylinder |
| 47210L | Brake Booster Assy, W/Master Cylinder |
| 47220D | Reservoir Assy, Brake Master Cylinder |
| 47230 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47233 | Bracket, Reservoir |
| 47234C | Clip(FOR RESERVOIR TUBE NO.1) |
| 47234L | Hose, Reservoir, NO.1 |
| 47235C | Clip(FOR BRAKE MASTER CYLINDER RESERVOIR TUBE NO.2) |
| 47235G | Hose, Reservoir, NO.2 |
| 47255 | Grommet, Master Cylinder Reservoir |
| 47264 | Clevis, Master Cylinder Push Rod |
| 47299 | Strainer, Brake Master Cylinder Reservoir |
| 47997A | Label, Accumulator Caution, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
