Toyota RAV4 (JPP)

2018-11 → present · chassis AXAA5#,AXAH5#,AXAL5#,MXAA5# · catalogue 662250 · Europe

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

28 part groups · 12 illustrations

Illustrations

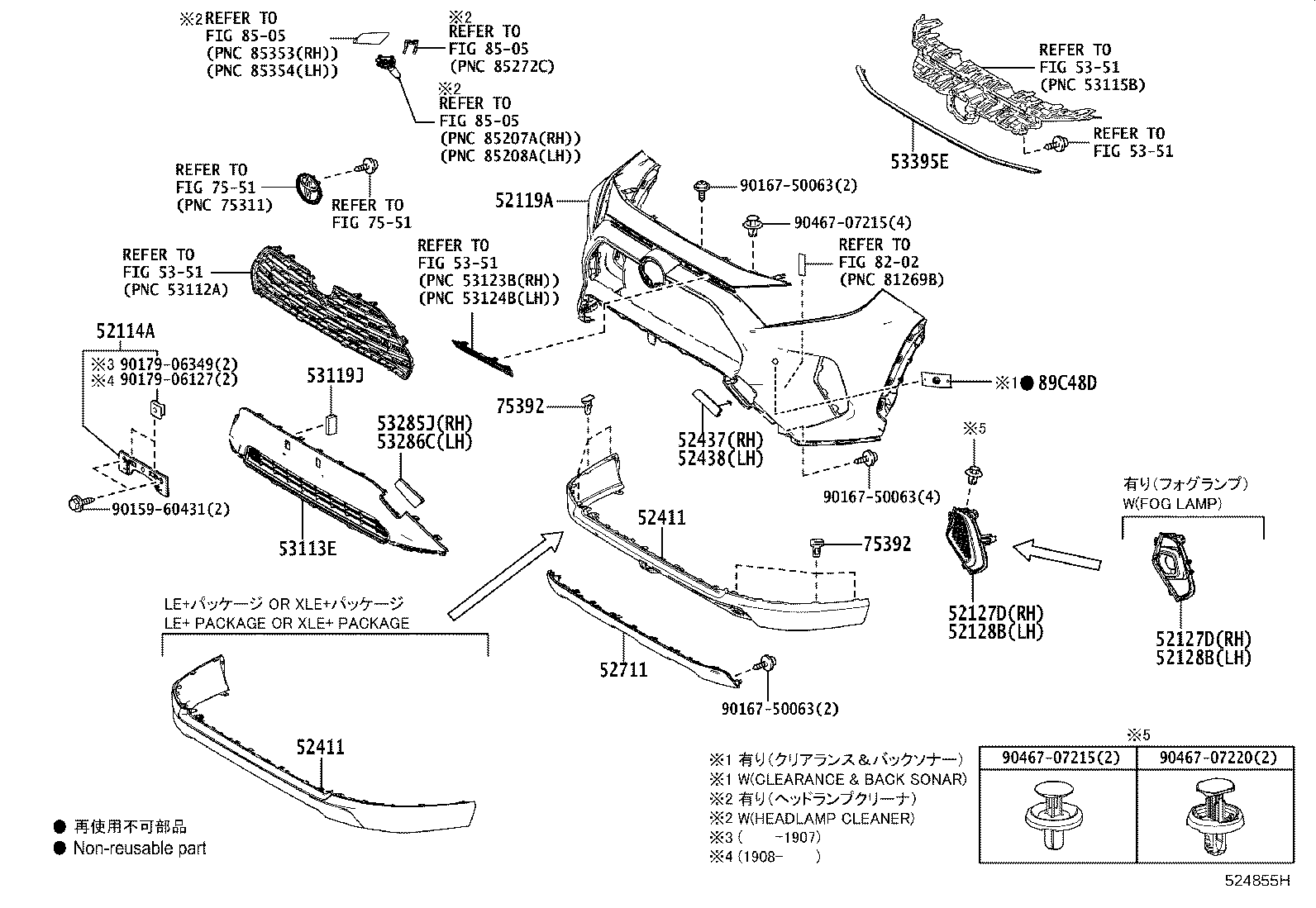

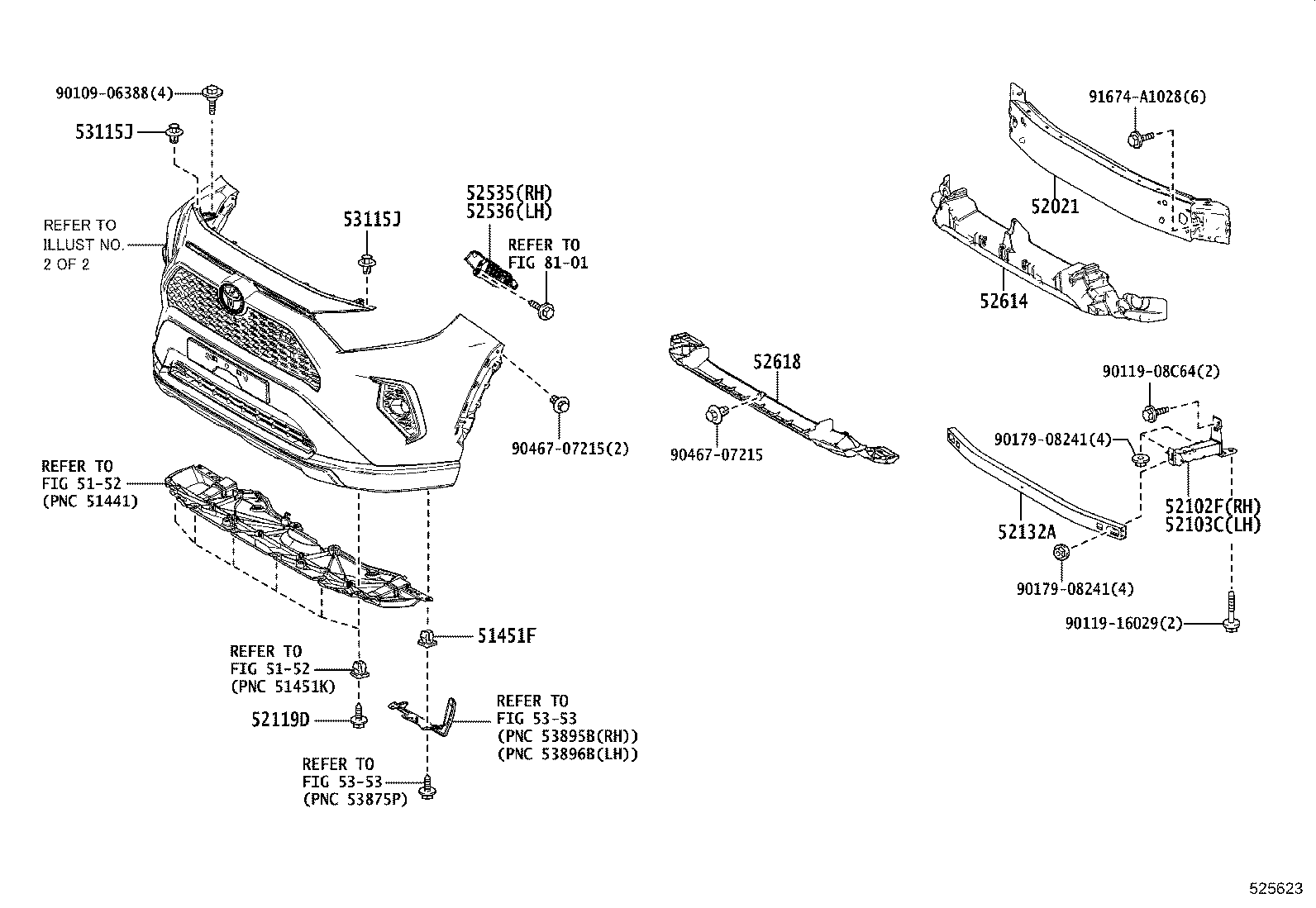

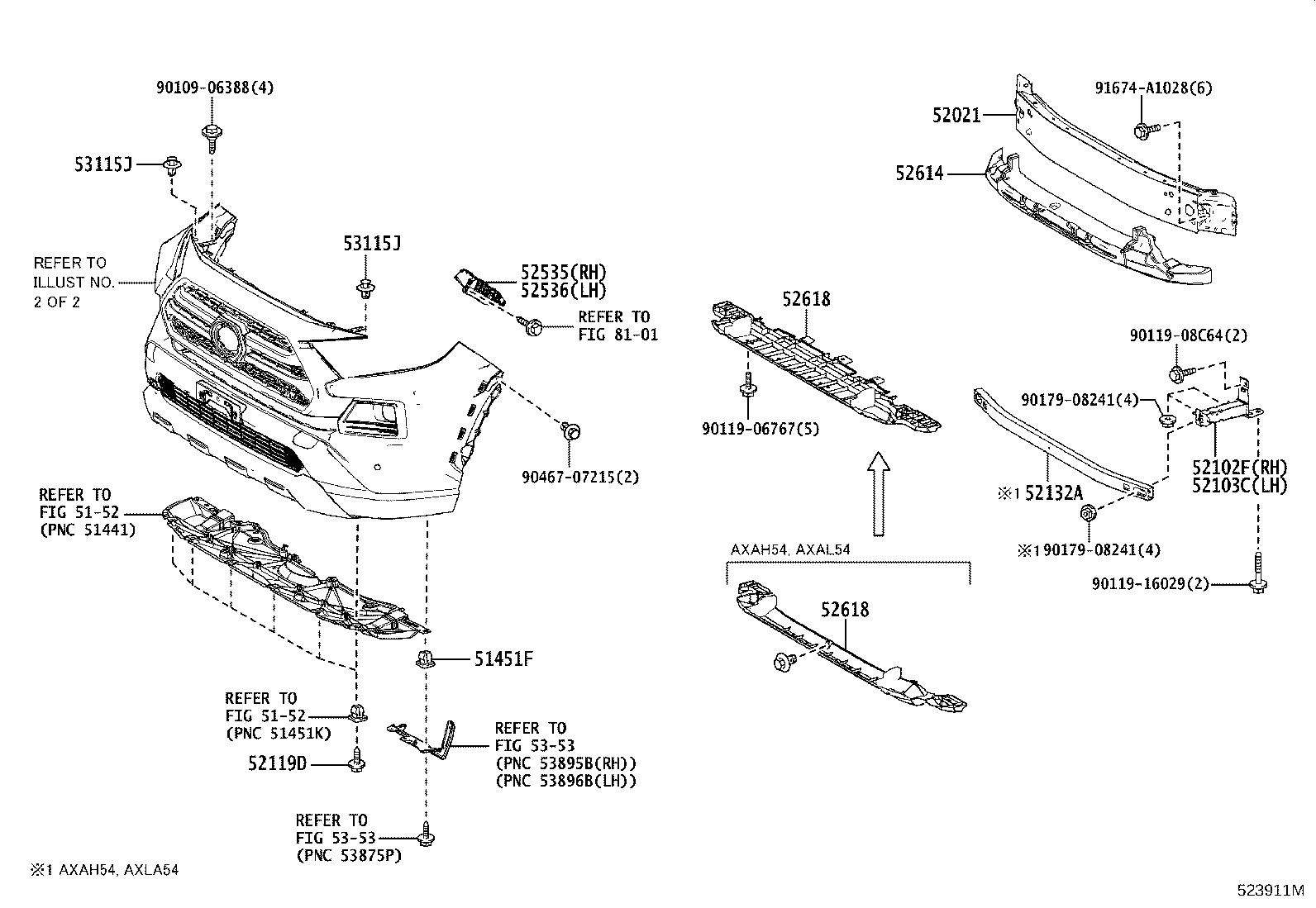

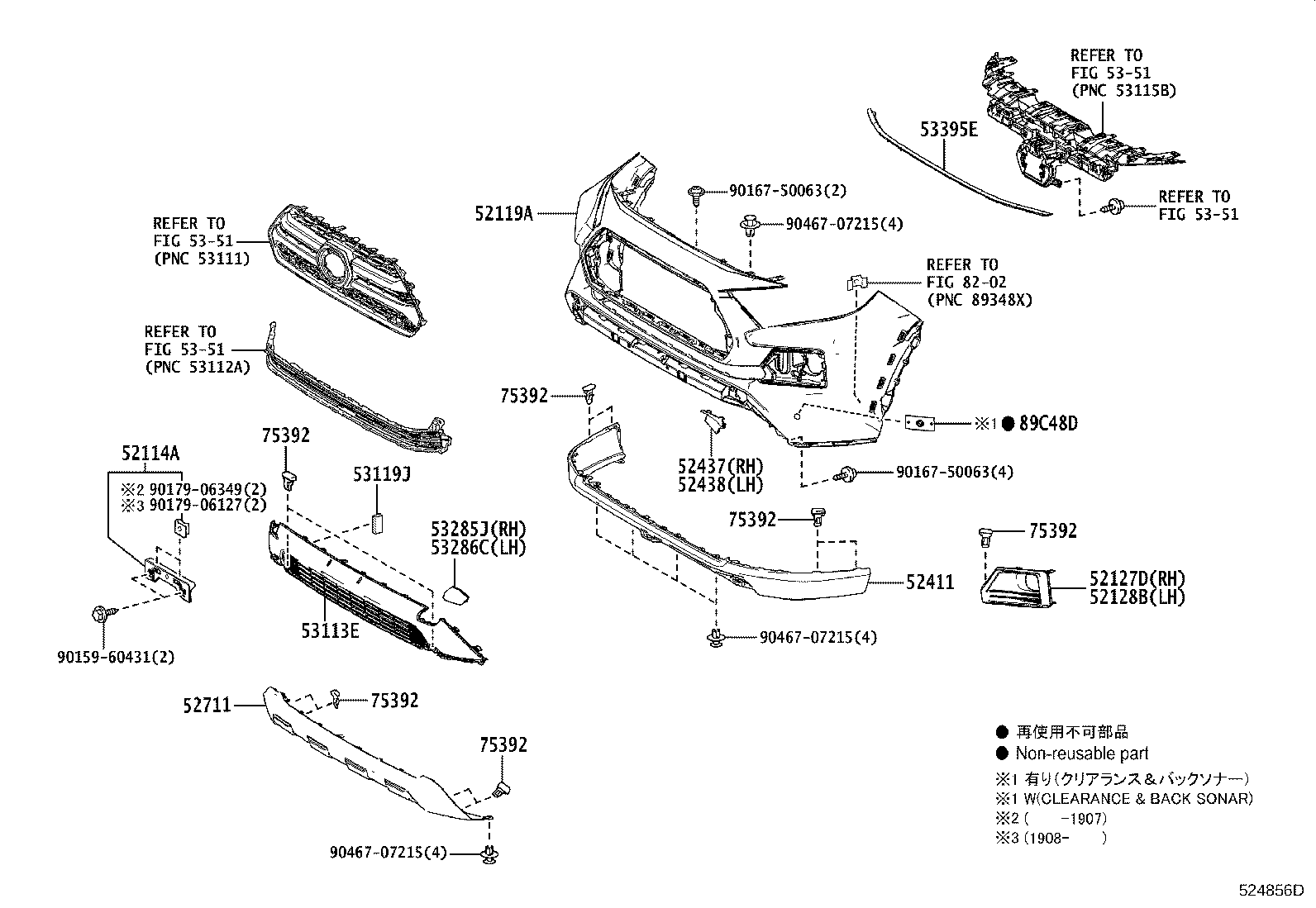

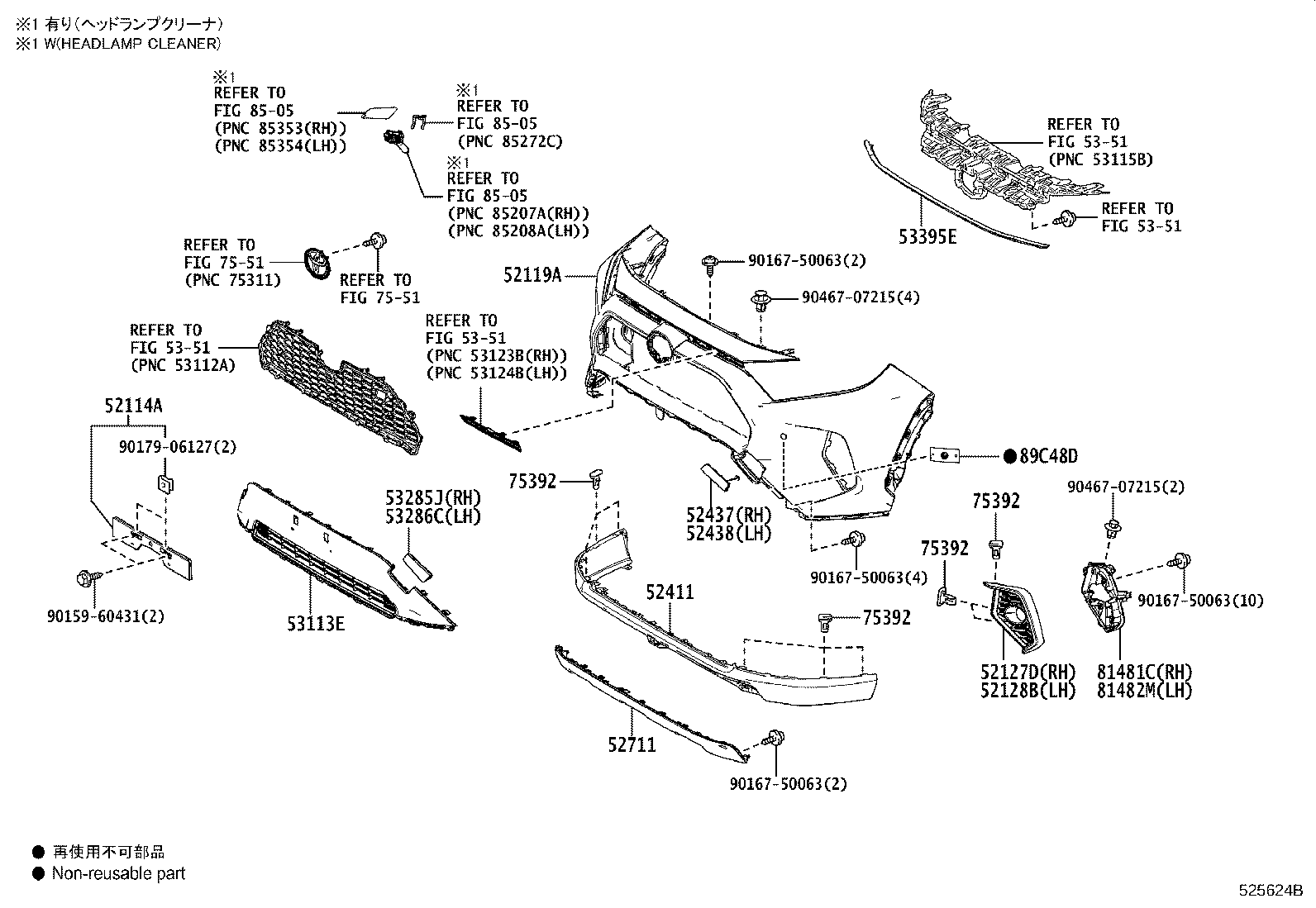

Figure 523910N 523910N 2018-11 → — Figure 523910N 523910N 2019-02 → 2022-10 Figure 523910N 523910N 2022-10 → — Figure 524855H 524855H 2018-11 → — Figure 524855H 524855H 2019-02 → 2022-10 Figure 524855H 524855H 2022-10 → — Figure 523911M 523911M 2018-11 → — Figure 523911M 523911M 2022-10 → — Figure 524856D 524856D 2018-11 → — Figure 524856D 524856D 2022-10 → — Figure 525623 525623 2022-10 → — Figure 525624B 525624B 2022-10 → —

Part groups

PNCDescription
51451F Grommet, NO.1
52021 Reinforcement Sub-assy, Front Bumper
52102F Extension Sub-assy, Front Bumper, RH
52103C Extension Sub-assy, Front Bumper, LH
52114A Bracket, Front Bumper Extension Mounting
52119A Cover, Front Bumper
52119D Screw, NO.1
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52132A Reinforcement, Front Bumper, NO.2
52411 Guard, Front Bumper
52437 Cover, Front Bumper Guard, RH
52438 Cover, Front Bumper Guard, LH
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52614 Absorber, Front Bumper Energy, NO.2
52618 Absorber, Front Bumper, Lower
52711 Moulding, Front Bumper
53113E Grille, Radiator, Lower NO.2
53115J Clip, Radiator Grille Bracket
53119J Protector, Radiator Grille, RH
53285J Cover, Front Bumper Arm Hole, RH
53286C Cover, Front Bumper Arm Hole, LH
53395E Seal, Hood TO Front End Panel
75392 Retainer, Outside Moulding
81481C Bracket, Fog Lamp
81482M Bracket, Fog Lamp, LH
89C48D Retainer, Ultrasonic Sensor, Front Corner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
