Toyota RAV4 (JPP)

2018-11 → present · chassis AXAA5#,AXAH5#,AXAL5#,MXAA5# · catalogue 662250 · Europe

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

27 part groups · 15 illustrations

Illustrations

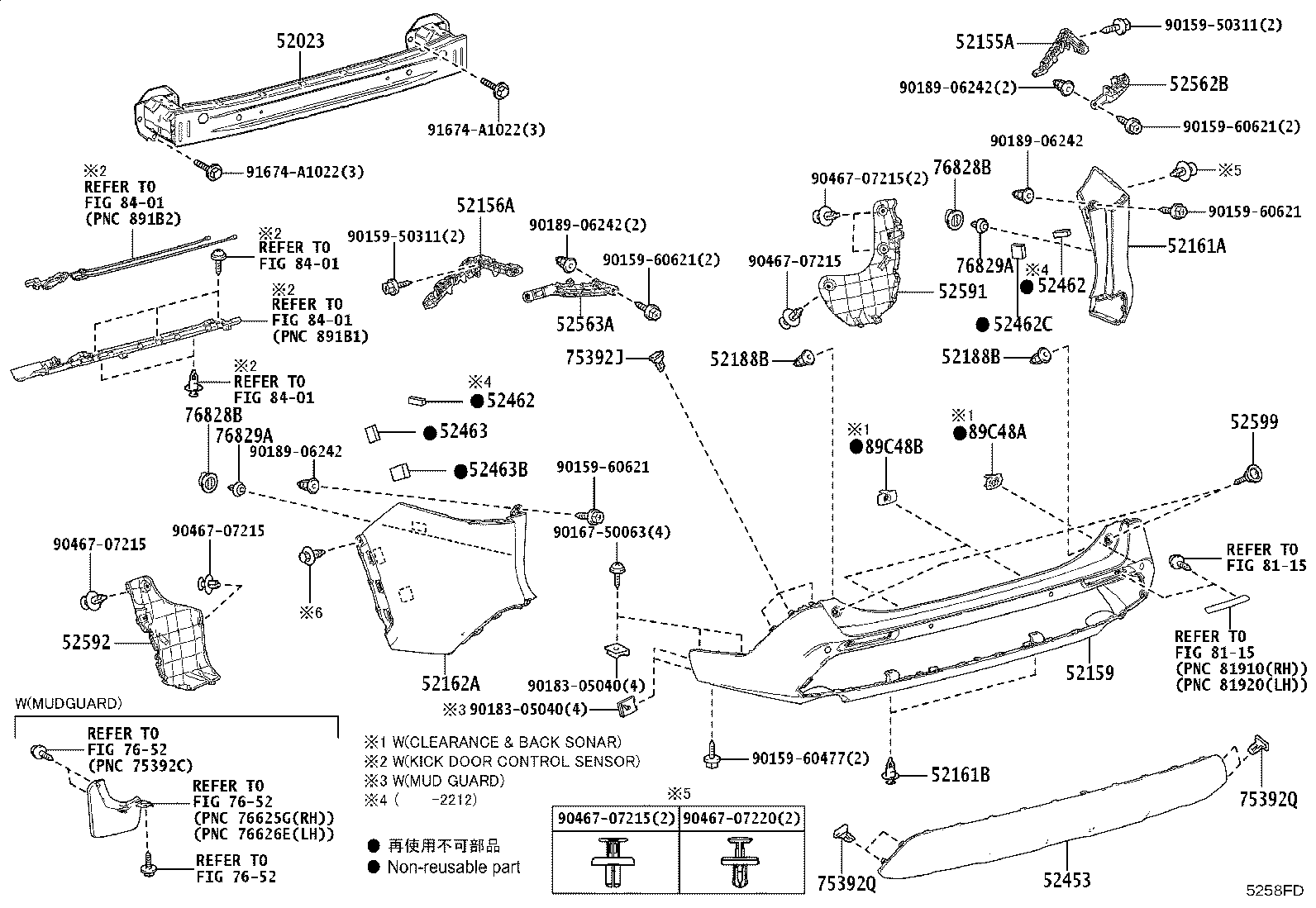

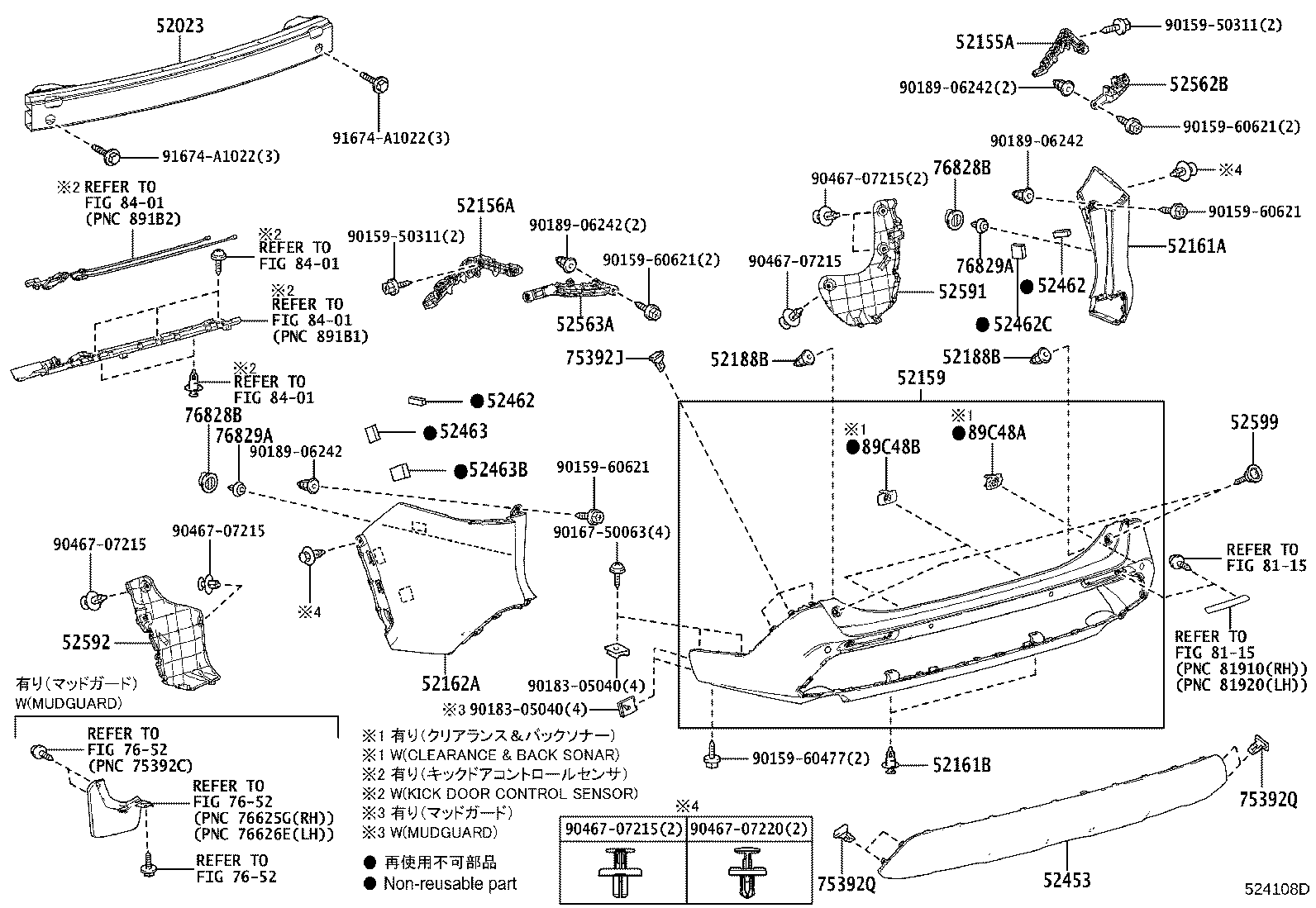

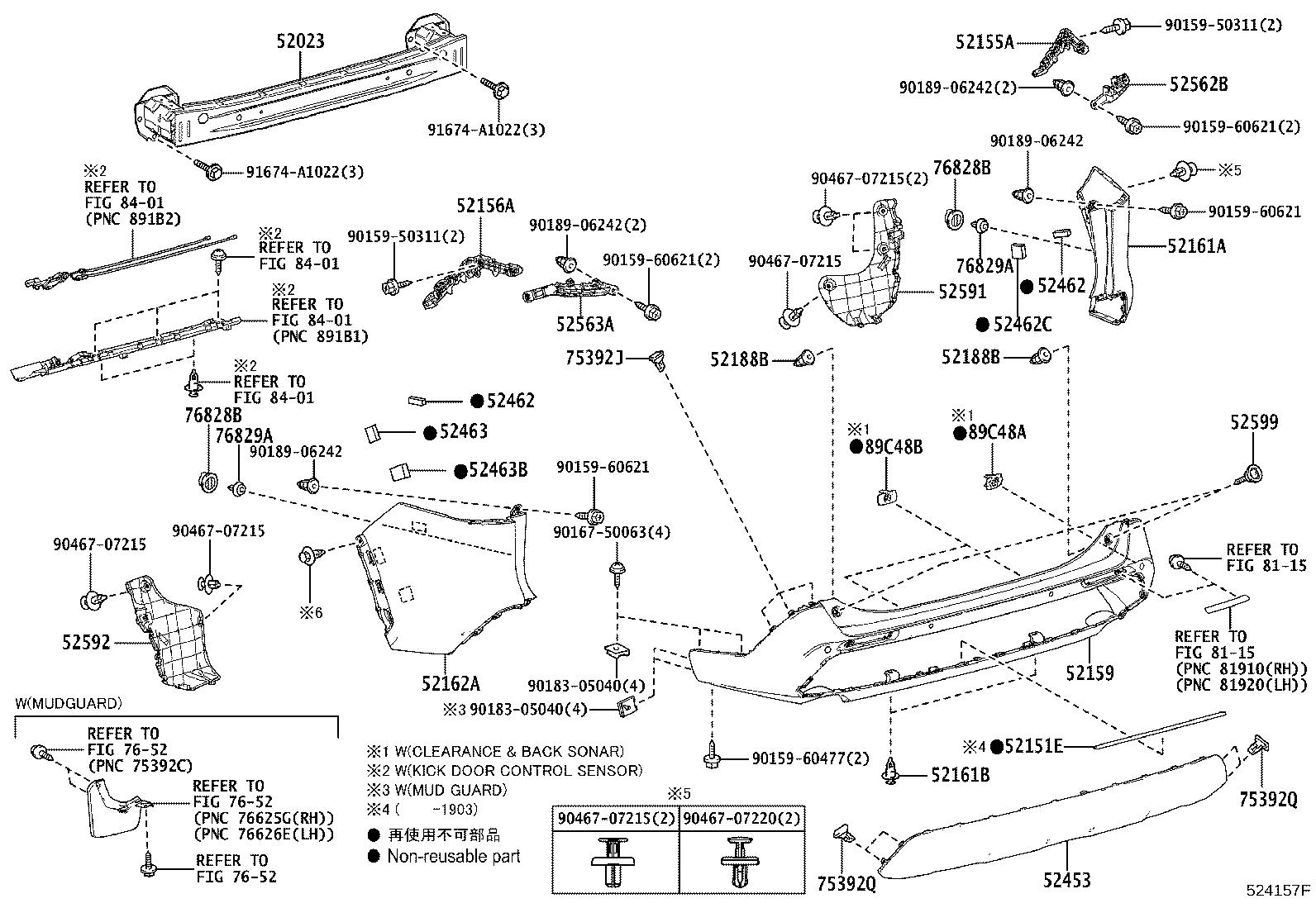

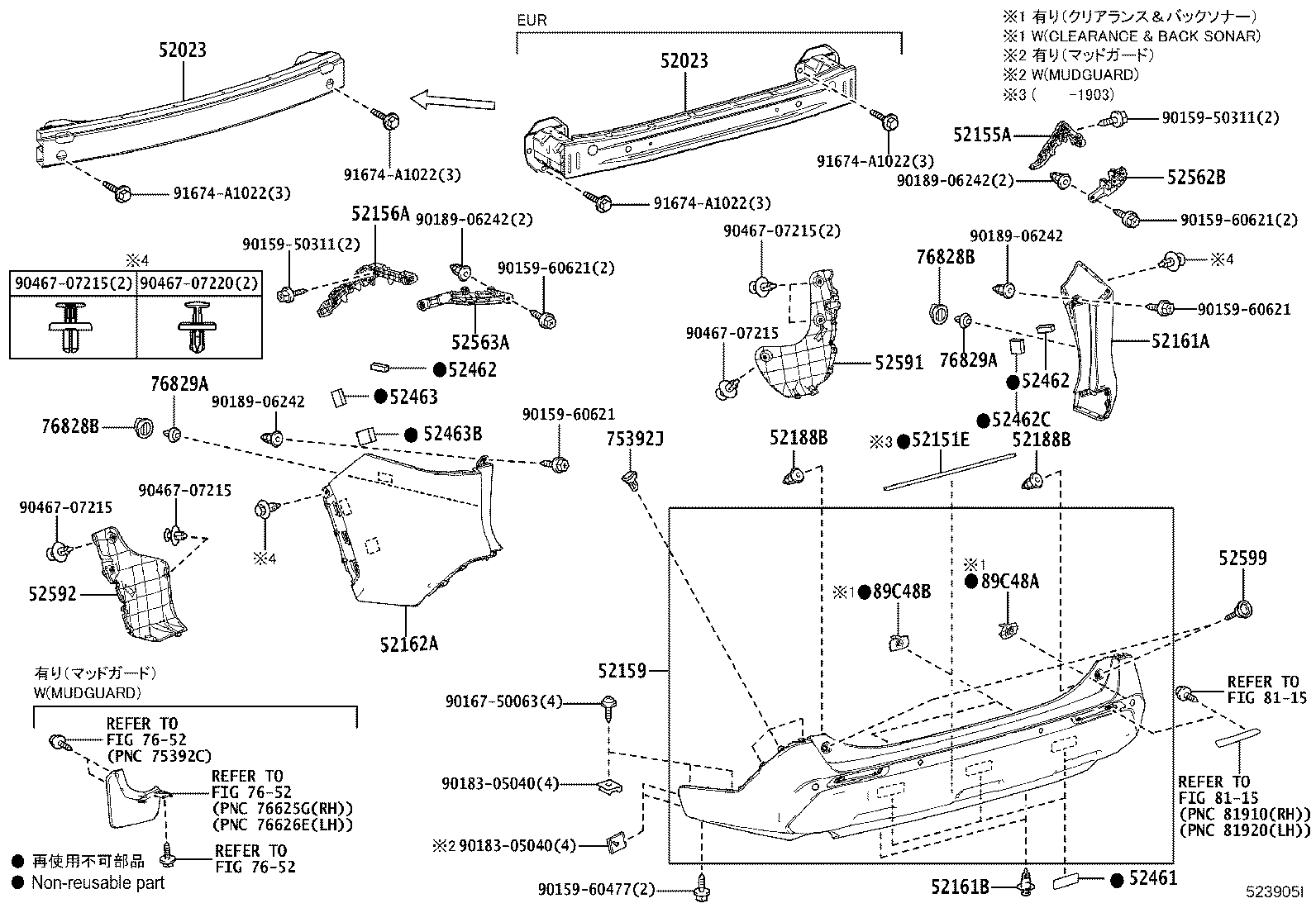

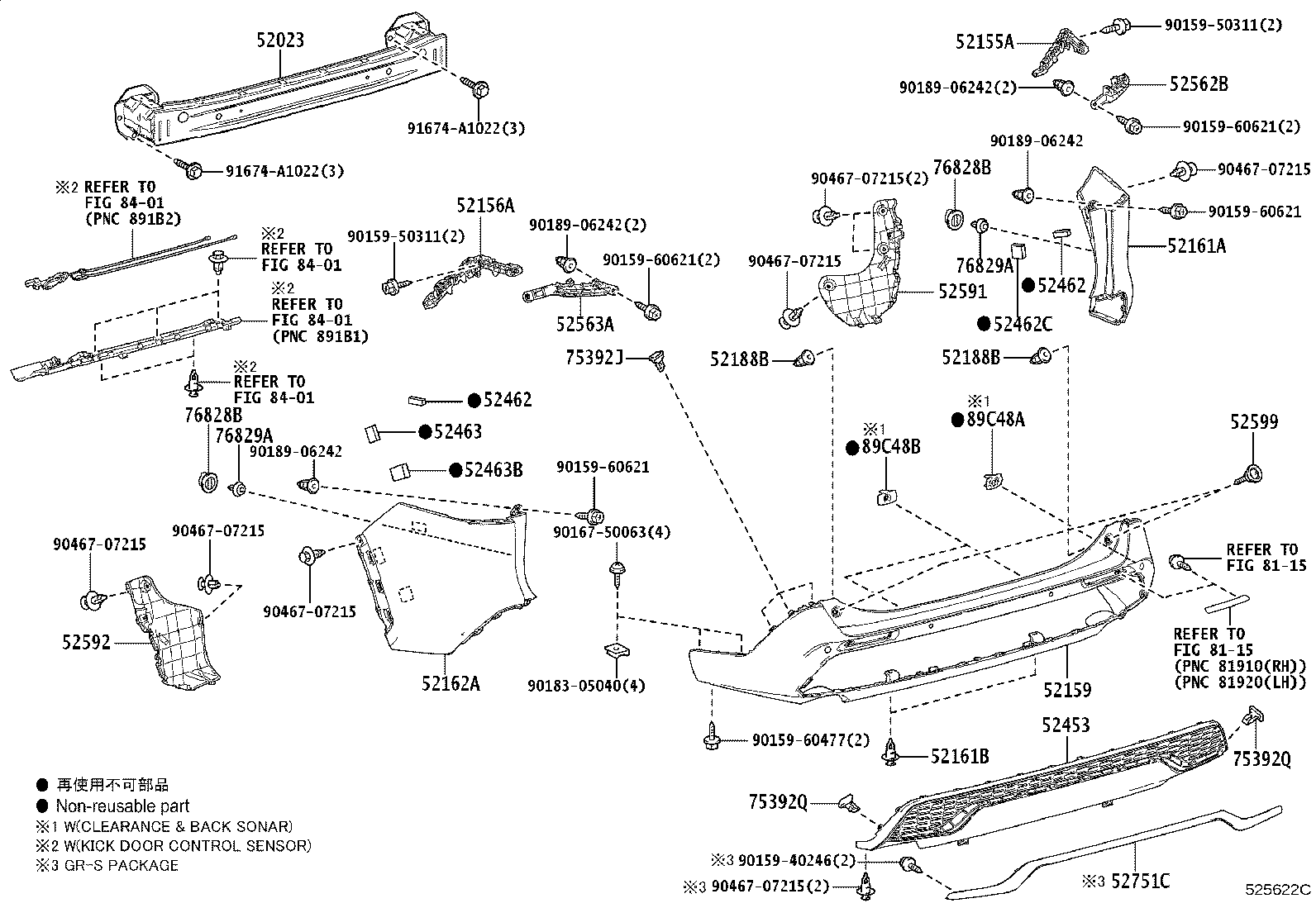

Figure 523909L 523909L 2018-11 → — Figure 523909L 523909L 2018-11 → — Figure 523909L 523909L 2019-02 → 2019-09 Figure 523909L 523909L 2019-10 → — Figure 523909L 523909L 2021-12 → — Figure 523909L 523909L 2021-12 → — Figure 523909L 523909L 2022-10 → — Figure 523909L 523909L 2022-10 → — Figure 523905I 523905I 2018-11 → — Figure 523905I 523905I 2019-01 → 2019-10 Figure 523905I 523905I 2019-02 → 2019-09 Figure 524108D 524108D 2019-10 → — Figure 524157F 524157F 2020-08 → 2021-12 Figure 5258FD 5258FD 2021-12 → — Figure 525622C 525622C 2022-10 → —

Part groups

PNCDescription
52023 Reinforcement Sub-assy, Rear Bumper
52151E Bar, Rear Bumper
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52161A Piece, Rear Bumper, RH
52161B Piece, Rear Bumper
52162A Piece, Rear Bumper, LH
52188B Spacer, Rear Bumper Mounting
52453 Guard, Rear Bumper, Center
52461 Pad, Rear Bumper, Center
52462 Pad, Rear Bumper, RH
52462C Pad, Rear Bumper, RH
52463 Pad, Rear Bumper, LH
52463B Pad, Rear Bumper, LH
52562B Retainer, Rear Bumper, Upper RH
52563A Retainer, Rear Bumper, Upper LH
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
52599 Stopper, Rear Bumper, Upper
52751C Moulding, Rear Bumper
75392J Retainer, Outside Moulding
75392Q Retainer, Outside Moulding, NO.2
76828B Retainer, Back Door Garnish
76829A Retainer, Back Door Garnish
89C48A Retainer, Ultrasonic Sensor, Rear Corner
89C48B Retainer, Ultrasonic Sensor, Rear Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
