Toyota RAV4 (JPP)

2018-11 → present · chassis AXAA5#,AXAH5#,AXAL5#,MXAA5# · catalogue 662250 · Europe

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

5 part groups · 6 illustrations

Illustrations

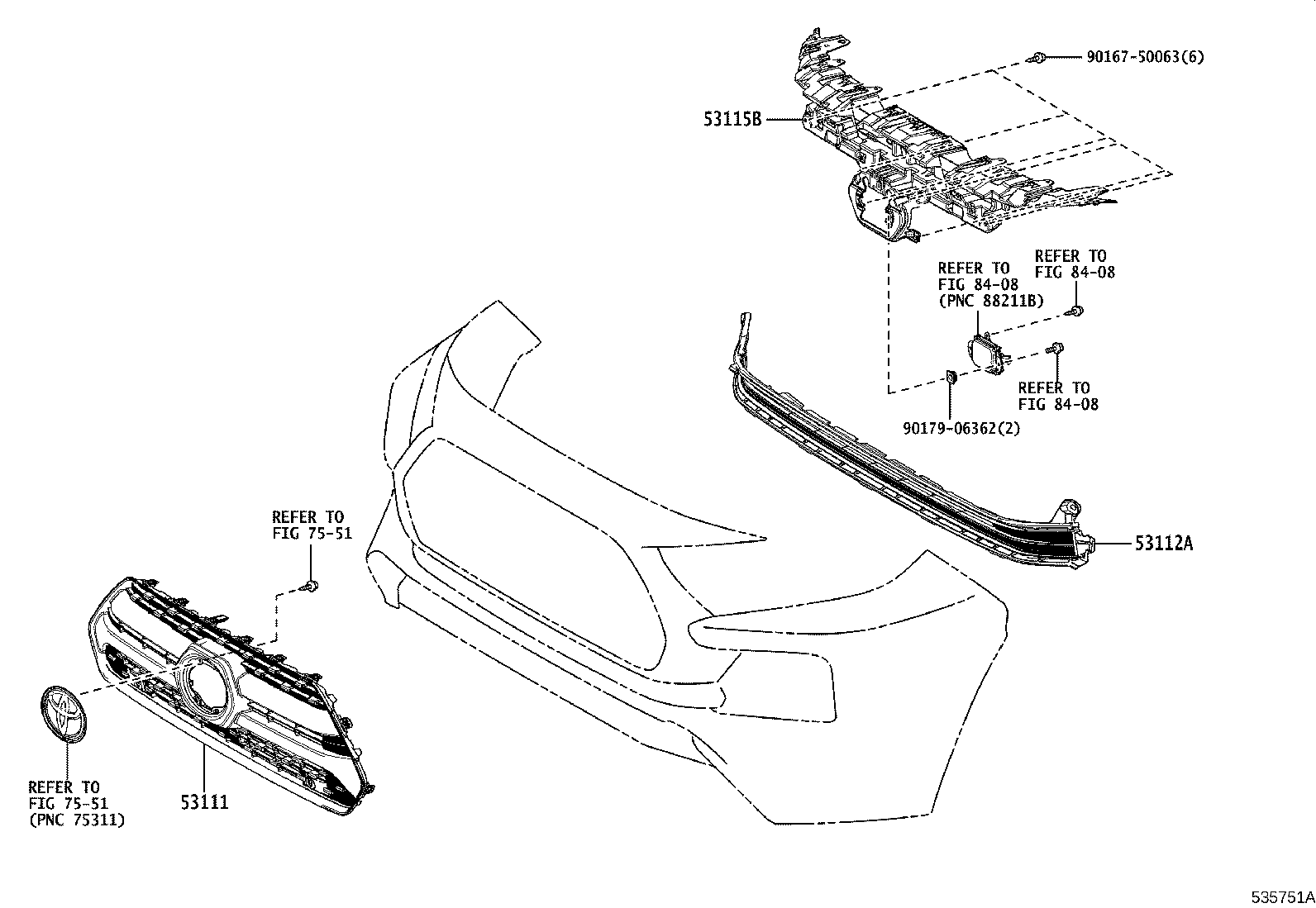

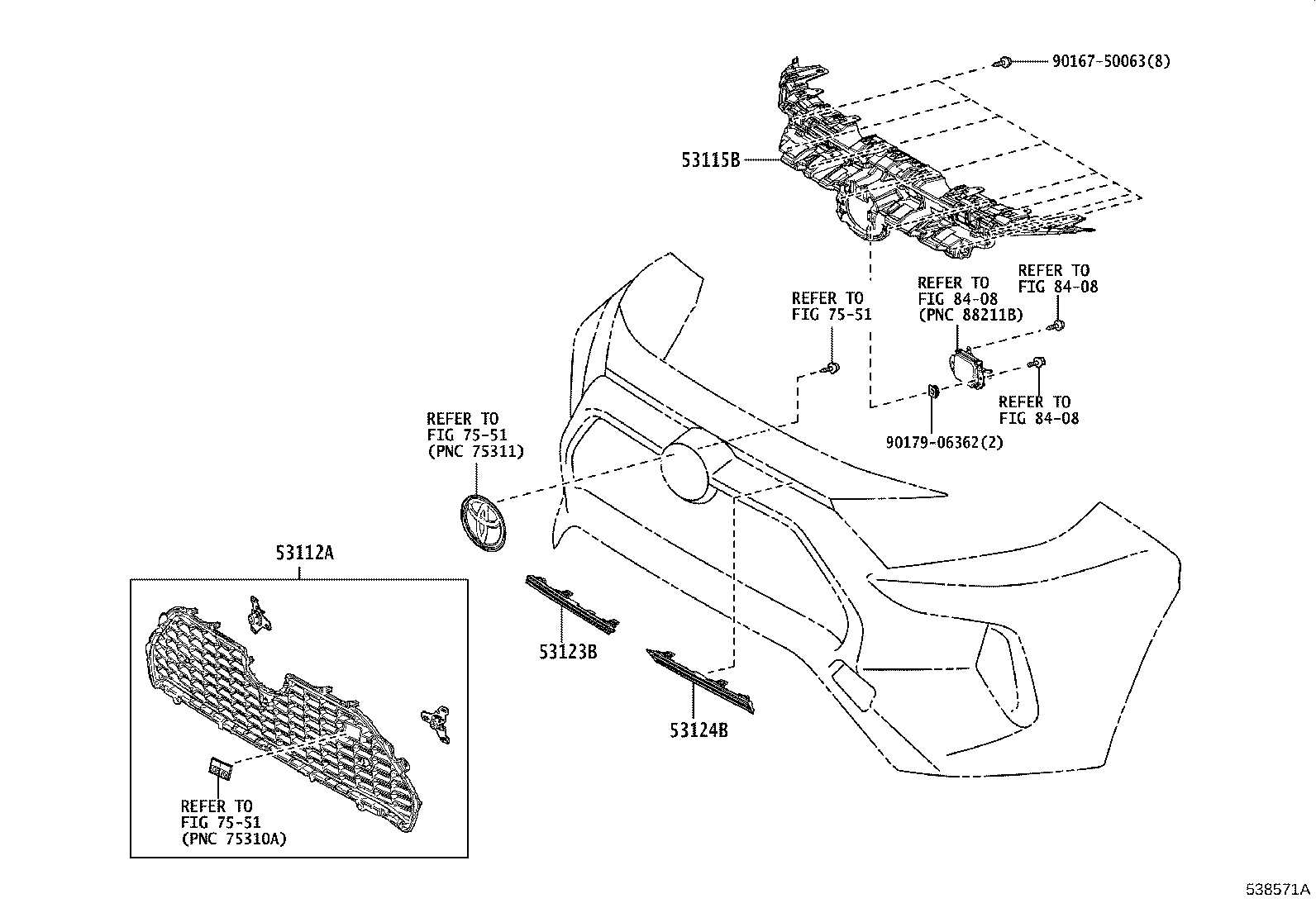

Figure 535750B 535750B 2018-11 → — Figure 535750B 535750B 2019-02 → 2022-10 Figure 535750B 535750B 2022-10 → — Figure 535751A 535751A 2018-11 → — Figure 535751A 535751A 2022-10 → — Figure 538571A 538571A 2022-10 → —

Part groups

PNCDescription
53111 Grille, Radiator
53112A Grille, Radiator, Lower
53115B Bracket, Radiator Grille
53123B Moulding, Radiator Grille Side, RH
53124B Moulding, Radiator Grille Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
