Toyota RAV4 (JPP)
2018-11 → present · chassis AXAA5#,AXAH5#,AXAL5#,MXAA5# · catalogue 662250 · Europe
Supported model
Data version 2023-10

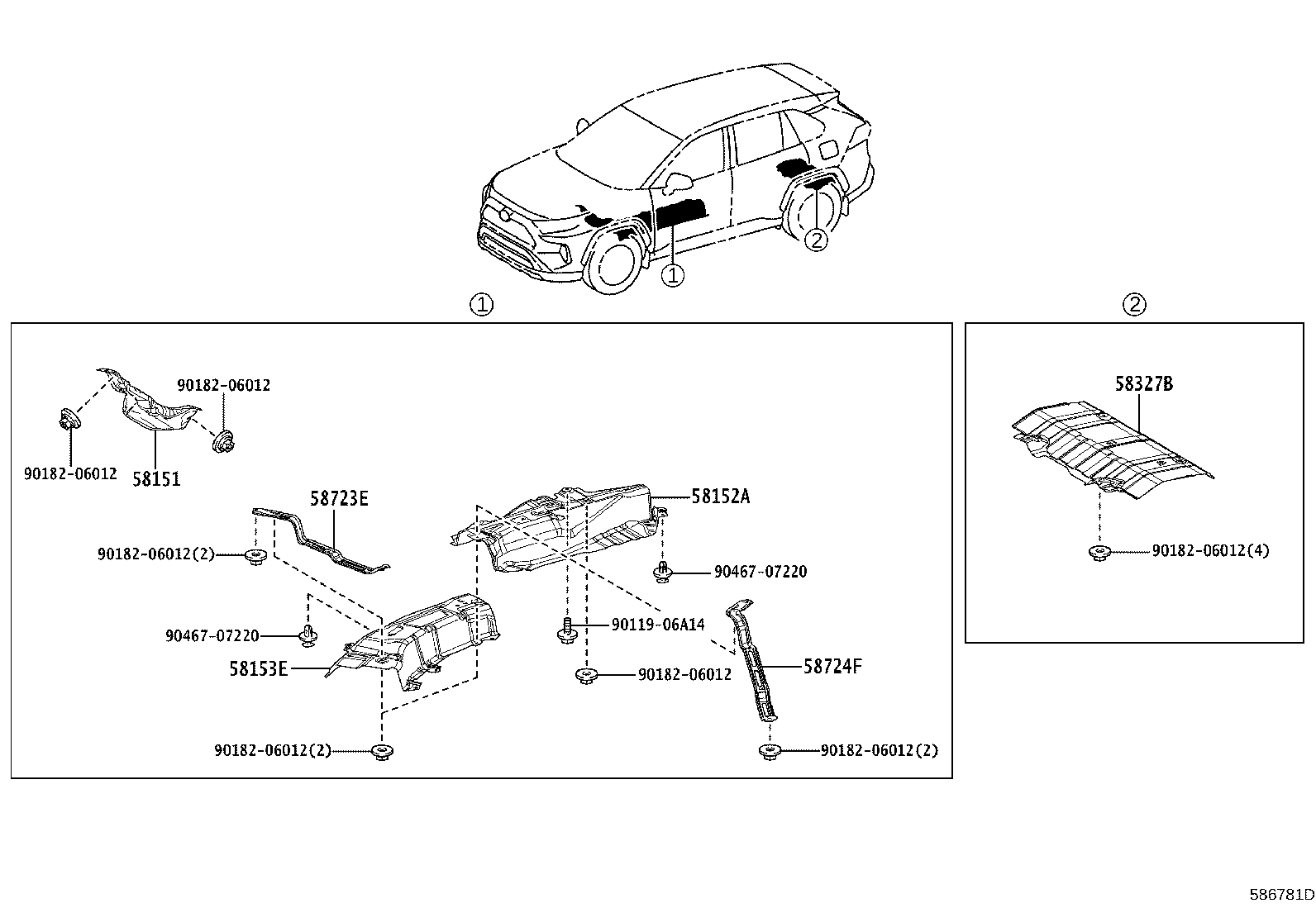

Floor Insulator
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58151 | Insulator, Front Floor Heat, NO.1 |
| 58152A | Insulator, Front Floor Heat, NO.1 Lower |
| 58153E | Insulator, Front Floor Heat, NO.2 |
| 58327B | Insulator, Main Muffler Heat |
| 58723E | Cushion, Engine Service Cover |
| 58724F | Cushion, Engine Service Cover, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
