Toyota RAV4 (JPP)

2018-11 → present · chassis AXAA5#,AXAH5#,AXAL5#,MXAA5# · catalogue 662250 · Europe

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

17 part groups · 8 illustrations

Illustrations

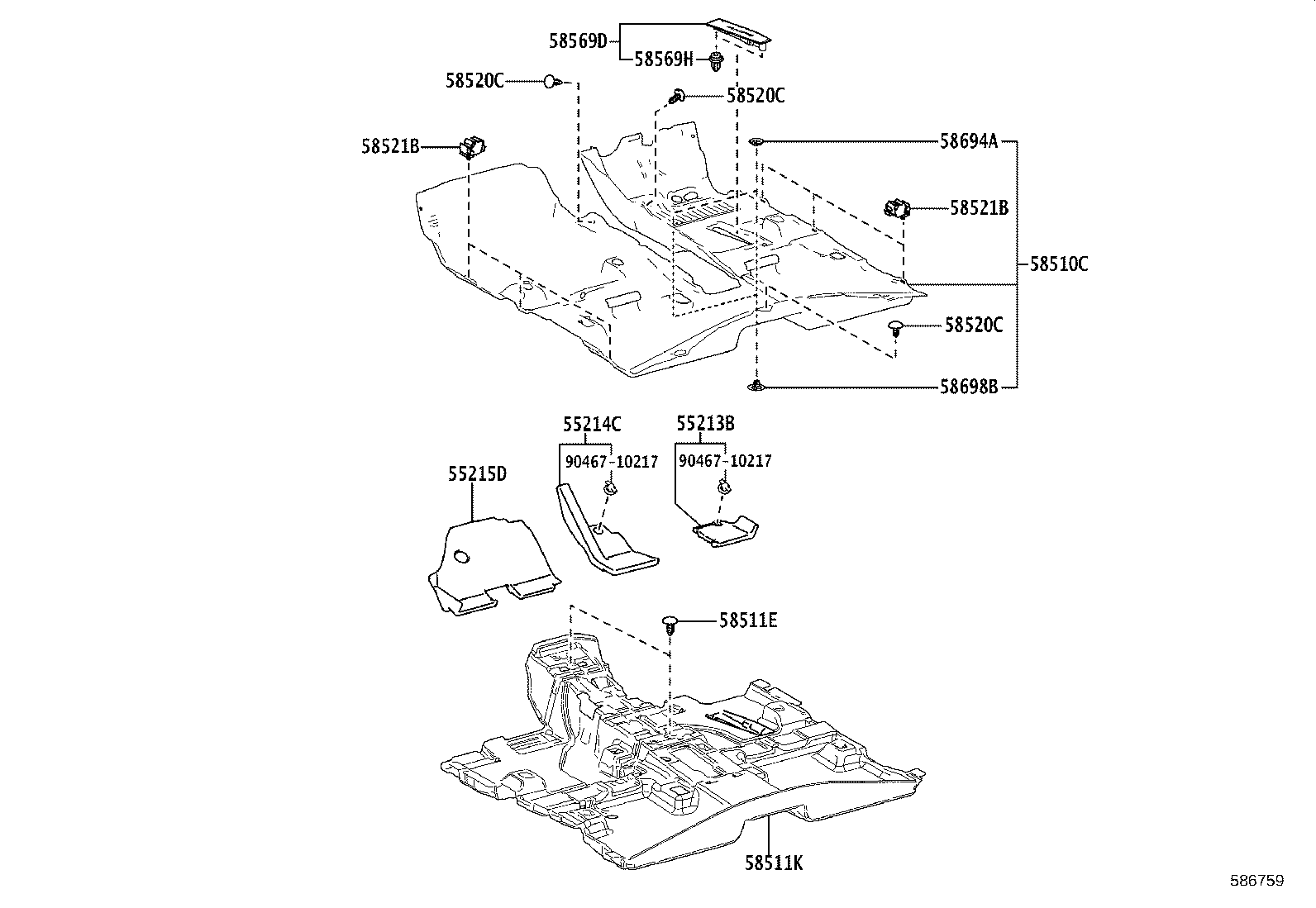

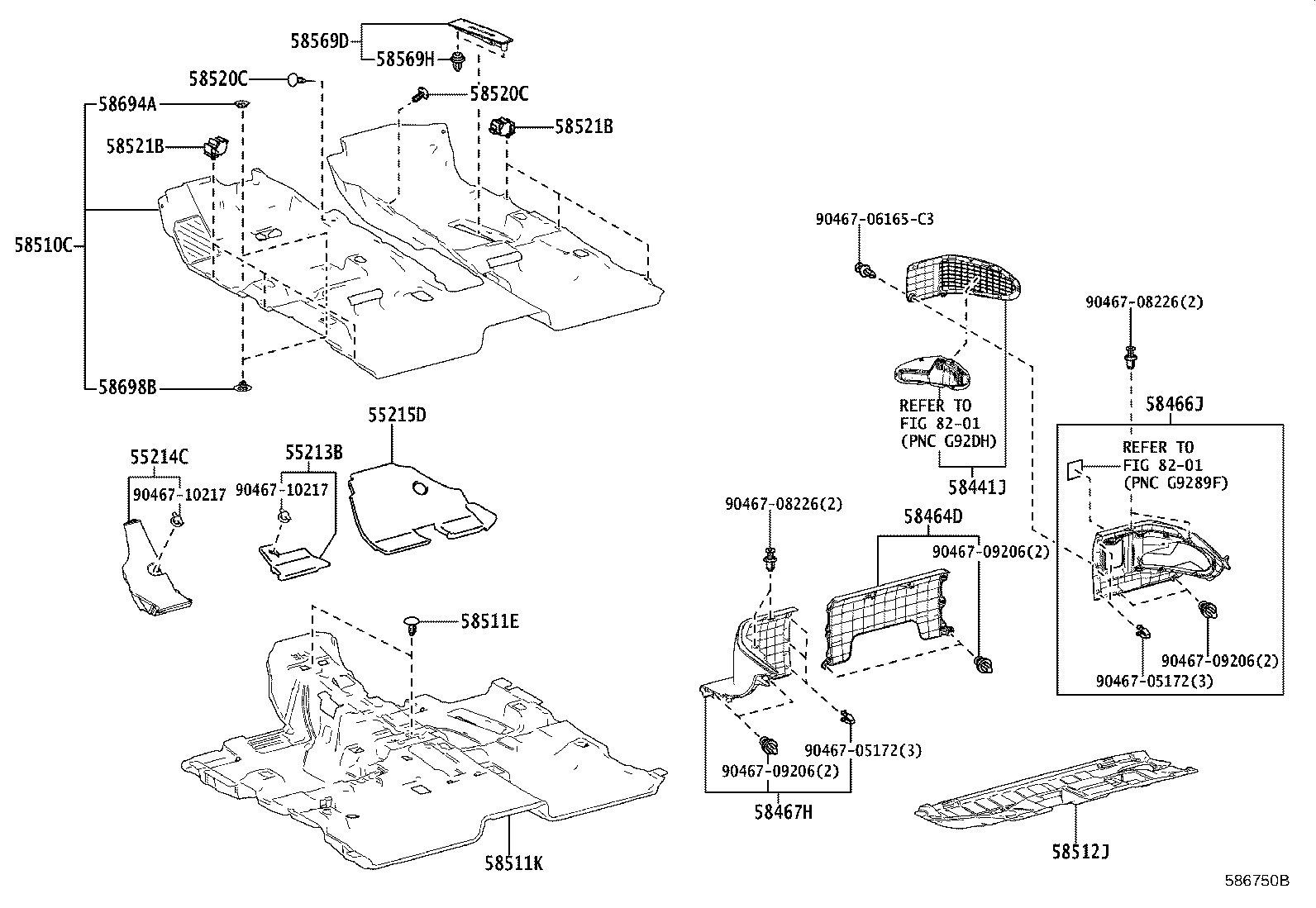

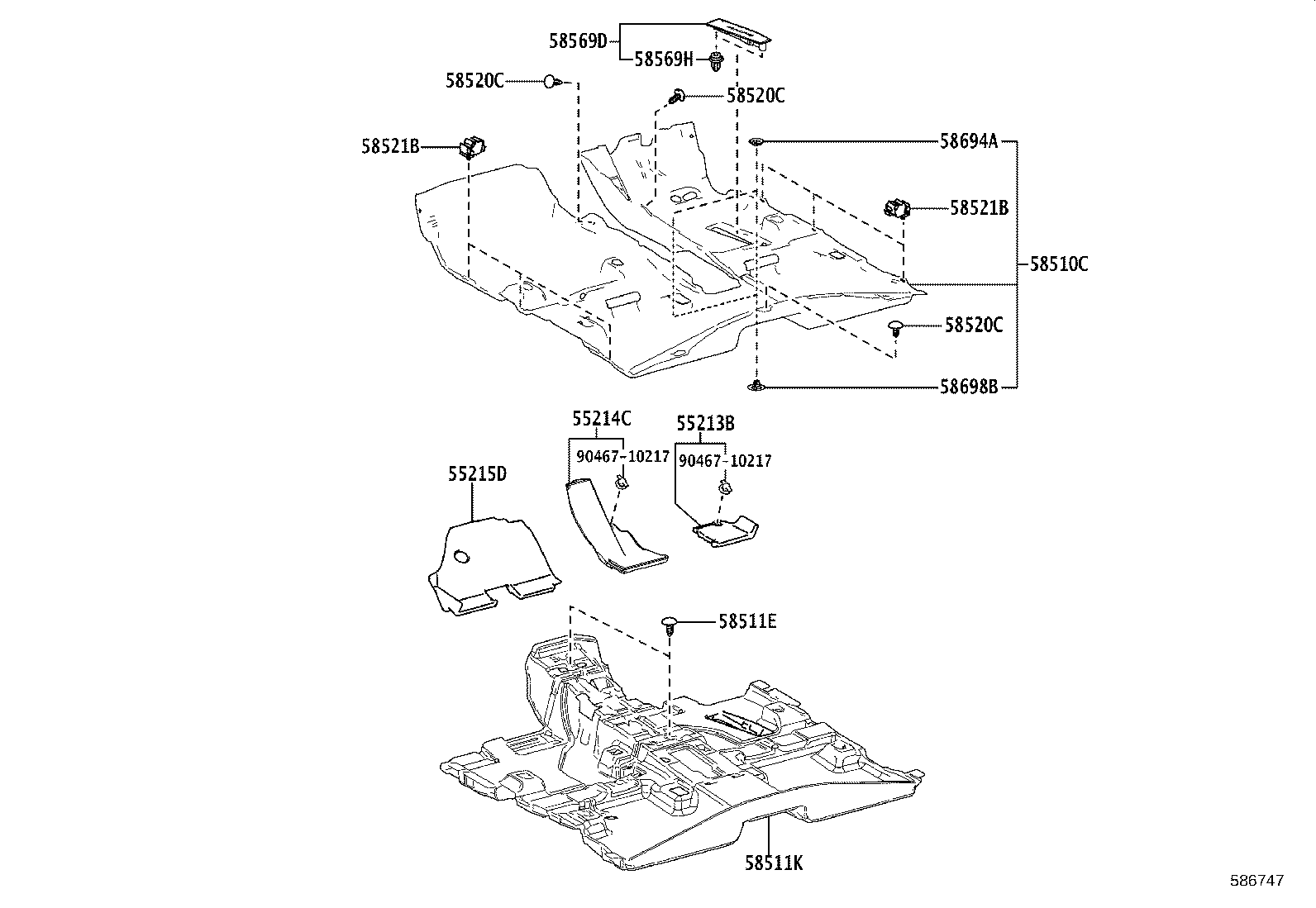

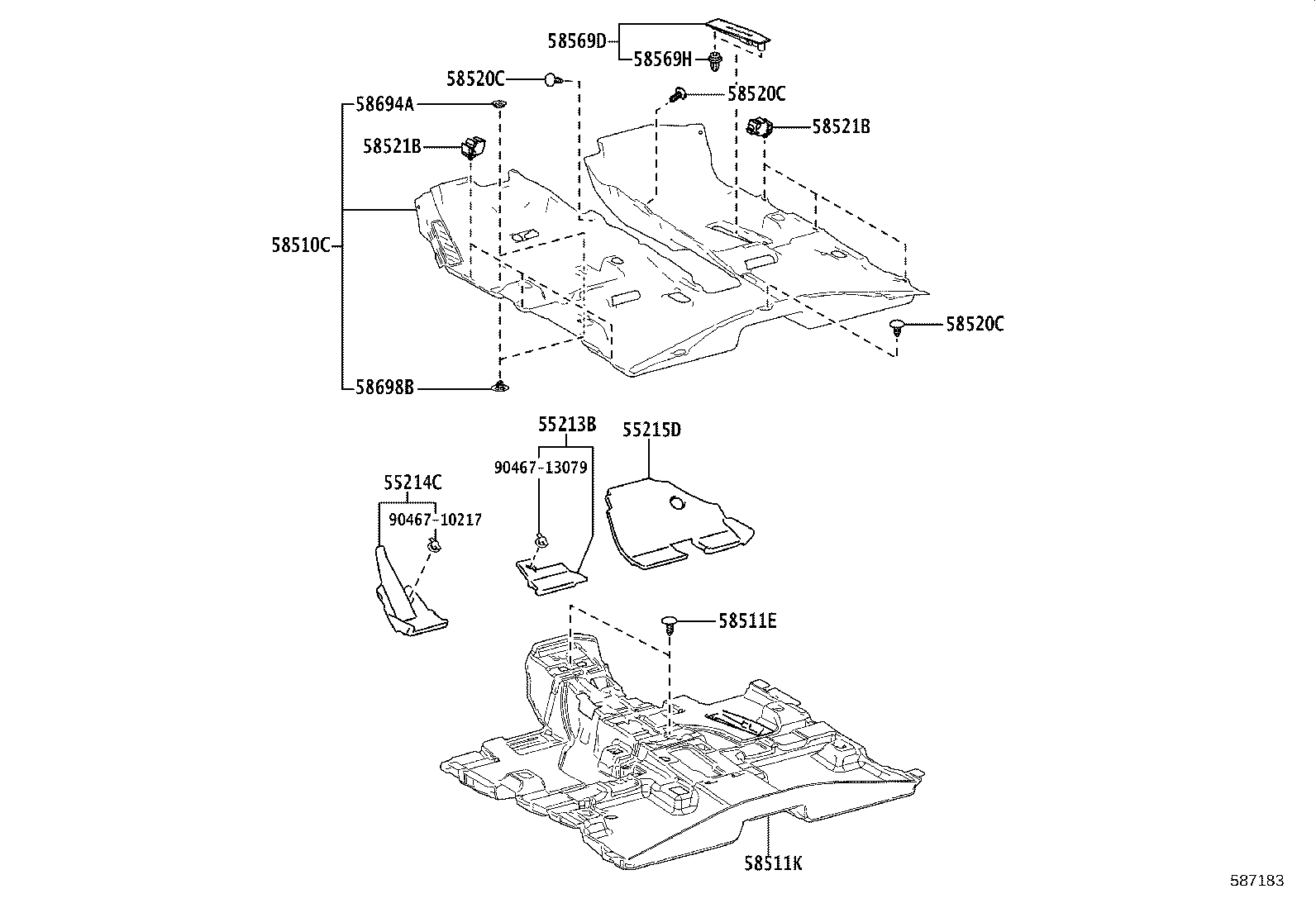

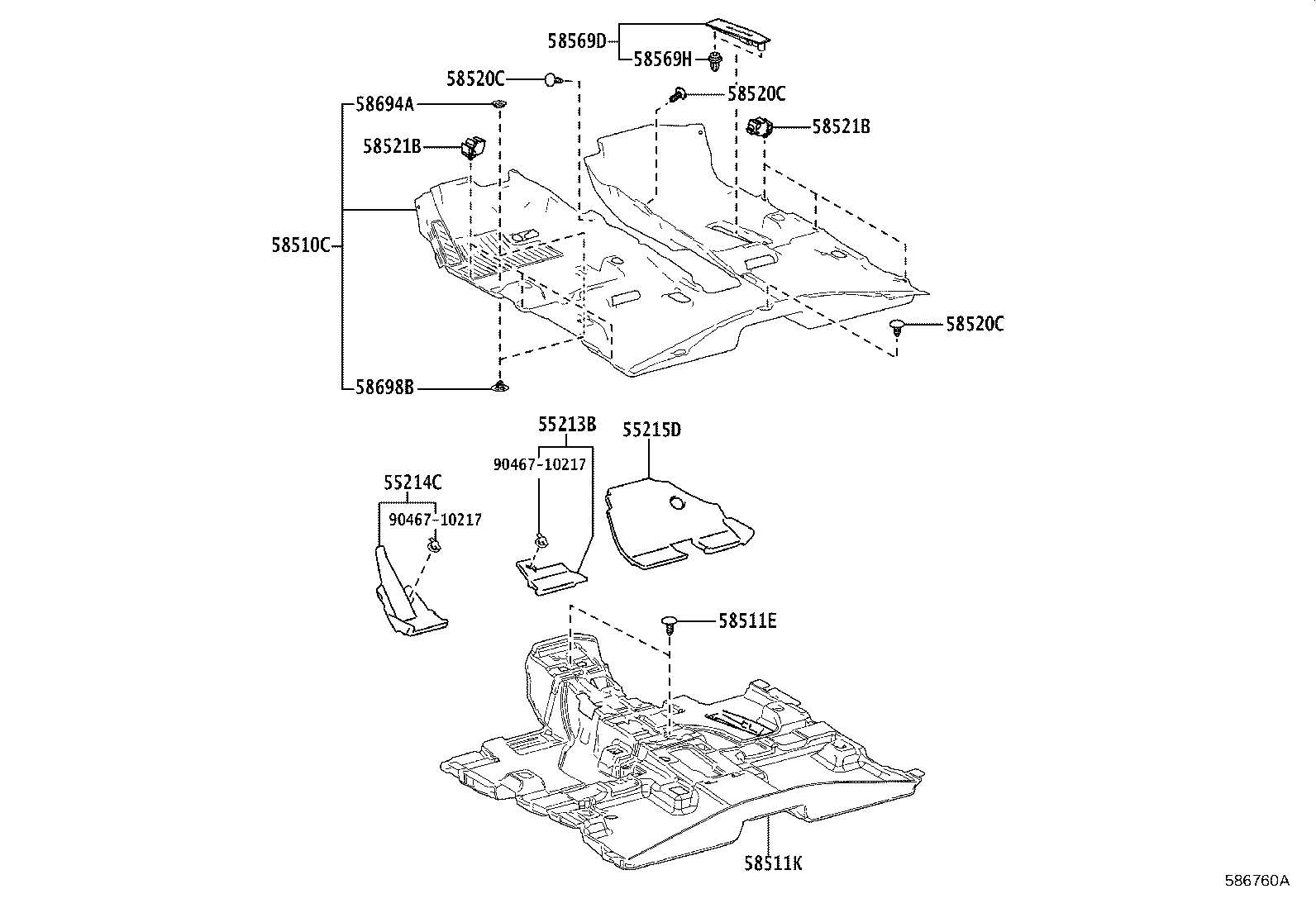

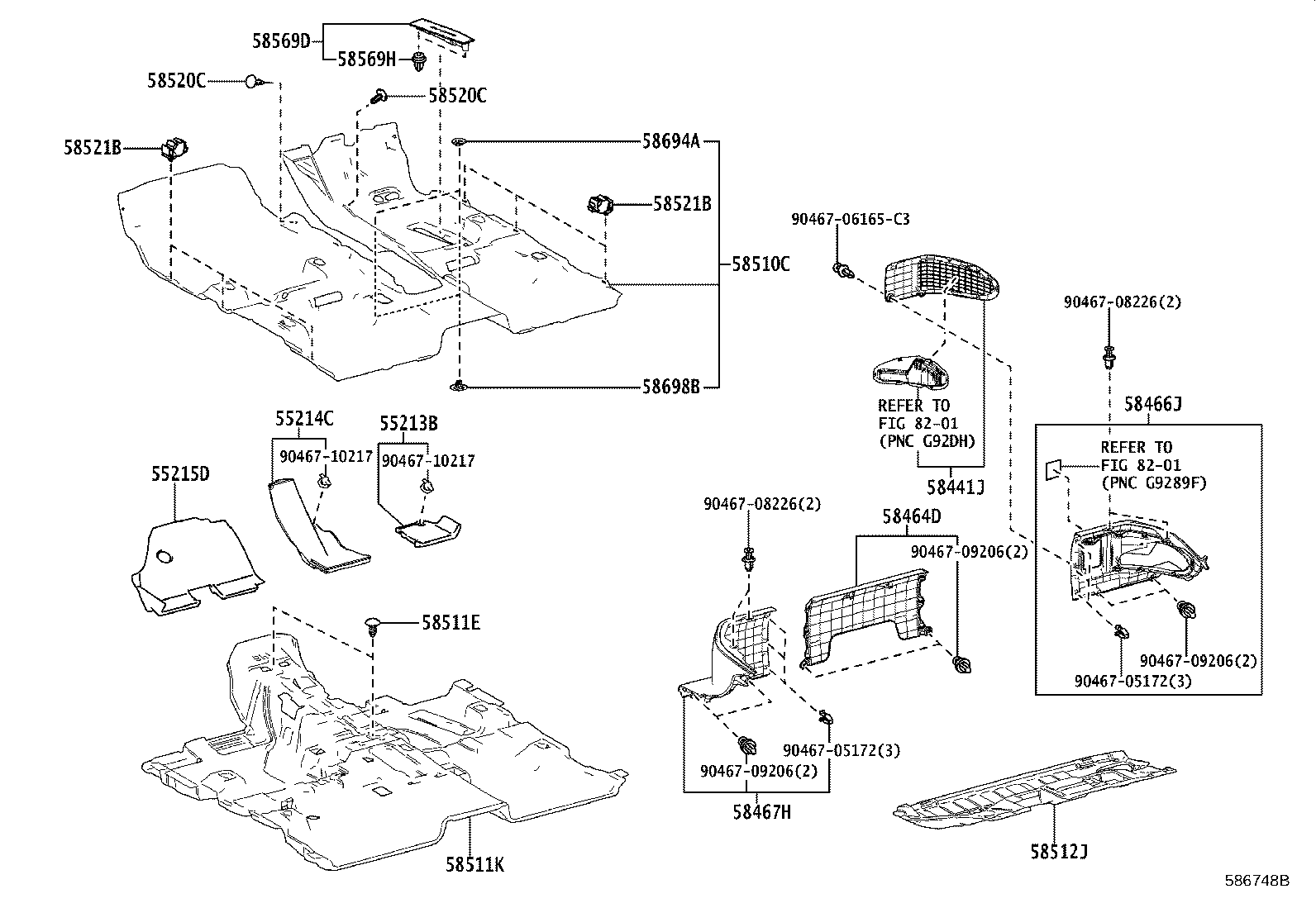

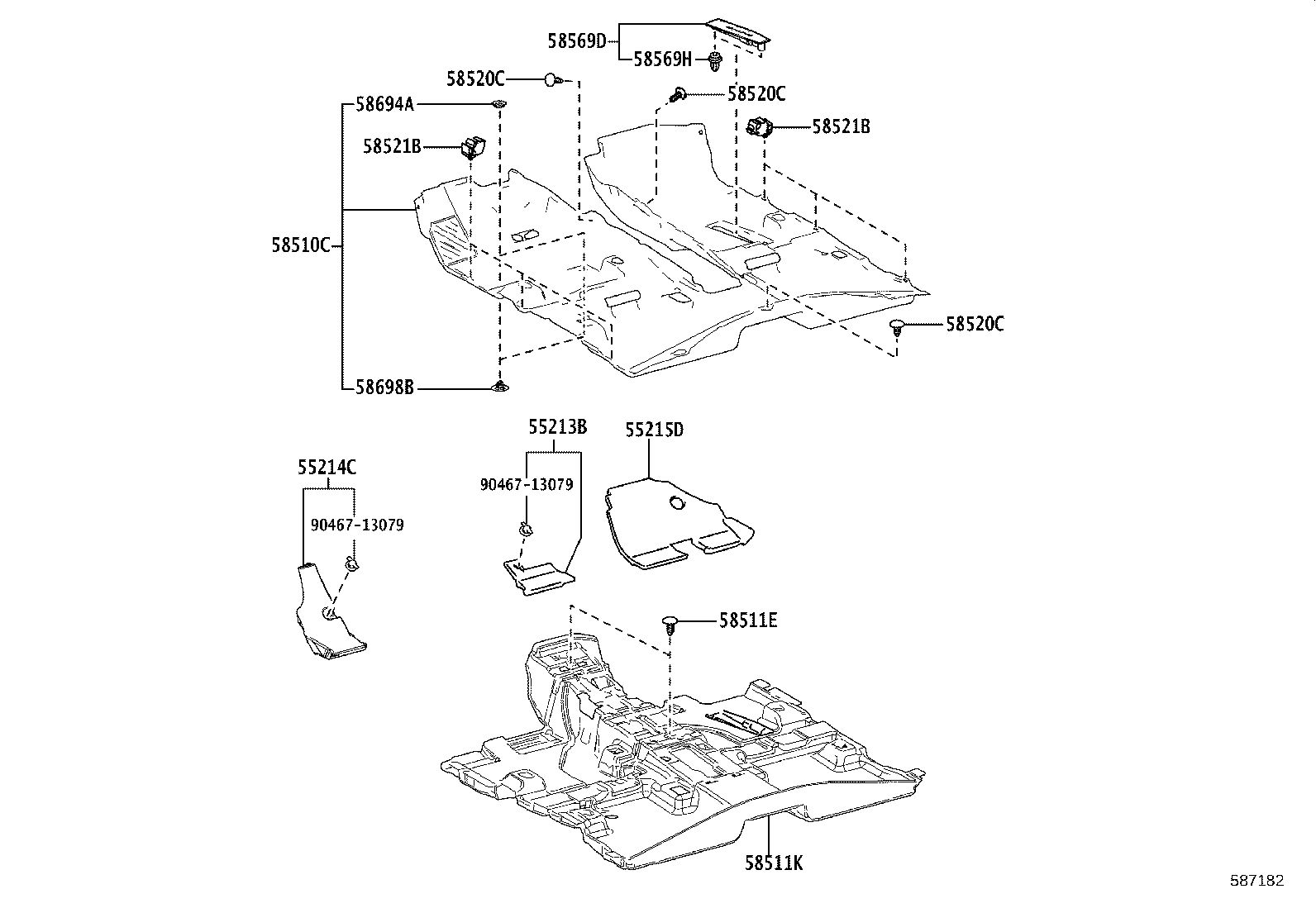

Figure 586749A 586749A 2018-11 → — Figure 587182 587182 2019-10 → — Figure 586747 586747 2018-11 → — Figure 586750B 586750B 2018-11 → — Figure 586748B 586748B 2018-11 → — Figure 586760A 586760A 2018-11 → — Figure 587183 587183 2019-10 → — Figure 586759 586759 2018-11 → —

Part groups

PNCDescription
55213B Pad, Dash Panel Insulator, NO.1
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
58441J Cover, Battery Service Hole
58464D Board, Battery Service Cover
58466J Board, Battery Service Cover, NO.2
58467H Board, Battery Service Cover, NO.3
58510C Carpet Assy, Front Floor, Front
58511E Clip(FOR FRONT FLOOR MAT)
58511K Mat, Floor, NO.1
58512J Mat, Floor, NO.2
58520C Clip(FOR FRONT FLOOR CARPET)
58521B Hook, Floor Carpet
58569D Cover, Front Floor Caution Plate
58569H Clip, Front Floor Caution Plate Cover, NO.1
58694A Plate, Mat Set, Upper
58698B Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
