Toyota RAV4 (JPP)
2018-11 → present · chassis AXAA5#,AXAH5#,AXAL5#,MXAA5# · catalogue 662250 · Europe
Supported model
Data version 2023-10

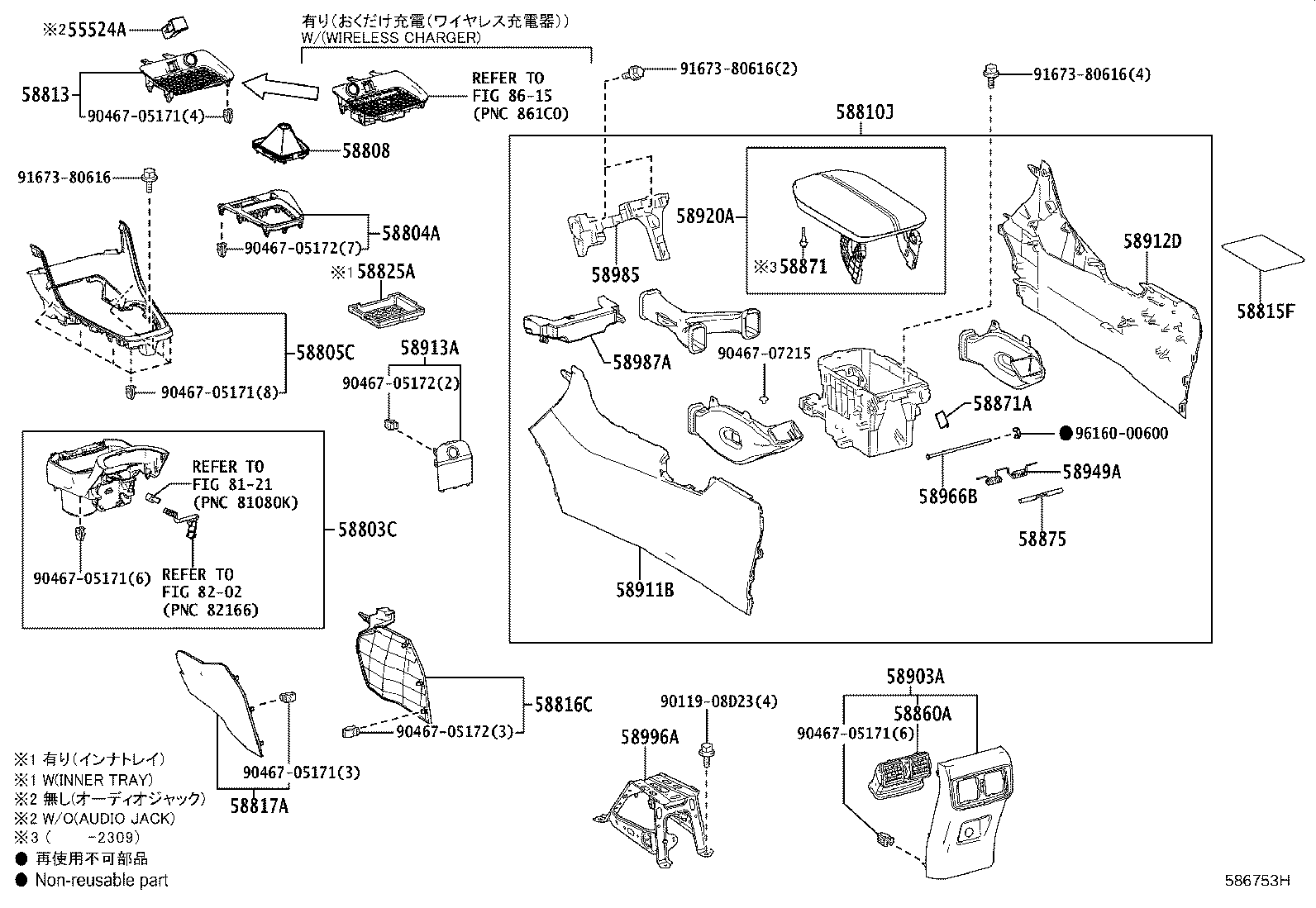

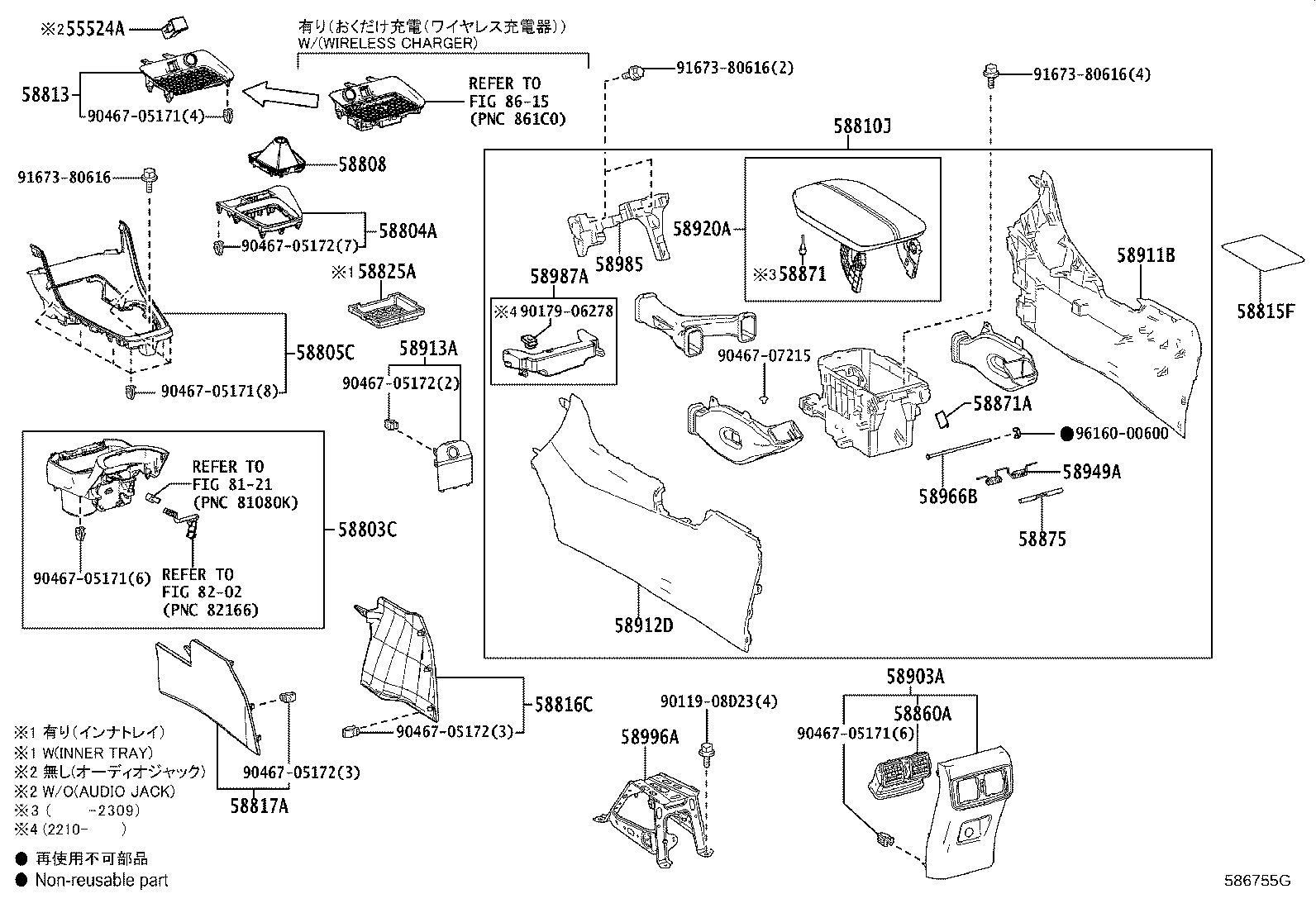

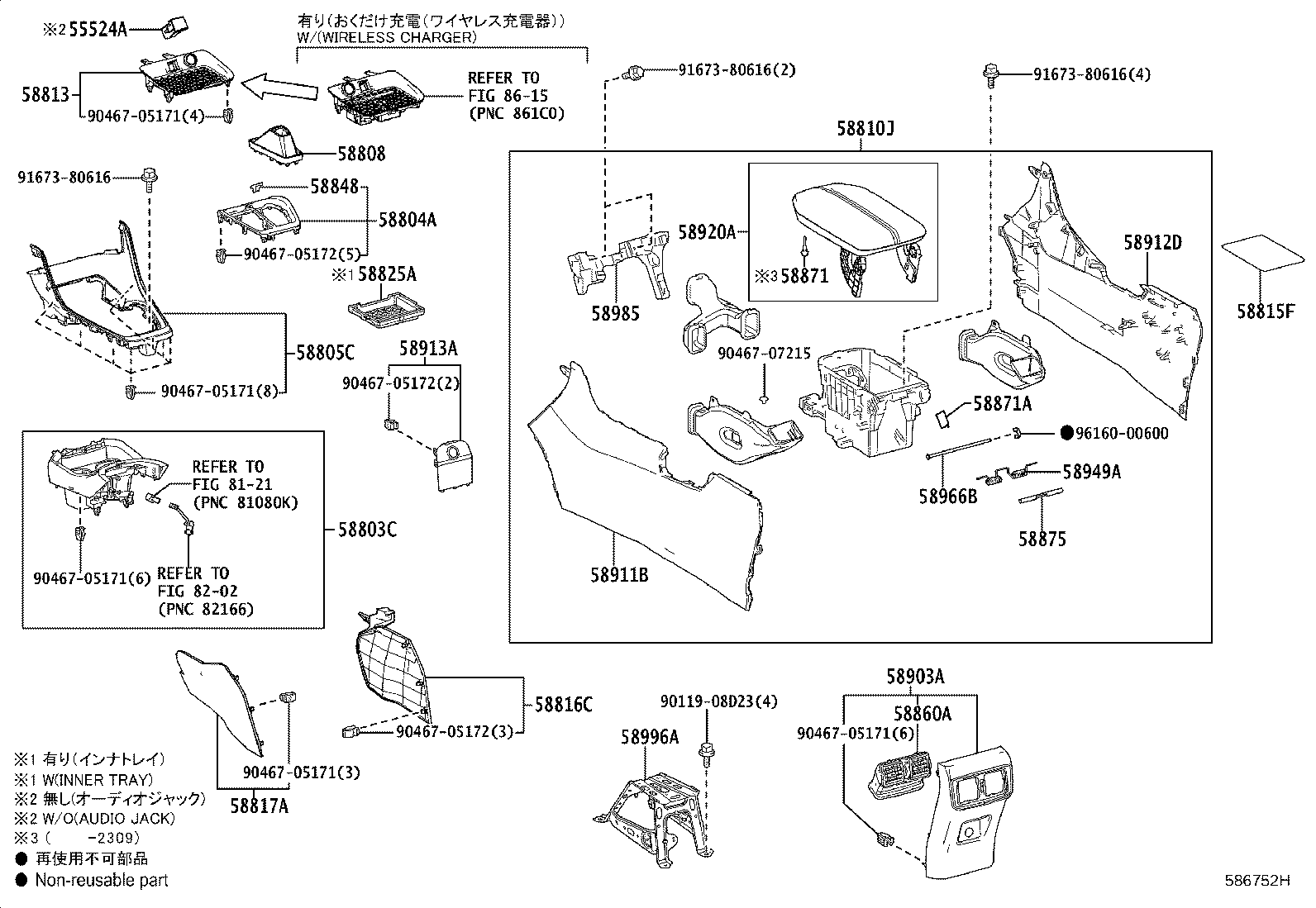

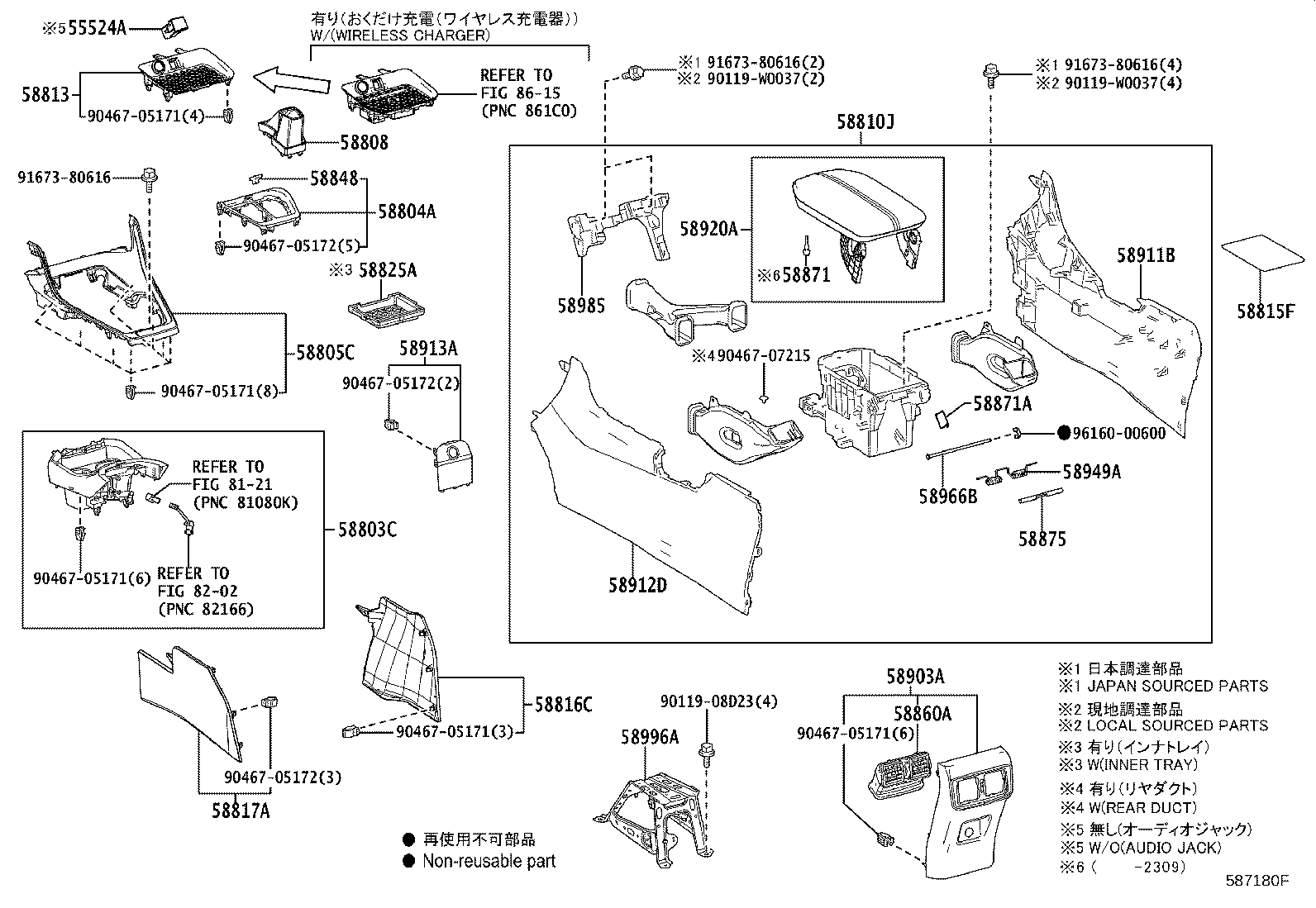

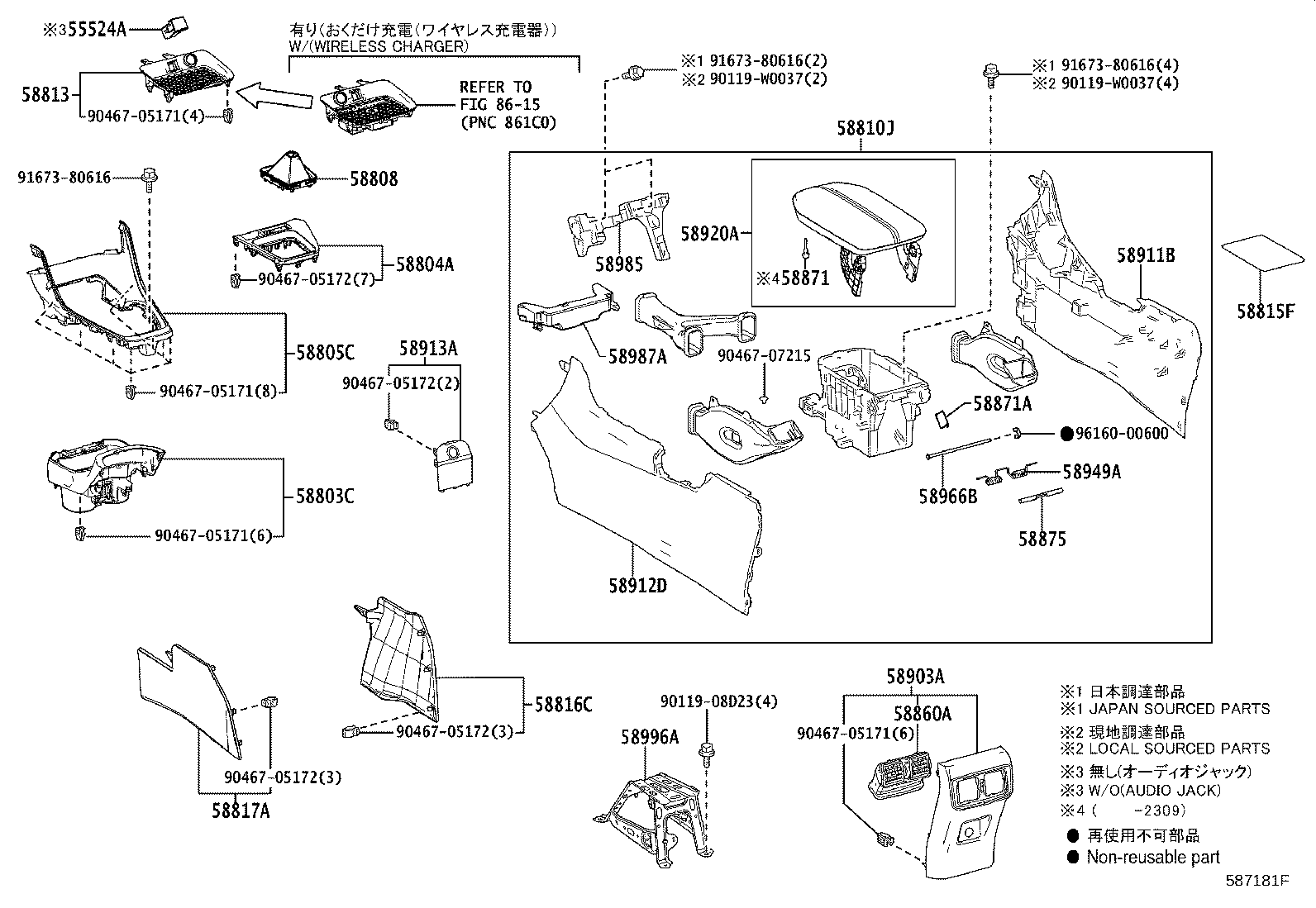

Console Box & Bracket
26 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 55524A | Cover, Switch Base Hole |
| 58803C | Box Sub-assy, Console Cup Holder |
| 58804A | Panel Sub-assy, Console, Upper |
| 58805C | Panel Sub-assy, Console, Upper Rear |
| 58808 | Cover Sub-assy, Shifting Hole |
| 58810J | Box Assy, Console |
| 58813 | Box, Console, Upper |
| 58815F | Carpet, Console Box |
| 58816C | Insert, Console Box, Front NO.1 |
| 58817A | Insert, Console Box, Front NO.2 |
| 58825A | Pocket, Console Box |
| 58848 | Cover, Shift Lever Hole |
| 58860A | Register Assy, Console Box |
| 58871 | Cushion, Console Box |
| 58871A | Cushion, Console Box, NO.2 |
| 58875 | Spacer, Console Box |
| 58903A | Panel Sub-assy, Console Rear End |
| 58911B | Panel, Box, NO.1 |
| 58912D | Panel, Box, NO.2 |
| 58913A | Panel, Box, NO.3 |
| 58920A | Armrest Assy, Rear Console |
| 58949A | Spring, Console Box Mounting Bracket |
| 58966B | Pin, Console Compartment Door Stopper |
| 58985 | Retainer, Console Box |
| 58987A | Retainer, Console Box, NO.2 |
| 58996A | Bracket, Console Box Mounting, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
