Toyota RAV4 (JPP)
2018-11 → present · chassis AXAA5#,AXAH5#,AXAL5#,MXAA5# · catalogue 662250 · Europe
Supported model
Data version 2023-10
Rear Door Panel & Glass
54 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67003C | Cushion, Rear Door Panel |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67113 | Panel, Rear Door, Outer RH |
| 67114 | Panel, Rear Door, Outer LH |
| 67407E | Bar Sub-assy, Rear Door Window Division, RH |
| 67408E | Bar Sub-assy, Rear Door Window Division, LH |

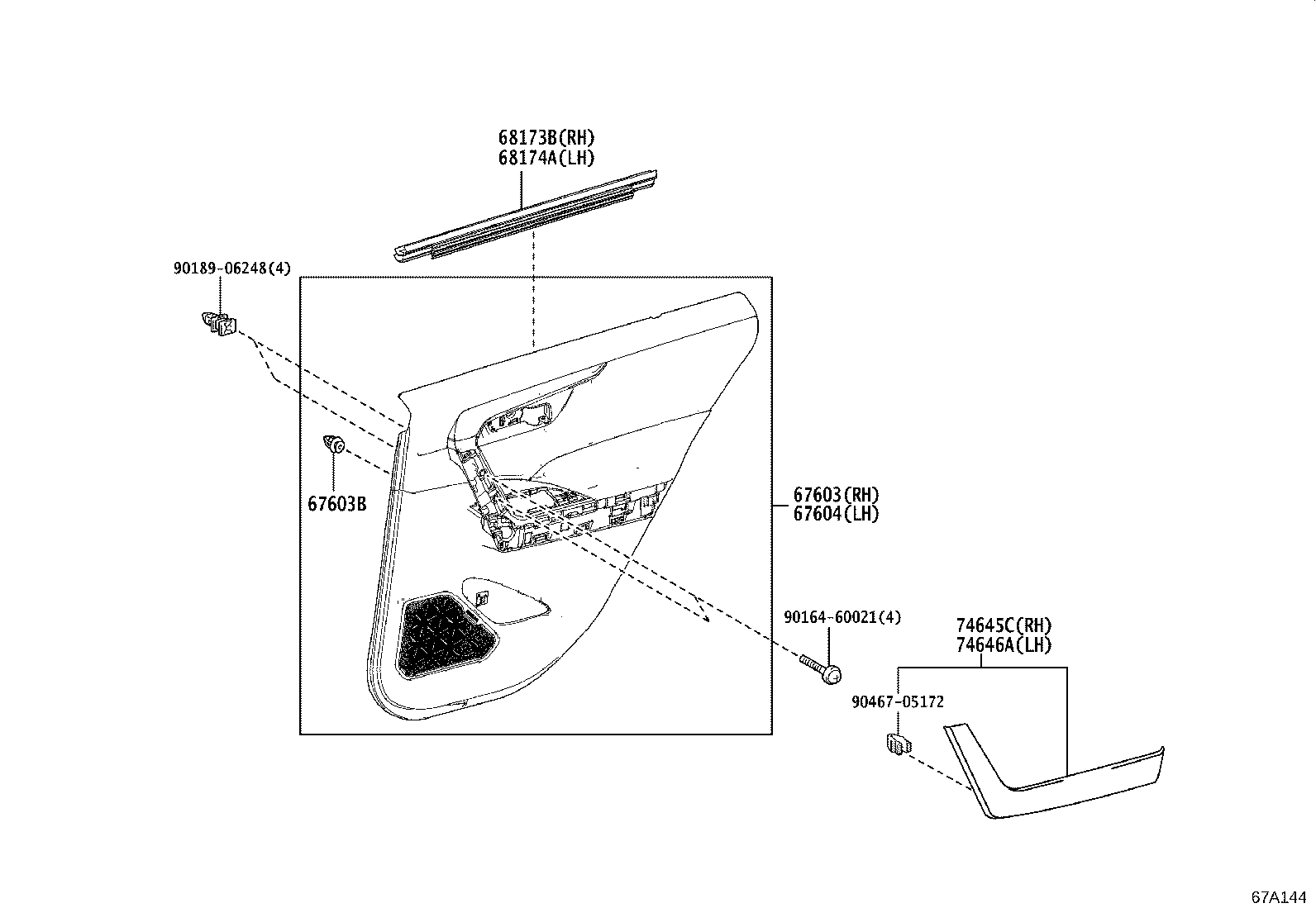

| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603B | Clip(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67673A | Garnish, Rear Door Frame, RH |
| 67674A | Garnish, Rear Door Frame, LH |
| 67841E | Cover, Rear Door Service Hole, RH |
| 67842E | Cover, Rear Door Service Hole, LH |
| 67845D | Seal, Rear Door Front Outside, RH |
| 67846A | Seal, Rear Door Front Outside, LH |
| 67857M | Protector, Rear Door Panel, RH |
| 67857Q | Clip, Rear Door Panel Protector |
| 67858B | Protector, Rear Door Panel, LH |
| 67867B | Clip, Door Weatherstrip(FOR REAR DOOR) |
| 67867D | Retainer, Rear Door Weatherstrip, RH |
| 67867J | Clip, Door Weatherstrip, RH(FOR REAR DOOR) |
| 67868D | Retainer, Rear Door Weatherstrip, LH |
| 67869L | Clip, Rear Door Weatherstrip |
| 67871 | Weatherstrip, Rear Door, RH |
| 67872 | Weatherstrip, Rear Door, LH |
| 67873L | Weatherstrip, Rear Door, NO.5 RH |
| 67874C | Weatherstrip, Rear Door, NO.5 LH |
| 67887J | Weatherstrip, Access Panel, NO.2 RH |
| 67888J | Weatherstrip, Access Panel, NO.2 LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68123B | Glass, Rear Door Quarter Window, RH |
| 68124B | Glass, Rear Door Quarter Window, LH |
| 68142C | Run, Rear Door Glass, RH |
| 68152C | Run, Rear Door Glass, LH |
| 68173B | Weatherstrip, Rear Door Glass, Inner RH |
| 68174A | Weatherstrip, Rear Door Glass, Inner LH |
| 68188 | Weatherstrip, Rear Door Quarter Window, RH |
| 68189 | Weatherstrip, Rear Door Quarter Window, LH |
| 68196B | Seal, Rear Door Belt, Front RH |
| 68197A | Seal, Rear Door Belt, Front LH |
| 68198 | Seal, Rear Door Belt, Rear RH |
| 68199 | Seal, Rear Door Belt, Rear LH |
| 68630D | Check Assy, Rear Door, RH |
| 68640A | Check Assy, Rear Door, LH |
| 74645C | Cover, Door Assist Grip, RH |
| 74646A | Cover, Door Assist Grip, LH |
| 75953A | Tape, Black Out, Inner Rear RH |
| 75954A | Tape, Black Out, Inner Rear LH |
| 75977H | Stripe, Rear Door Outside, Lower RH |
| 75978H | Stripe, Rear Door Outside, Lower LH |
| 75987F | Stripe, Rear Door, Outside, RH |
| 75988E | Stripe, Rear Door, Outside LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
