Toyota RAV4 (JPP)
2018-11 → present · chassis AXAA5#,AXAH5#,AXAL5#,MXAA5# · catalogue 662250 · Europe
Supported model
Data version 2023-10

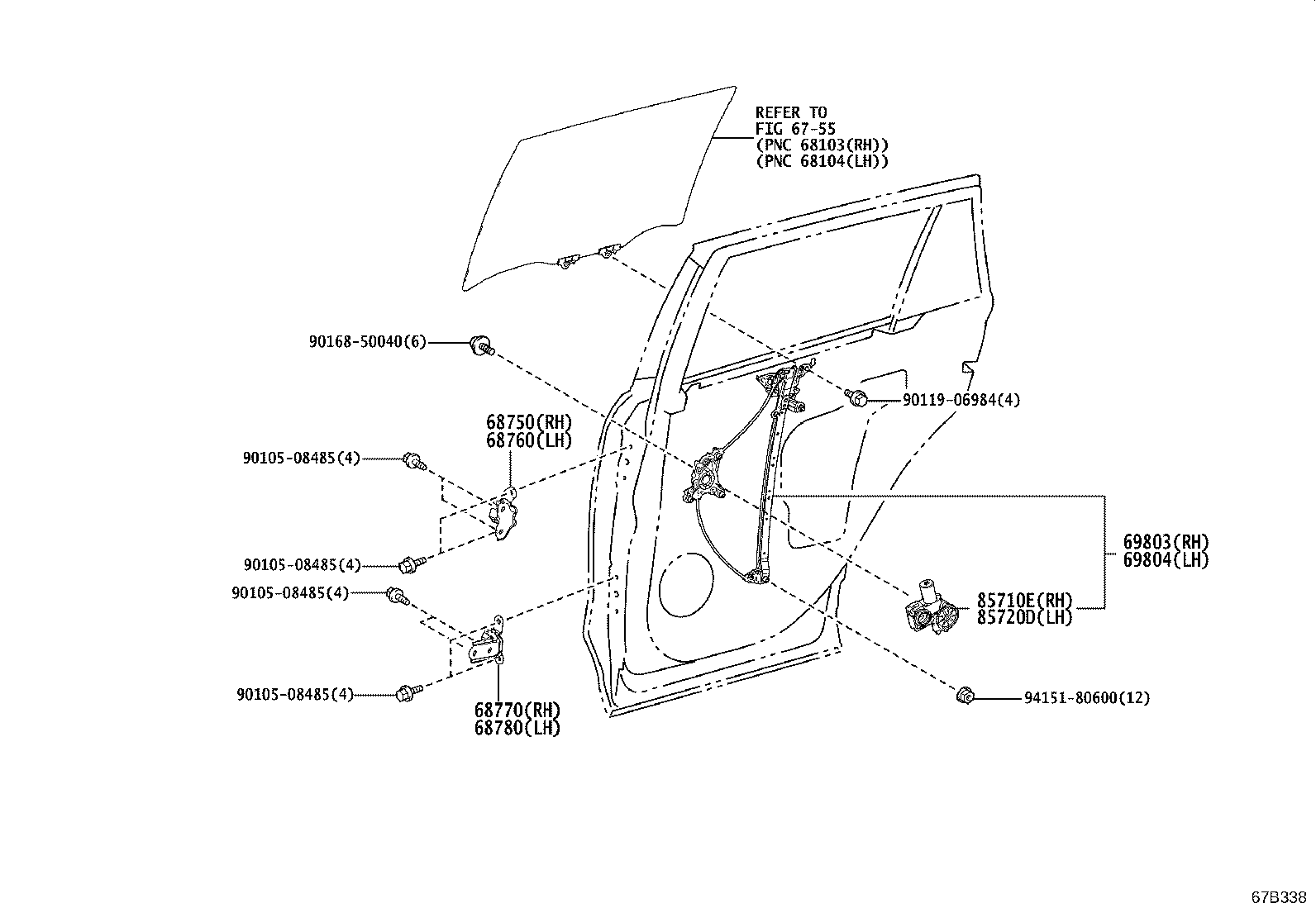

Rear Door Window Regulator & Hinge
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 68750 | Hinge Assy, Rear Door, Upper RH |
| 68760 | Hinge Assy, Rear Door, Upper LH |
| 68770 | Hinge Assy, Rear Door, Lower RH |
| 68780 | Hinge Assy, Rear Door, Lower LH |
| 69803 | Regulator Sub-assy, Rear Door Window, RH |
| 69804 | Regulator Sub-assy, Rear Door Window, LH |
| 85710E | Motor Assy, Power Window Regulator, RH |
| 85720D | Motor Assy, Power Window Regulator, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
