Toyota RAV4 (JPP)

2018-11 → present · chassis AXAA5#,AXAH5#,AXAL5#,MXAA5# · catalogue 662250 · Europe

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

29 part groups · 14 illustrations

Illustrations

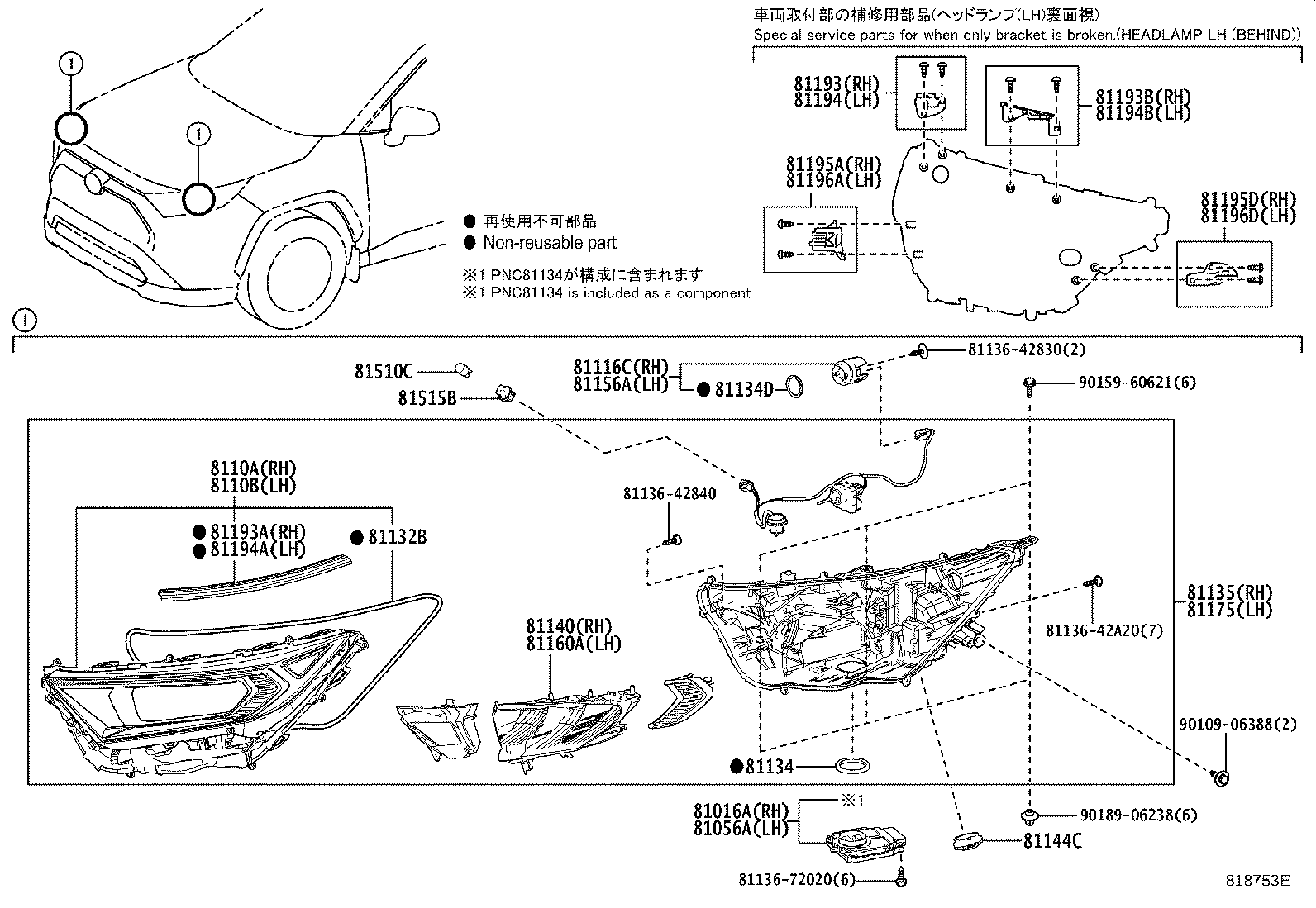

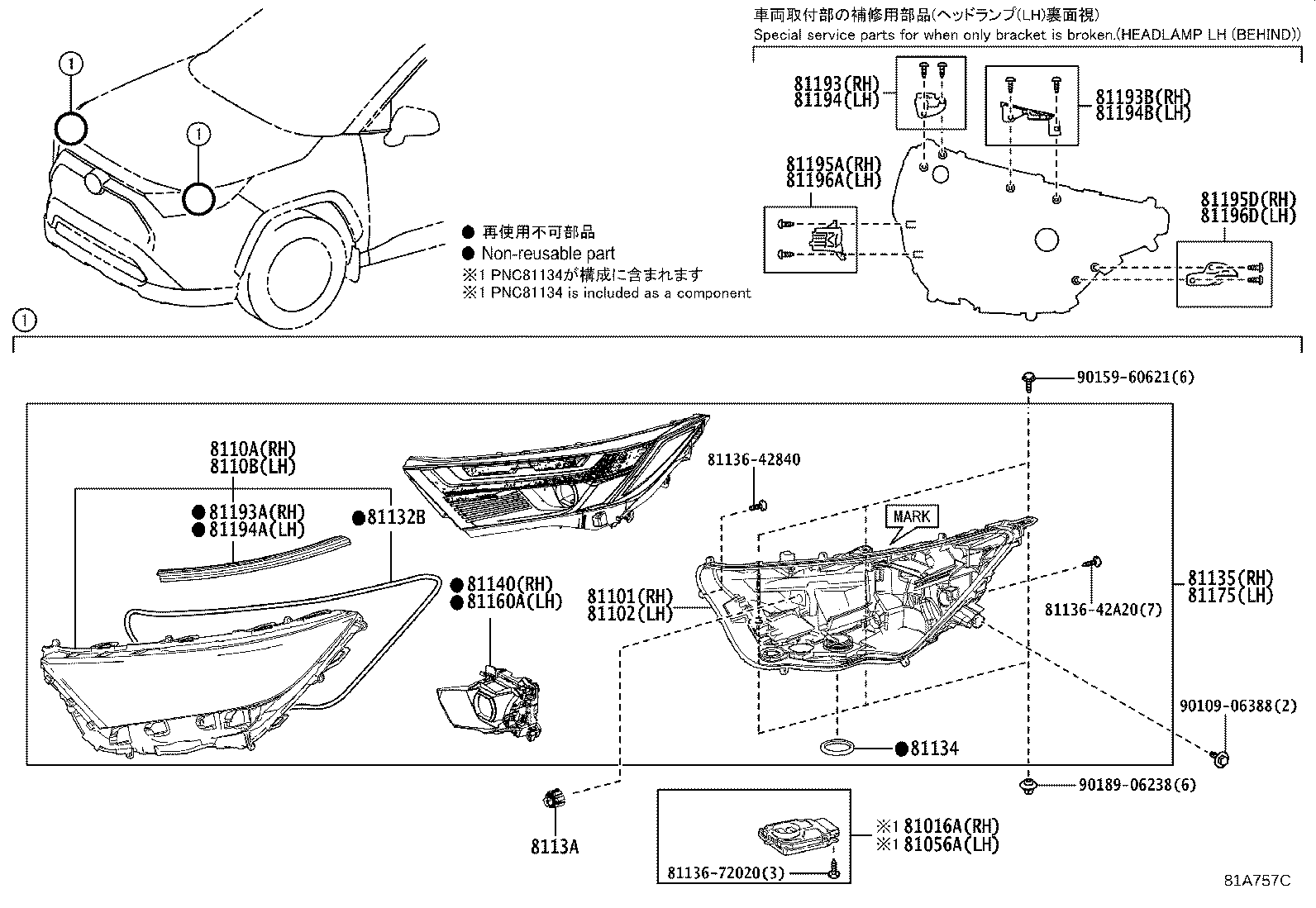

Figure 818754G 818754G 2018-11 → — Figure 818754G 818754G 2018-11 → — Figure 818753E 818753E 2018-11 → — Figure 818753E 818753E 2018-11 → — Figure 818753E 818753E 2018-11 → — Figure 818753E 818753E 2023-10 → — Figure 818753E 818753E 2023-10 → — Figure 81A757C 81A757C 2021-12 → — Figure 81A757C 81A757C 2021-12 → — Figure 81A757C 81A757C 2022-10 → — Figure 81A757C 81A757C 2022-10 → — Figure 81A757C 81A757C 2023-10 → — Figure 81A757C 81A757C 2023-10 → — Figure 81A757C 81A757C 2023-10 → —

Part groups

PNCDescription
81016A Computer Sub-assy, Headlamp, RH
81056A Computer Sub-assy, Headlamp, LH
81101 Housing Sub-assy, Headlamp, RH
81102 Housing Sub-assy, Headlamp, LH
8110A Lens Sub-assy, Headlamp, RH
8110B Lens Sub-assy, Headlamp, LH
81116C Bracket, Headlamp, RH
81132B Gasket, Headlamp Lens
81134 Gasket, Headlamp
81134D Gasket, Headlamp, NO.2
81135 Unit Assy, Headlamp, RH
8113A Led, Headlamp Front Turn Signal
81140 Unit Assy, Headlamp Led, RH
81144C Cover, Headlamp Socket
81156A Bracket, Headlamp, LH
81160A Unit Assy, Headlamp Led, LH
81175 Unit Assy, Headlamp, LH
81193 Retainer, Headlamp Protector, Upper RH
81193A Protector, Headlamp, RH
81193B Retainer, Headlamp Protector, Upper RH NO.2
81194 Retainer, Headlamp Protector, Upper LH
81194A Protector, Headlamp, LH
81194B Retainer, Headlamp Protector, Upper LH NO.2
81195A Retainer, Headlamp Protector, Lower RH
81195D Retainer, Headlamp Protector, Lower RH NO.2
81196A Retainer, Headlamp Protector, Lower LH
81196D Retainer, Headlamp Protector, Lower LH NO.2
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
