Toyota RAV4 (JPP)
2018-11 → present · chassis AXAA5#,AXAH5#,AXAL5#,MXAA5# · catalogue 662250 · Europe
Supported model
Data version 2023-10
Interior Lamp
18 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 63395E | Clip(FOR MAP LAMP) |
| 63652E | Cover, Roof Console Box, NO.1 |
| 63659 | Case, Roof Console Cover |
| 81080J | Lamp Assy, Interior Illumination, NO.1 |
| 81080K | Lamp Assy, Console Box Illumination |
| 81080M | Lamp Assy, Interior Illumination, NO.1 |
| 81080N | Lamp Assy, Interior Illumination, NO.1 |
| 81080V | Lamp Assy, Interior Illumination, NO.2 |
| 81081 | Lamp Sub-assy, Interior Illumination |
| 81240 | Lamp Assy, Room, NO.1 |
| 81240B | Bulb, Room Lamp, NO.1 |

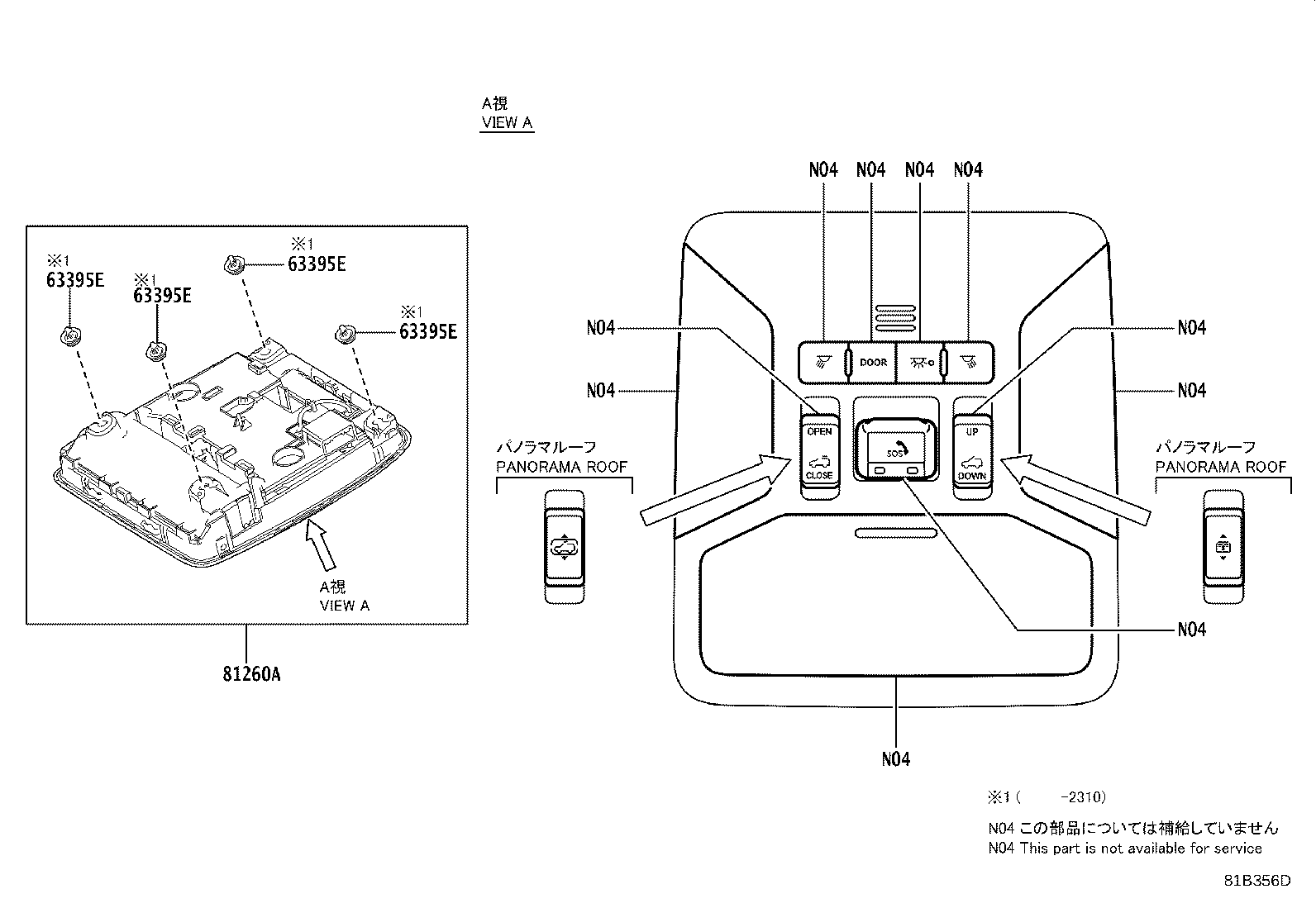

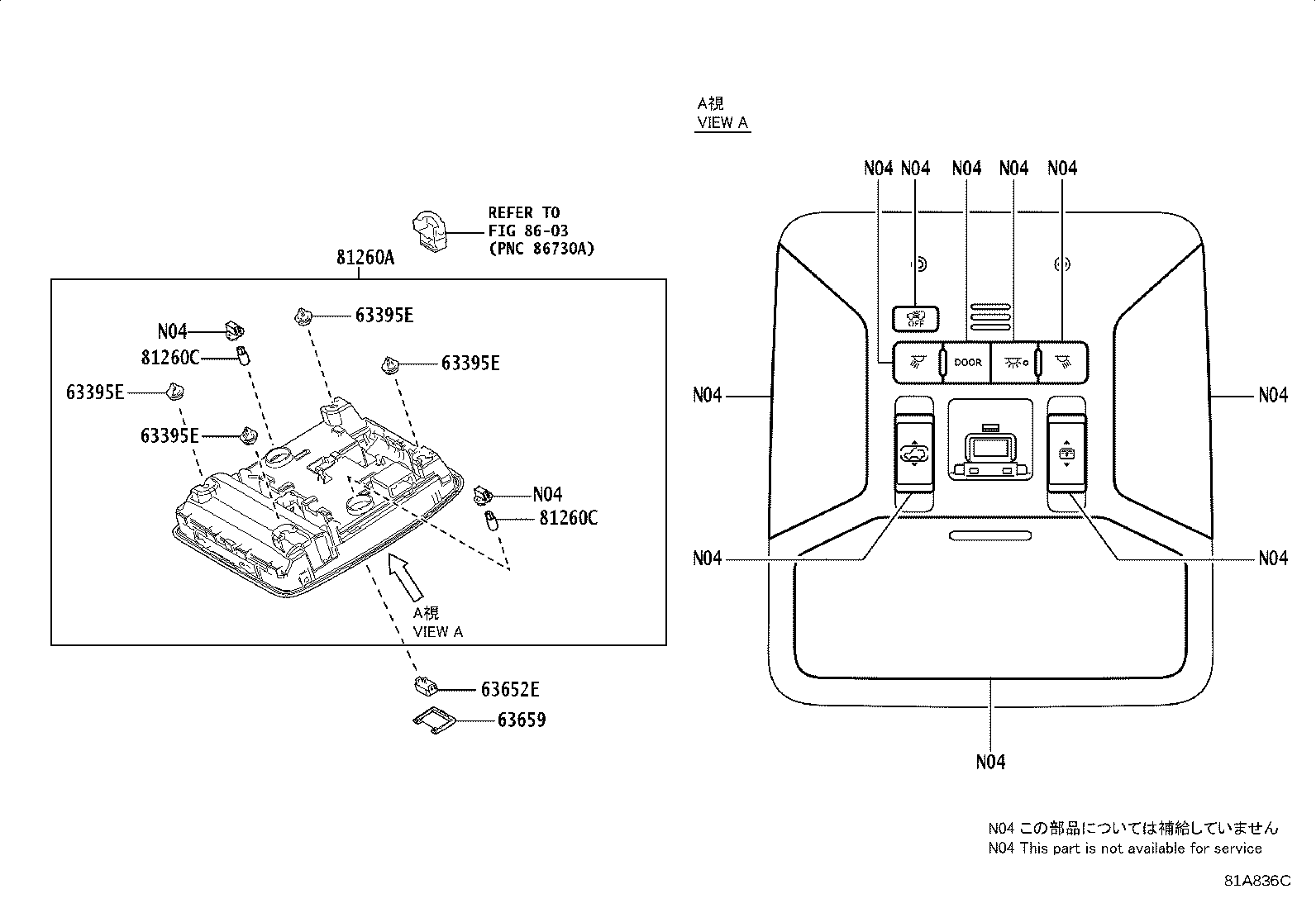

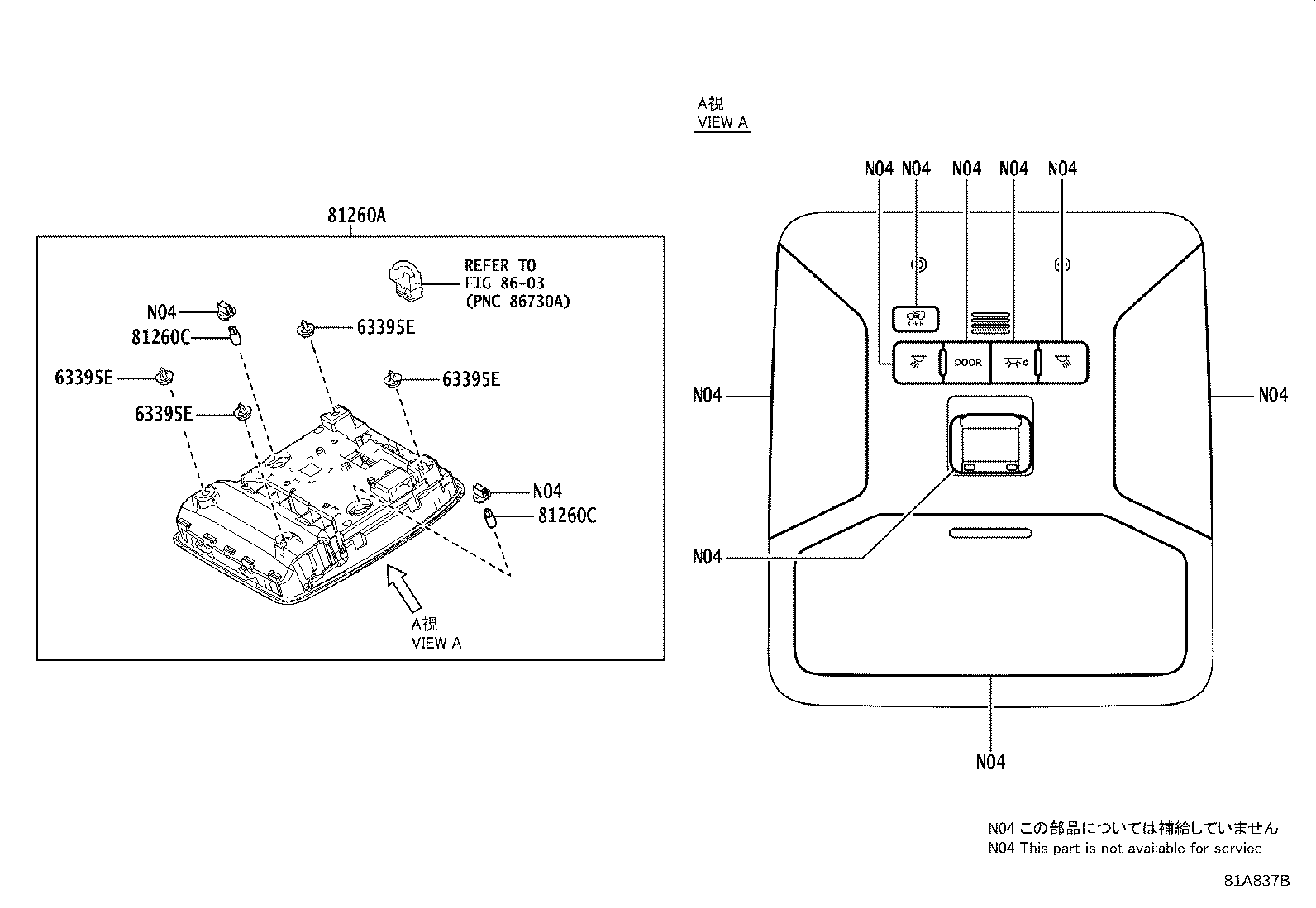

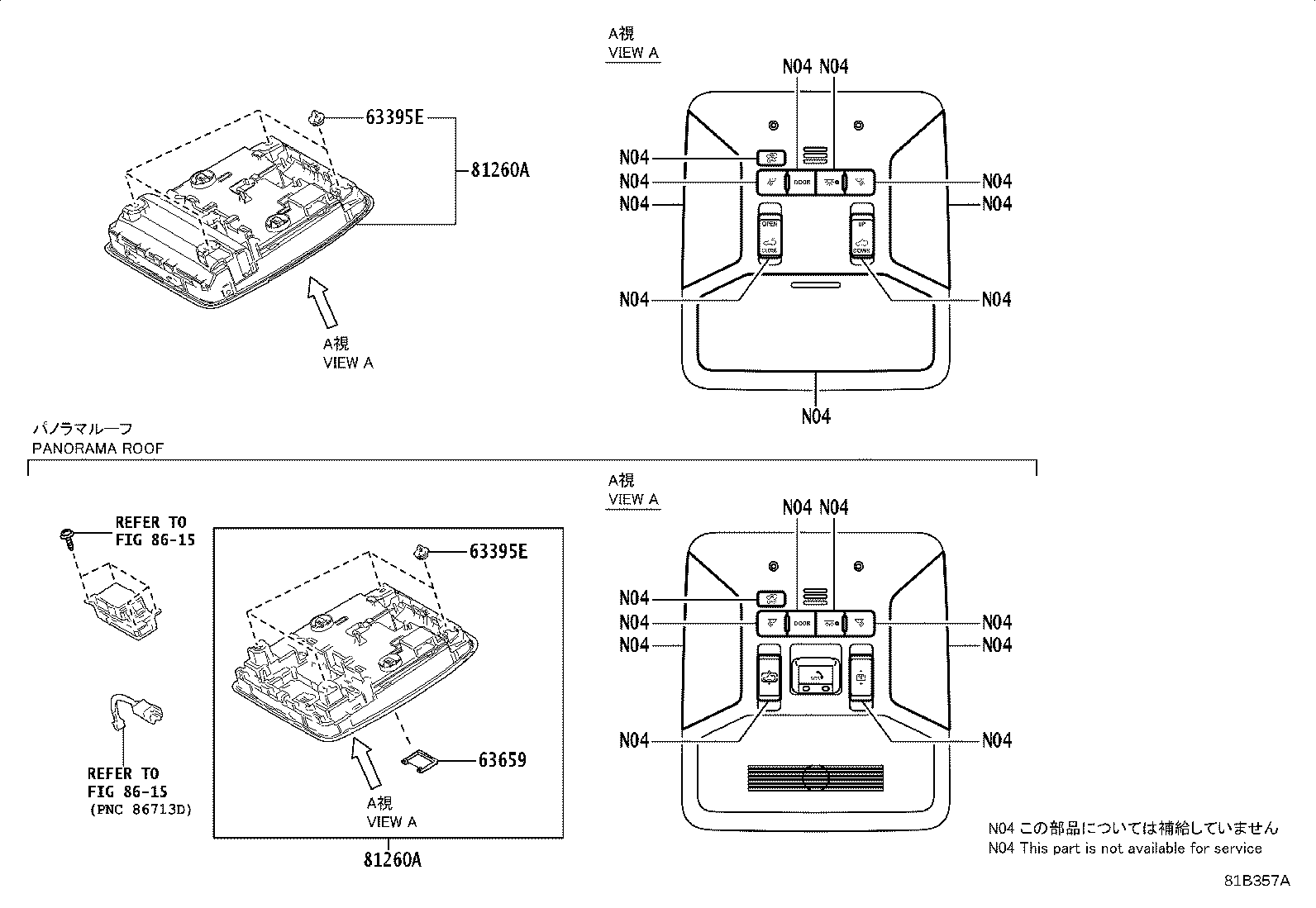

| 81260A | Lamp Assy, Map |
| 81260C | Bulb(FOR MAP LAMP) |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81330C | Lamp Assy, Luggage Compartment |
| 81340 | Lamp Assy, Vanity |
| 81340B | Bulb (FOR VANITY LAMP) |
| 82285B | Wire, Illumination |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
