Toyota RAV4 (JPP)

2018-11 → present · chassis AXAA5#,AXAH5#,AXAL5#,MXAA5# · catalogue 662250 · Europe

Supported model Data version 2023-10

Battery & Battery Cable

43 part groups · 6 illustrations

PNC	Description

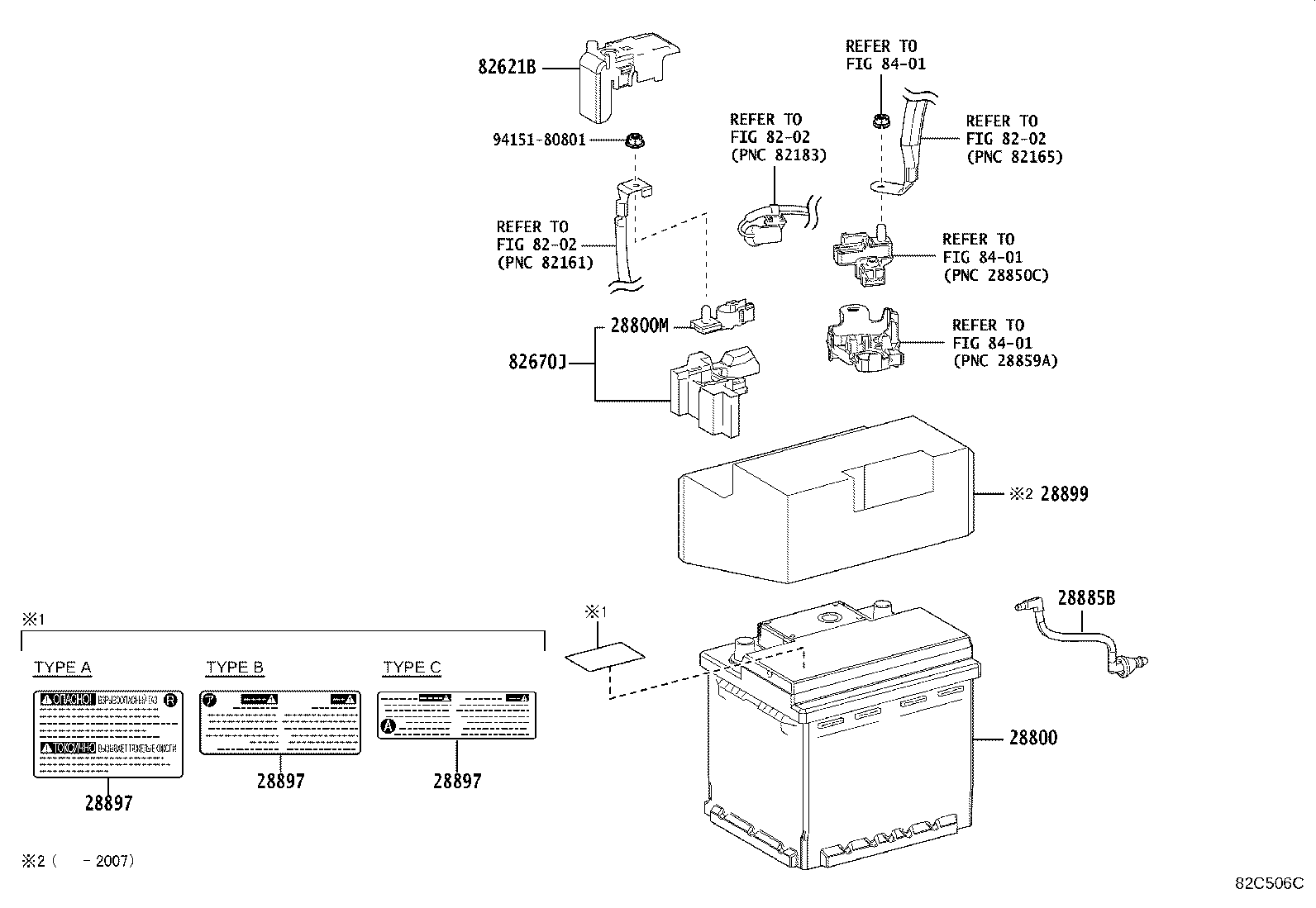

28800	Battery
28800A	Terminal, Battery Positive
28800J	Terminal, Battery Negative
28800M	Terminal, Battery Positive
28885B	Hose, Battery
28897	Plate, Battery Caution
28898	Plate, Battery
28899	Insulator, Battery
82621B	Cover, Fusible Link
82670J	Block Assy, Junction
82671R	Stopper, Battery Terminal
82818P	Protector, Wiring Harness
82821K	Cover, Connector
89890A	Computer Assy, Battery
89892A	Sensor, Battery Voltage
G3830A	Plug Assy, Electric Vehicle Battery
G3834	Grip, Service Plug
G920R	Shield Sub-assy, Hybrid Battery, NO.2

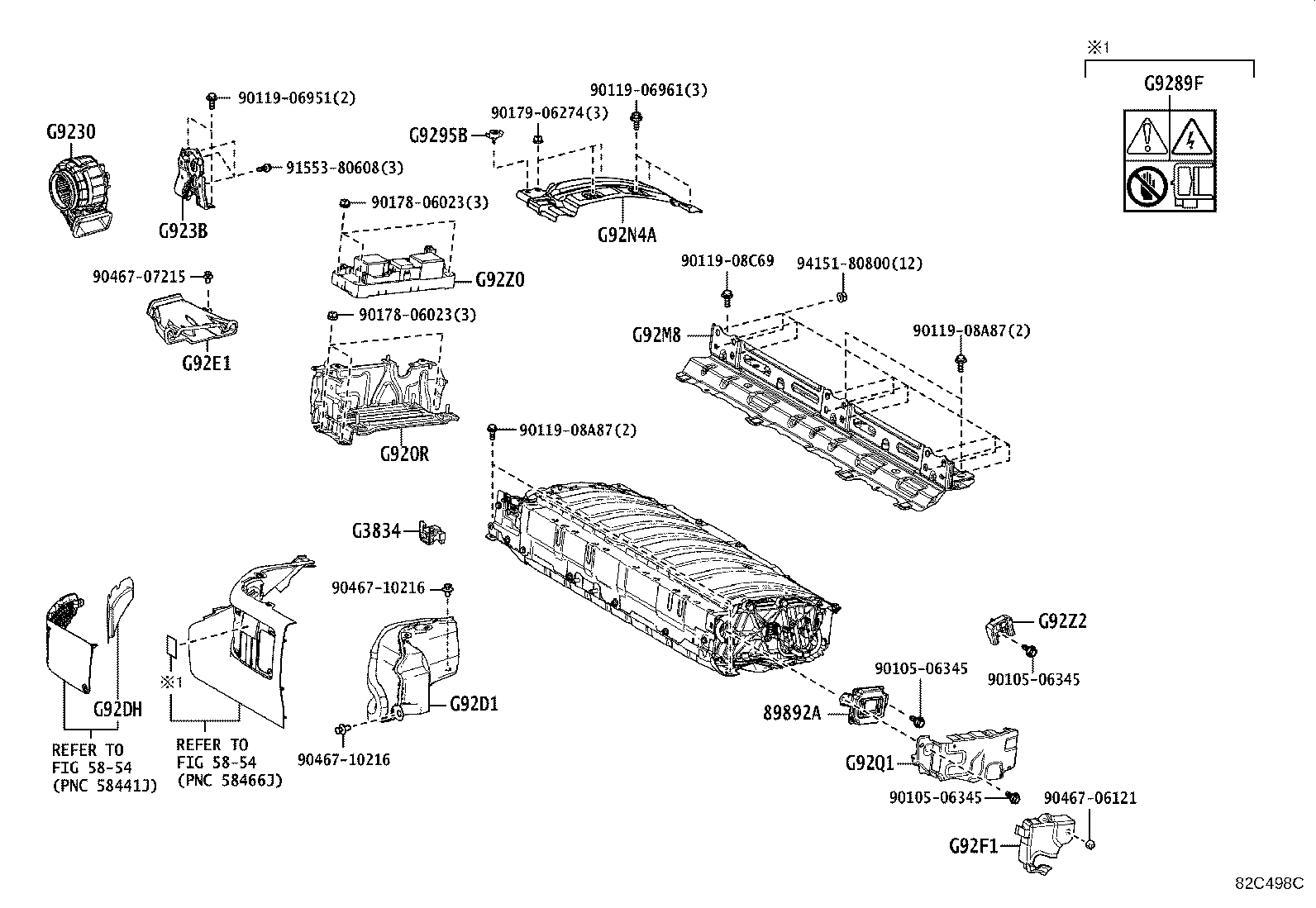

G9230	Blower Assy, Battery Cooling
G923B	Bracket, Battery Cooling Blower
G9282	Thermistor, Hybrid Battery
G9289A	Label, Battery Caution
G9289F	Label, Battery Caution, NO.3

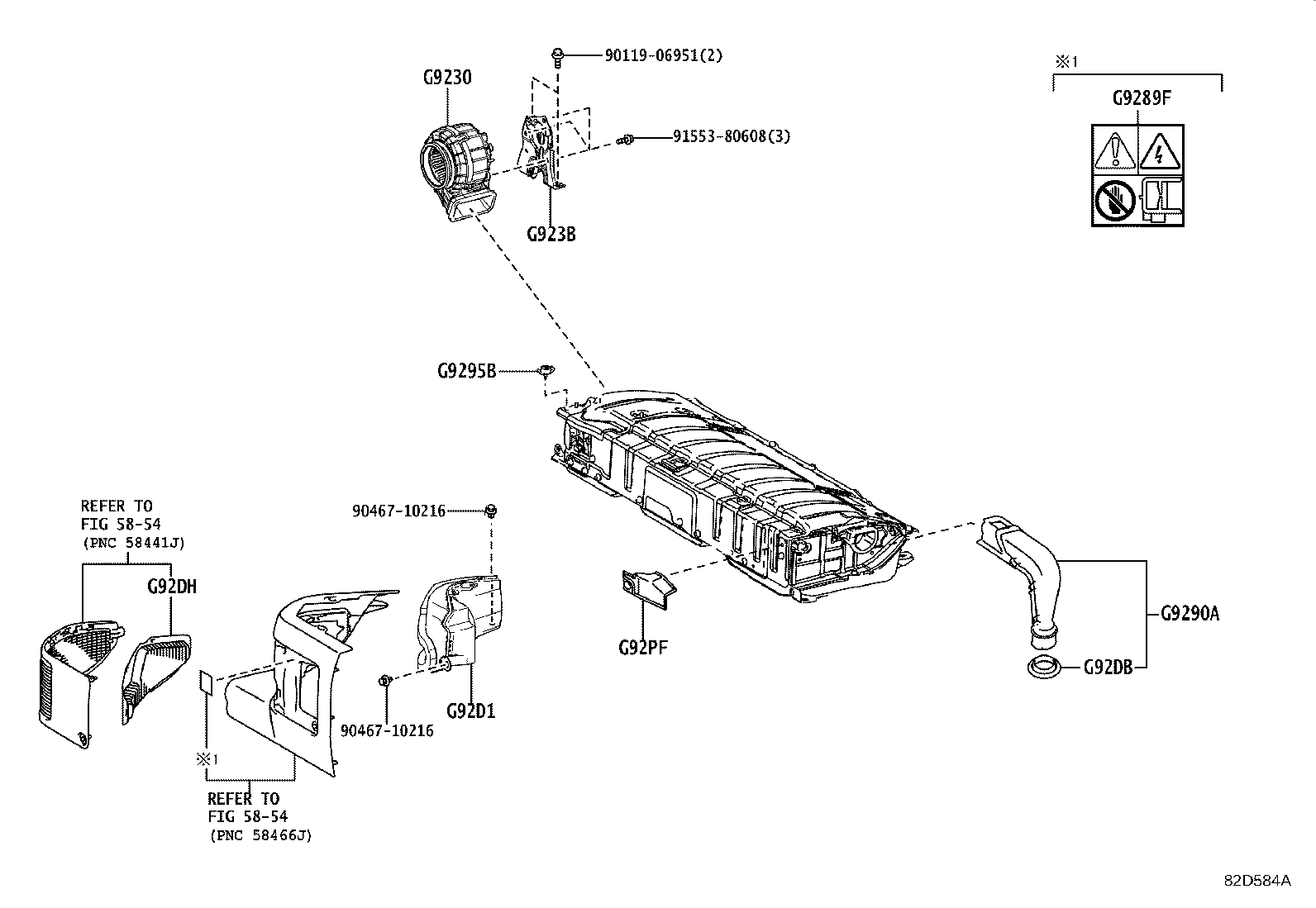

G9290A	Hose Assy, Hybrid Battery
G9295B	Striker, Battery Cover Lock
G9298	Clamp, HV Battery
G929A	Hose, HV Battery, NO.1
G92D1	Duct, Hybrid Battery Intake, NO.1
G92DB	Seal, Hybrid Battery, NO.1
G92DH	Filter, HV Battery Intake, NO.1
G92E1	Duct, HV Battery Cover Intake, NO.1
G92F1	Duct, Hybrid Battery Exhaust, NO.1
G92J5	Packing, Hybrid Battery, NO.1
G92M8	Bracket, HV Battery Upper Carrier, NO.2
G92N4A	Panel, HV Battery RH Cover, NO.1
G92PF	Protector, HV Battery, NO.4
G92Q1	Panel, HV Battery Shield, NO.1
G92Z0	Block Assy, HV Battery Junction
G92Z2	Block, Hybrid Battery Terminal
G9508	Stack Sub-assy, HV Supply, NO.1
G9509	Stack Sub-assy, HV Supply, NO.2

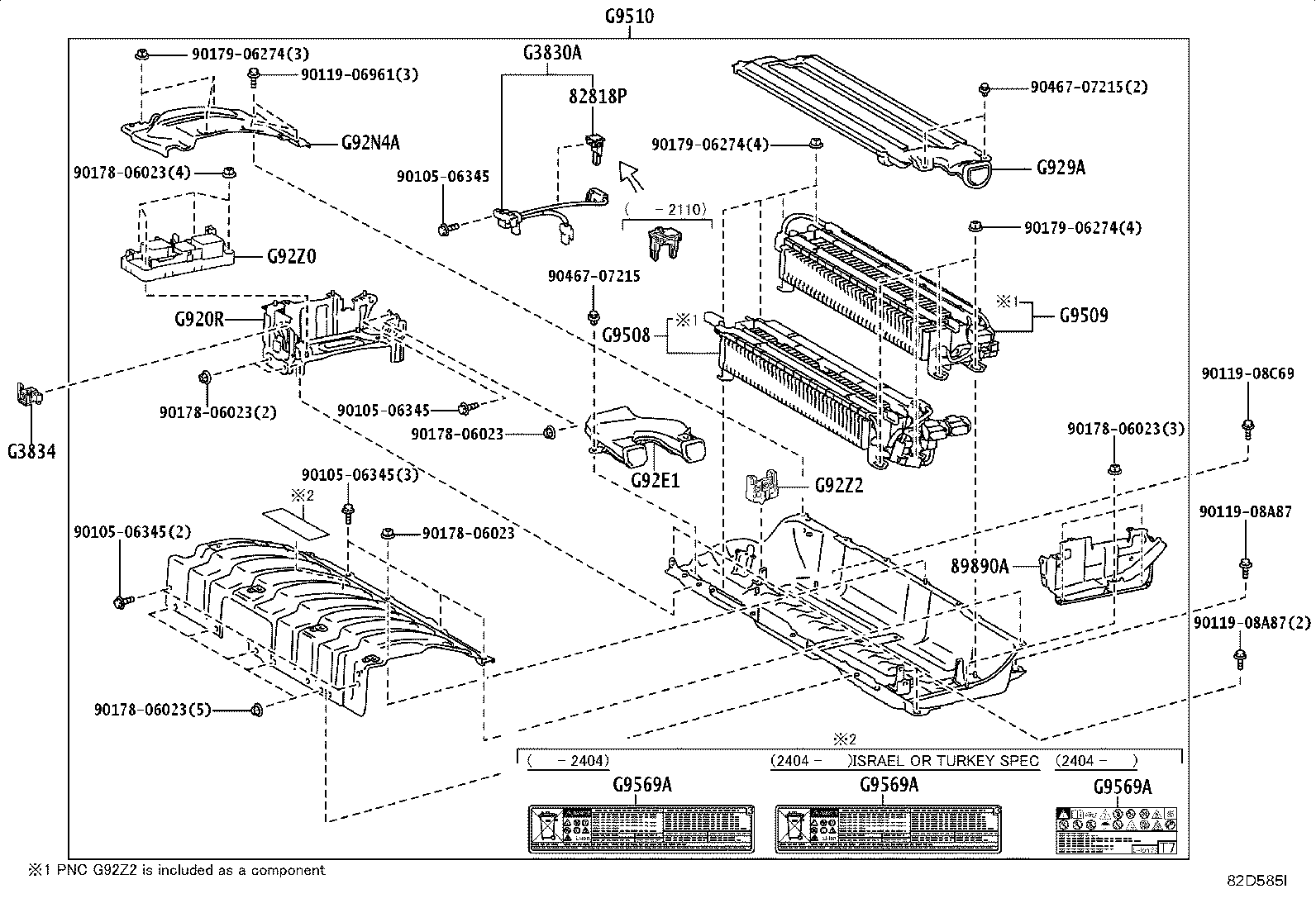

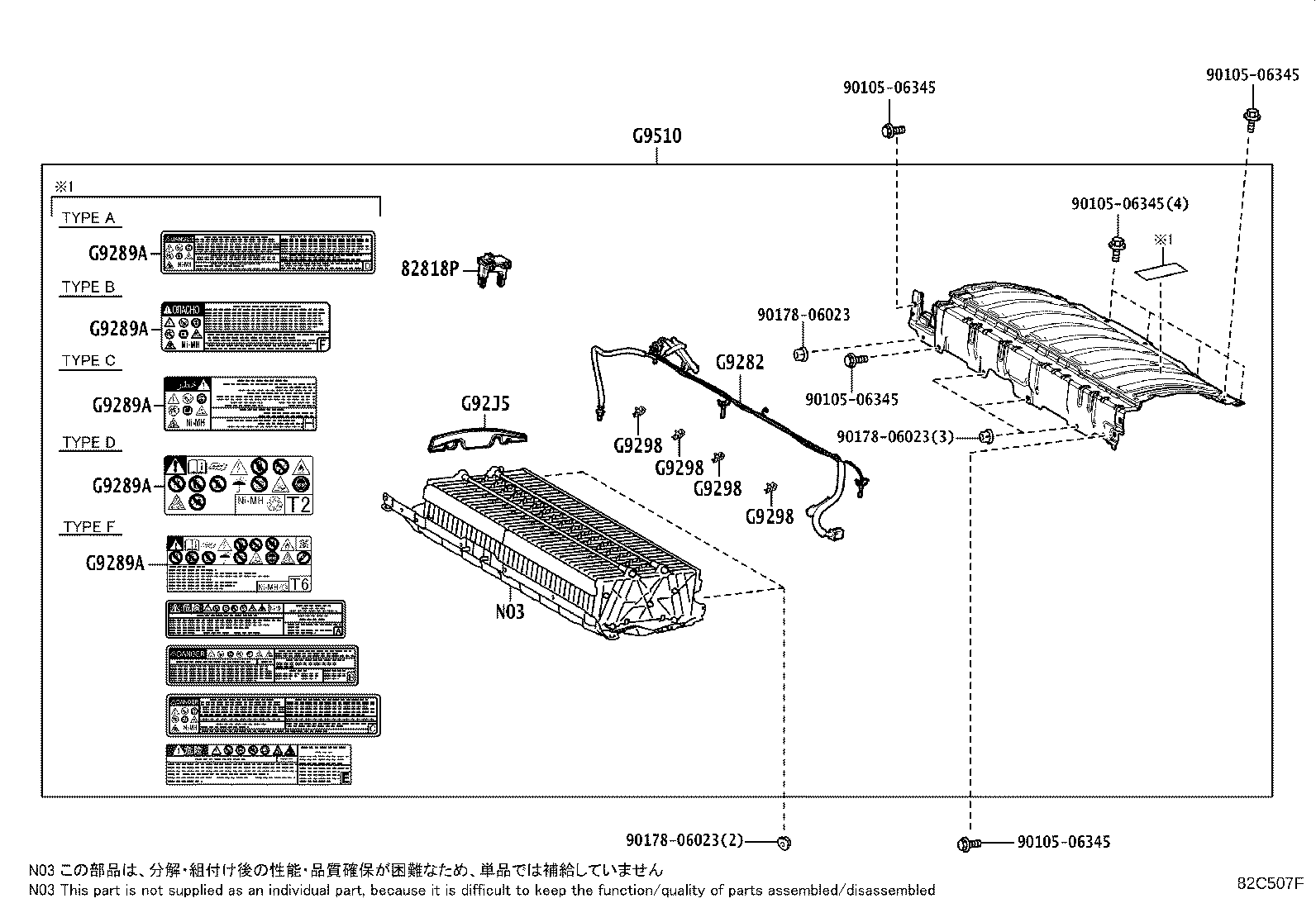

G9510	Battery Assy, HV Supply
G9569A	Label, Lithium Ion Battery Caution

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
