Toyota RAV4 (JPP)

2018-11 → present · chassis AXAA5#,AXAH5#,AXAL5#,MXAA5# · catalogue 662250 · Europe

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

167 part groups · 31 illustrations

Illustrations

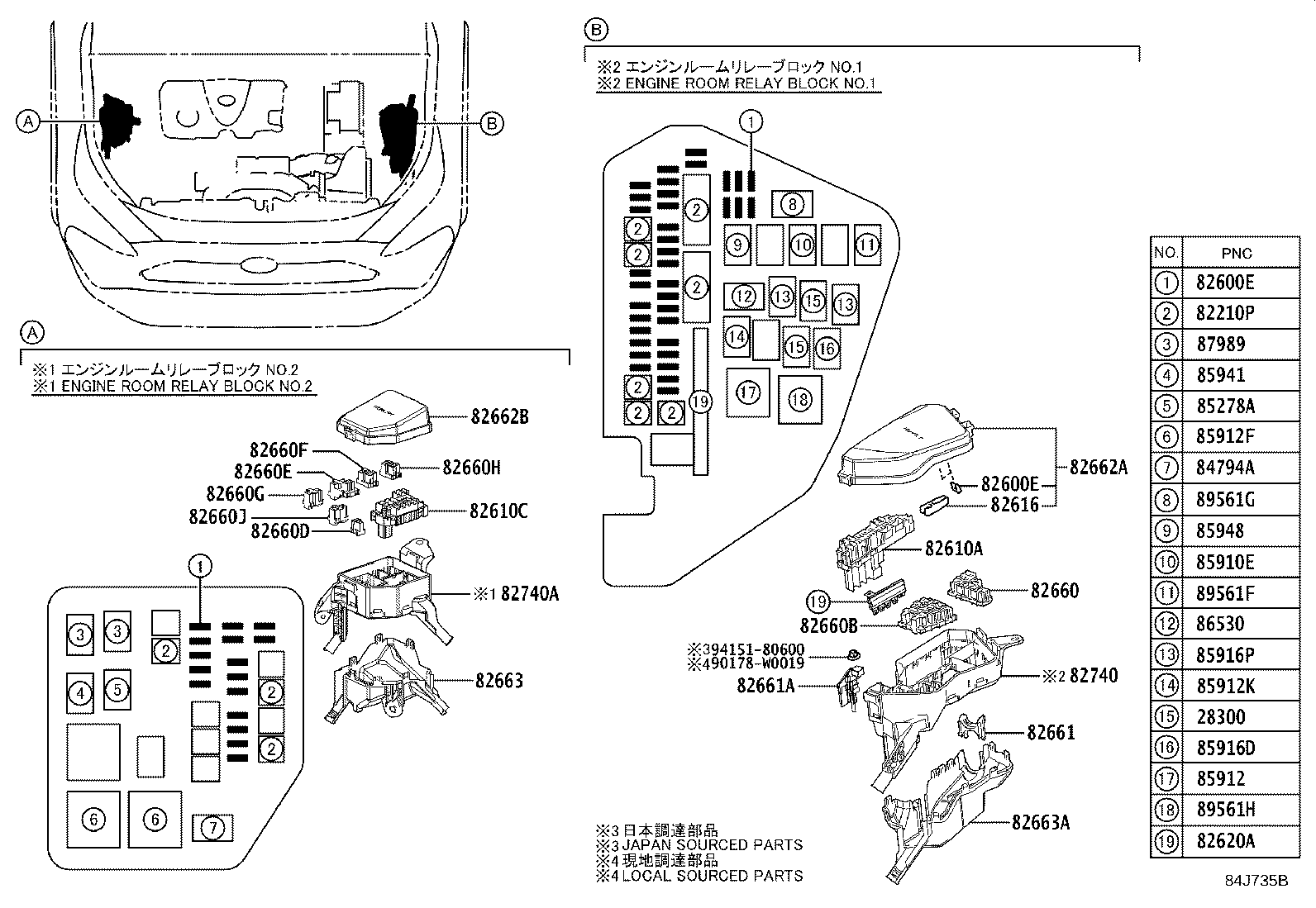

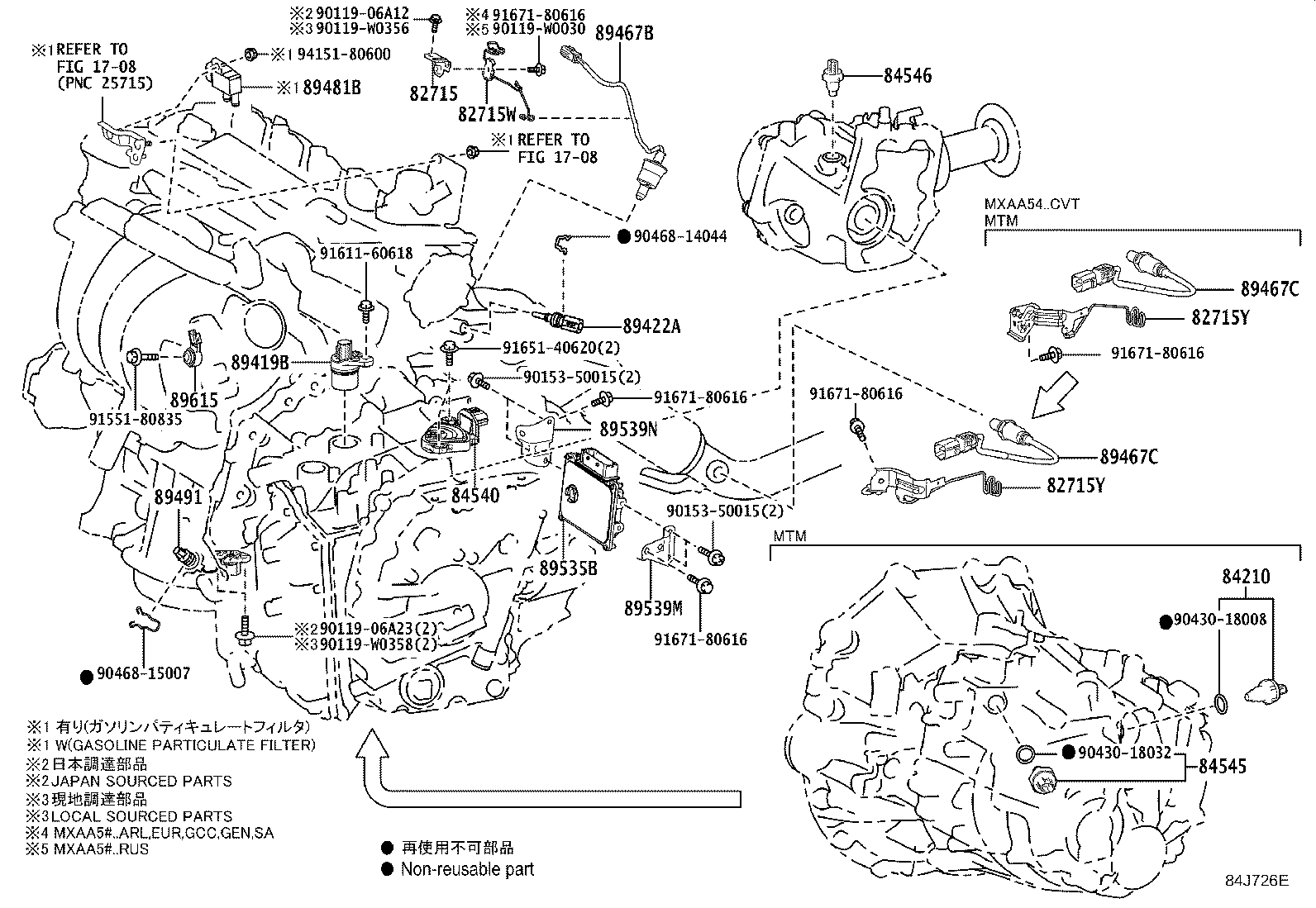

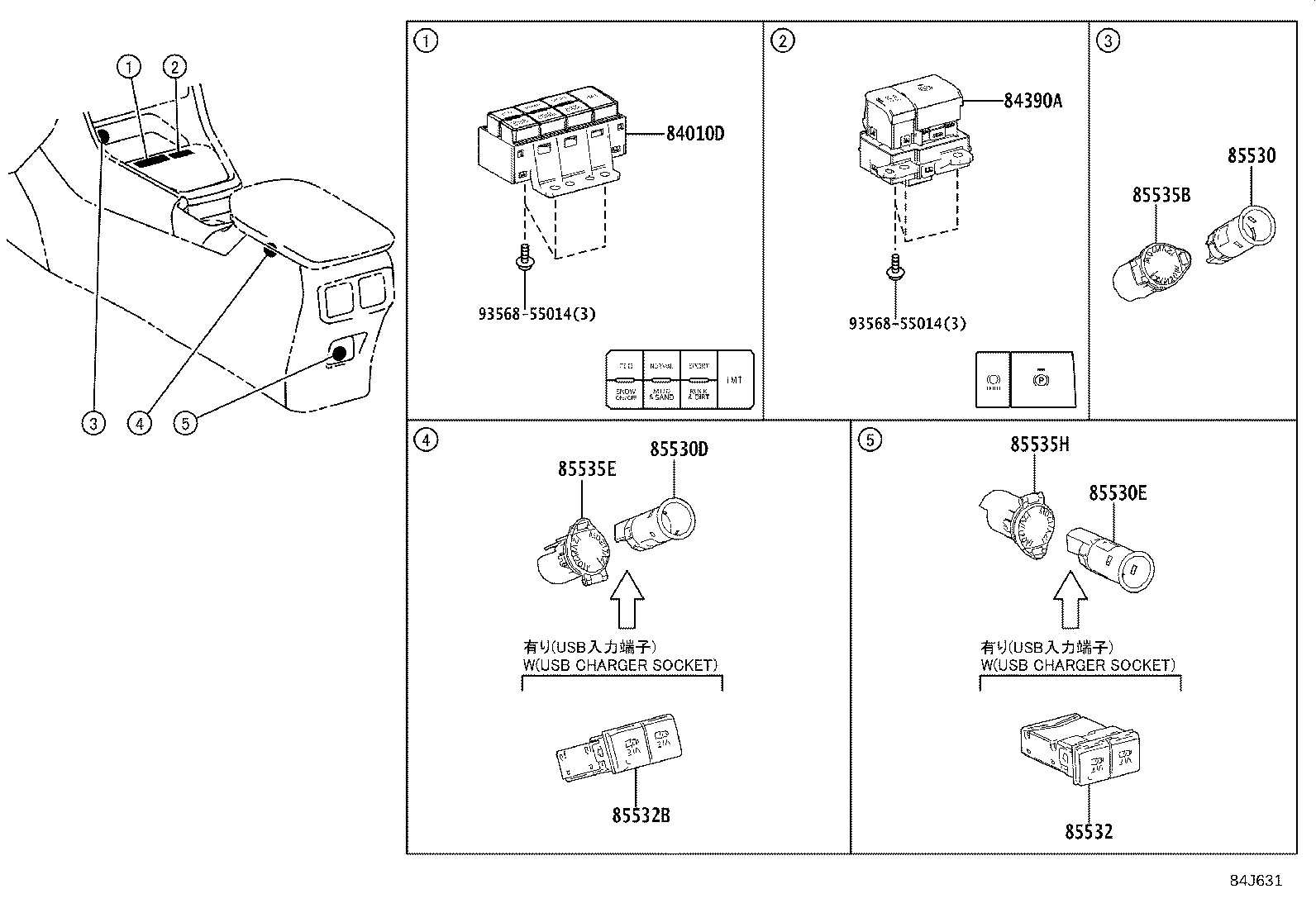

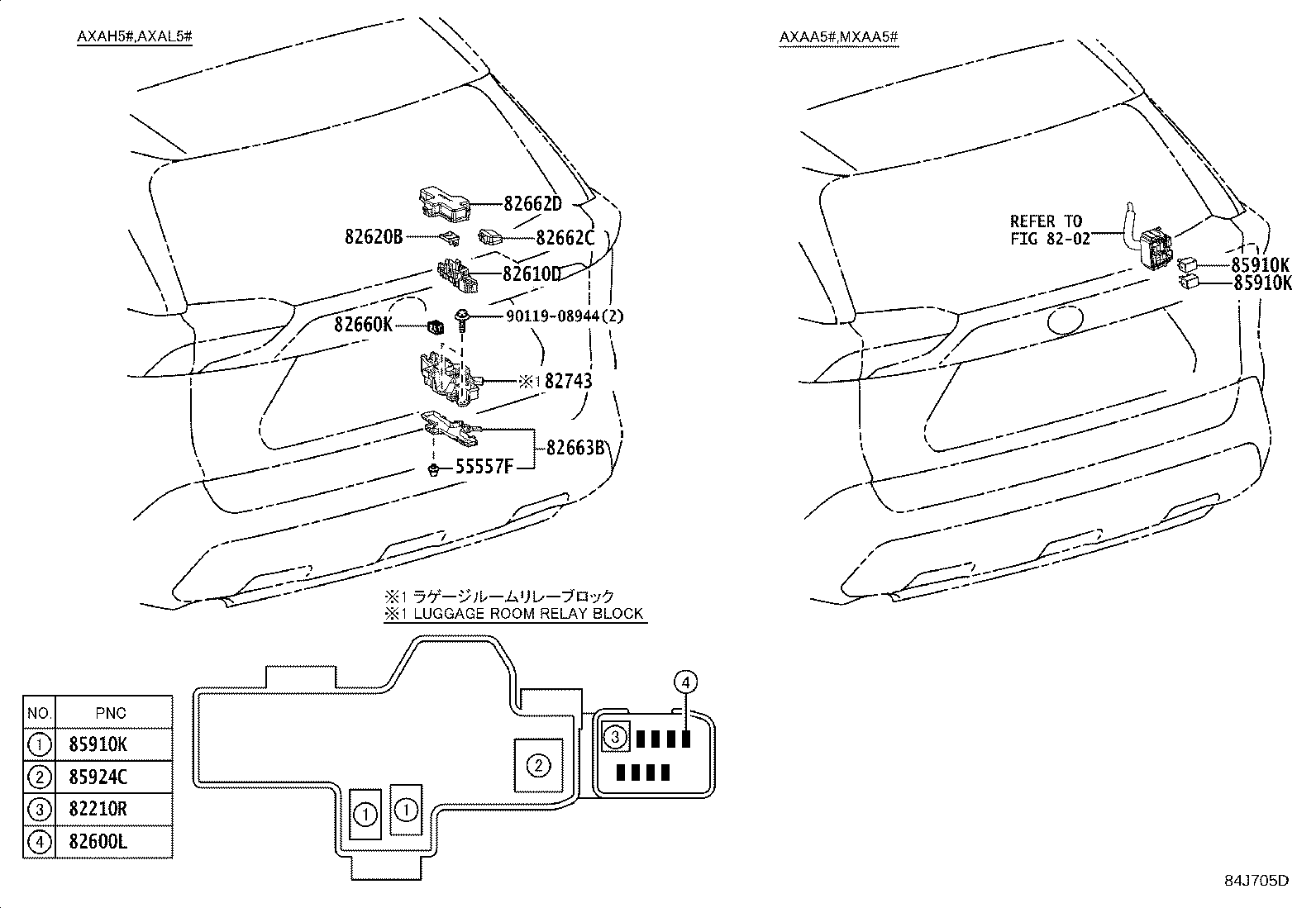

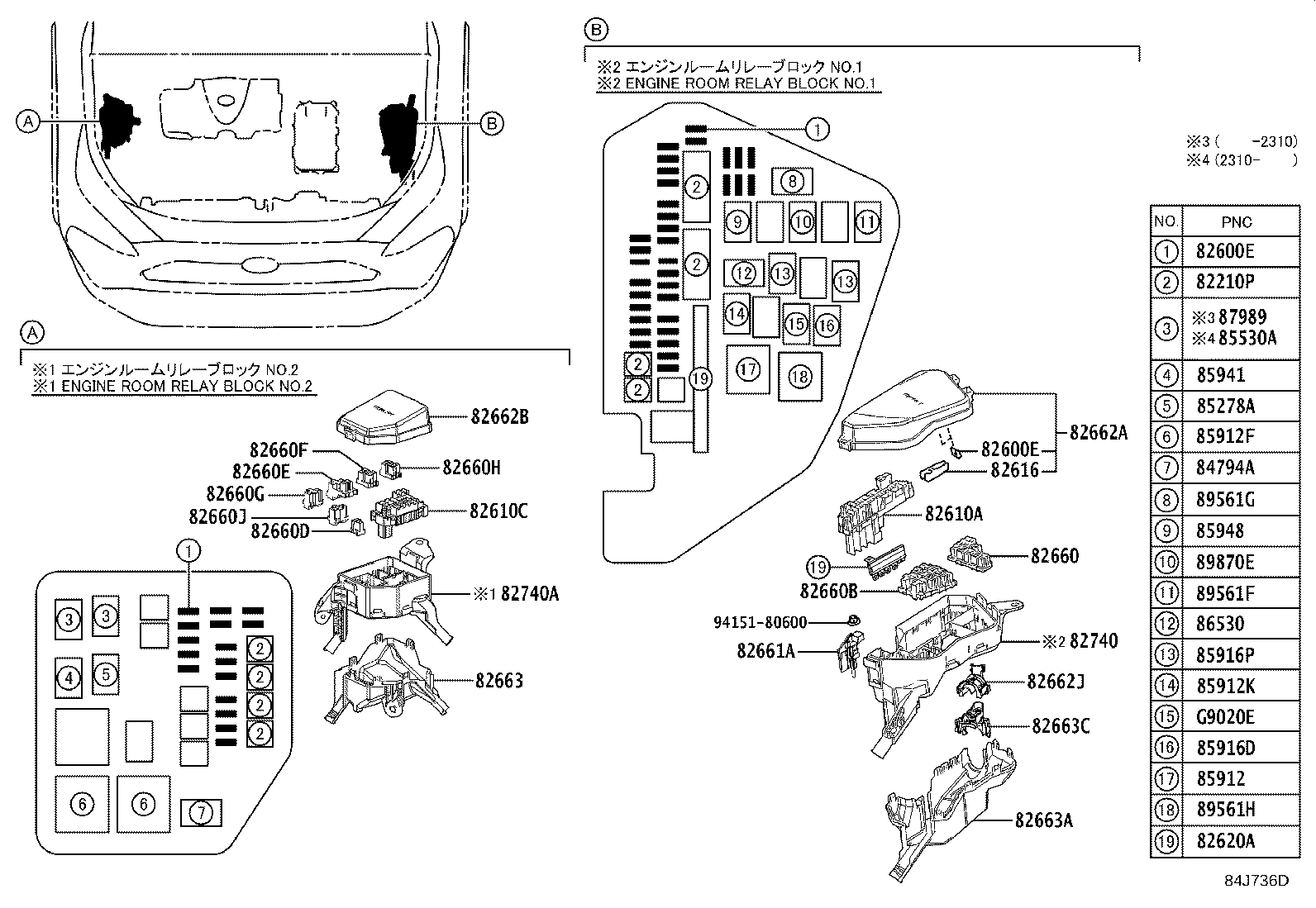

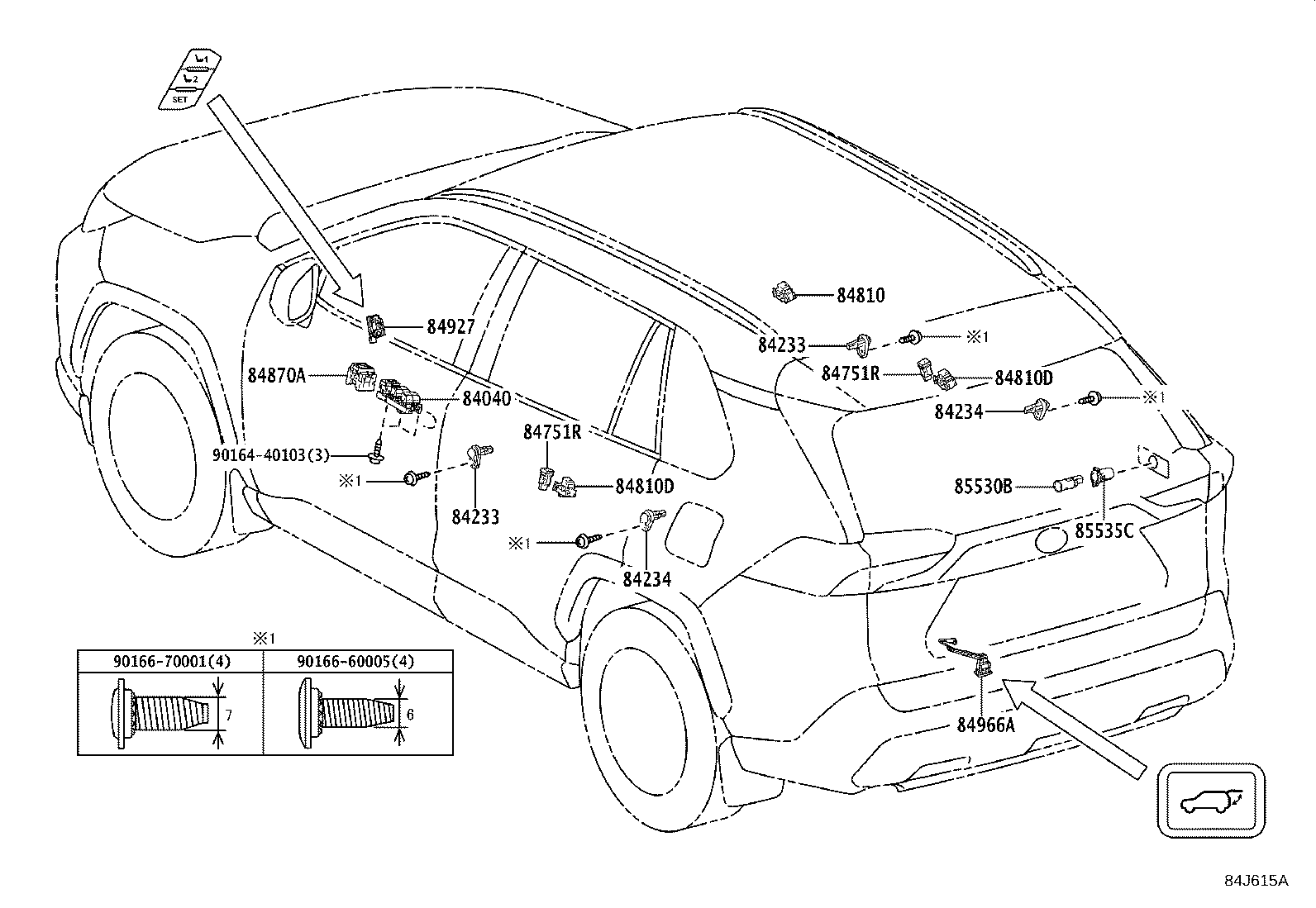

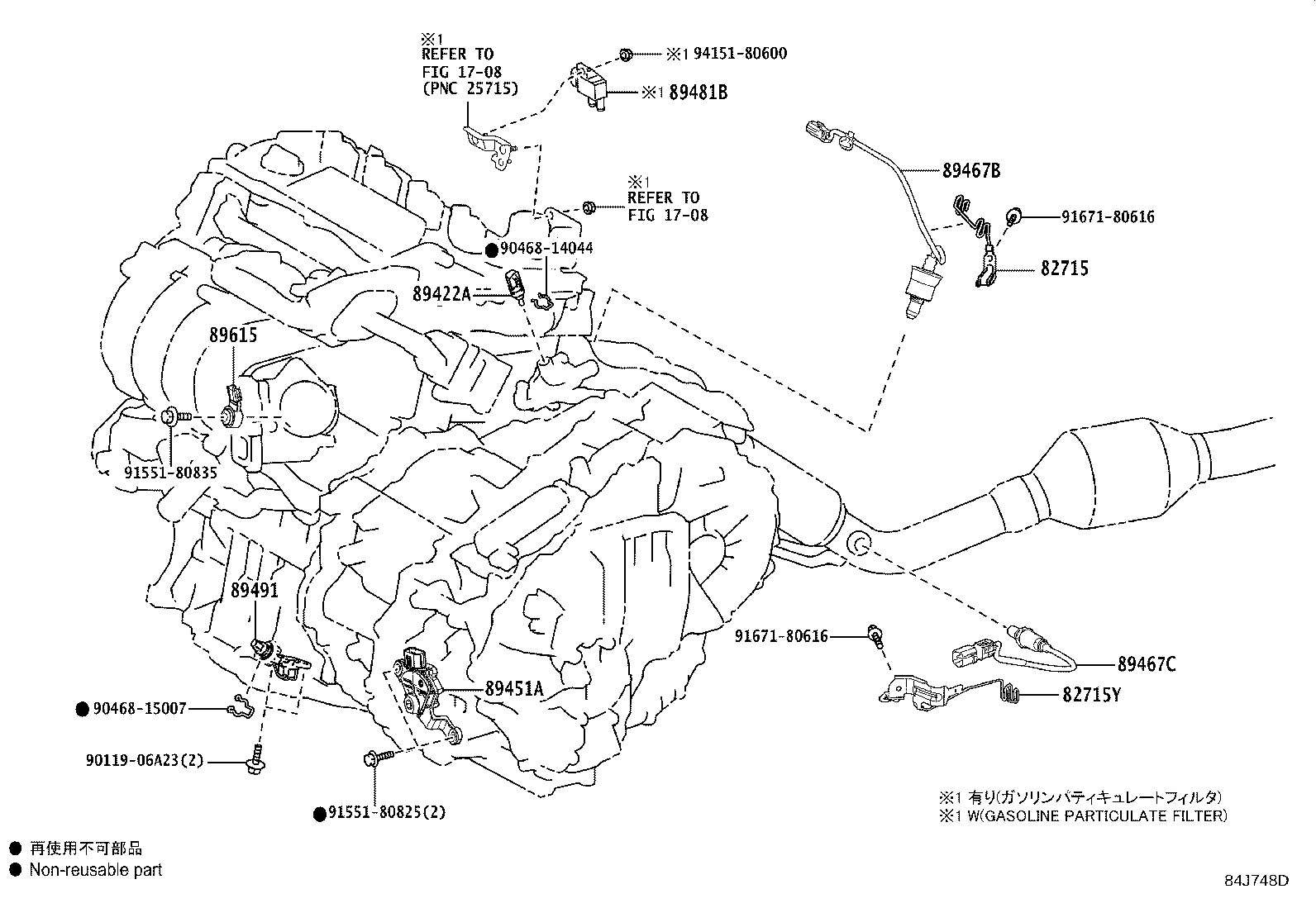

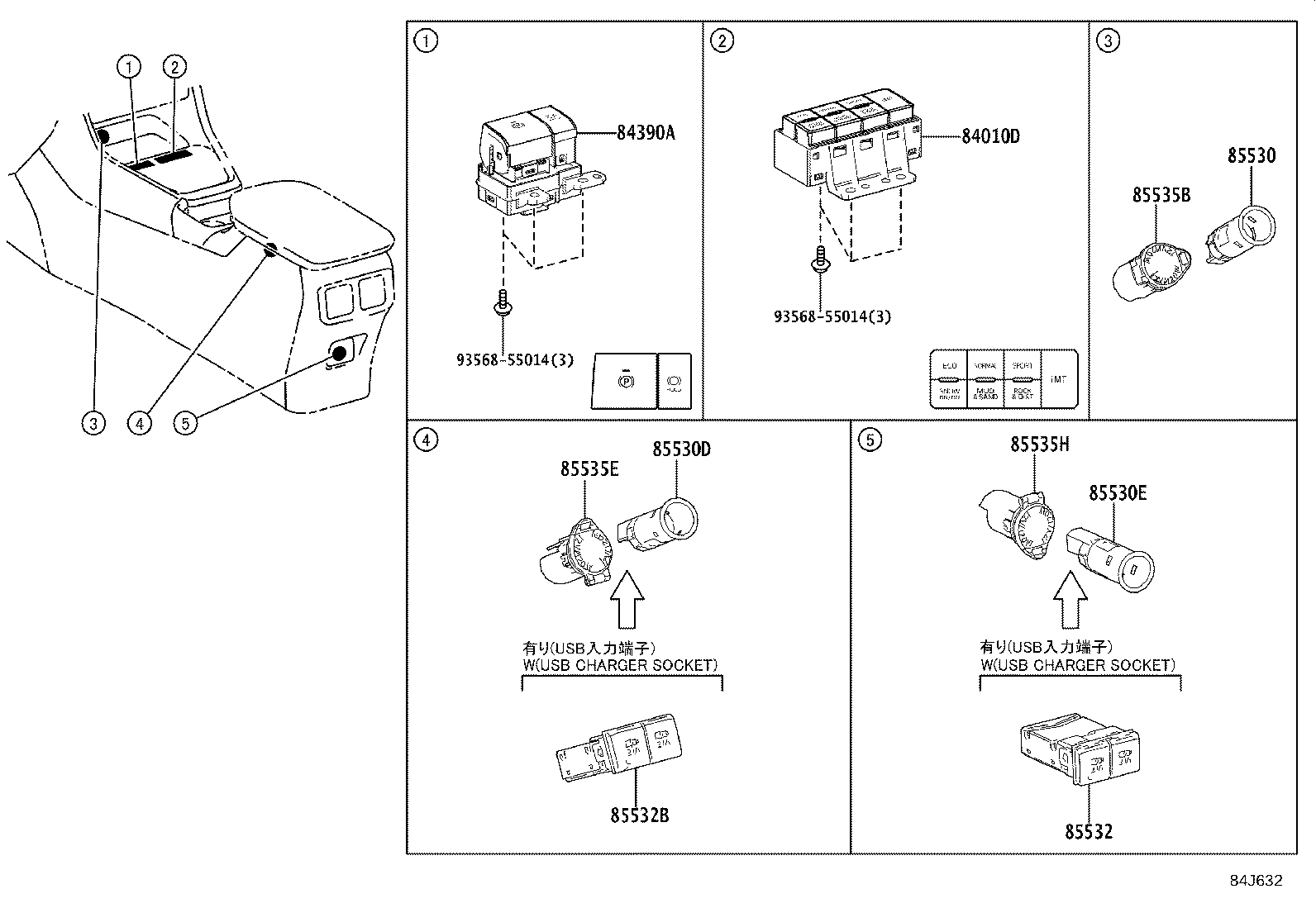

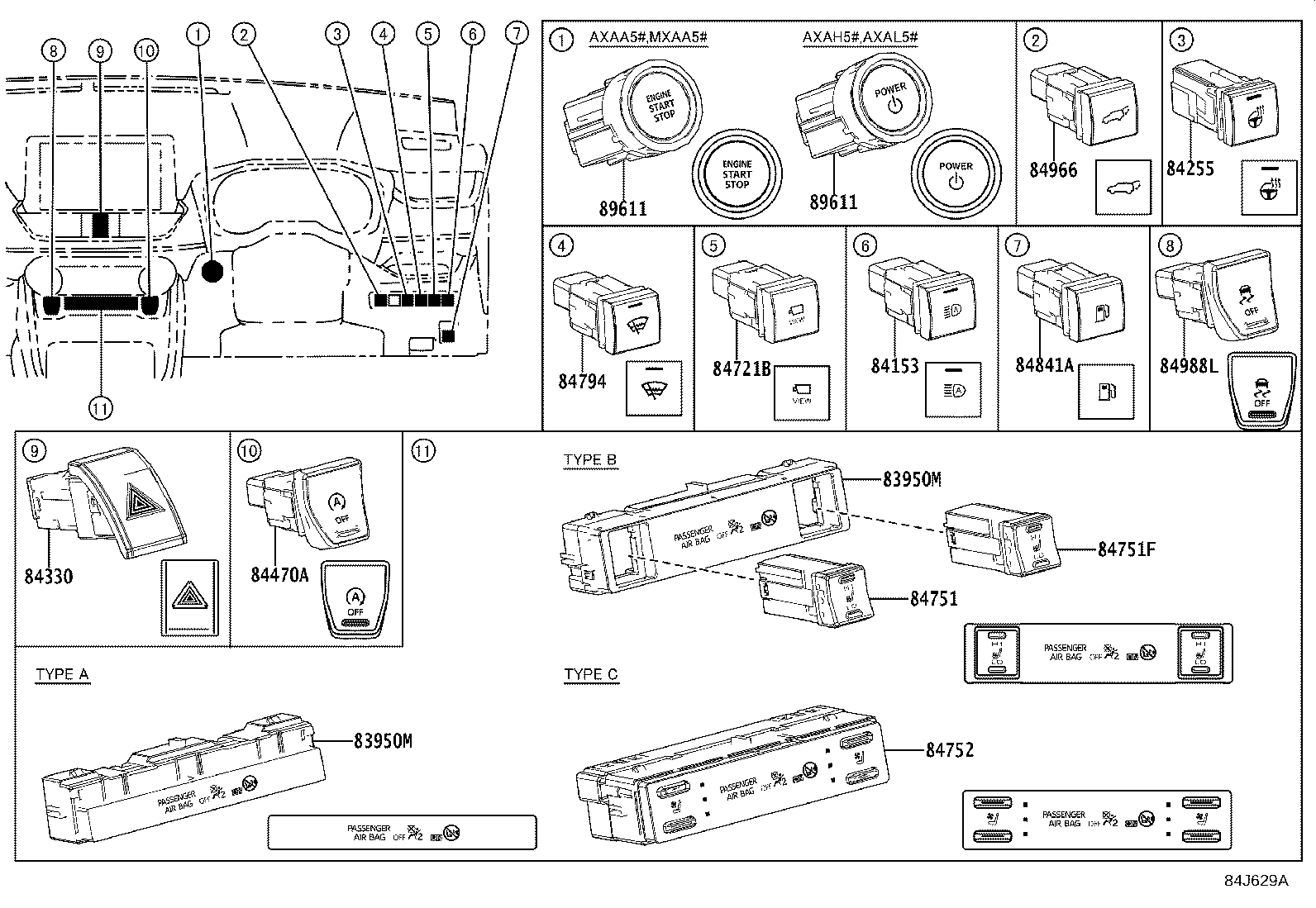

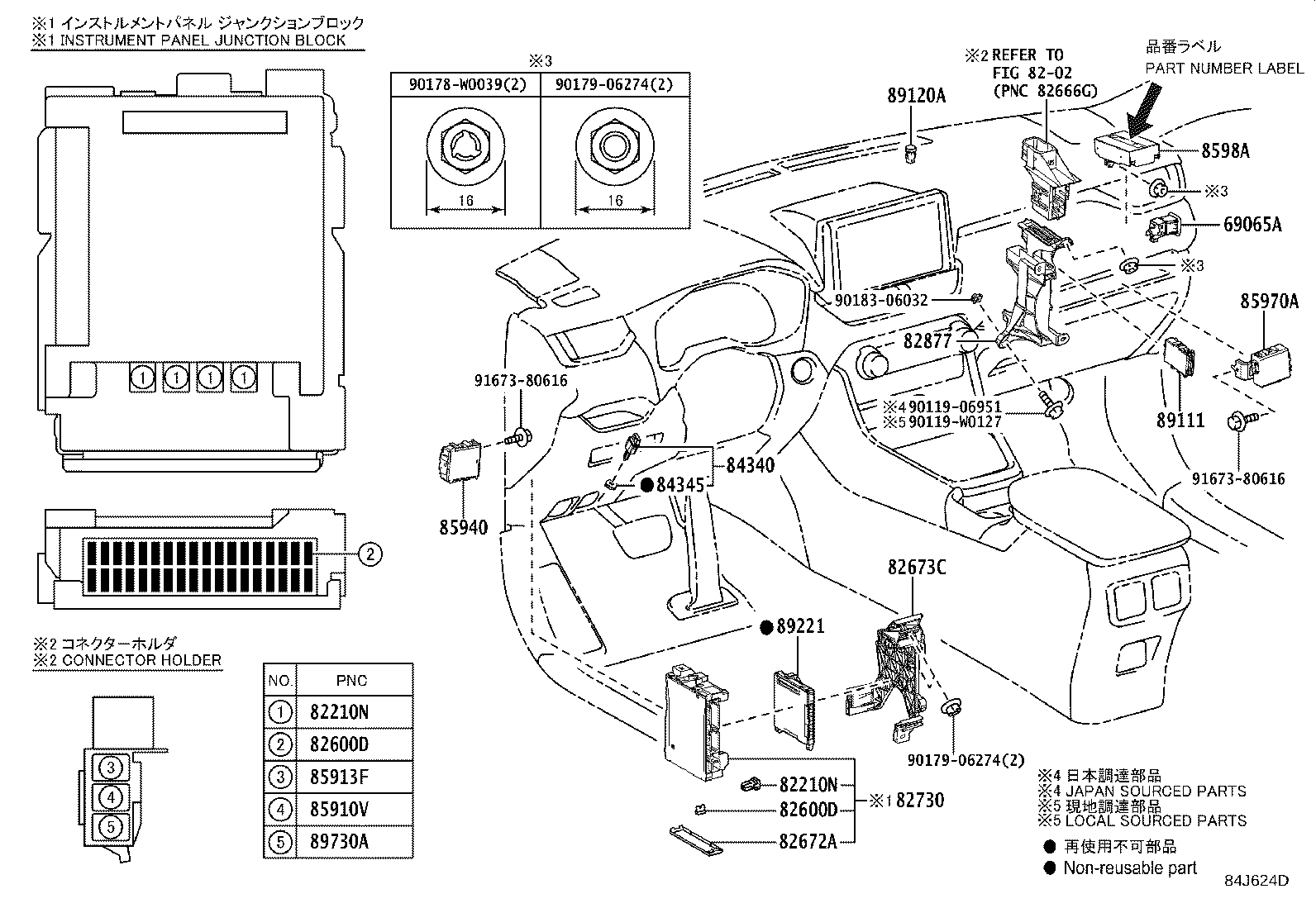

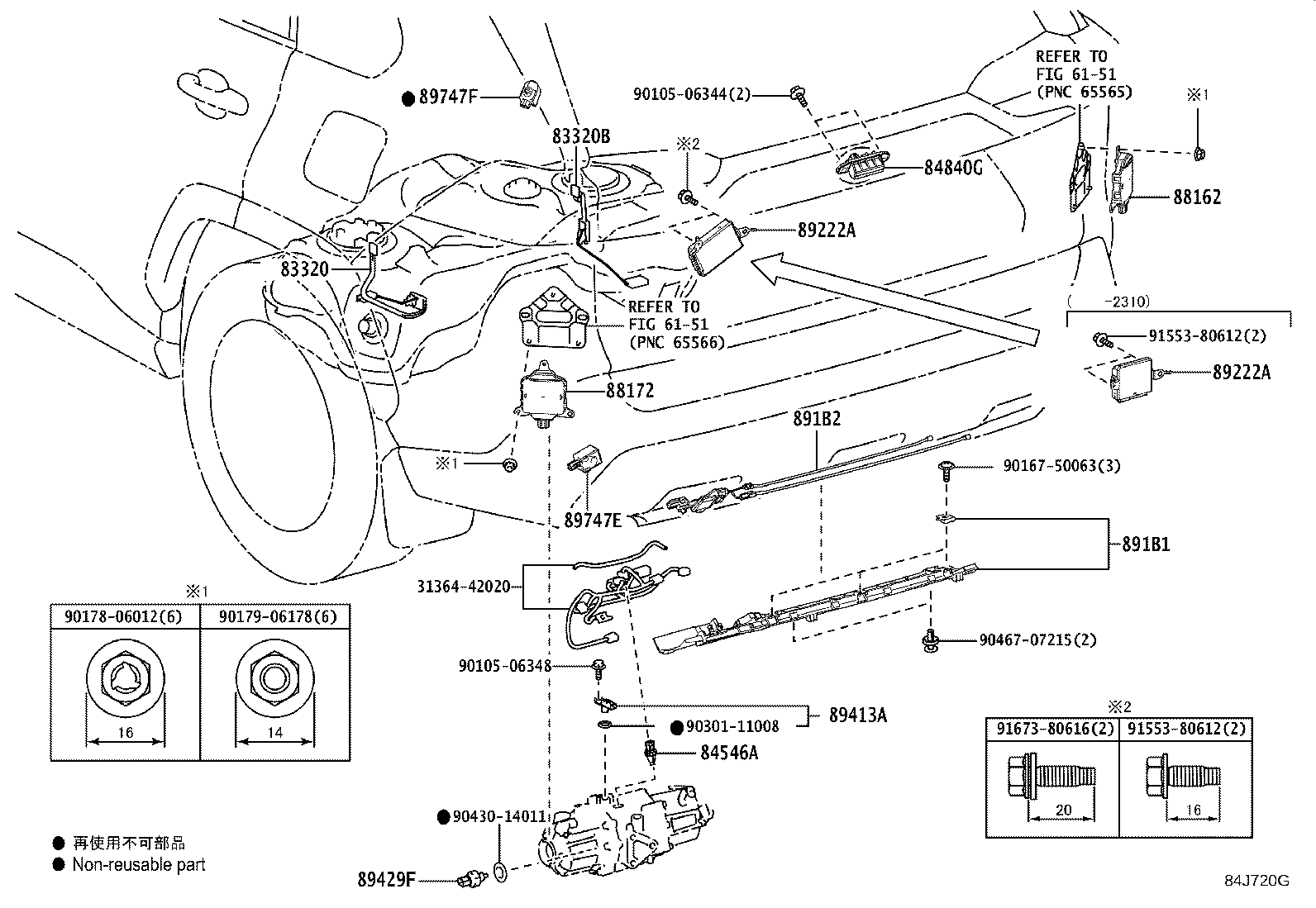

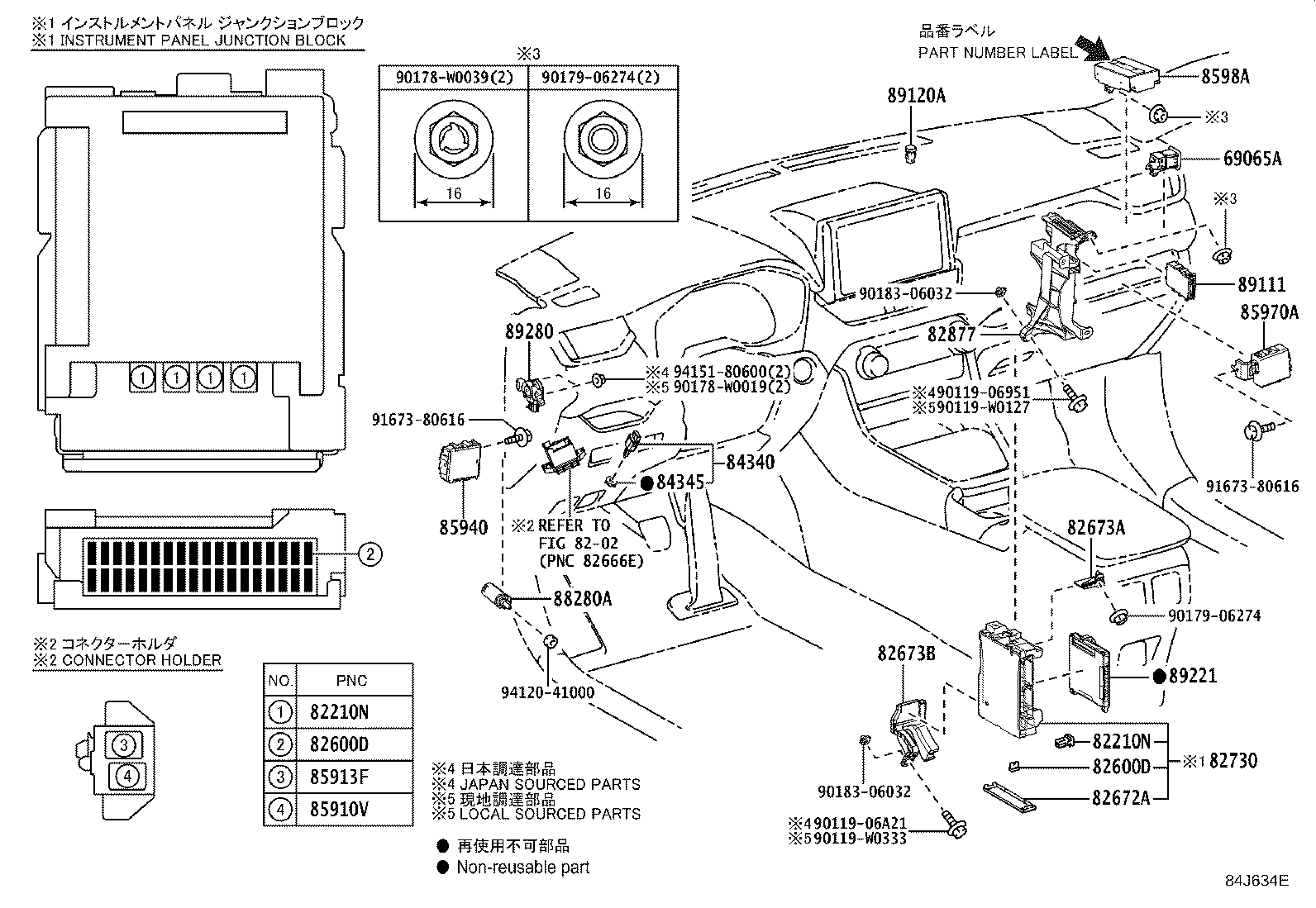

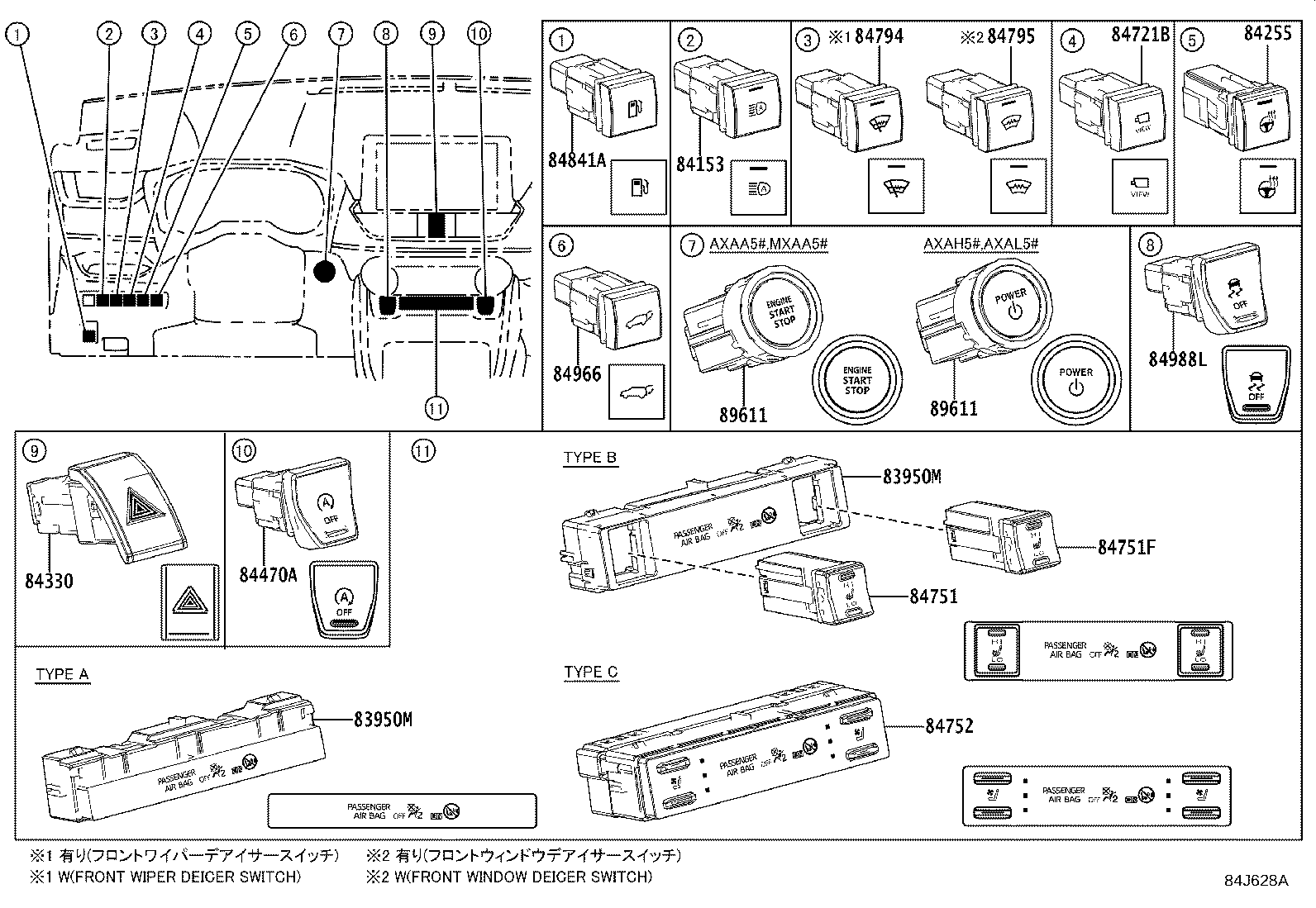

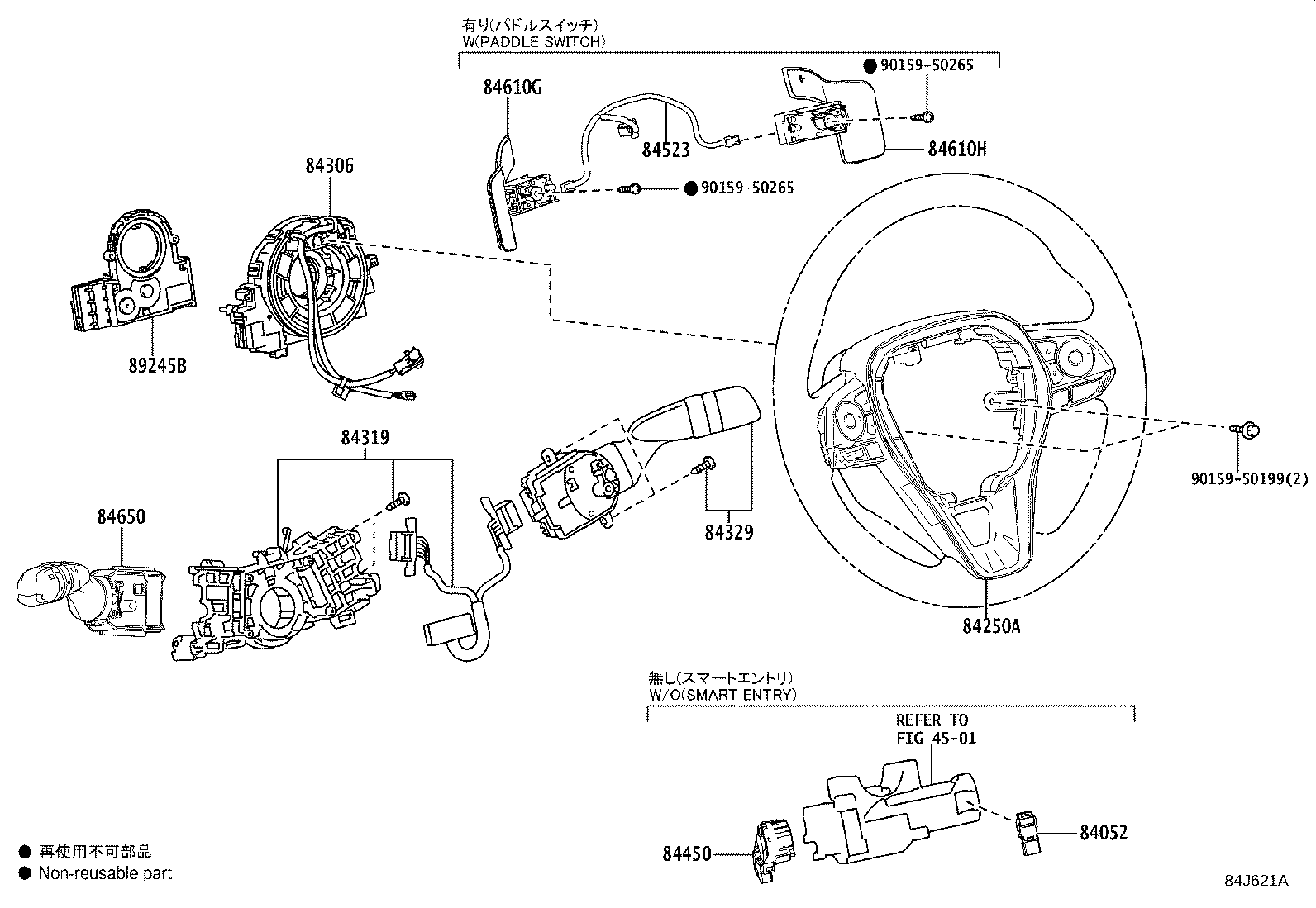

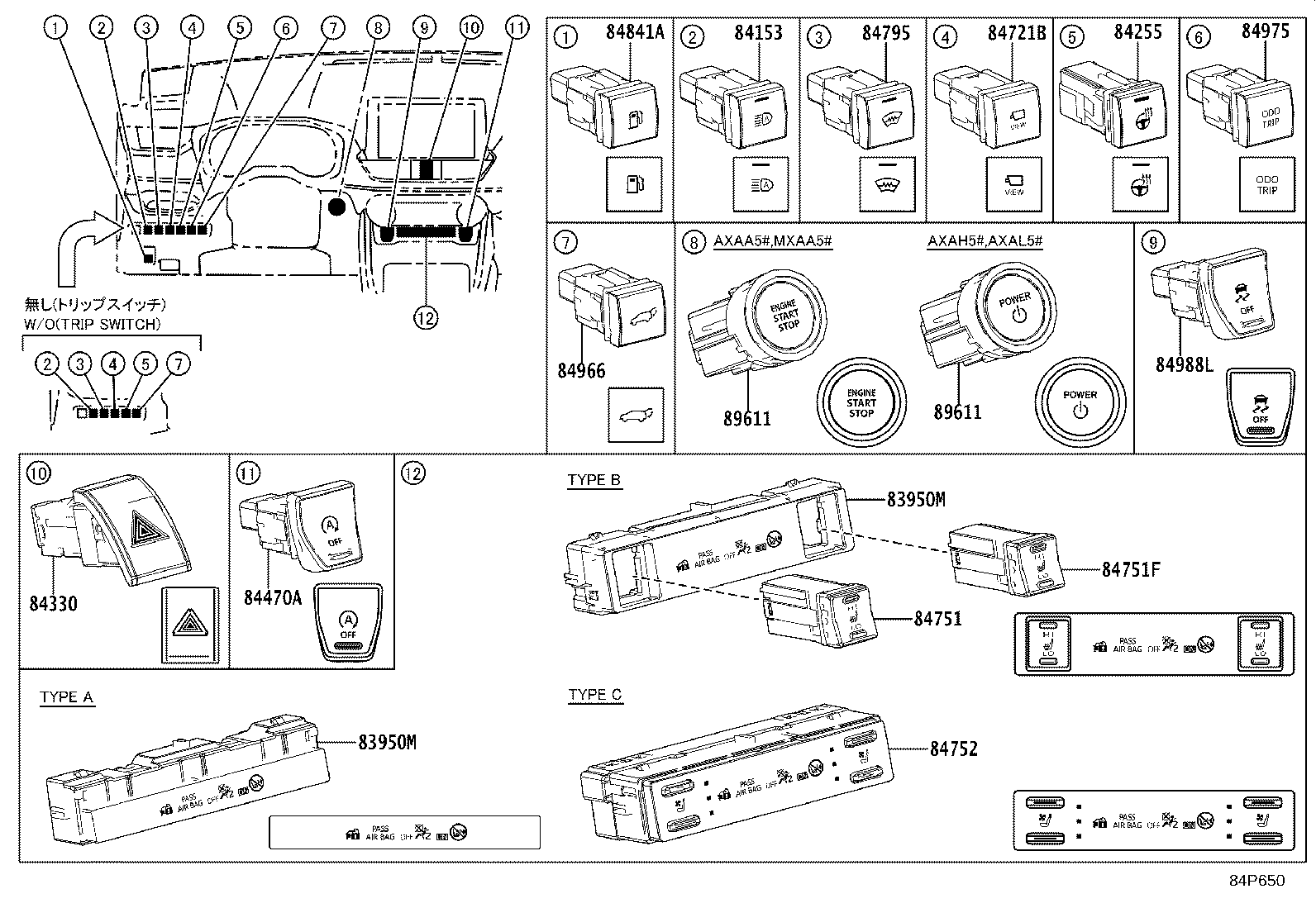

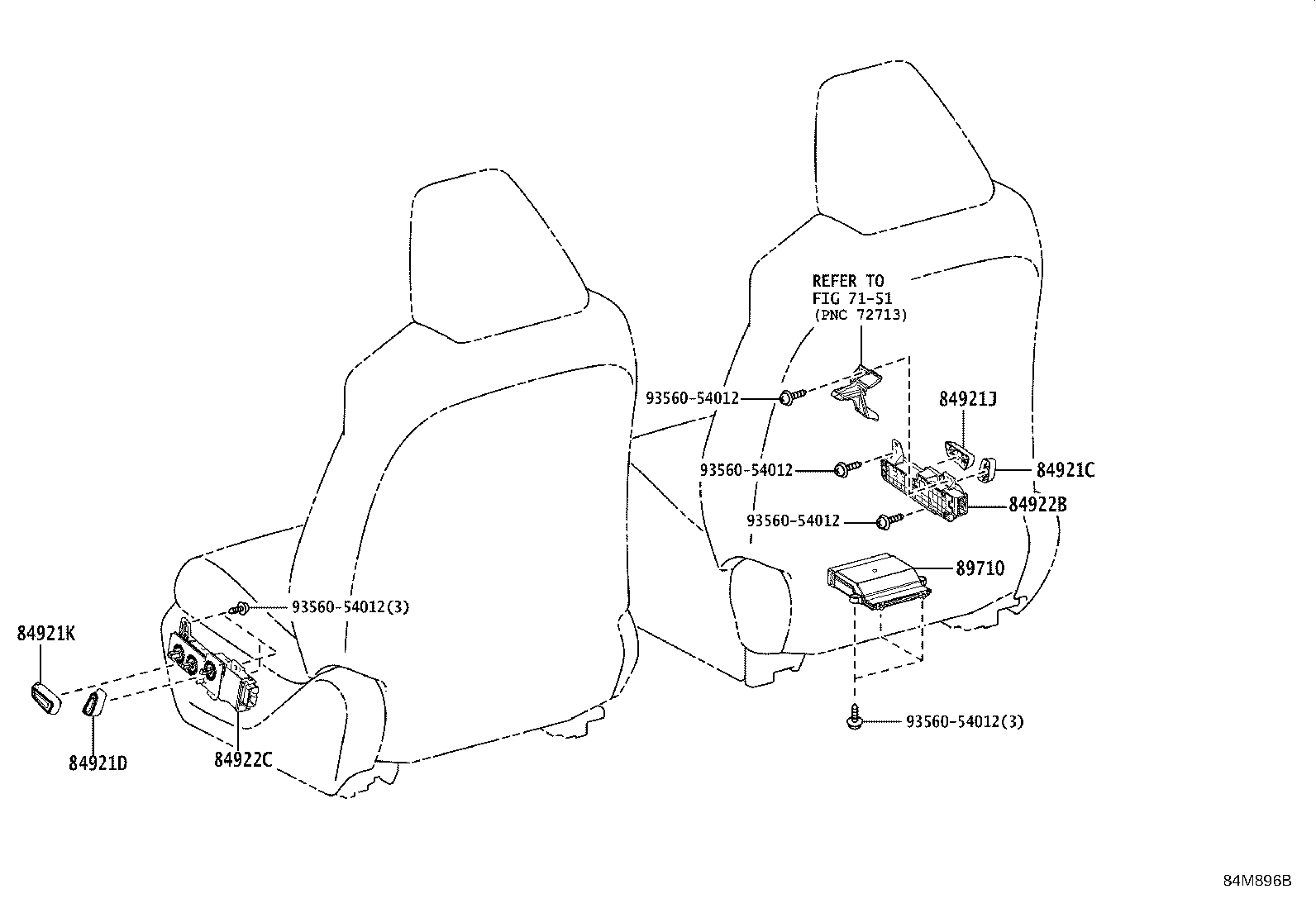

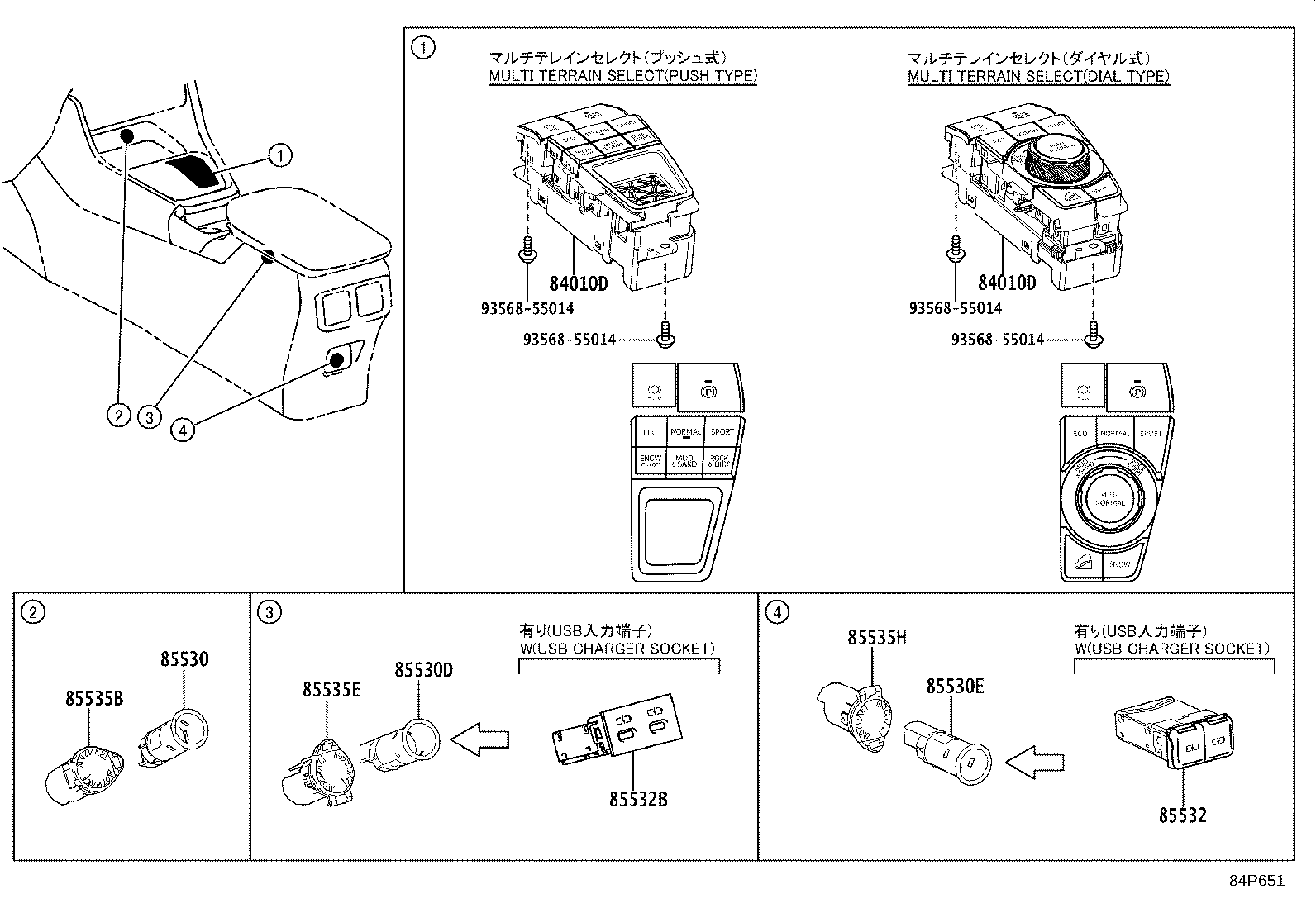

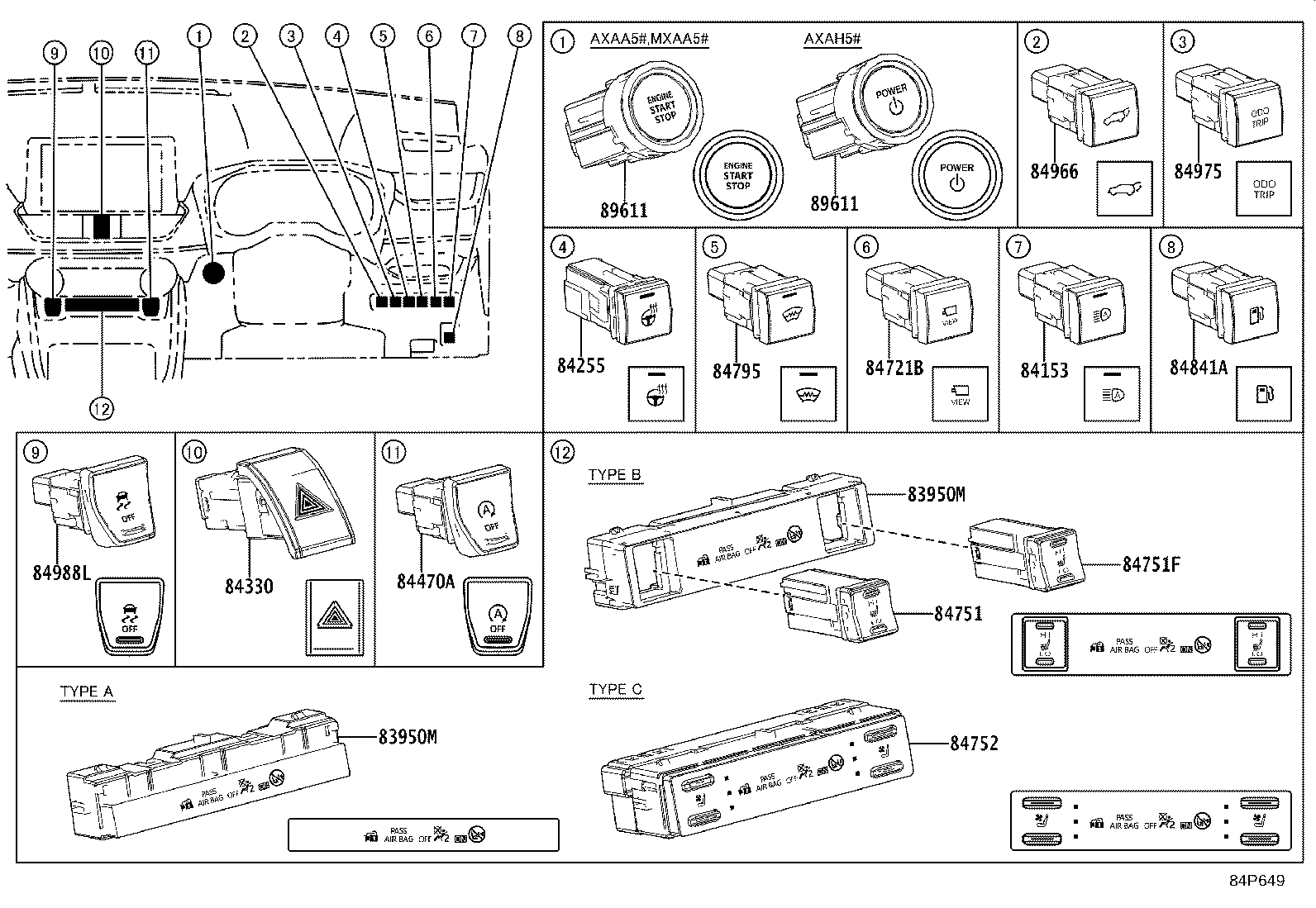

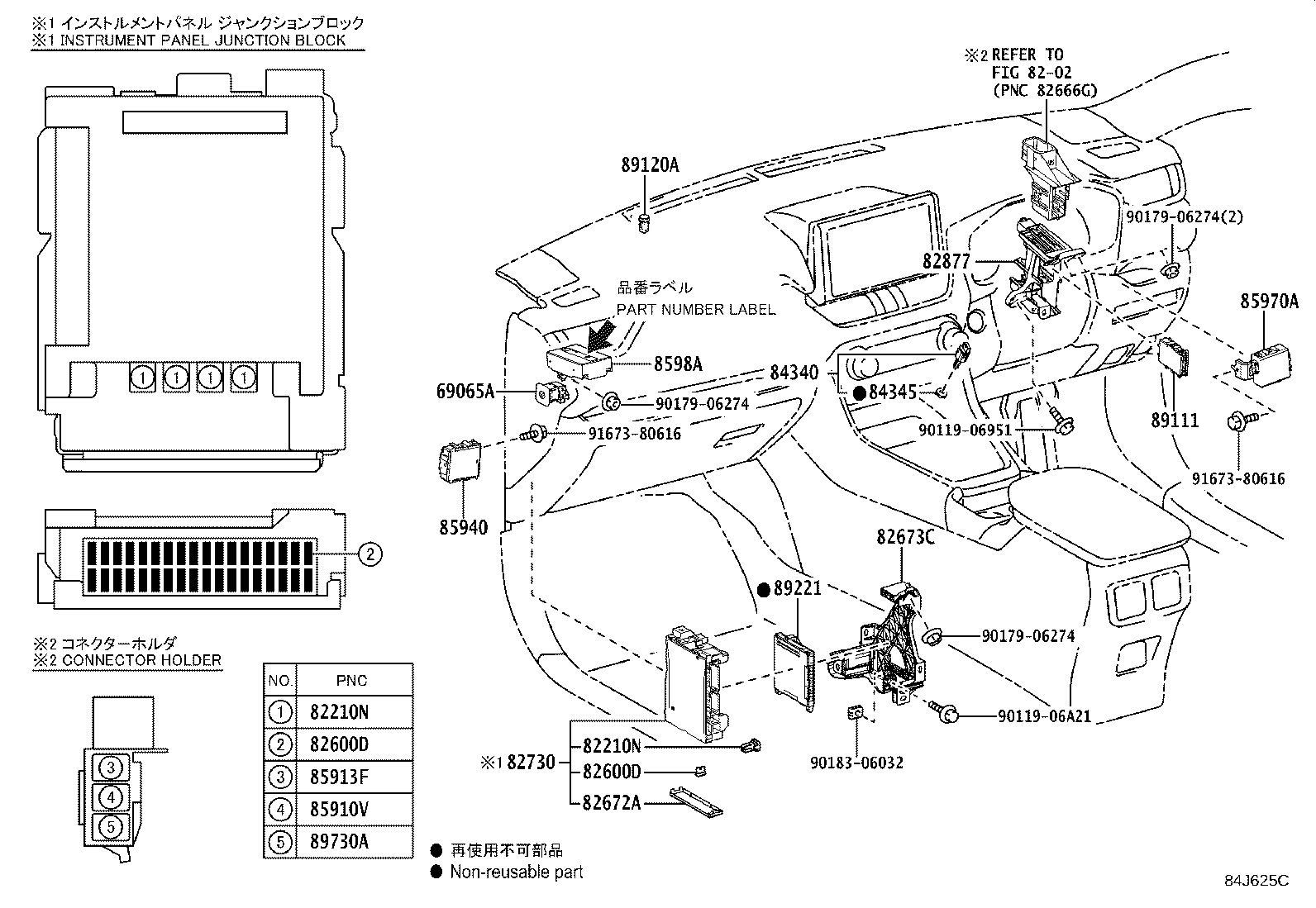

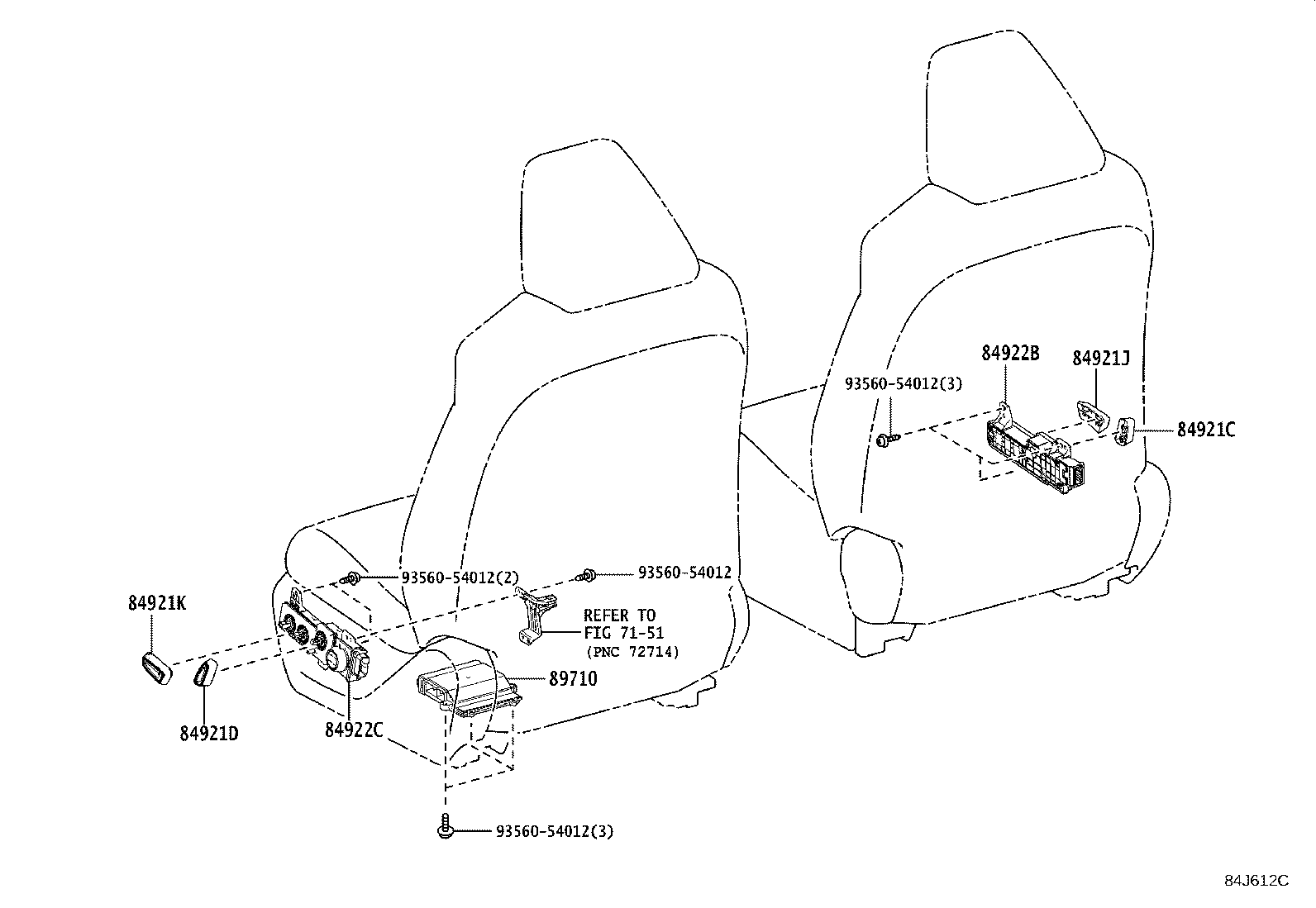

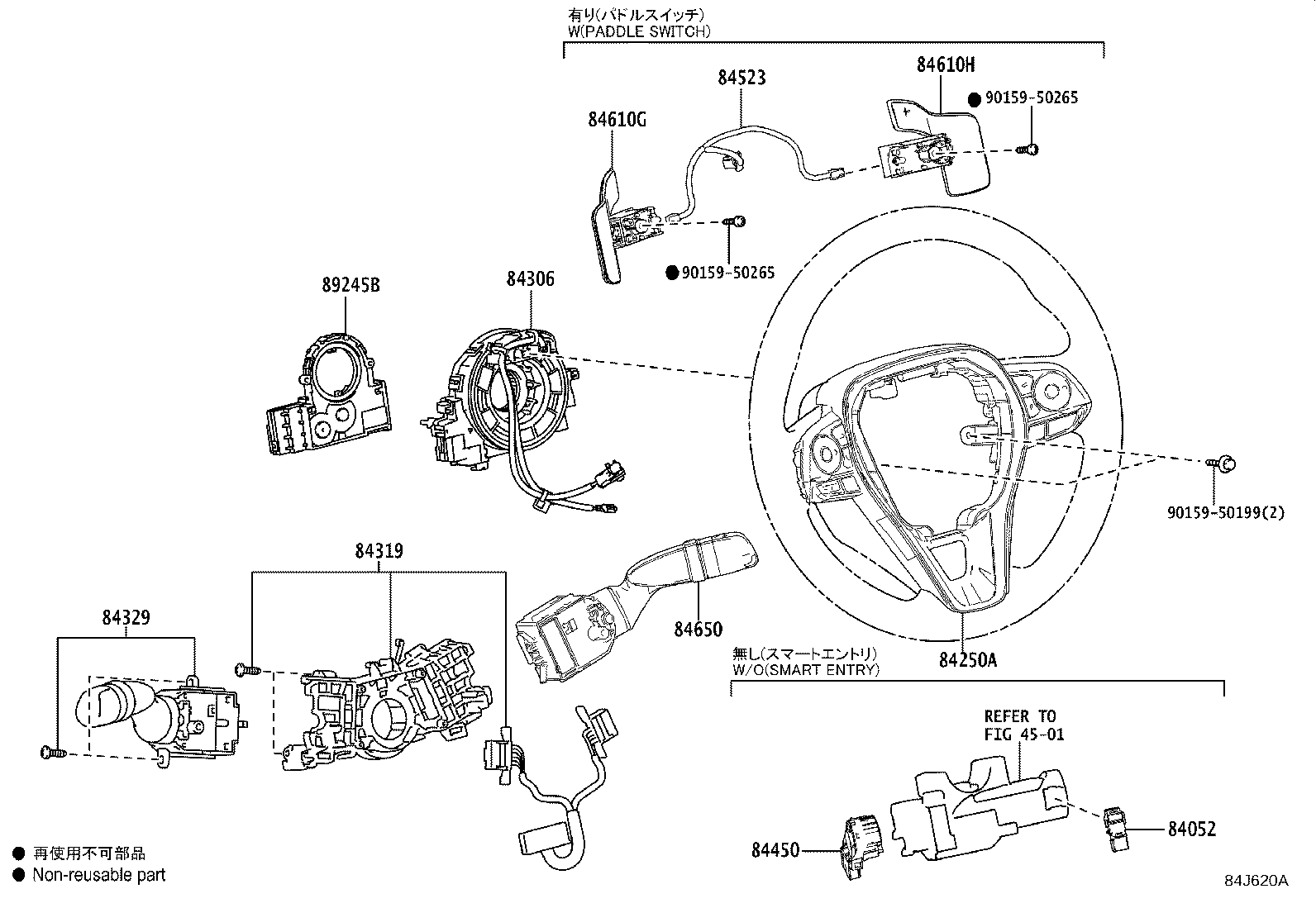

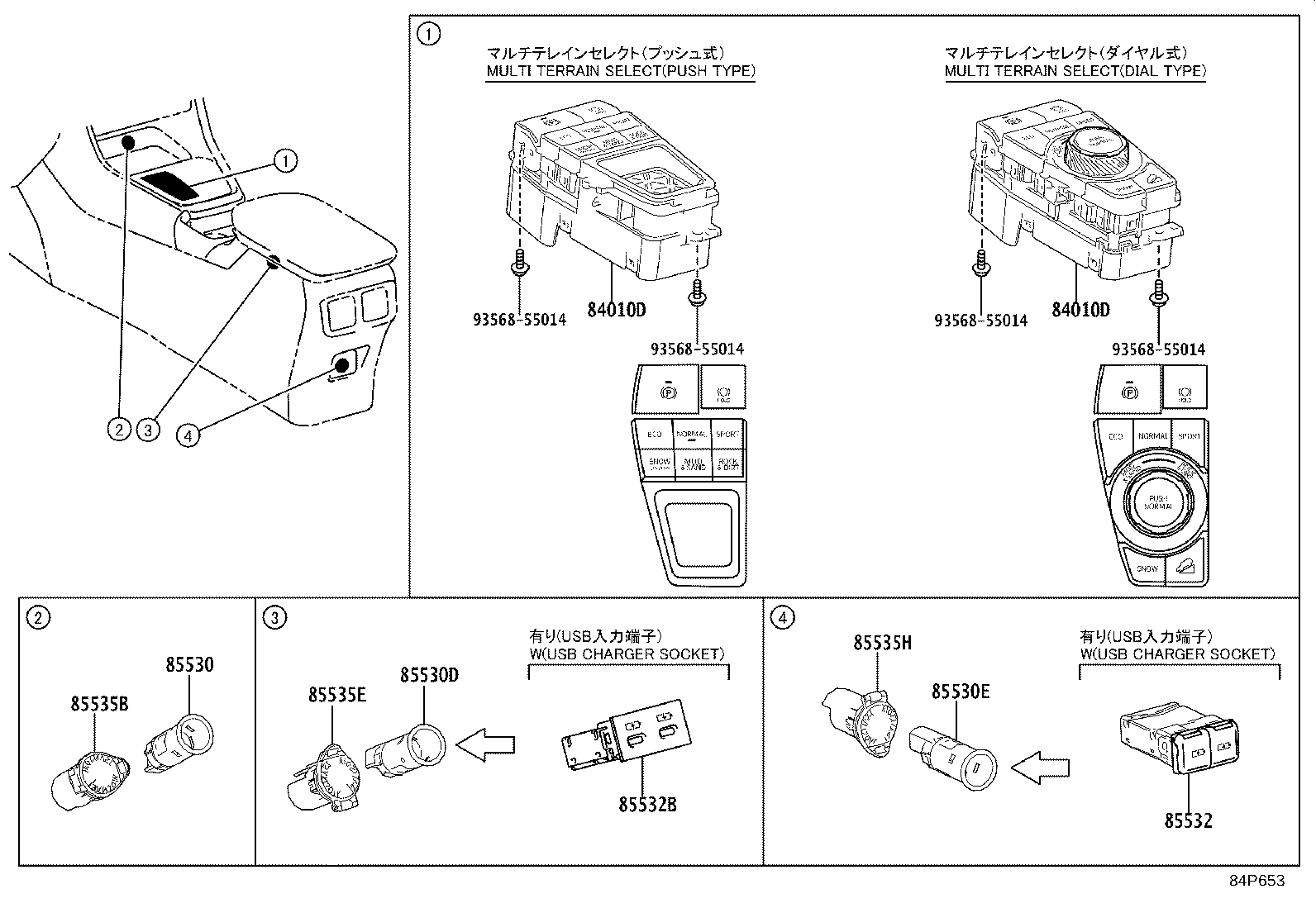

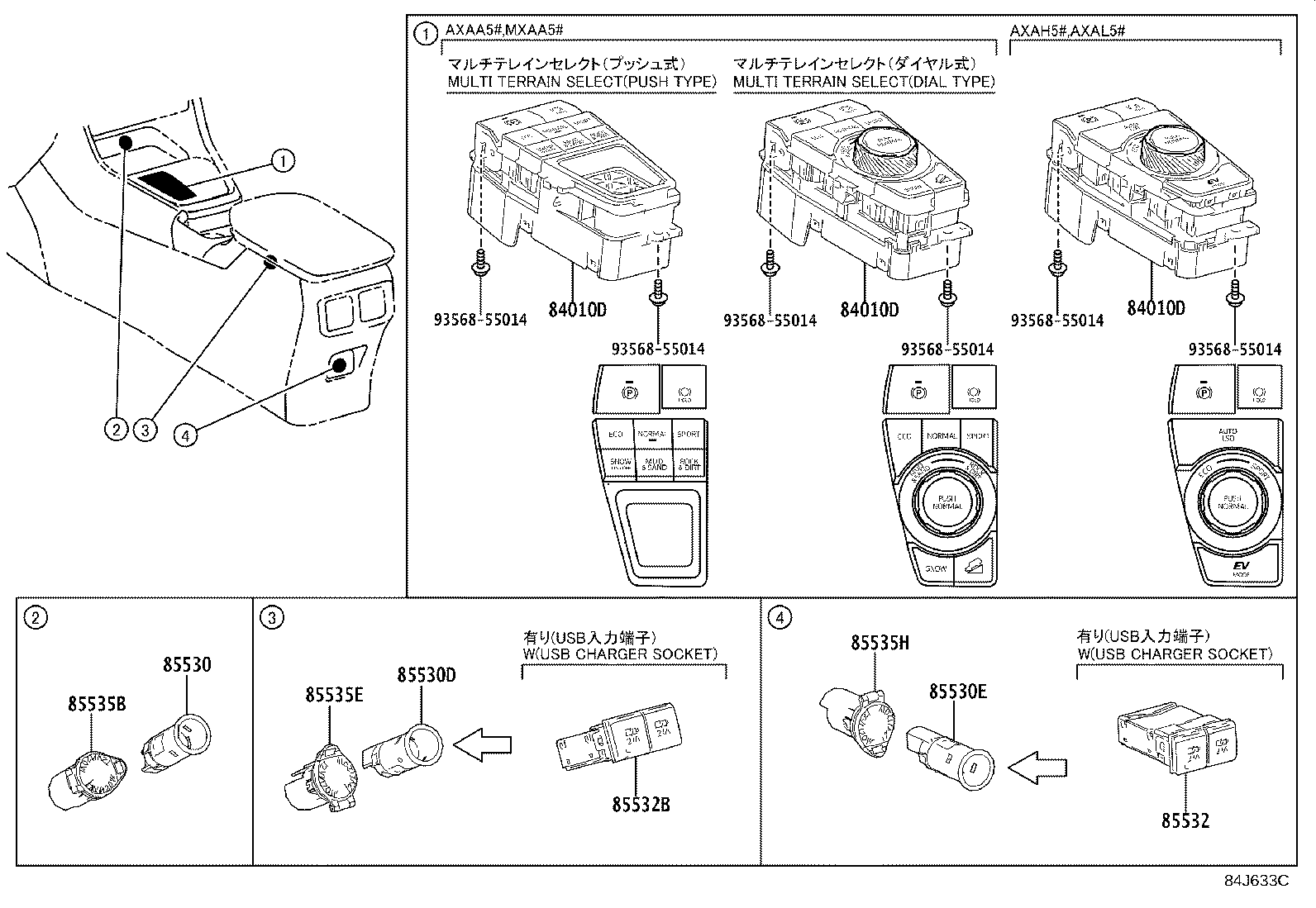

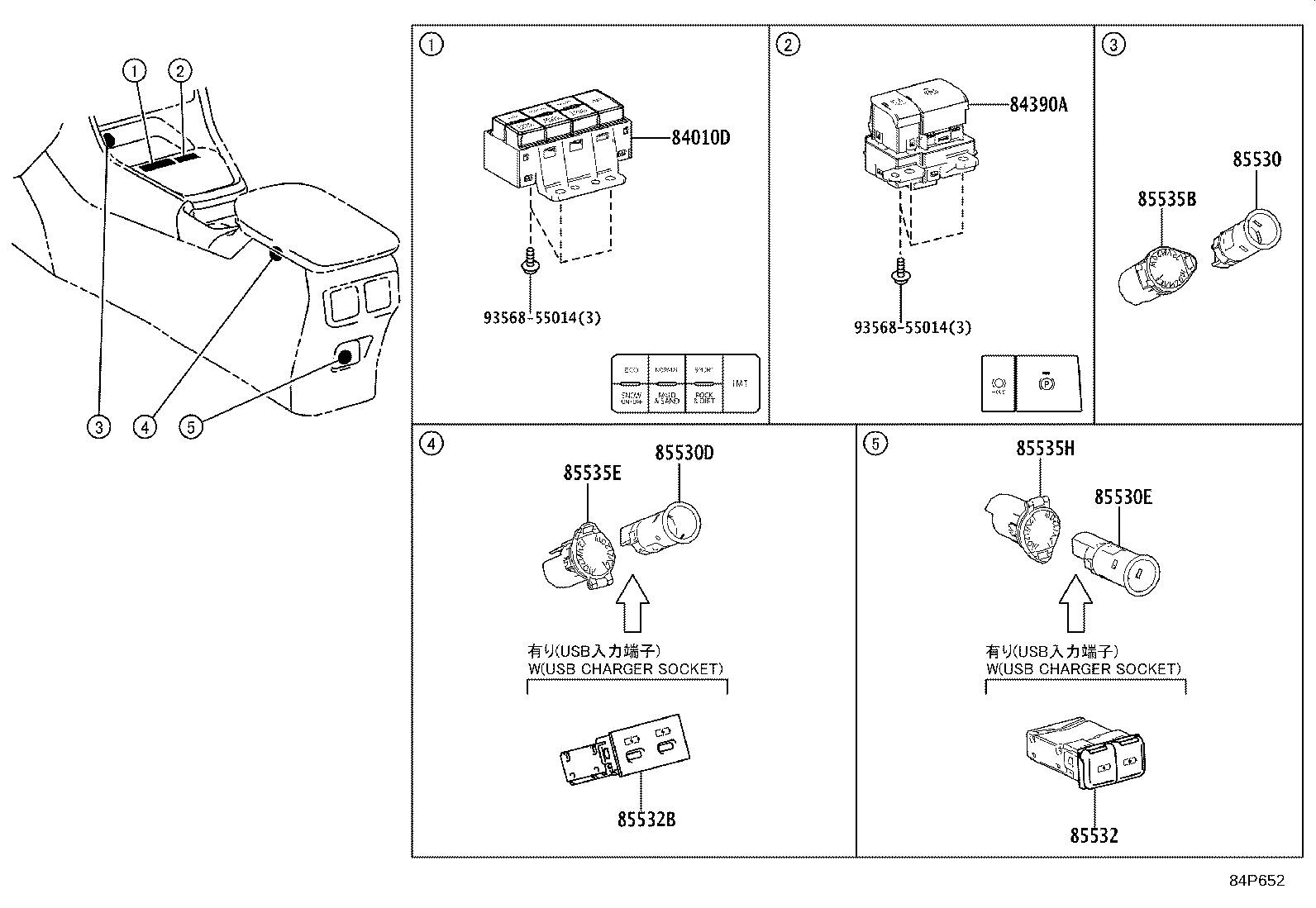

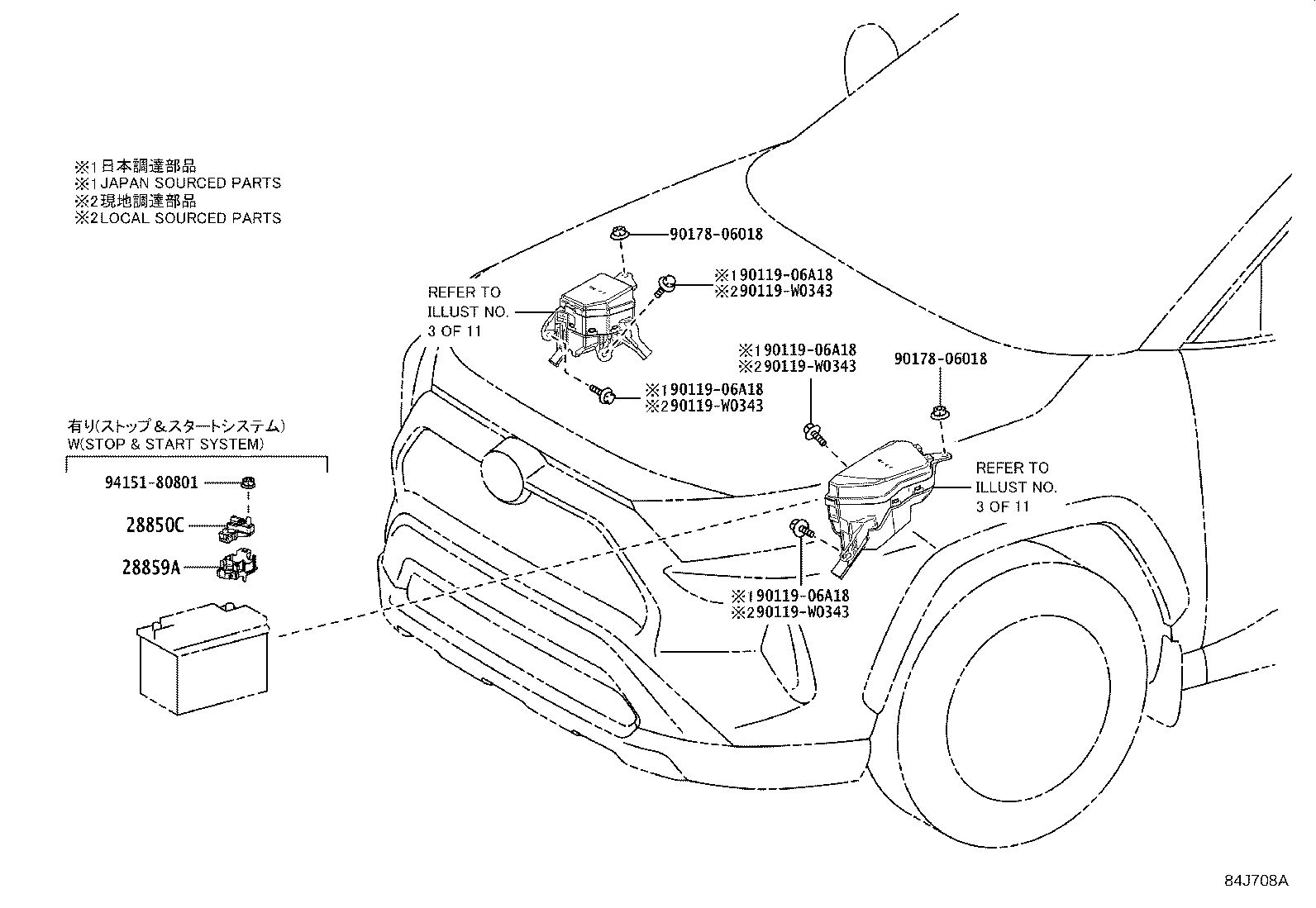

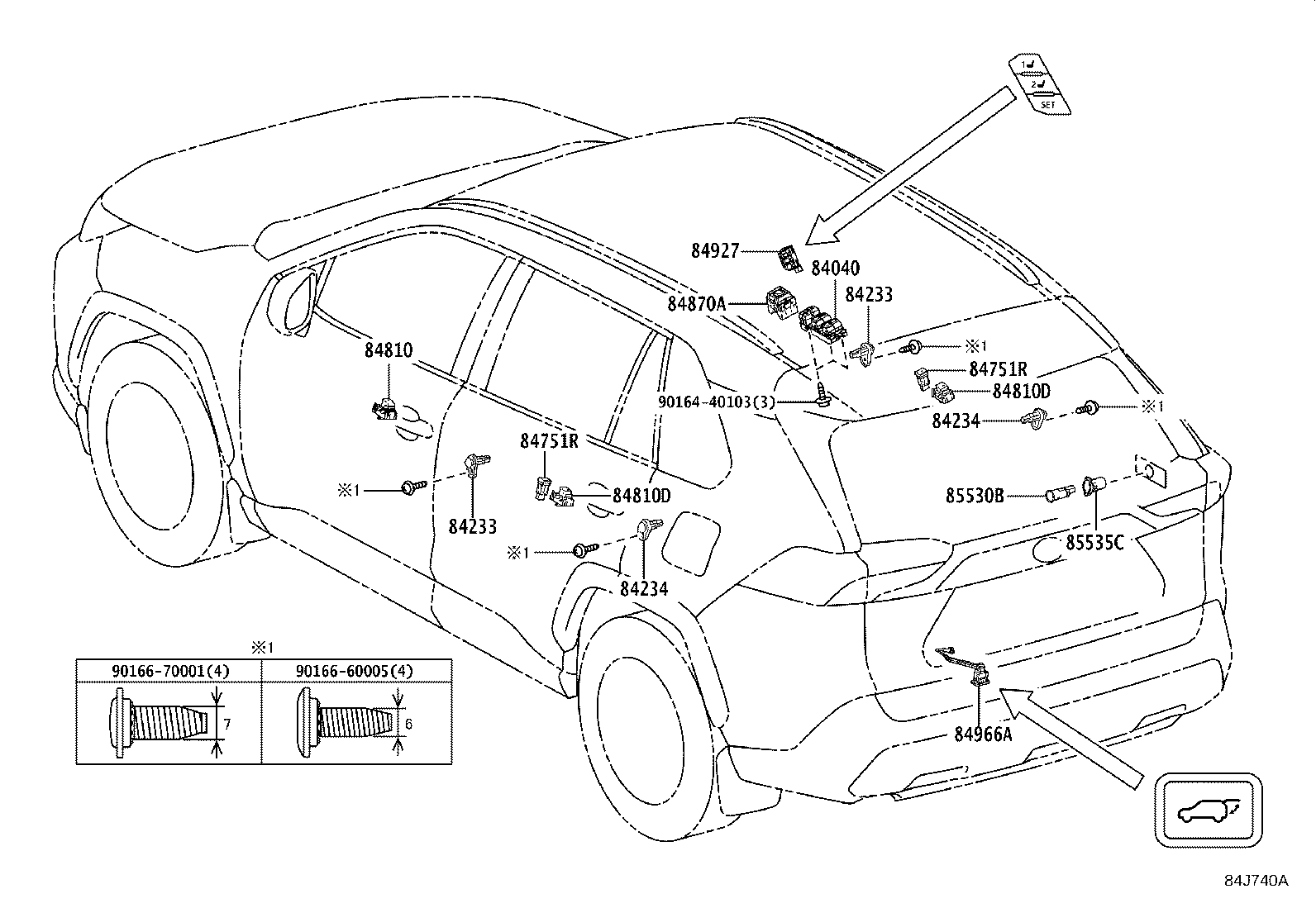

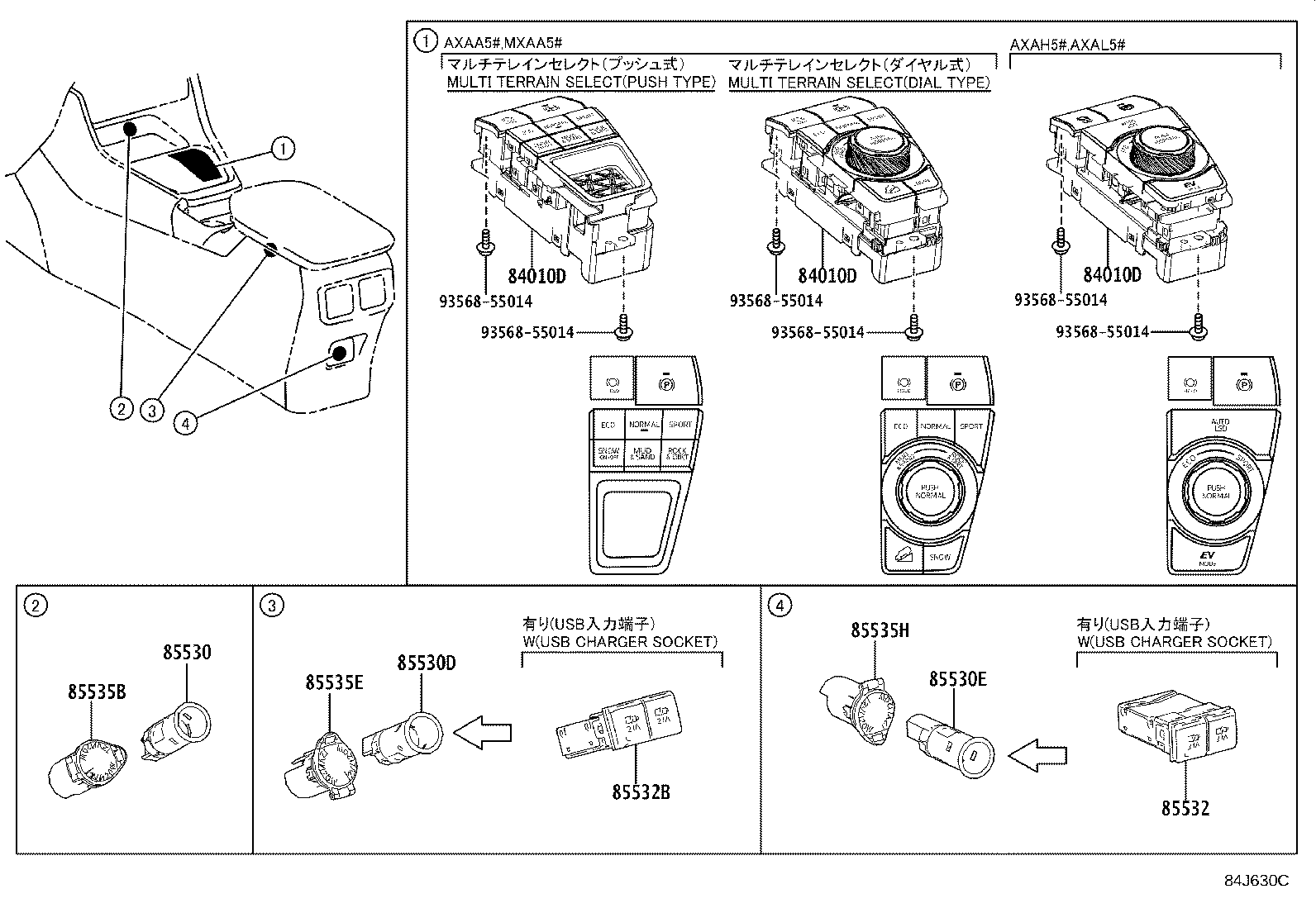

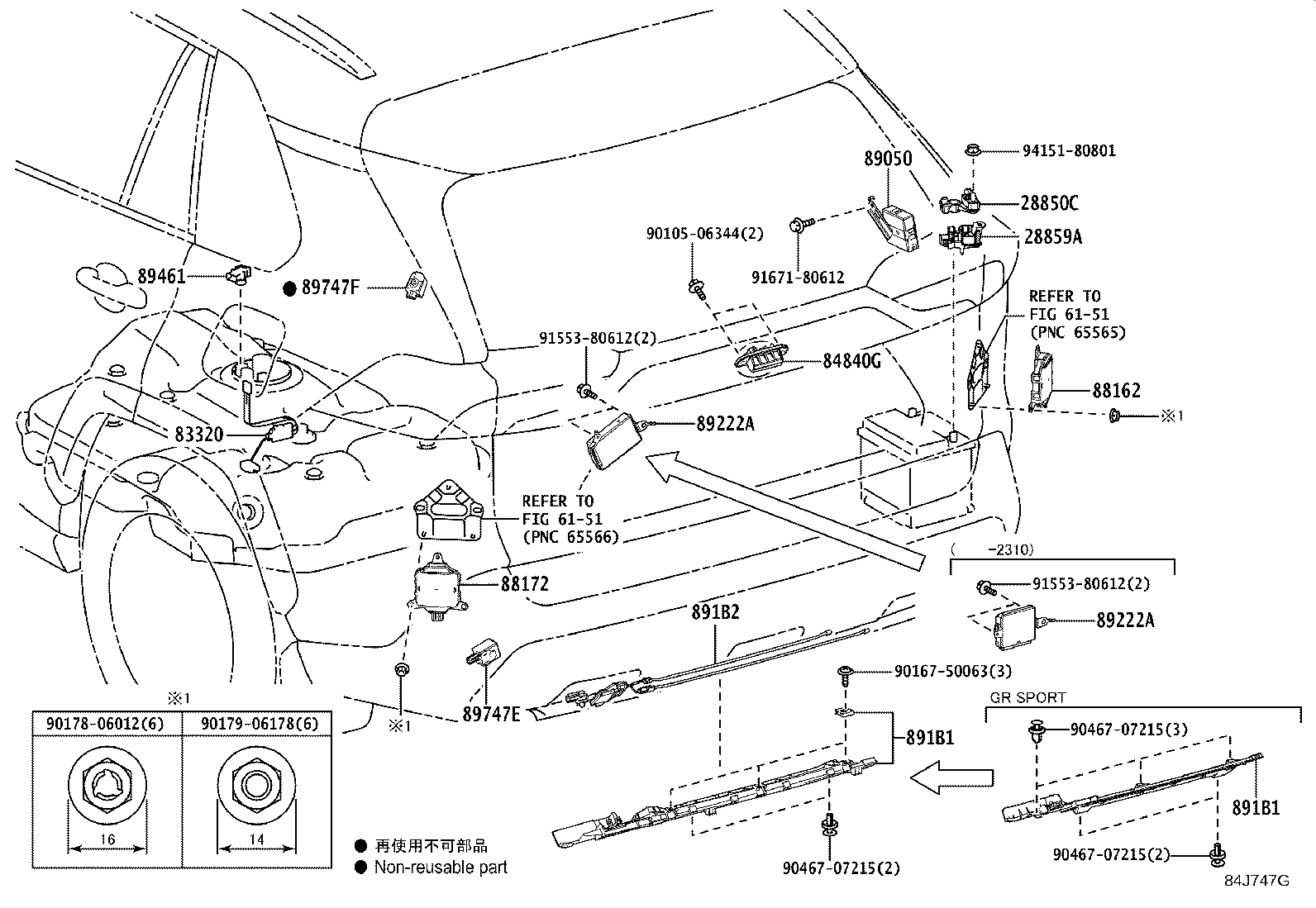

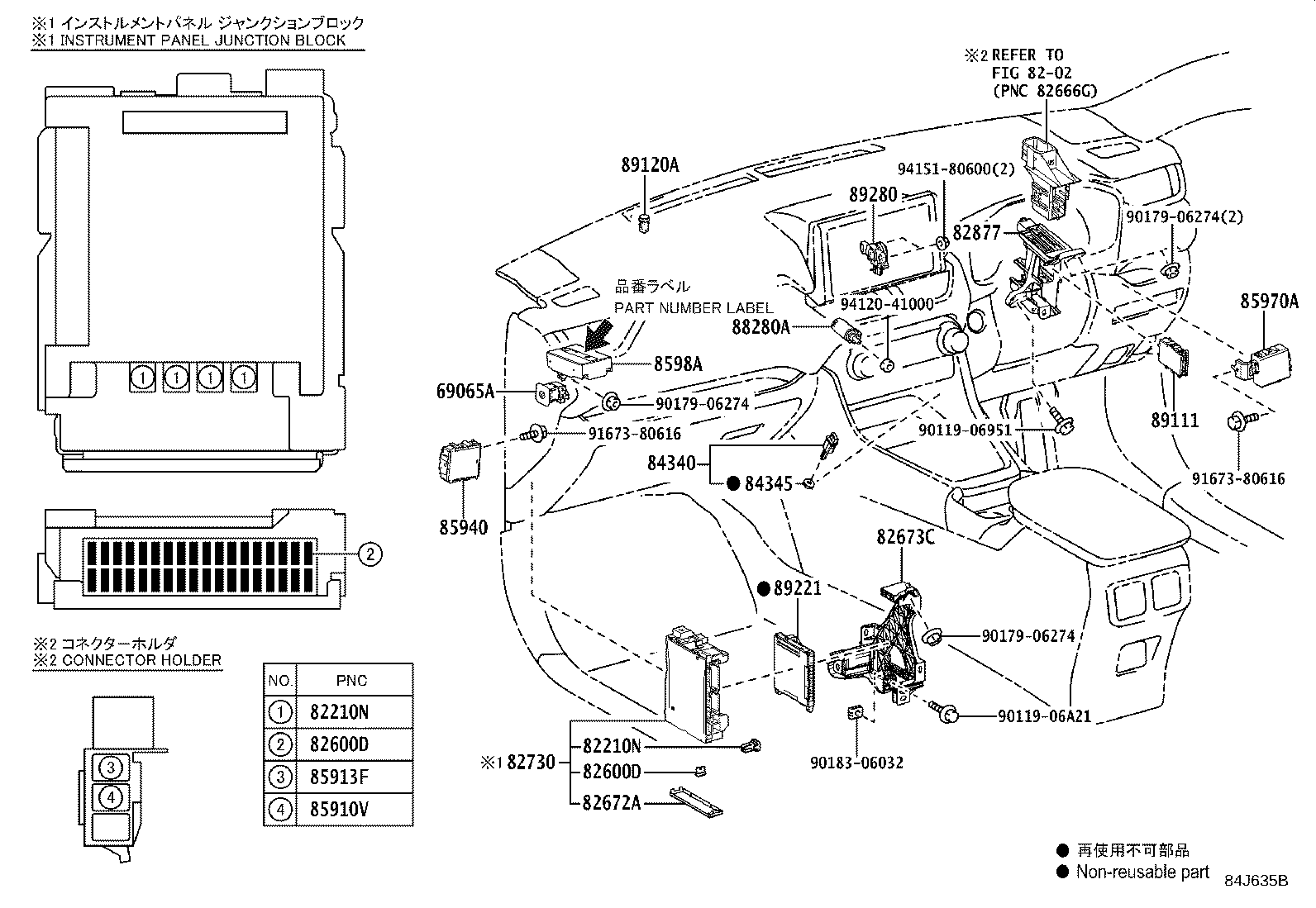

Figure 84J723F 84J723F 2018-11 → — Figure 84J748D 84J748D 2018-11 → — Figure 84J726E 84J726E 2018-11 → — Figure 84J708A 84J708A 2018-11 → — Figure 84J735B 84J735B 2018-11 → — Figure 84J736D 84J736D 2018-11 → — Figure 84J624D 84J624D 2018-11 → — Figure 84J634E 84J634E 2018-11 → — Figure 84J625C 84J625C 2018-11 → — Figure 84J635C 84J635C 2018-11 → — Figure 84J628A 84J628A 2018-11 → 2022-10 Figure 84P650 84P650 2022-10 → — Figure 84J629A 84J629A 2018-11 → 2022-10 Figure 84P649 84P649 2022-10 → — Figure 84J633C 84J633C 2018-11 → 2022-10 Figure 84P653 84P653 2022-10 → — Figure 84J632 84J632 2018-11 → 2022-10 Figure 84P654 84P654 2022-10 → — Figure 84J630C 84J630C 2018-11 → 2022-10 Figure 84P651 84P651 2022-10 → — Figure 84J631 84J631 2018-11 → 2022-10 Figure 84P652 84P652 2022-10 → — Figure 84J620A 84J620A 2018-11 → — Figure 84J621A 84J621A 2018-11 → — Figure 84J612C 84J612C 2018-11 → — Figure 84M896B 84M896B 2018-11 → — Figure 84J615A 84J615A 2018-11 → — Figure 84J740A 84J740A 2018-11 → — Figure 84J720G 84J720G 2018-11 → — Figure 84J747G 84J747G 2018-11 → — Figure 84J705D 84J705D 2018-11 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28850C Sensor Assy, Battery State
28859A Holder, Battery Current Sensor
55557F Cushion, Relay Block
69065A Cylinder Sub-assy, Airbag Cut Off Switch
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82210R Luggage Room Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82600L Luggage Room Fuse
82610A Block Assy, Fuse
82610C Block Assy, Fuse
82610D Block Assy, Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82660 Block Assy, Relay, Engine Room
82660B Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82660F Block Assy, Relay
82660G Block Assy, Relay
82660H Block Assy, Relay
82660J Block Assy, Relay
82660K Block Assy, Relay
82661 Cover, Relay Block, NO.1
82661A Cover, Relay Block, NO.2
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82662C Cover, Relay Block, Upper, NO.3
82662D Cover, Relay Block, Upper, NO.4
82662J Cover, Relay Block, Upper, NO.5
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82663B Cover, Relay Block, Lower, NO.3
82663C Cover, Relay Block Lower, NO.4
82672A Cover, Junction Block
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82673C Bracket, Junction Block
82715 Bracket,Wiring Harness Clamp
82715W Bracket, Wiring Harness Clamp
82715Y Bracket, Wiring Harness Clamp, NO.3
82730 Block Assy, Instrument Panel Junction
82740 Block Assy, Engine Room Relay
82740A Block Assy, Engine Room Relay, NO.2
82743 Block, Engine Room Relay, NO.3
82877 Box, Computer Integration, RH
83320 Gage Assy, Fuel Sender
83320B Gage Assy, Fuel Sender, NO.2
83950M Lamp Assy, Telltale
84010D Control & Panel Assy, Integration
84040 Master Switch Assy,Multiplex Network
84052 Switch Assy, Un-lock Warning
84153 Switch, Auto High Beam
84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84250A Switch Assy, Steering Pad
84255 Switch, Steering Heater
84306 Cable Sub-assy, Spiral
84319 Housing, Steering Wheel Switch
84329 Switch, Turn Signal
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84390A Switch Assy, Brake Warning
84450 Switch Assy, Ignition OR Starter
84470A Switch Assy, Ecorun Cancel
84523 Wire, Switch NO.1
84540 Switch Assy, Neutral Start
84545 Switch, Neutral Position
84546 Switch, 4 Wheel Drive Position, NO.1
84546A Switch, 4 Wheel Drive Position, NO.2
84610G Switch Assy, Transmission Shift, NO.1
84610H Switch Assy, Transmission Shift, NO.2
84650 Switch Assy, Windshield Wiper
84721B Switch, Panoramic View Monitor
84751 Switch, Seat Heater
84751F Switch, Seat Heater
84751R Switch, Seat Heater(REAR)
84752 Switch, Refreshing Seat
84794 Switch, FR Wiper Deicer
84794A Relay, FR Wiper Deicer
84795 Switch, Front Window Deicer
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84840G Switch Assy, Back Door Opener
84841A Switch, Fuel Lid Opener
84870A Switch Assy, Outer Mirror
84921C Knob, Power Seat Switch, RH
84921D Knob, Power Seat Switch, LH
84921J Knob, Power Seat Switch, RH
84921K Knob, Power Seat Switch, LH
84922B Switch, Front Power Seat, RH
84922C Switch, Front Power Seat, LH
84927 Switch, Seat Memory
84966 Switch, Power Back Door Control
84966A Switch, Power Back Door Control, NO.1
84975 Switch, Trip
84988L Switch, Vsc Off
85278A Relay Assy, Headlamp Cleaner Control
85530 Socket Assy, Power Outlet, NO.1
85530A Relay, Power Outlet Socket
85530B Socket Assy, Power Outlet, Rear NO.1
85530D Socket Assy, Power Outlet, NO.2
85530E Socket Assy, Power Outlet, NO.3
85532 Socket, Usb Charger
85532B Socket, Usb Charger
85535B Cover, Power Outlet Socket, NO.1
85535C Cover, Power Outlet Socket, Rear
85535E Cover, Power Outlet Socket, NO.2
85535H Cover, Power Outlet Socket, NO.3
85910E Relay, Injector
85910K Relay, Rear Seat Heater
85910V Relay, Seat Heater
85912 Relay, Defogger
85912F Relay, Hwd
85912K Relay, Vvt
85913F Relay, Steering Heater
85916D Relay, Fog Lamp
85916P Relay, Headlamp
85924C Relay, Igct
85940 Relay Assy, Windshield Wiper
85941 Relay, Windshield Washer
85948 Relay, Windshield Wiper
85970A Relay Assy, Double Lock Door Control
8598A Battery, Door Control
86530 Relay Assy, Horn
87989 Relay, Mirror Control
88162 Sensor, Blind Spot Monitor, RH
88172 Sensor, Blind Spot Monitor, LH
88280A Switch Assy, Clutch
89050 Computer Assy, Parking Brake
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
891B1 Bracket, Kick Door Control
891B2 Sensor, Kick Door Control
89221 Computer, Multiplex Network Body
89222A Computer, Multiplex Network Door
89245B Sensor, Steering
89280 Sensor Assy, Clutch Pedal Stroke
89413A Sensor, Transmission Revolution
89419B Sensor, Shift Stroke
89422A Sensor, Water Temperature
89429F Sensor, Temperature
89451A Sensor, Shift Lever Position
89461 Sensor, Vapor Pressure
89467B Sensor, Air Fuel Ratio
89467C Sensor, Air Fuel Ratio, NO.2
89481B Sensor, Differential Pressure
89491 Sensor, Engine Oil Level
89535B Computer, Transmission Control
89539M Bracket, Transmission Control Computer, NO.1
89539N Bracket, Transmission Control Computer, NO.2
89561F Relay, Electronic Fuel Injection Main, NO.1
89561G Relay, Electronic Fuel Injection Main, NO.2
89561H Relay, Electronic Fuel Injection Main, NO.3
89611 Switch, Push Start
89615 Sensor, Knock Control
89710 Computer Assy, Position Control
89730A Relay(FOR SECURITY WARNING)
89747E Buzzer, Power Back Door Warning
89747F Buzzer, Blind Spot Monitor
89870E Relay, Electronic Driver Unit
G9020E Relay, Hybrid Water Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
