Toyota RAV4 (JPP)

2018-11 → present · chassis AXAA5#,AXAH5#,AXAL5#,MXAA5# · catalogue 662250 · Europe

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Eco-run System

3 part groups · 2 illustrations

Illustrations

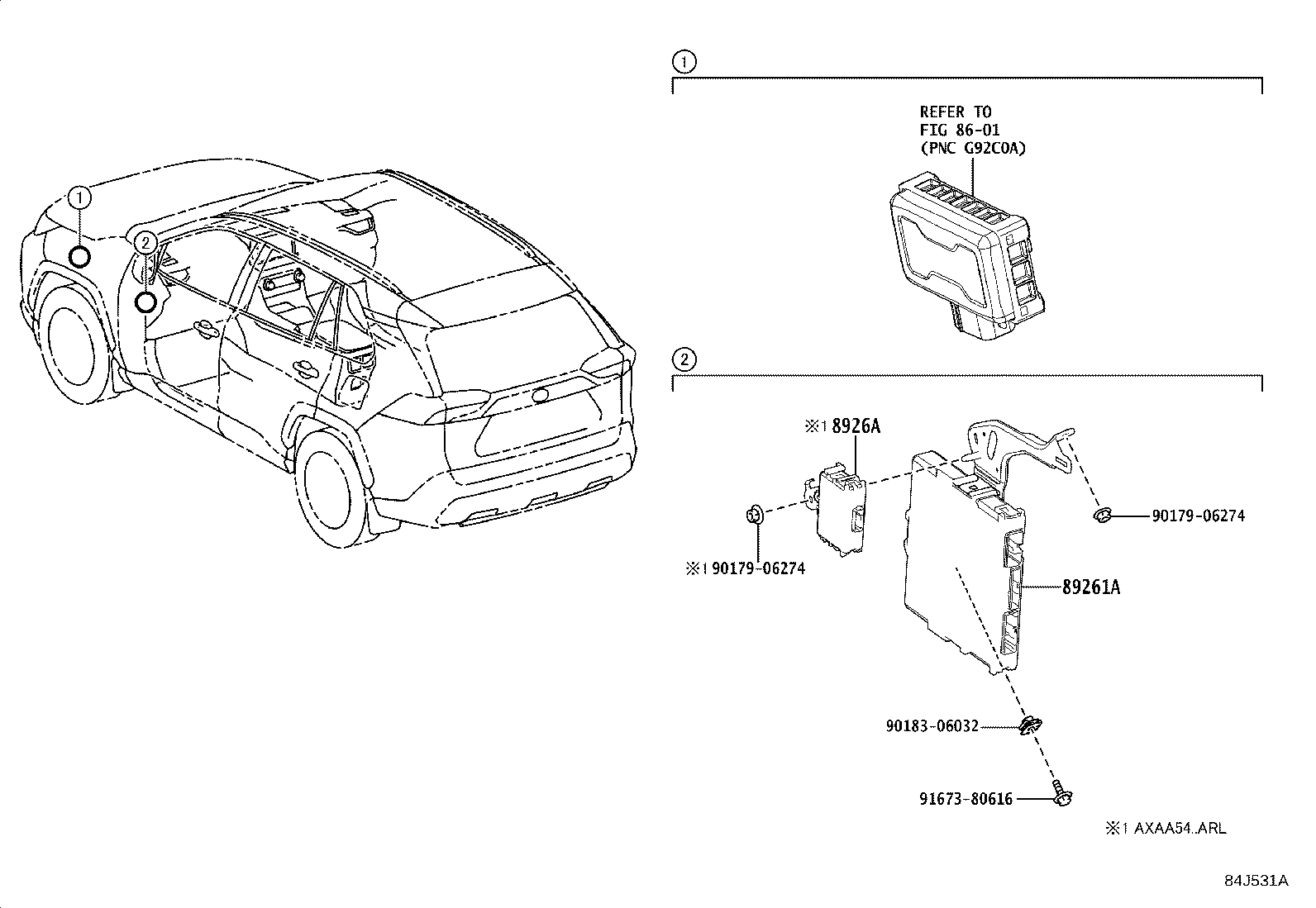

Figure 84J530A 84J530A 2018-11 → — Figure 84J531A 84J531A 2018-11 → —

Part groups

PNCDescription
89261A Computer, Engine Stop And Start
8926A Filter, Engine Stop & Start Solenoid
89987G Bracket, Computer, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
