Toyota RAV4 (JPP)
2018-11 → present · chassis AXAA5#,AXAH5#,AXAL5#,MXAA5# · catalogue 662250 · Europe
Supported model
Data version 2023-10

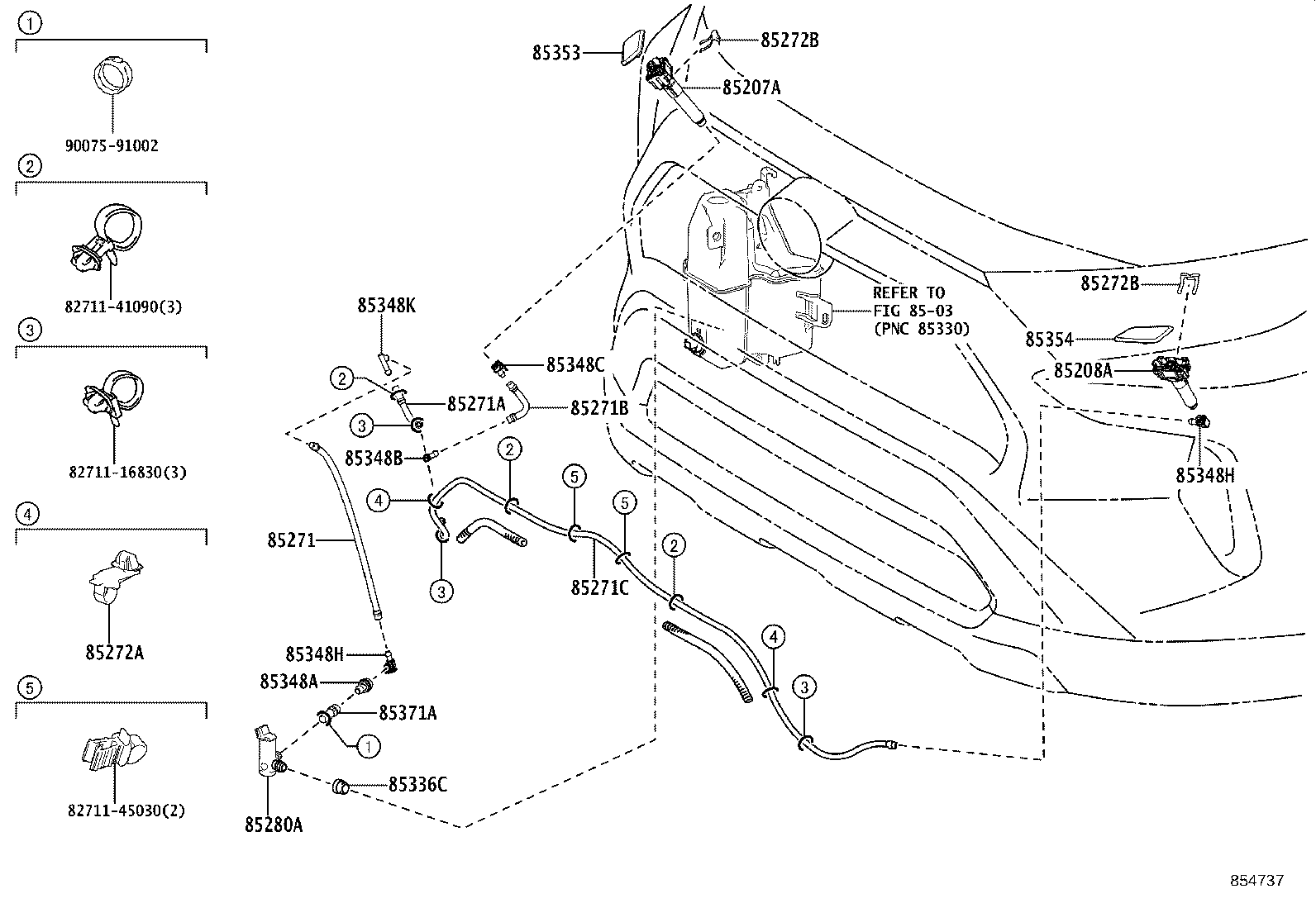

Headlamp Cleaner
19 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 85207A | Actuator Sub-assy, Headlamp Washer, RH |
| 85208A | Actuator Sub-assy, Headlamp Washer, LH |
| 85271 | Hose, Headlamp Cleaner, NO.1 |
| 85271A | Hose, Headlamp Cleaner, NO.2 |
| 85271B | Hose, Headlamp Cleaner, NO.3 |
| 85271C | Hose, Headlamp Cleaner, NO.4 |
| 85272A | Clamp, Headlamp Cleaner, NO.1 |
| 85272B | Clamp, Headlamp Cleaner, NO.2 |
| 85272C | Clamp, Headlamp Cleaner, NO.3 |
| 85280A | Motor And Pump Assy, Headlamp Cleaner |
| 85336C | Packing, Headlamp Cleaner Motor |
| 85348A | Joint, Headlamp Cleaner Hose, NO.1 |
| 85348B | Joint, Headlamp Cleaner Hose, NO.2 |
| 85348C | Joint, Headlamp Cleaner Hose, NO.3 |
| 85348H | Joint, Headlamp Cleaner Hose, NO.4 |
| 85348K | Joint, Headlamp Cleaner Elbow, NO.1 |
| 85353 | Cover, Headlamp Washer, RH |
| 85354 | Cover, Headlamp Washer, LH |
| 85371A | Hose, Headlamp Cleaner(FROM MOTOR TO JOINT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
