Toyota RAV4 (JPP)

2018-11 → present · chassis AXAA5#,AXAH5#,AXAL5#,MXAA5# · catalogue 662250 · Europe

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Telephone & Mayday

8 part groups · 6 illustrations

Illustrations

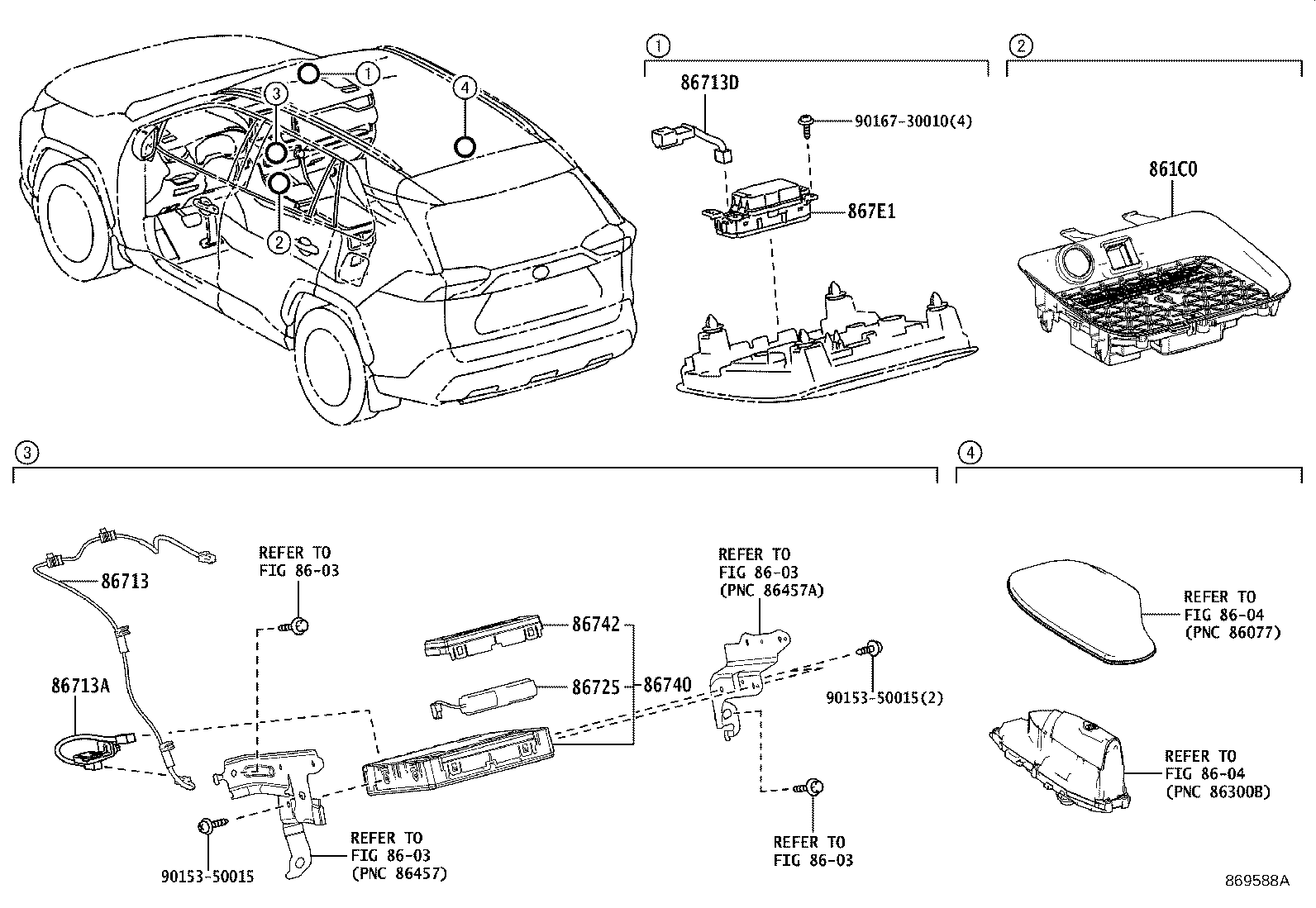

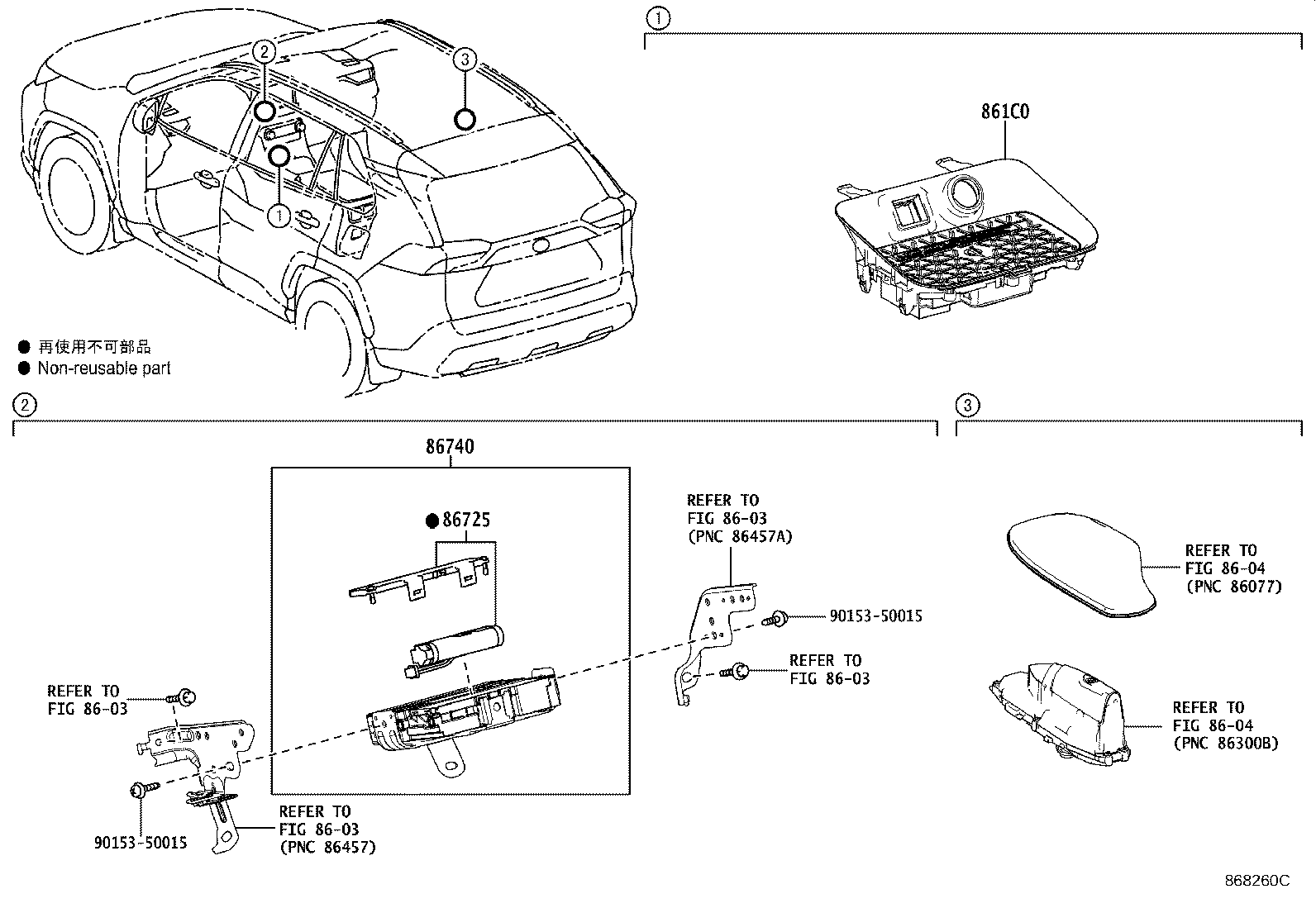

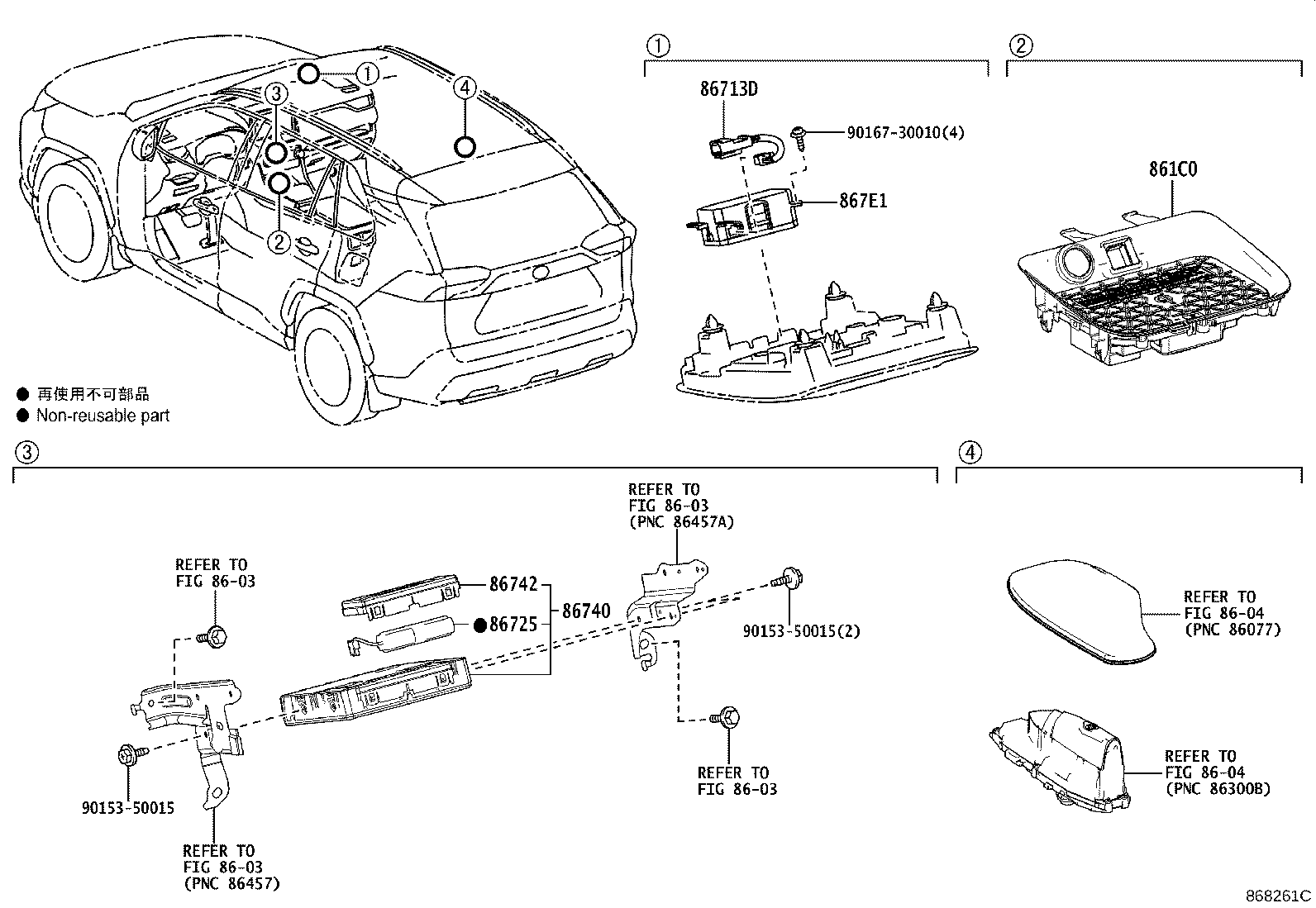

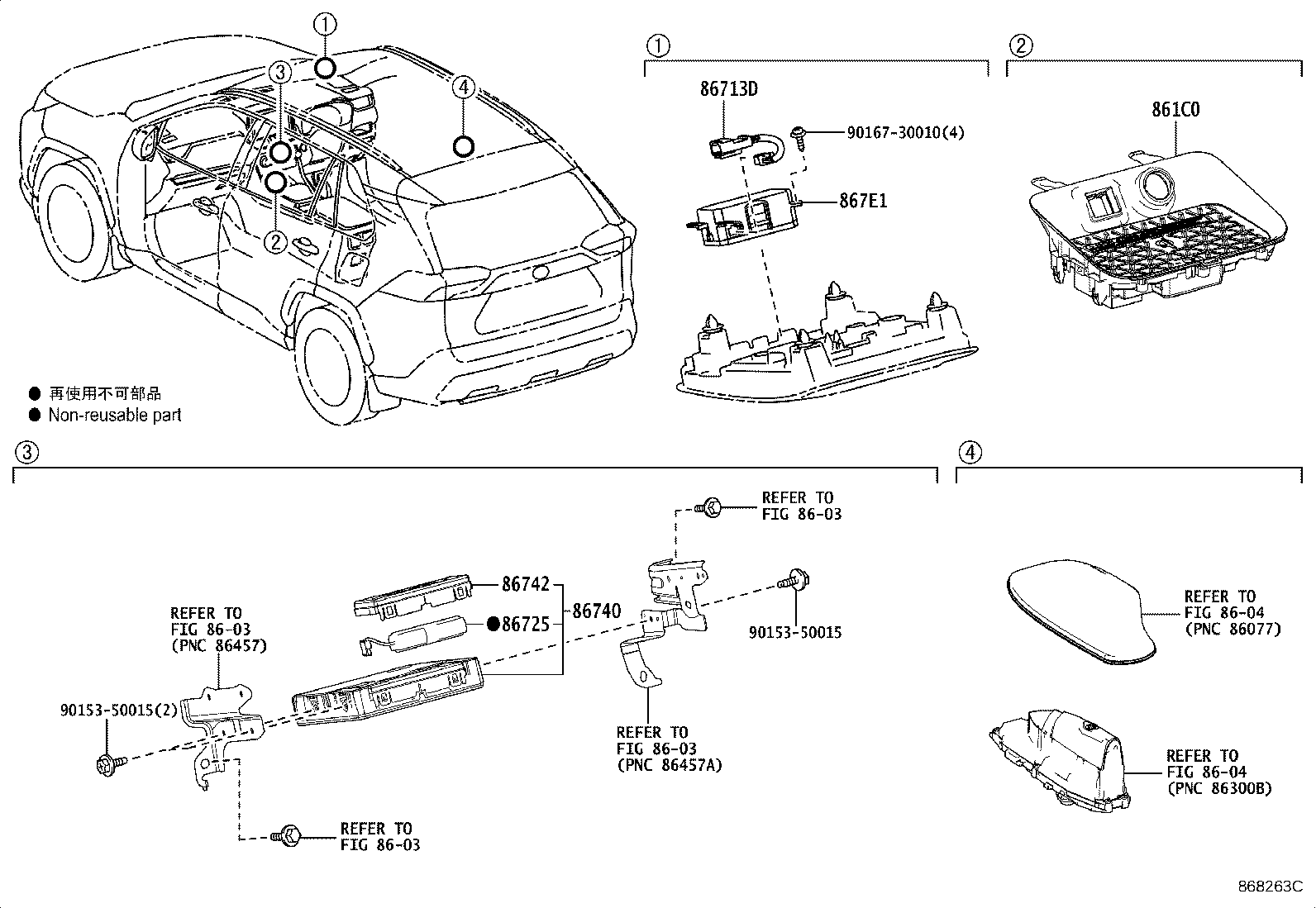

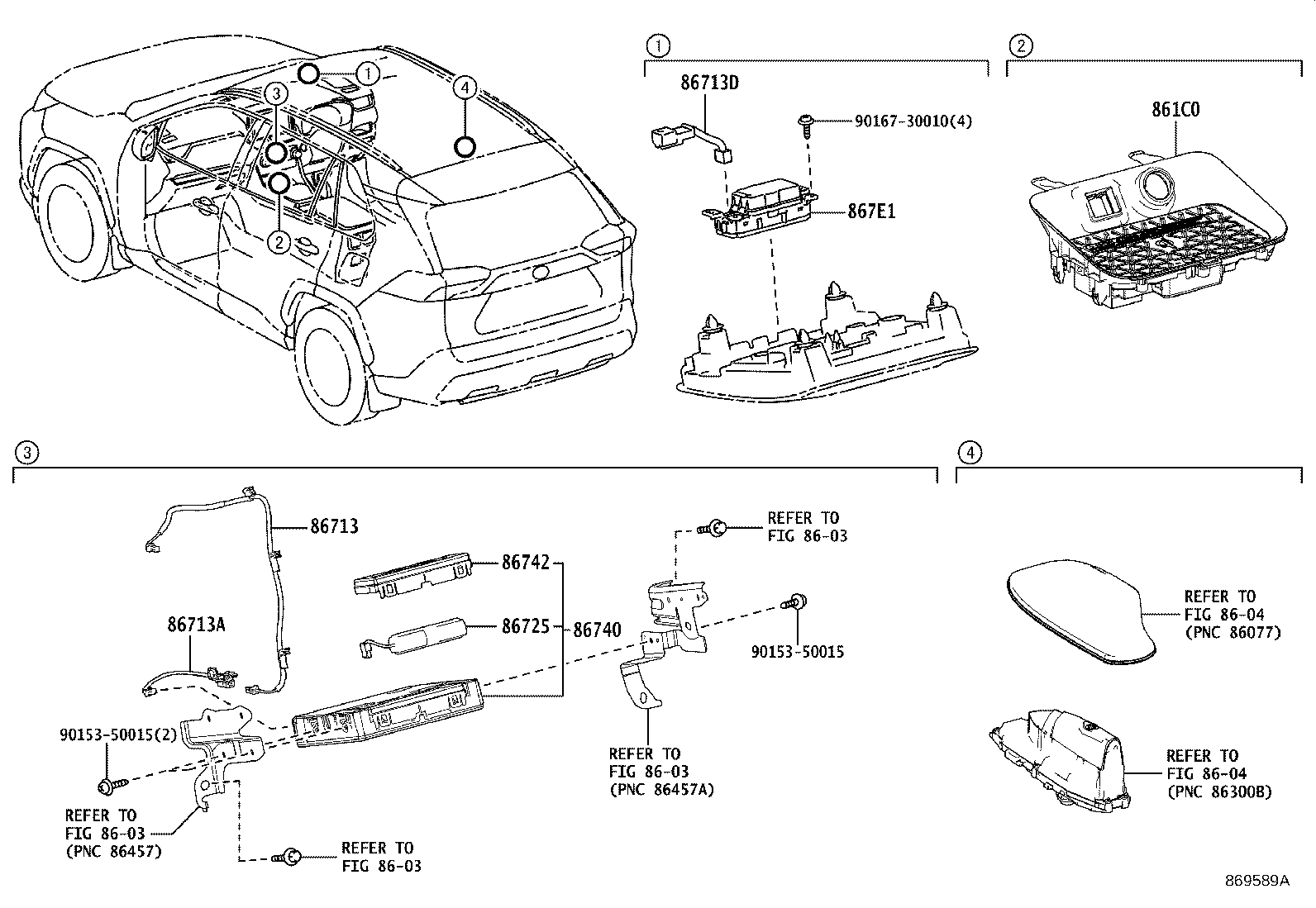

Figure 867420J 867420J 2018-11 → 2020-08 Figure 868261C 868261C 2020-08 → 2022-10 Figure 868260C 868260C 2020-08 → 2022-10 Figure 869588A 869588A 2022-10 → — Figure 868263C 868263C 2020-08 → 2022-10 Figure 869589A 869589A 2022-10 → —

Part groups

PNCDescription
861C0 Cradle Assy, Mobile Wireless Charger
86713 Wire, Telephone Computer
86713A Wire, Telephone Computer, (TO TRANSCEIVER)
86713D Wire, Mayday
86725 Battery, Mobilephone
86740 Transceiver Assy, Telephone
86742 Cover, Transceiver
867E1 Box, Communication Telematics
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
