Heating & Air Conditioning - Cooler Piping

19 part groups · 20 illustrations

Illustrations

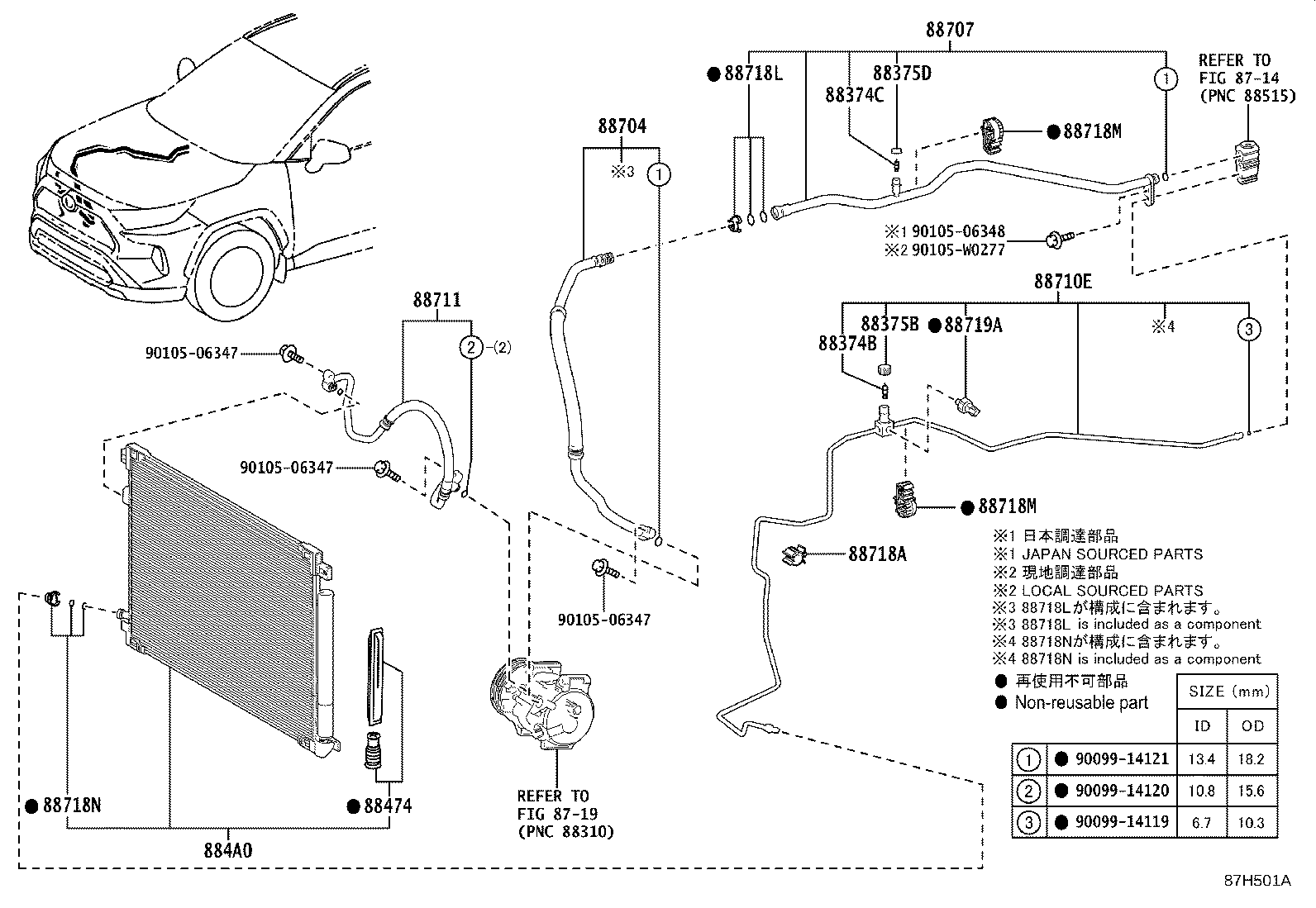

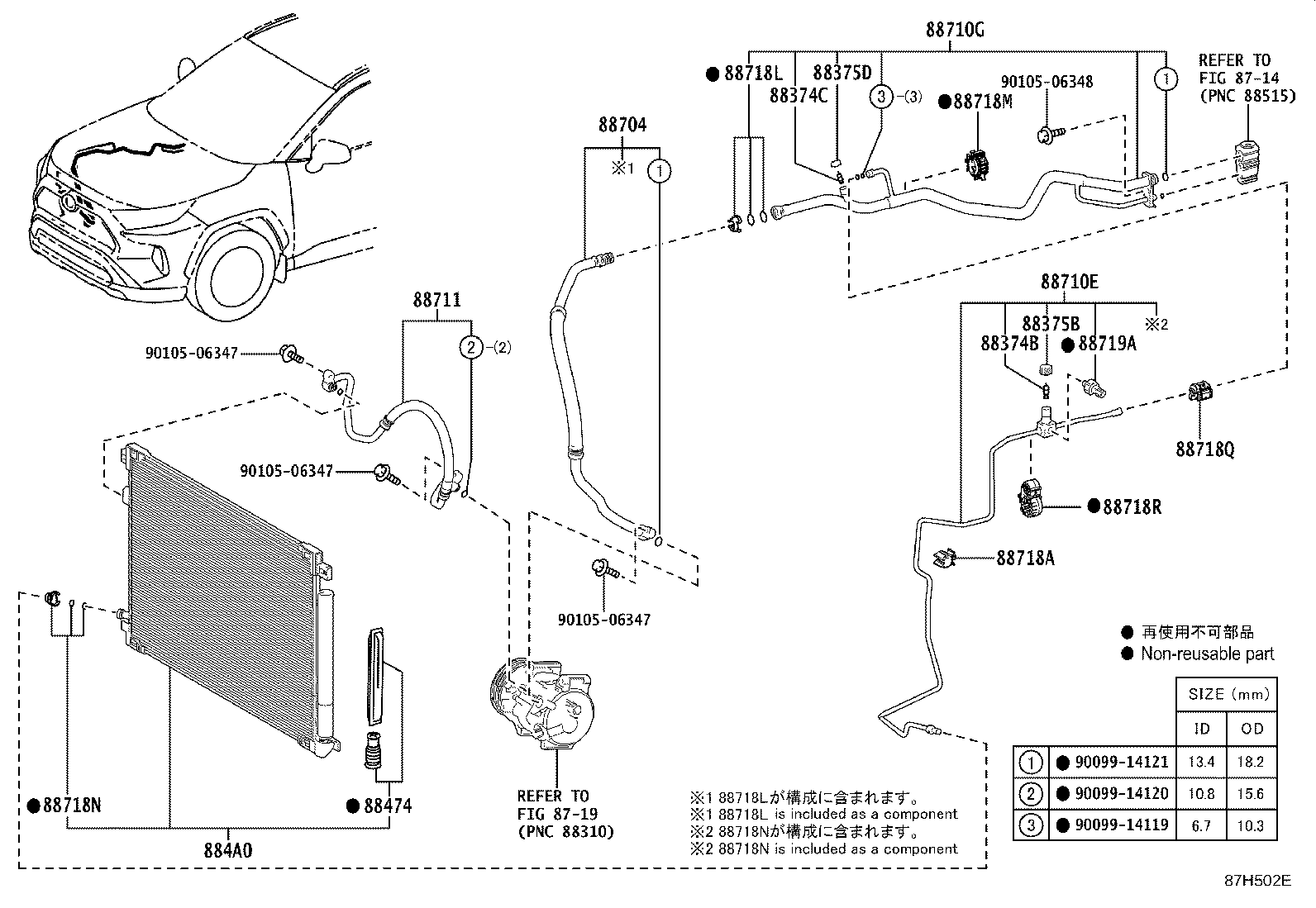

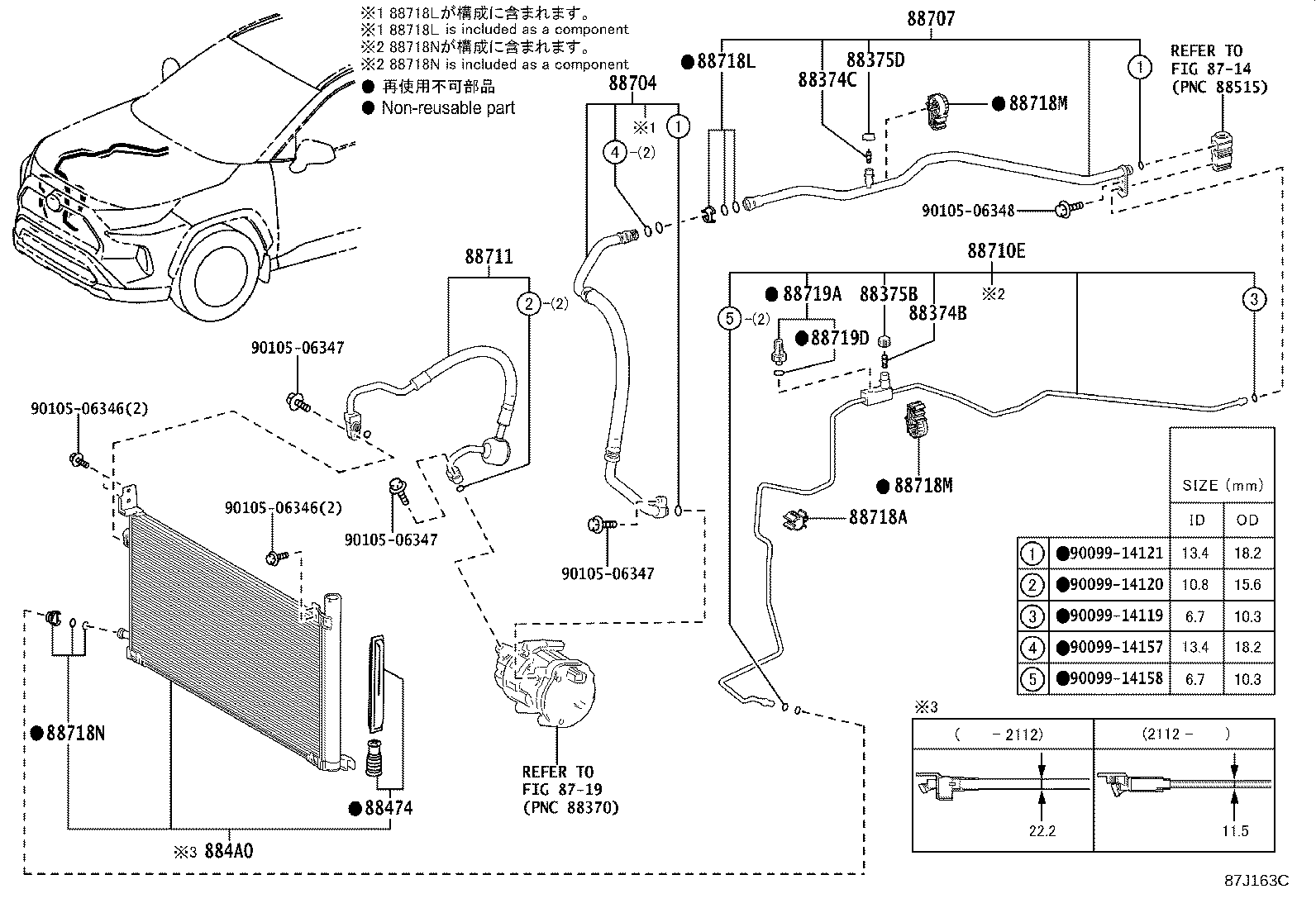

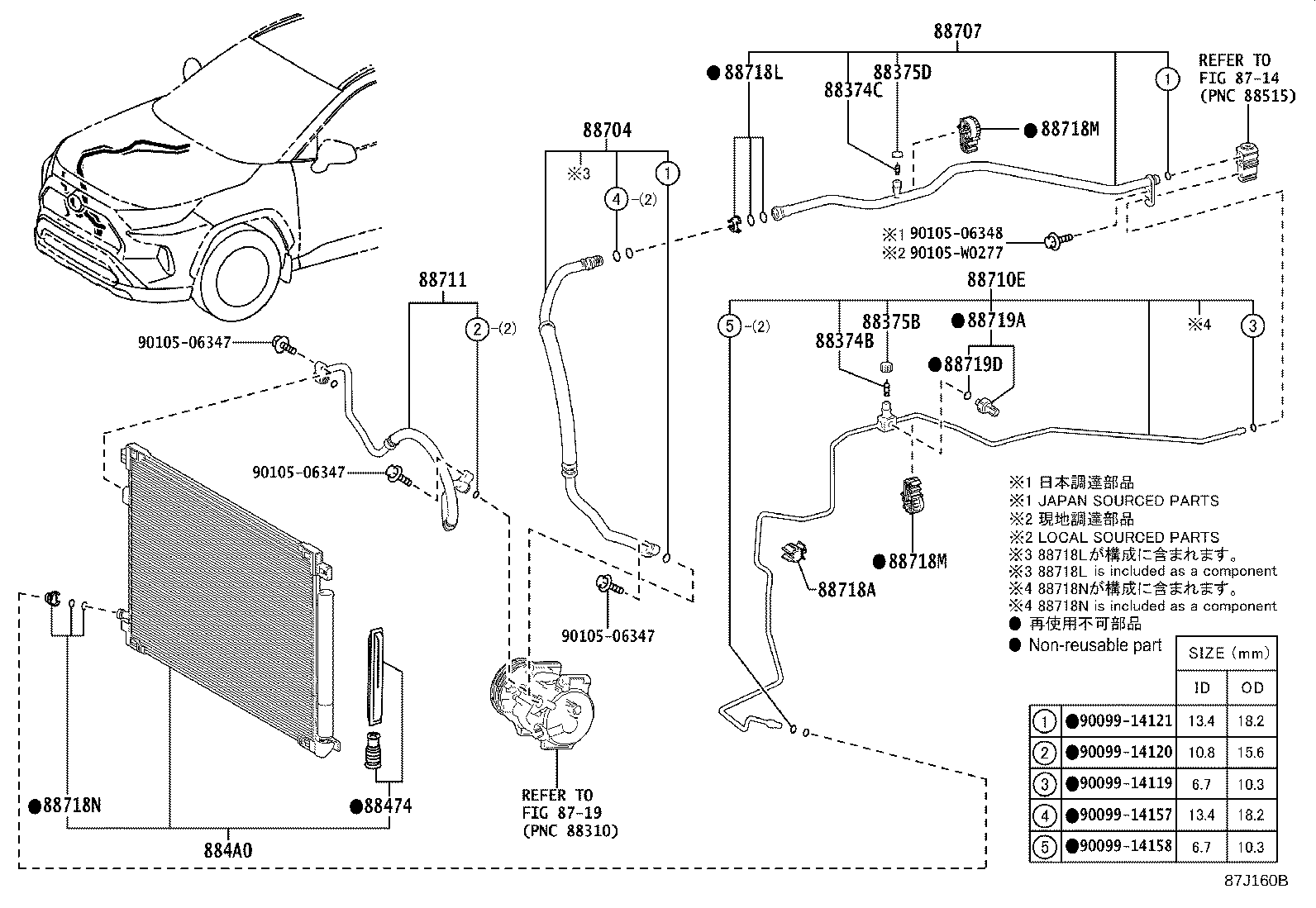

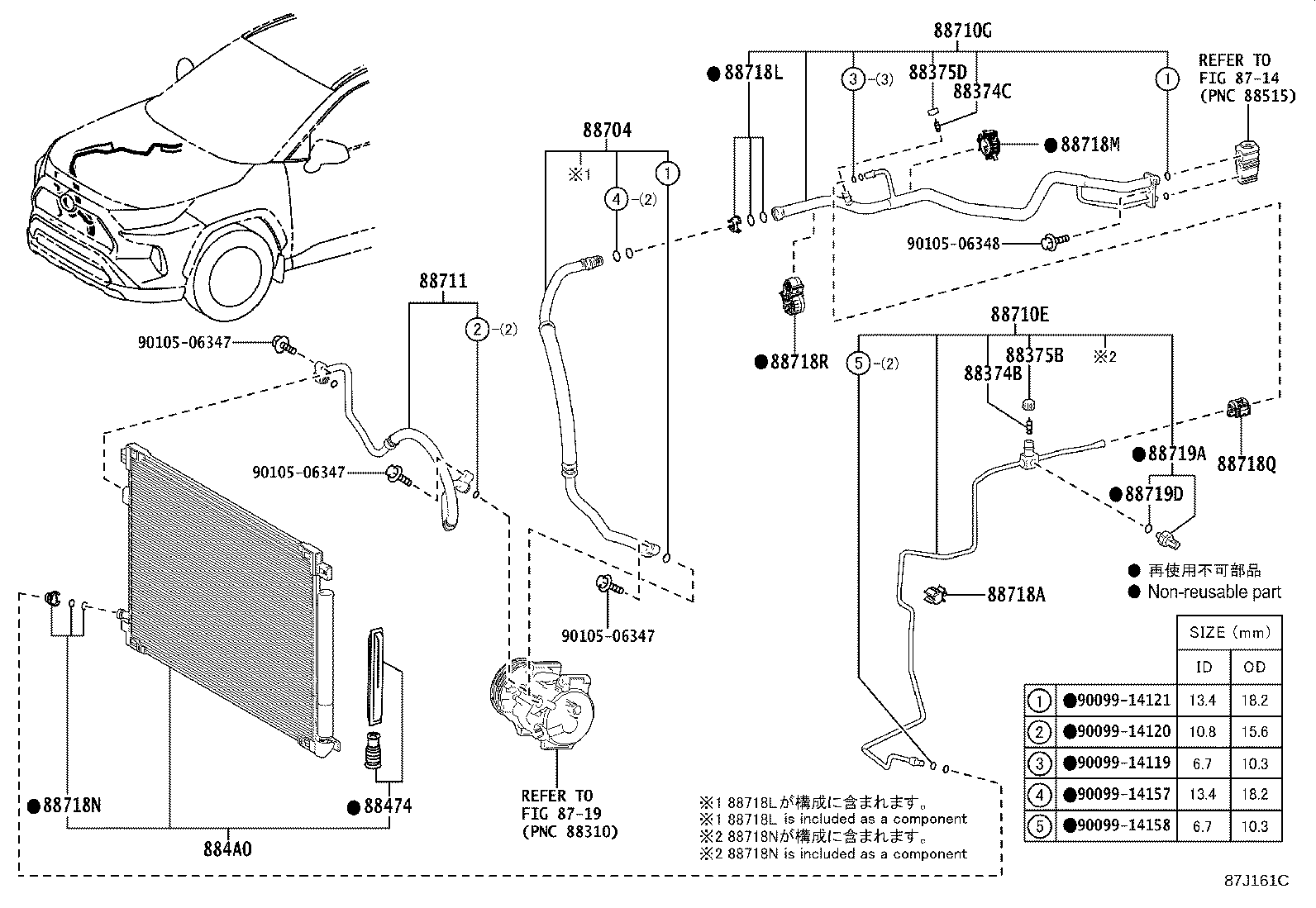

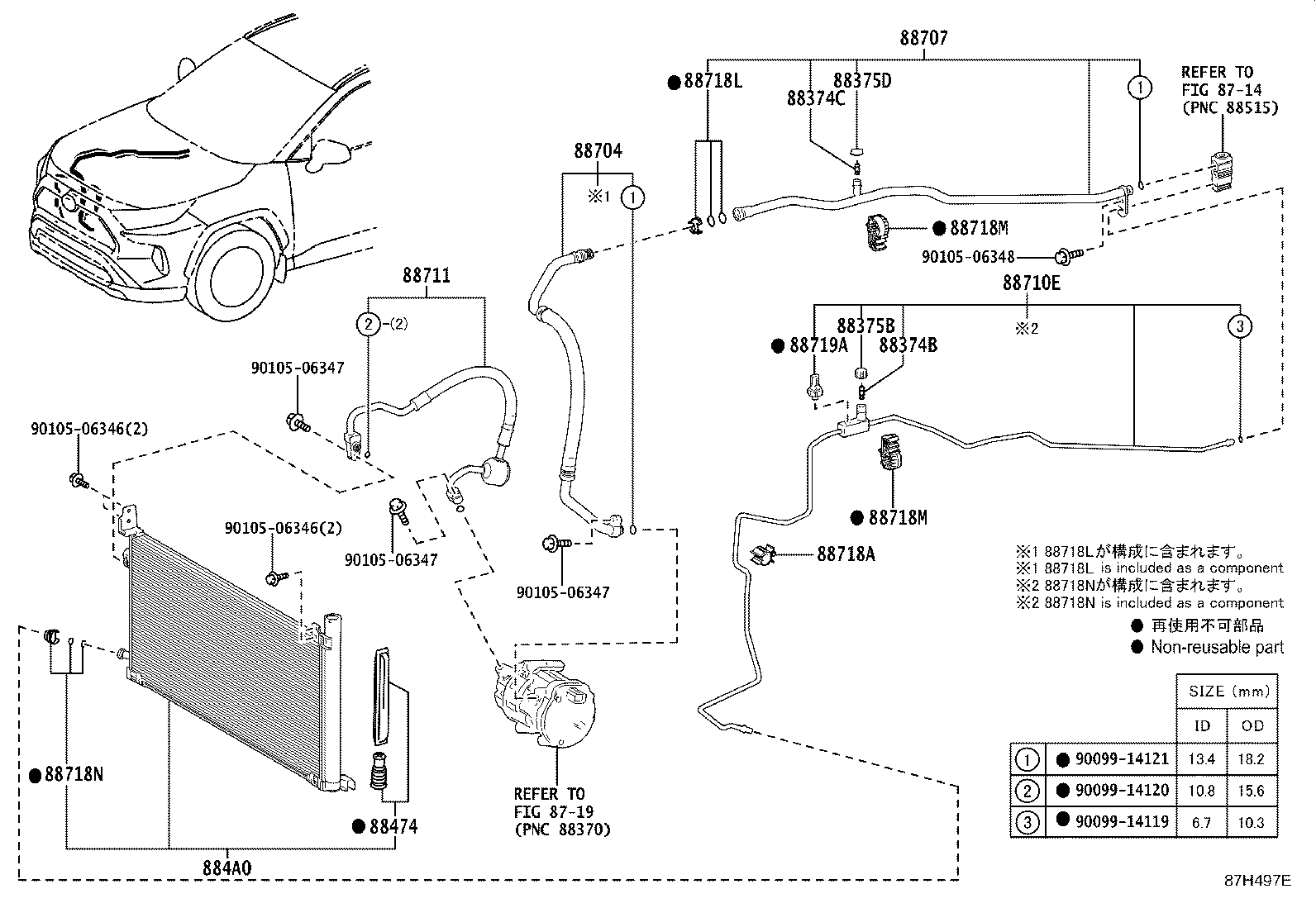

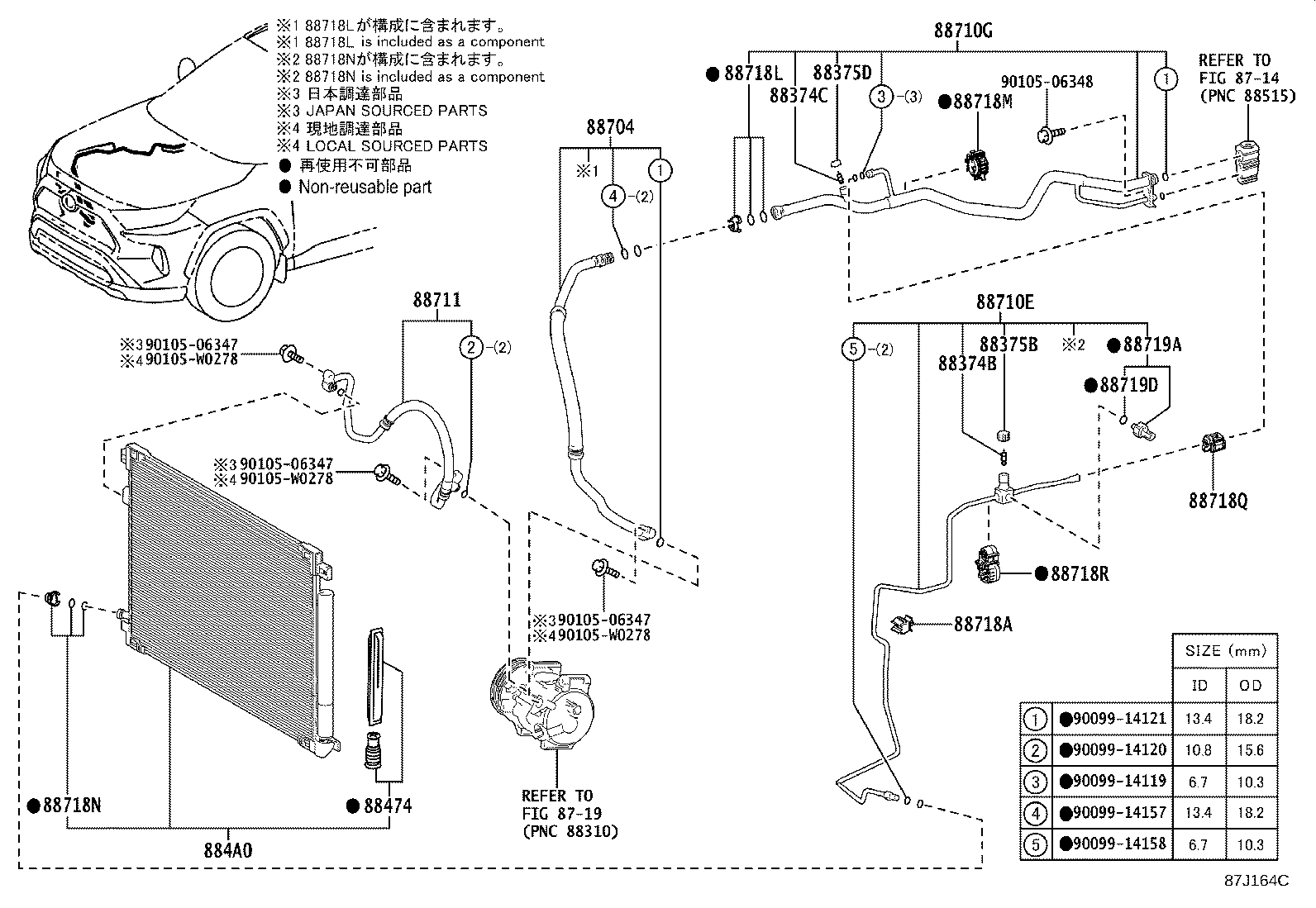

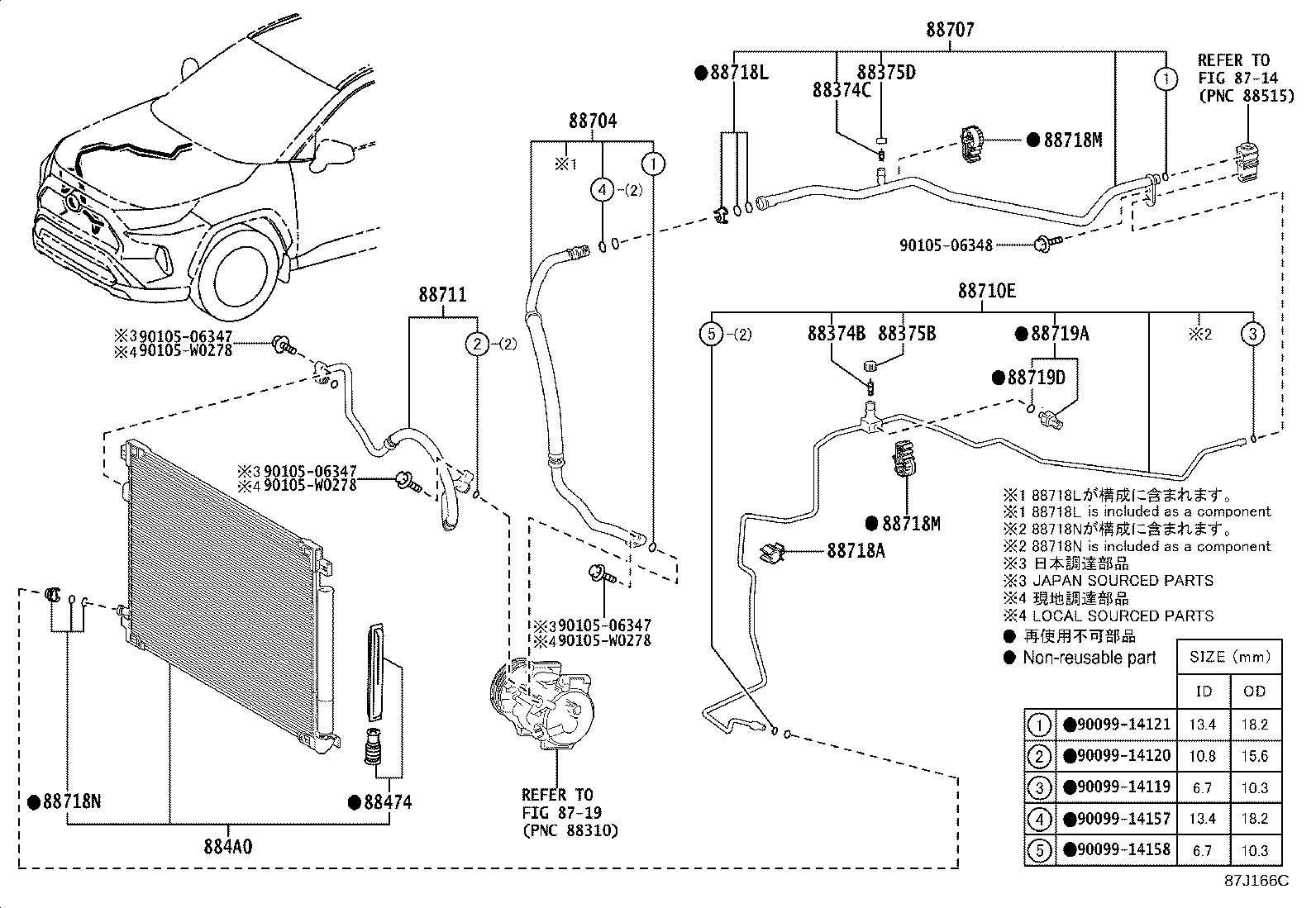

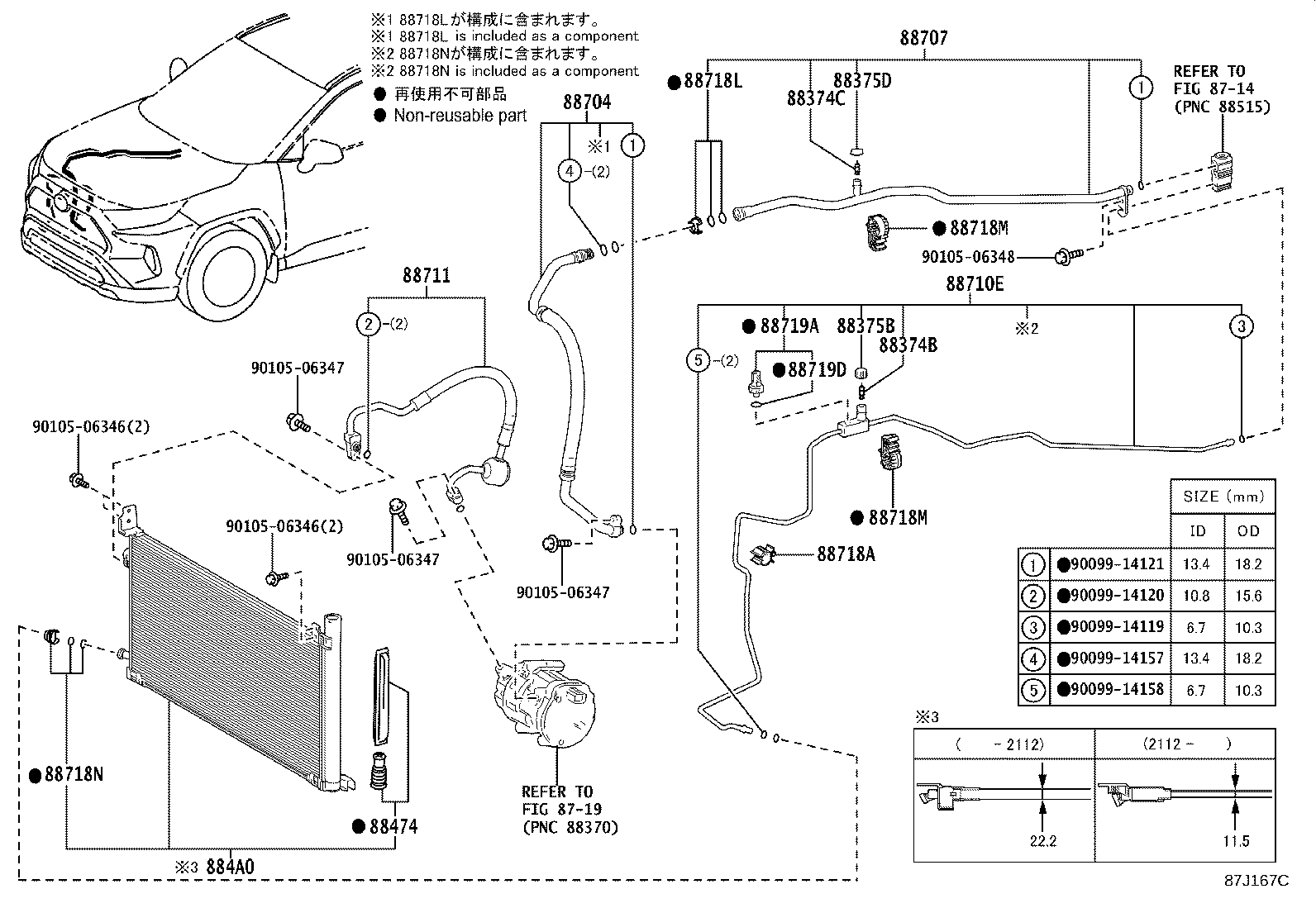

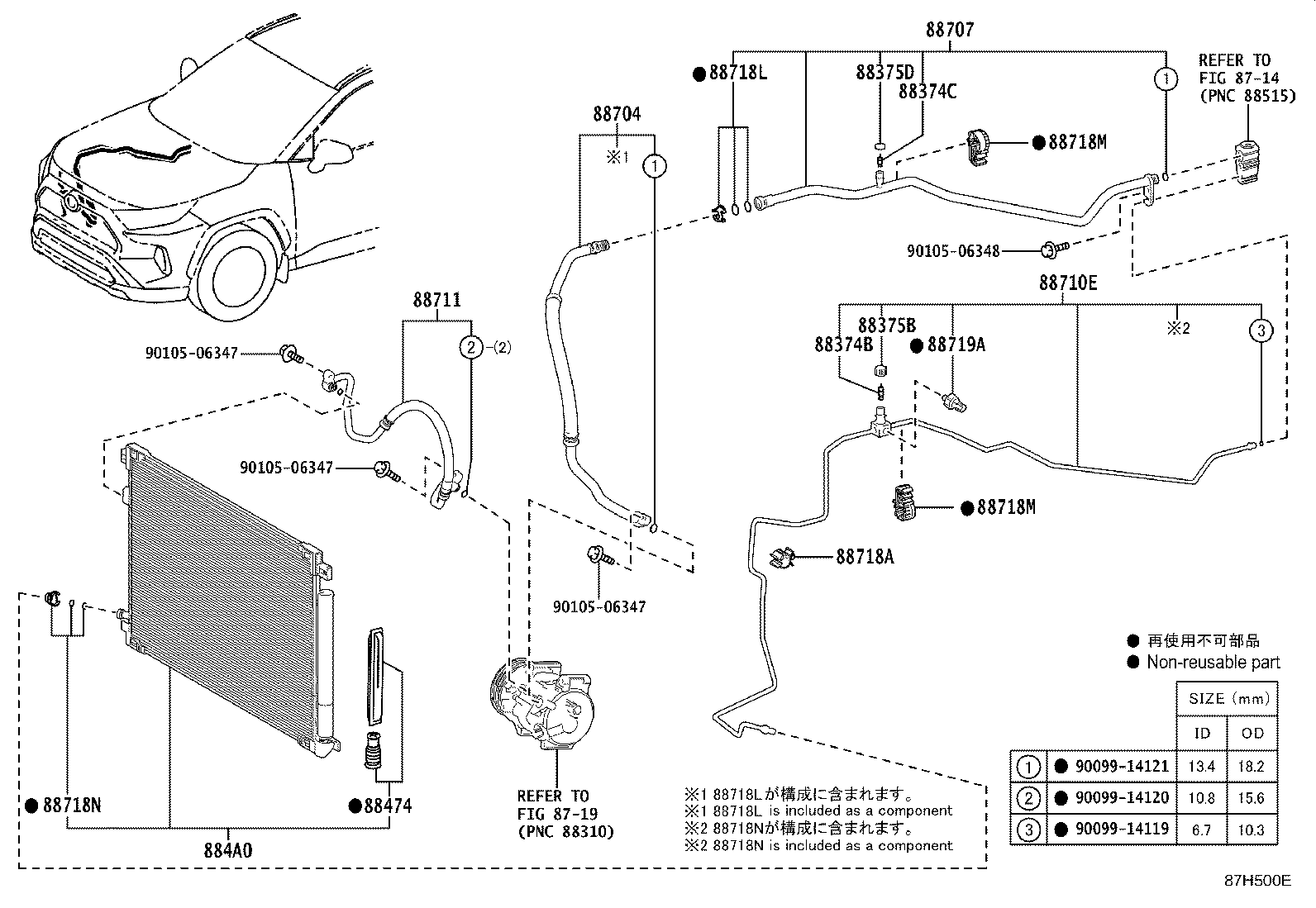

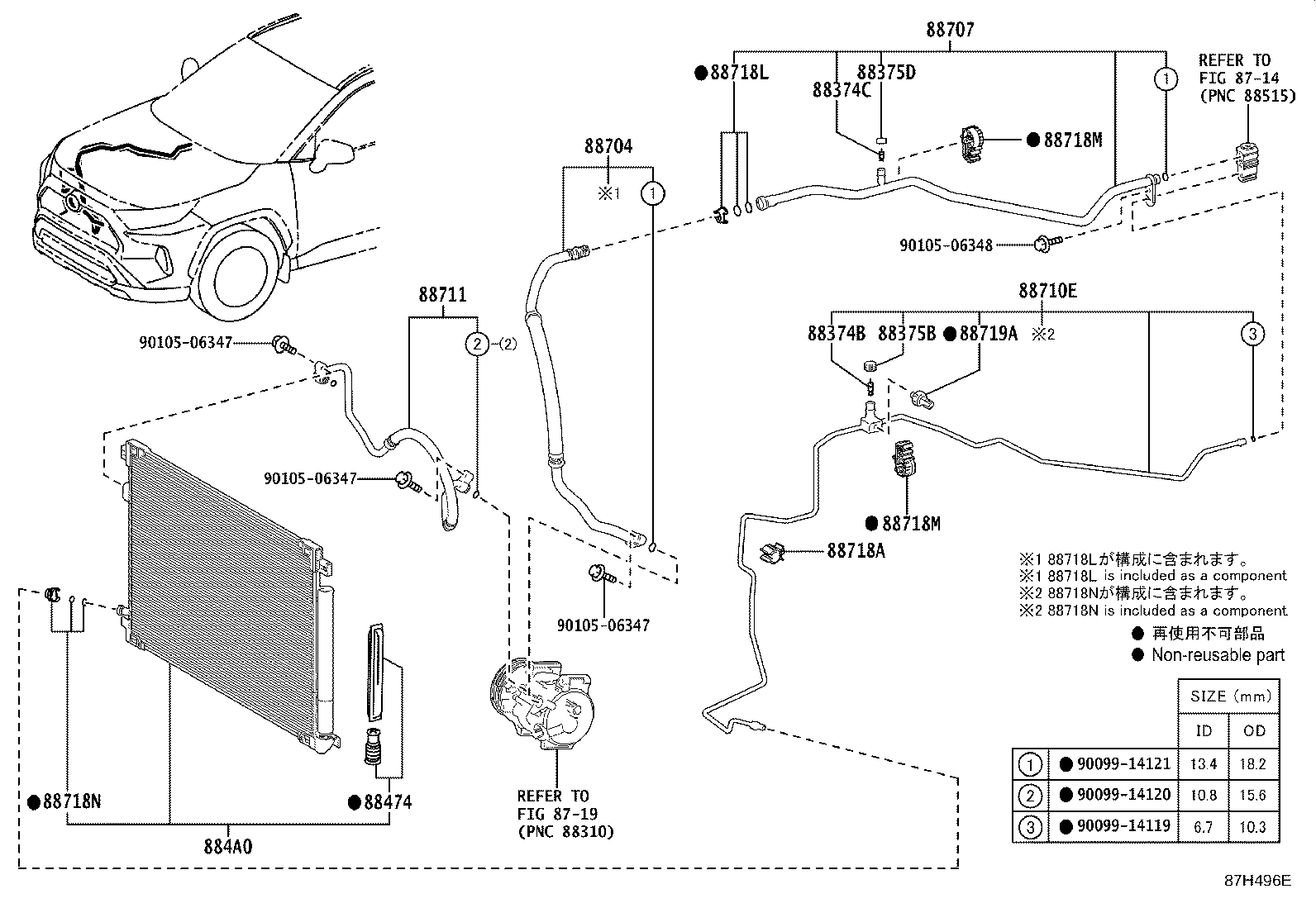

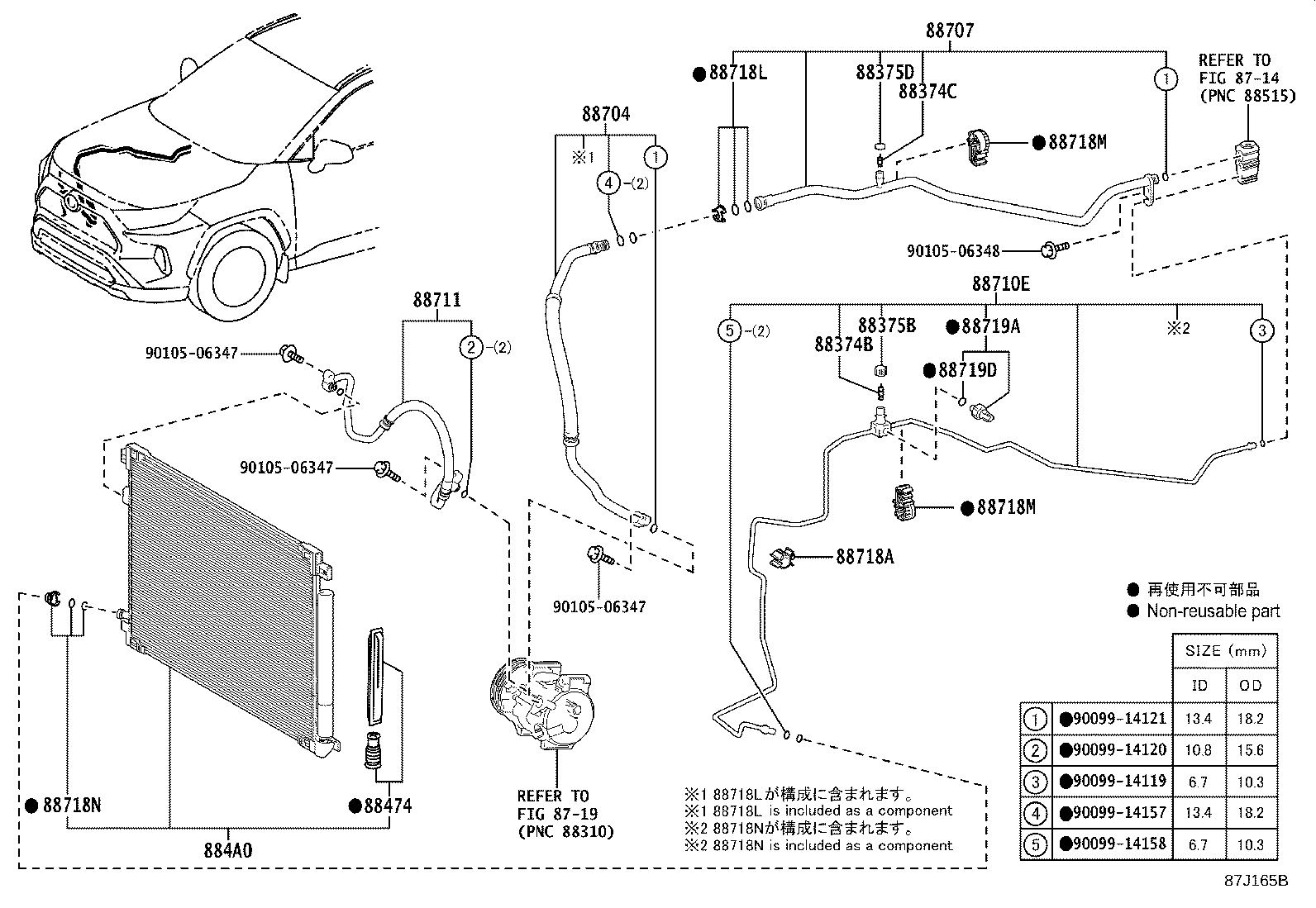

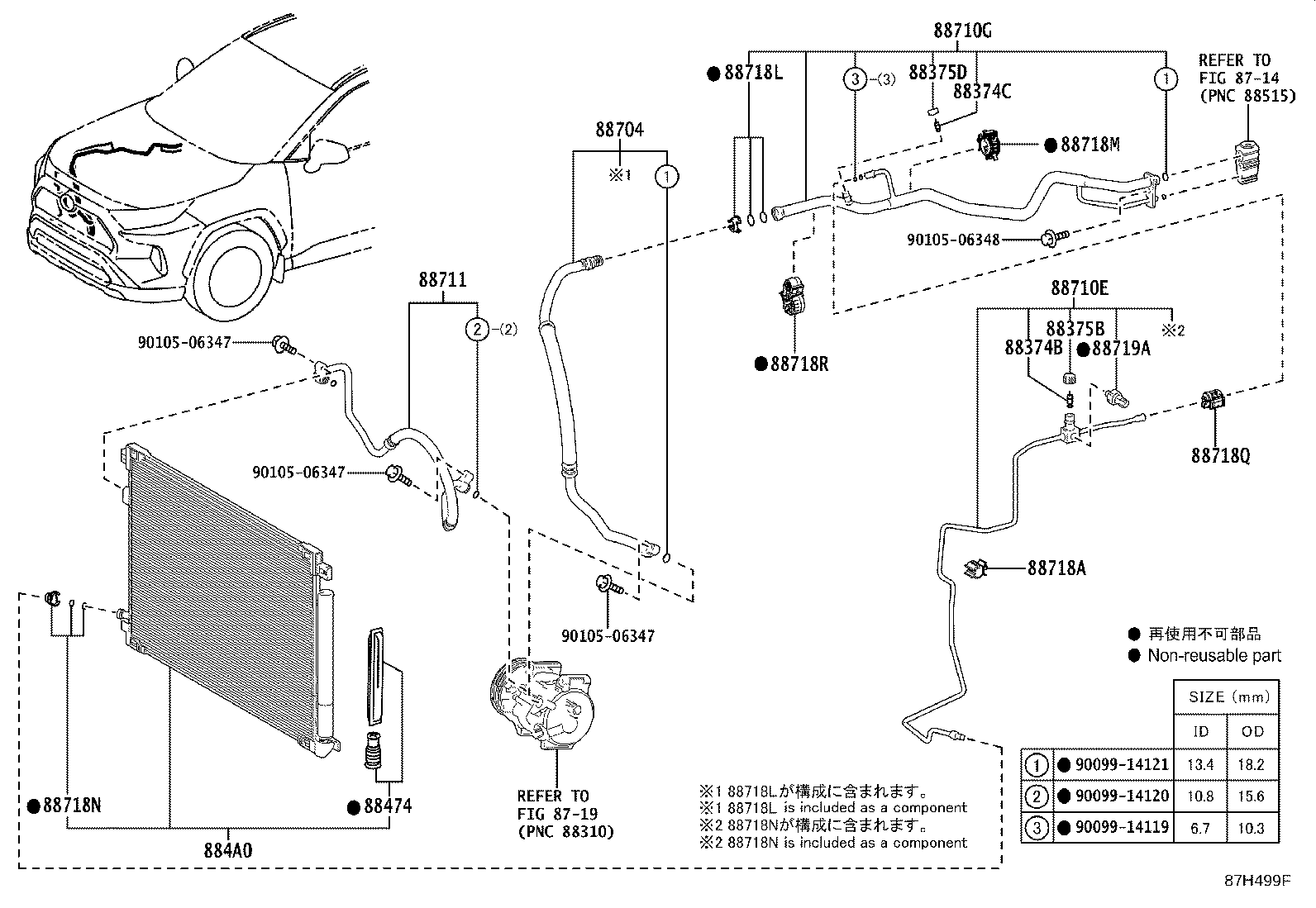

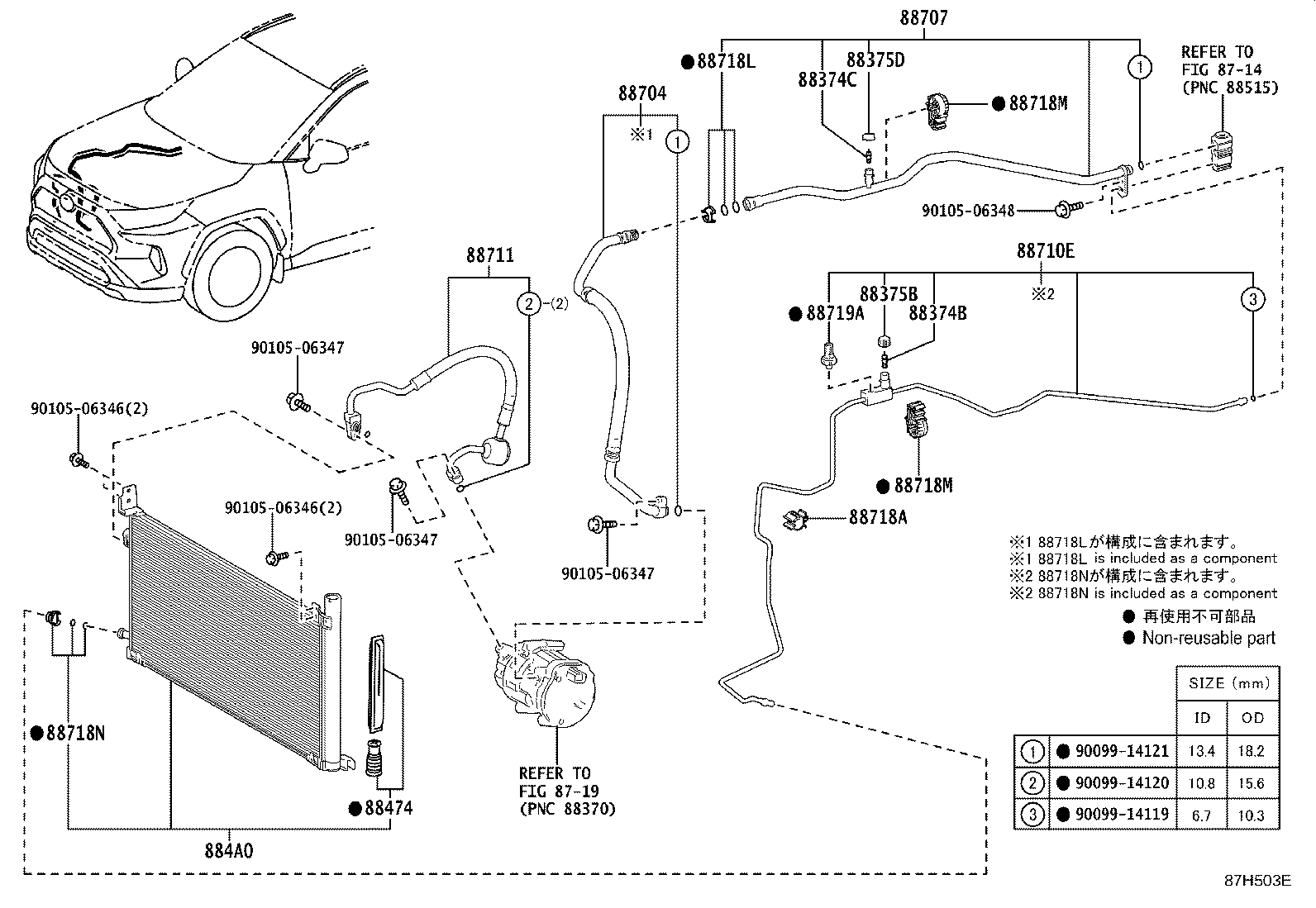

Figure 87H498F 87H498F 2018-11 → 2020-07 Figure 87H498F 87H498F 2019-10 → 2020-10 Figure 87J160B 87J160B 2020-08 → — Figure 87J160B 87J160B 2020-10 → — Figure 87H499F 87H499F 2018-11 → 2020-07 Figure 87J161C 87J161C 2020-08 → — Figure 87H501F 87H501F 2018-11 → 2020-07 Figure 87H501F 87H501F 2019-10 → 2020-10 Figure 87J162C 87J162C 2020-08 → — Figure 87J162C 87J162C 2020-10 → — Figure 87H503E 87H503E 2018-11 → 2020-07 Figure 87J163C 87J163C 2020-08 → — Figure 87H496E 87H496E 2018-11 → 2020-07 Figure 87J166C 87J166C 2020-08 → — Figure 87H497E 87H497E 2018-11 → 2020-07 Figure 87J167C 87J167C 2020-08 → — Figure 87H502E 87H502E 2019-01 → 2020-07 Figure 87J164C 87J164C 2020-08 → — Figure 87H500E 87H500E 2019-01 → 2020-07 Figure 87J165B 87J165B 2020-08 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88474 Dryer, Cooler
884A0 Condenser Assy, Cooler
88704 Hose Sub-assy, Suction
88707 Pipe Sub-assy, Suction
88710E Tube & Accessory Assy, Air Conditioner
88710G Tube & Accessory Assy, Air Conditioner, NO.2
88711 Hose, Cooler Refrigerant Discharge, NO.1
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718L Clamp, Piping
88718M Clamp, Piping
88718N Clamp, Piping
88718Q Clamp, Piping
88718R Clamp, Piping
88719A Sensor, Air Conditioner Pressure
88719D Ring, O(FOR AIR CONDITIONER PRESSURE SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
