Toyota RAV4

1995-11 → 2000-08 · chassis SXA1# · catalogue 662410 · Europe

Discontinued model Data version 2001-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

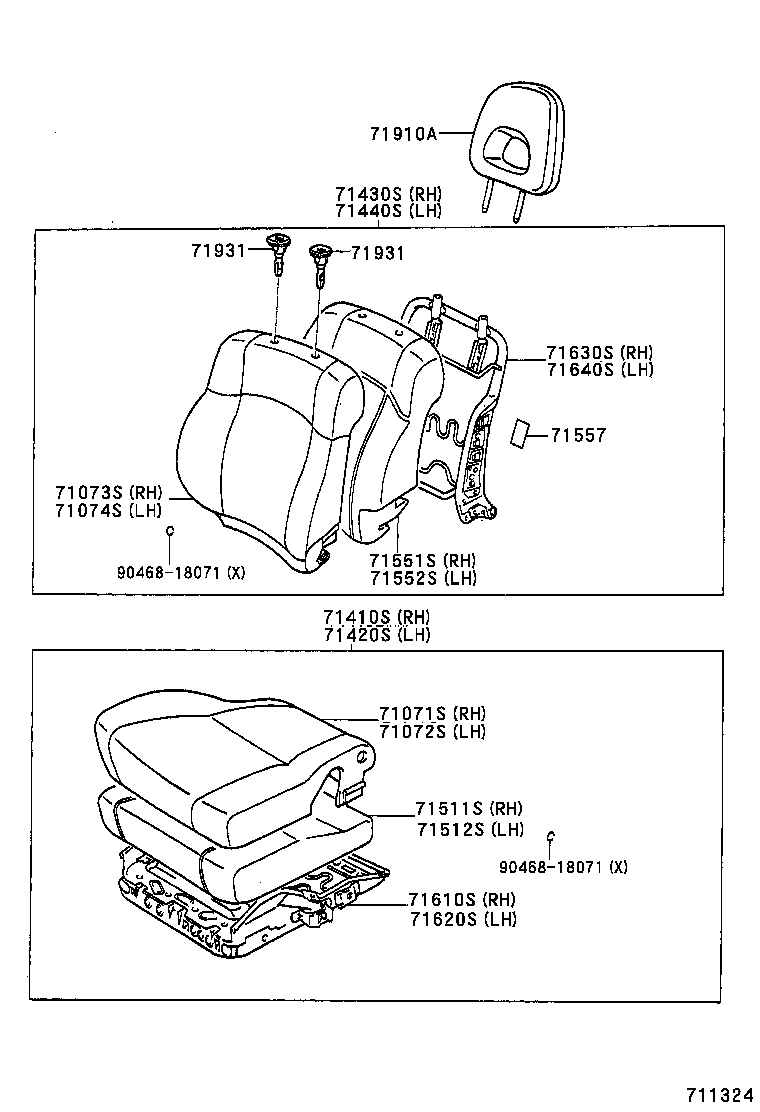

Exploded illustration 711324 71910A — HEADREST ASSY, FRONT SEAT (8 parts) 71430S — BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) (9 parts) 71440S — BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) (9 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (6 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (6 parts) 71630S — SPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (2 parts) 71640S — SPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (2 parts) 71557 — CLOTH, FRONT SEATBACK UNDER (1 parts) 71073S — COVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (12 parts) 71074S — COVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (12 parts) 71551S — PAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (3 parts) 9046818071 — not listed in this catalogue 71552S — PAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (3 parts) 71410S — CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) (10 parts) 71420S — CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) (9 parts) 71071S — COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (12 parts) 71072S — COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (12 parts) 71511S — PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (2 parts) 71512S — PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) (2 parts) 9046818071 — not listed in this catalogue 71610S — SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (2 parts) 71620S — SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (2 parts)
711324 · 20 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
118 parts on this figure
Part number Description Fitment Price
71071S — Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71071-42010-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1995-11 → 1996-08 ended
SXA10,15 —
71071-42030-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1995-11 → 1996-08 ended
SXA11,16 —
71071-42110-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1996-08 → 1997-09 ended
SXA10,15 —
71071-42110-B4 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1997-09 → 1998-08 ended
SXA10,15 —
71071-42110-B4 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1997-09 → 1998-08 ended
SXA10,15 HT —
71071-42111-B9 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1998-08 → —
SXA10,15 —
71071-42130-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1996-08 → 1997-09 ended
SXA11,16 —
71071-42130-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1996-12 → 1997-09 ended
SXA11,16 —
71071-42130-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1996-11 → 2000-07 ended
SXA11,16 —
71071-42130-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1996-11 → 2000-07 ended
SXA15 HT —
71071-42180-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1997-09 → —
SXA11,16 —
71071-42200-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1998-08 → —
SXA11,16 —
71072S — Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71071-42010-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1995-11 → 1996-08 ended
SXA10,15 —
71071-42030-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1995-11 → 1996-08 ended
SXA11,16 —
71071-42110-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1996-08 → 1997-09 ended
SXA10,15 —
71071-42110-B4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1997-09 → 1998-08 ended
SXA10,15 —
71071-42110-B4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1997-09 → 1998-08 ended
SXA10,15 HT —
71071-42111-B9 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1998-08 → —
SXA10,15 —
71071-42130-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1996-08 → 1997-09 ended
SXA11,16 —
71071-42130-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1996-12 → 1997-09 ended
SXA11,16 —
71071-42130-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1996-11 → 2000-07 ended
SXA11,16 —
71071-42130-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1996-11 → 2000-07 ended
SXA15 HT —
71071-42180-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1997-09 → —
SXA11,16 —
71071-42200-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1998-08 → —
SXA11,16 —
71073S — Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71073-42010-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1995-11 → 1996-08 ended
SXA10,15 —
71073-42030-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1995-11 → 1996-08 ended
SXA11,16 —
71073-42062-C2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1996-11 → 2000-07 ended
SXA15 HT —
71073-42110-B1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1996-08 → 1997-09 ended
SXA10,15 —
71073-42110-B4 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1997-09 → 1998-08 ended
SXA10,15 —
71073-42110-B4 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1997-09 → 1998-08 ended
SXA10,15 HT —
71073-42111-B7 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1998-08 → —
SXA10,15 —
71073-42130-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1996-08 → 1997-09 ended
SXA11,16 —
71073-42130-B1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1996-12 → 1997-09 ended
SXA11,16 —
71073-42130-B1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1996-11 → 2000-07 ended
SXA11,16 —
71073-42220-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1997-09 → —
SXA11,16 —
71073-42240-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1998-08 → —
SXA11,16 —
71074S — Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71073-42010-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1995-11 → 1996-08 ended
SXA10,15 —
71073-42030-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1995-11 → 1996-08 ended
SXA11,16 —
71073-42062-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1996-11 → 2000-07 ended
SXA15 HT —
71073-42110-B1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1996-08 → 1997-09 ended
SXA10,15 —
71073-42110-B4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1997-09 → 1998-08 ended
SXA10,15 —
71073-42110-B4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1997-09 → 1998-08 ended
SXA10,15 HT —
71073-42111-B7 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1998-08 → —
SXA10,15 —
71073-42130-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1996-08 → 1997-09 ended
SXA11,16 —
71073-42130-B1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1996-12 → 1997-09 ended
SXA11,16 —
71073-42130-B1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1996-11 → 2000-07 ended
SXA11,16 —
71073-42220-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1997-09 → —
SXA11,16 —
71073-42240-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1998-08 → —
SXA11,16 —
71410S — Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71410-42110-B1 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1996-08 → 1997-09 ended
SXA10,15 —
71410-42110-B4 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1997-09 → 1998-08 ended
SXA10,15 —
71410-42111-B9 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1998-08 → 1998-12 ended
SXA10,15 HT —
71410-42111-B9 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1998-12 → —
SXA10,15 —
71410-42120-B0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1996-08 → 1997-09 ended
SXA11,16 —
71410-42120-B1 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1996-12 → 1997-09 ended
SXA11,16 —
71410-42120-B1 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1996-11 → 2000-07 ended
SXA11,16 —
71410-42120-B1 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1996-11 → 2000-07 ended
SXA15 HT —
71410-42180-B0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1997-09 → —
SXA11,16 —
71410-42190-B0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1998-08 → —
SXA11,16 —
71420S — Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71410-42110-B1 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1996-08 → 1997-09 ended
SXA10,15 —
71410-42110-B4 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1997-09 → 1998-08 ended
SXA10,15 —
71410-42111-B9 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1998-12 → —
SXA10,15 —
71410-42111-B9 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1998-08 → 1998-12 ended
SXA10,15 HT —
71410-42120-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1996-08 → 1997-09 ended
SXA11,16 —
71410-42120-B1 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1996-11 → 2000-07 ended
SXA11,15,16 HT —
71410-42120-B1 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1996-12 → 1997-09 ended
SXA11,16 —
71410-42180-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1997-09 → —
SXA11,16 —
71410-42190-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1998-08 → —
SXA11,16 —
71430S — Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71430-42062-C1 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1996-11 → 2000-07 ended
SXA15 HT —
71430-42110-B1 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1996-08 → 1997-09 ended
SXA10,15 —
71430-42110-B4 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1997-09 → 1998-08 ended
SXA10,15 —
71430-42111-B7 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1998-08 → —
SXA10,15 —
71430-42120-B0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1996-08 → 1997-09 ended
SXA11,16 —
71430-42120-B1 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1996-12 → 1997-09 ended
SXA11,16 —
71430-42120-B1 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1996-11 → 2000-07 ended
SXA11,16 —
71430-42200-B0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1997-09 → —
SXA11,16 —
71430-42230-B0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1998-08 → —
SXA11,16 —
71440S — Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71430-42062-C1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1996-11 → 2000-07 ended
SXA15 HT —
71430-42110-B1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1996-08 → 1997-09 ended
SXA10,15 —
71430-42110-B4 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1997-09 → 1998-08 ended
SXA10,15 —
71430-42111-B7 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1998-08 → —
SXA10,15 —
71430-42120-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1996-08 → 1997-09 ended
SXA11,16 —
71430-42120-B1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1996-12 → 1997-09 ended
SXA11,16 —
71430-42120-B1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1996-11 → 2000-07 ended
SXA11,16 —
71430-42200-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1997-09 → —
SXA11,16 —
71430-42230-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1998-08 → —
SXA11,16 —
71511S — Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71511-42010 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1995-11 → 1996-08 ended
SXA1# —
71511-42020 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1996-08 → —
SXA1# —
71512S — Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71511-42010 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
1995-11 → 1996-08 ended
SXA1# —
71511-42020 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
1996-08 → —
SXA1# —
71551S — Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71551-42010 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
1995-11 → 1996-08 ended
SXA1# —
71551-42020 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
1996-08 → 1997-09 ended
SXA1# —
71551-42020 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
1997-09 → —
SXA1# —
71552S — Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71551-42010 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
1995-11 → 1996-08 ended
SXA1# —
71551-42020 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
1996-08 → 1997-09 ended
SXA1# —
71551-42020 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
1997-09 → —
SXA1# —
71557 — Cloth, Front Seatback Under
71557-42030 Cloth, Front Seatback Under
1998-12 → —
SXA1# —
71610S — Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71610-42010 Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1995-11 → 1996-08 ended
SXA1# —
71610-42020 Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1996-08 → —
SXA1# —
71620S — Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71610-42010 Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1995-11 → 1996-08 ended
SXA1# —
71610-42020 Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1996-08 → —
SXA1# —
71630S — Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71630-42010 Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
1995-11 → 1996-08 ended
SXA1# —
71630-42020 Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
1996-08 → —
SXA1# —
71640S — Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71630-42010 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
1995-11 → 1996-08 ended
SXA1# —
71630-42020 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
1996-08 → —
SXA1# —
71910A — Headrest Assy, Front Seat
71910-42010-B0 note Headrest Assy, Front Seat
1995-11 → 1996-08 ended
SXA1# —
71910-42011-B5 note Headrest Assy, Front Seat
1996-08 → 1997-09 ended
SXA1# —
71910-42011-B5 note Headrest Assy, Front Seat
1997-12 → 1998-08 ended
SXA10,15 SOT —
71910-42011-B5 note Headrest Assy, Front Seat
1997-09 → —
SXA10,15 HT —
71910-42011-B5 note Headrest Assy, Front Seat
1998-08 → —
SXA11,16;SXA10,15 SOT —
71910-42040-B1 note Headrest Assy, Front Seat
1997-09 → 1998-08 ended
SXA1# —
71910-42040-B1 note Headrest Assy, Front Seat
1998-08 → 1998-12 ended
SXA11,16 —
71910-42040-B1 note Headrest Assy, Front Seat
1998-12 → —
SXA1# —
71931 — Support, Front Seat Headrest
71930-32020-B0 note Support, Front Seat Headrest
1995-11 → 1996-10 ended
SXA1# —
71930-44010-B1 note Support, Front Seat Headrest
1996-10 → 2000-08 ended
SXA1# —
71930-44010-B1 note Support, Front Seat Headrest
1997-09 → 2000-08 ended
SXA1# —
71931-12040-B0 note Support, Front Seat Headrest
1996-08 → 2000-08 ended
SXA1# —
71931-12040-B0 note Support, Front Seat Headrest
1997-09 → 2000-08 ended
SXA1# —
71931-32020-B0 note Support, Front Seat Headrest
1995-11 → 1996-08 ended
SXA1# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
