Toyota RAV4

1995-11 → 2000-08 · chassis SXA1# · catalogue 662410 · Europe

Discontinued model Data version 2001-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

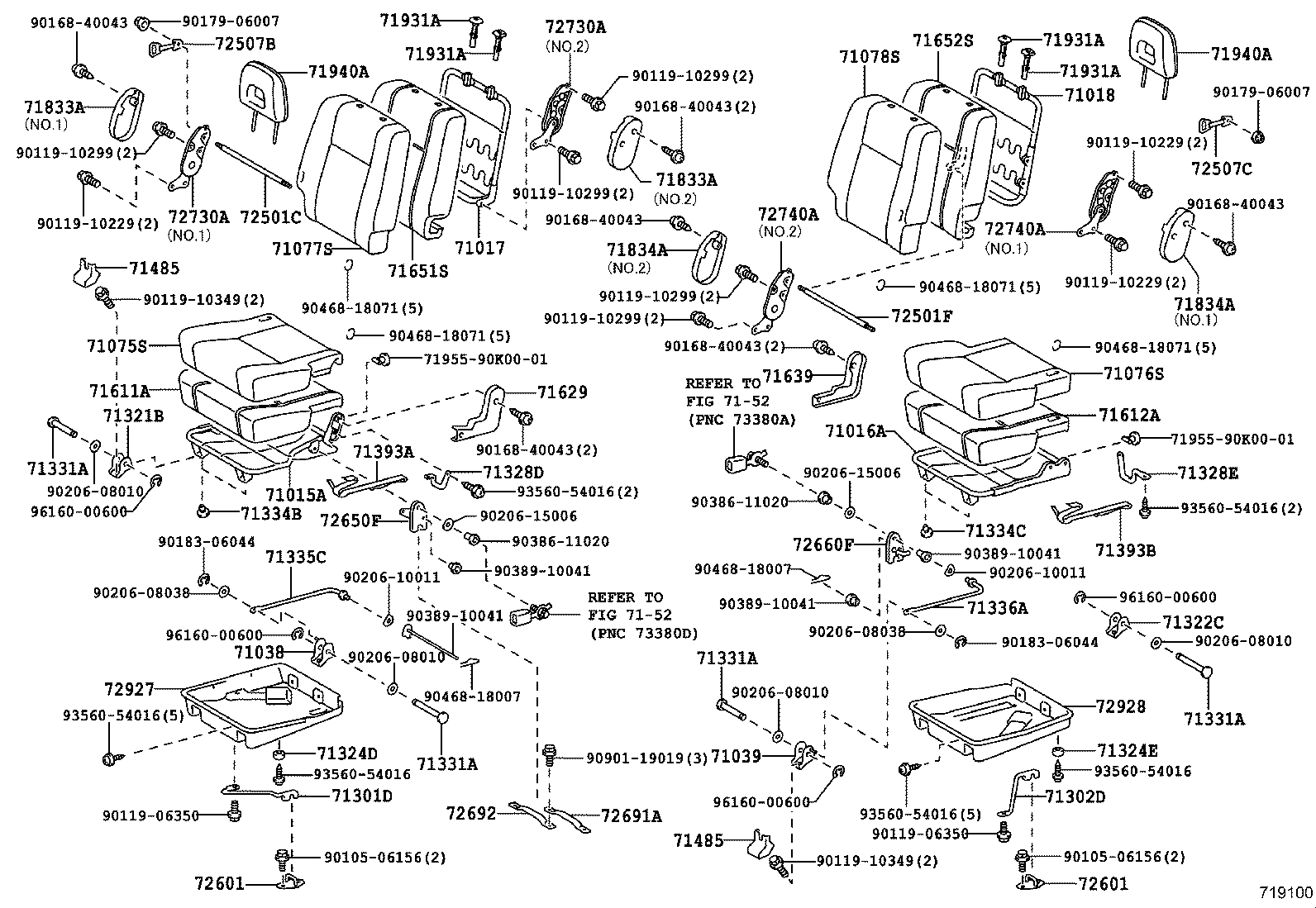

Exploded illustration 719100 9011910349 — not listed in this catalogue 71940A — HEADREST ASSY, REAR SEAT (8 parts) 71639 — COVER, REAR SEAT CUSHION HINGE, LH (4 parts) 71629 — COVER, REAR SEAT CUSHION HINGE (2 parts) 71328D — WIRE, REAR SEAT CUSHION SUPPORT (1 parts) 71393A — BAND, REAR SEAT CUSHION, RH (2 parts) 71393B — BAND, REAR SEAT CUSHION, LH (1 parts) 72650F — LOCK ASSY, REAR SEAT, RH (2 parts) 72660F — LOCK ASSY, REAR SEAT, LH (2 parts) 71336A — STAY, REAR SEAT CUSHION LINK, LH (2 parts) 71335C — STAY, REAR SEAT CUSHION LINK, RH (2 parts) 71015A — FRAME SUB-ASSY, REAR SEAT CUSHION, RH (5 parts) 71931A — SUPPORT, REAR SEAT HEADREST (6 parts) 71651S — PAD, REAR SEATBACK, RH(FOR SEPARATE TYPE) (2 parts) 71077S — COVER, REAR SEATBACK, RH (FOR SEPARATE TYPE) (12 parts) 71931A — SUPPORT, REAR SEAT HEADREST (6 parts) 71017 — FRAME SUB-ASSY, REAR SEATBACK, RH (6 parts) 71076S — COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) (11 parts) 71612A — PAD, REAR SEAT CUSHION, LH (2 parts) 71328E — WIRE, REAR SEAT CUSHION SUPPORT (1 parts) 72507B — HANDLE SUB-ASSY, RECLINING RELEASE, RH (2 parts) 72730A — ADJUSTER ASSY, REAR SEAT RECLINING, RH (2 parts) 72501C — PIPE SUB-ASSY, RECLINING CONNECTING (2 parts) 71331A — PIN, REAR SEAT HINGE (4 parts) 71331A — PIN, REAR SEAT HINGE (4 parts) 71331A — PIN, REAR SEAT HINGE (4 parts) 71322C — HINGE, REAR SEAT CUSHION, LH (1 parts) 72927 — COVER, REAR SEAT CUSHION UNDER, RH (4 parts) 71301D — HINGE SUB-ASSY, REAR SEAT, RH (5 parts) 72692 — STRIKER, REAR SEAT CUSHION LOCK, NO.2 (2 parts) 72691A — STRIKER, REAR SEAT CUSHION LOCK, NO.1 (2 parts) 71324D — CUSHION, REAR SEAT, RH (4 parts) 7152 — not listed in this catalogue 7152 — not listed in this catalogue 71321B — HINGE, REAR SEAT CUSHION, RH (2 parts) 71334B — STOPPER, REAR SEAT LEG, RH (4 parts) 71334C — STOPPER, REAR SEAT LEG, LH (2 parts) 71038 — HINGE SUB-ASSY, CENTER SEATBACK, LH (1 parts) 72601 — STRIKER SUB-ASSY, REAR SEAT LOCK (2 parts) 71485 — COVER, REAR SEAT HINGE (2 parts) 71075S — COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) (11 parts) 71611A — PAD, REAR SEAT CUSHION, RH (2 parts) 71016A — FRAME SUB-ASSY, REAR SEAT CUSHION, LH (5 parts) 71833A — COVER, REAR SEAT RECLINING, NO.1 RH (8 parts) 9011910229 — not listed in this catalogue 71485 — COVER, REAR SEAT HINGE (2 parts) 9011910349 — not listed in this catalogue 9616000600 — not listed in this catalogue 9616000600 — not listed in this catalogue 9011906350 — not listed in this catalogue 9356054016 — not listed in this catalogue 9020608010 — not listed in this catalogue 9616000600 — not listed in this catalogue 9020608010 — not listed in this catalogue 9020608010 — not listed in this catalogue 9020615006 — not listed in this catalogue 9020615006 — not listed in this catalogue 9020610011 — not listed in this catalogue 9020610011 — not listed in this catalogue 9038910041 — not listed in this catalogue 9038910041 — not listed in this catalogue 9016840043 — not listed in this catalogue 9016840043 — not listed in this catalogue 9011910299 — not listed in this catalogue 9011910229 — not listed in this catalogue 9011910229 — not listed in this catalogue 9017906007 — not listed in this catalogue 9016840043 — not listed in this catalogue 9046818071 — not listed in this catalogue 9046818071 — not listed in this catalogue 9046818071 — not listed in this catalogue 9046818071 — not listed in this catalogue 9016840043 — not listed in this catalogue 9356054016 — not listed in this catalogue 9356054016 — not listed in this catalogue 9038910041 — not listed in this catalogue 9046818007 — not listed in this catalogue 9046818007 — not listed in this catalogue 9038910041 — not listed in this catalogue 9010506156 — not listed in this catalogue 72601 — STRIKER SUB-ASSY, REAR SEAT LOCK (2 parts) 9010506156 — not listed in this catalogue 9090119019 — not listed in this catalogue 9356054016 — not listed in this catalogue 71324E — CUSHION, REAR SEAT, LH (2 parts) 72928 — COVER, REAR SEAT CUSHION UNDER, LH (5 parts) 9356054016 — not listed in this catalogue 9356054016 — not listed in this catalogue 9011906350 — not listed in this catalogue 9038611020 — not listed in this catalogue 9038611020 — not listed in this catalogue 9020608038 — not listed in this catalogue 9020608038 — not listed in this catalogue 9018306044 — not listed in this catalogue 71331A — PIN, REAR SEAT HINGE (4 parts) 71302D — HINGE SUB-ASSY, REAR SEAT, LH (4 parts) 71039 — HINGE SUB-ASSY, REAR SEAT CUSHION LEG, LH (1 parts) 9616000600 — not listed in this catalogue 9020608010 — not listed in this catalogue 9018306044 — not listed in this catalogue 7195590K0001 — not listed in this catalogue 7195590K0001 — not listed in this catalogue 9017906007 — not listed in this catalogue 72740A — ADJUSTER ASSY, REAR SEAT RECLINING, LH (2 parts) 72501F — PIPE SUB-ASSY, RECLINING CONNECTING (1 parts) 71834A — COVER, REAR SEAT RECLINING, NO.1 LH (6 parts) 9016840043 — not listed in this catalogue 71940A — HEADREST ASSY, REAR SEAT (8 parts) 72507C — HANDLE SUB-ASSY, RECLINING RELEASE, LH (1 parts) 71834A — COVER, REAR SEAT RECLINING, NO.1 LH (6 parts) 72740A — ADJUSTER ASSY, REAR SEAT RECLINING, LH (2 parts) 9011910299 — not listed in this catalogue 9011910299 — not listed in this catalogue 9011910299 — not listed in this catalogue 9011910299 — not listed in this catalogue 9016840043 — not listed in this catalogue 71833A — COVER, REAR SEAT RECLINING, NO.1 RH (8 parts) 72730A — ADJUSTER ASSY, REAR SEAT RECLINING, RH (2 parts) 71931A — SUPPORT, REAR SEAT HEADREST (6 parts) 71652S — PAD, REAR SEATBACK, LH(FOR SEPARATE TYPE) (2 parts) 71078S — COVER, REAR SEATBACK, LH(FOR SEPARATE TYPE) (12 parts) 71931A — SUPPORT, REAR SEAT HEADREST (6 parts) 71018 — FRAME SUB-ASSY, REAR SEATBACK, LH (6 parts)
719100 · 62 callouts, 61 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
180 parts on this figure
Part number Description Fitment Price
71015A — Frame Sub-assy, Rear Seat Cushion, RH
71015-42030 Frame Sub-assy, Rear Seat Cushion, RH
1995-11 → —
SXA11,16 —
71015-42040 Frame Sub-assy, Rear Seat Cushion, RH
1995-11 → —
SXA10,15 —
71015-42050 note Frame Sub-assy, Rear Seat Cushion, RH
1997-09 → —
SXA10,15 —
71015-42050 note Frame Sub-assy, Rear Seat Cushion, RH
1997-06 → 1997-09 ended
SXA15 —
71015-42060 note Frame Sub-assy, Rear Seat Cushion, RH
1997-06 → —
SXA11;SXA16 ATM —
71016A — Frame Sub-assy, Rear Seat Cushion, LH
71016-42030 Frame Sub-assy, Rear Seat Cushion, LH
1995-11 → —
SXA11,16 —
71016-42040 Frame Sub-assy, Rear Seat Cushion, LH
1995-11 → —
SXA10,15 —
71016-42050 note Frame Sub-assy, Rear Seat Cushion, LH
1997-09 → —
SXA10,15 —
71016-42050 note Frame Sub-assy, Rear Seat Cushion, LH
1997-06 → 1997-09 ended
SXA15 —
71016-42060 note Frame Sub-assy, Rear Seat Cushion, LH
1997-06 → —
SXA11;SXA16 ATM —
71017 — Frame Sub-assy, Rear Seatback, RH
71017-42020 Frame Sub-assy, Rear Seatback, RH
1995-11 → —
SXA10,15 —
71017-42030 Frame Sub-assy, Rear Seatback, RH
1995-11 → 1996-08 ended
SXA11,16 —
71017-42031 Frame Sub-assy, Rear Seatback, RH
1997-09 → —
SXA11,16 —
71017-42040 note Frame Sub-assy, Rear Seatback, RH
1997-06 → 1997-09 ended
SXA15 —
71017-42040 note Frame Sub-assy, Rear Seatback, RH
1997-09 → —
SXA10,15 —
71017-42050 note Frame Sub-assy, Rear Seatback, RH
1997-06 → —
SXA11;SXA16 ATM —
71018 — Frame Sub-assy, Rear Seatback, LH
71018-42020 Frame Sub-assy, Rear Seatback, LH
1995-11 → —
SXA10,15 —
71018-42030 Frame Sub-assy, Rear Seatback, LH
1995-11 → 1996-08 ended
SXA11,16 —
71018-42031 Frame Sub-assy, Rear Seatback, LH
1996-08 → —
SXA11,16 —
71018-42040 note Frame Sub-assy, Rear Seatback, LH
1997-06 → 1997-09 ended
SXA15 —
71018-42040 note Frame Sub-assy, Rear Seatback, LH
1997-09 → —
SXA10,15 —
71018-42050 note Frame Sub-assy, Rear Seatback, LH
1997-06 → —
SXA11;SXA16 ATM —
71038 — Hinge Sub-assy, Center Seatback, LH
71038-42011 Hinge Sub-assy, Center Seatback, LH
1995-11 → —
SXA10,15 —
71039 — Hinge Sub-assy, Rear Seat Cushion Leg, LH
71039-42011 Hinge Sub-assy, Rear Seat Cushion Leg, LH
1995-11 → —
SXA10,15 —
71075S — Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71075-42011-B2 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
1996-08 → 1997-09 ended
SXA10,15 —
71075-42011-B4 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
1997-09 → 1998-08 ended
SXA10,15 —
71075-42012-B7 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
1998-08 → —
SXA10,15 —
71075-42020-B0 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
1995-11 → 1996-08 ended
SXA11,16 —
71075-42020-B2 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
1996-08 → 1997-09 ended
SXA11,16 —
71075-42020-B3 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
1996-12 → 1997-09 ended
SXA11,16 —
71075-42020-B3 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
1996-11 → 2000-07 ended
SXA11,16 —
71075-42040-B0 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
1995-11 → 1996-08 ended
SXA10,15 —
71075-42052-C2 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
1996-11 → 2000-07 ended
SXA15 HT —
71075-42120-B0 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
1997-09 → —
SXA11,16 —
71075-42140-B0 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
1998-08 → —
SXA11,16 —
71076S — Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71076-42011-B2 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
1996-08 → 1997-09 ended
SXA10,15 —
71076-42011-B4 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
1997-09 → 1998-08 ended
SXA10,15 —
71076-42012-B7 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
1998-08 → —
SXA10,15 —
71076-42020-B0 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
1995-11 → 1996-08 ended
SXA11,16 —
71076-42020-B2 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
1996-08 → 1997-09 ended
SXA11,16 —
71076-42020-B3 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
1996-11 → 2000-07 ended
SXA11,16 —
71076-42020-B3 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
1996-12 → 1997-09 ended
SXA11,16 —
71076-42040-B0 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
1995-11 → 1996-08 ended
SXA10,15 —
71076-42052-C2 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
1996-11 → 2000-07 ended
SXA15 HT —
71076-42120-B0 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
1997-09 → —
SXA11,16 —
71076-42140-B0 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
1998-08 → —
SXA11,16 —
71077S — Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71077-42011-B2 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1996-08 → 1997-09 ended
SXA10,15 —
71077-42011-B4 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1997-09 → 1998-08 ended
SXA10,15 —
71077-42012-B7 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1998-08 → —
SXA10,15 —
71077-42020-B0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1995-11 → 1996-01 ended
SXA11 —
71077-42021-B0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1996-01 → 1996-08 ended
SXA11,16 —
71077-42021-B2 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1996-08 → 1997-09 ended
SXA11,16 —
71077-42021-B3 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1996-12 → 1997-09 ended
SXA11,16 —
71077-42021-B3 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1996-11 → 2000-07 ended
SXA11,16 —
71077-42040-B0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1995-11 → 1996-08 ended
SXA10,15 —
71077-42052-C2 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1996-11 → 2000-07 ended
SXA15 HT —
71077-42120-B0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1997-09 → —
SXA11,16 —
71077-42140-B0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1998-08 → —
SXA11,16 —
71078S — Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71078-42011-B2 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1996-08 → 1997-09 ended
SXA10,15 —
71078-42011-B4 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1997-09 → 1998-08 ended
SXA10,15 —
71078-42012-B7 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1998-08 → —
SXA10,15 —
71078-42020-B0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1995-11 → 1996-01 ended
SXA11 —
71078-42021-B0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1996-01 → 1996-08 ended
SXA11,16 —
71078-42021-B2 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1996-08 → 1997-09 ended
SXA11,16 —
71078-42021-B3 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1996-12 → 1997-09 ended
SXA11,16 —
71078-42021-B3 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1996-11 → 2000-07 ended
SXA11,16 —
71078-42040-B0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1995-11 → 1996-08 ended
SXA10,15 —
71078-42052-C2 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1996-11 → 2000-07 ended
SXA15 HT —
71078-42120-B0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1997-09 → —
SXA11,16 —
71078-42140-B0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1998-08 → —
SXA11,16 —
71301D — Hinge Sub-assy, Rear Seat, RH
71301-42011 Hinge Sub-assy, Rear Seat, RH
1995-11 → 1997-09 ended
SXA10,15 —
71301-42011-B0 note Hinge Sub-assy, Rear Seat, RH
1997-09 → —
SXA10,15 —
71301-42020 note Hinge Sub-assy, Rear Seat, RH
1995-11 → 1997-09 ended
SXA11,16 —
71301-42020 note Hinge Sub-assy, Rear Seat, RH
1997-09 → —
SXA11,16 —
71301-42030 note Hinge Sub-assy, Rear Seat, RH
1995-11 → —
SXA11,16 —
71302D — Hinge Sub-assy, Rear Seat, LH
71301-42020 note Hinge Sub-assy, Rear Seat, LH
1995-11 → 1997-09 ended
SXA11,16 —
71302-42011 Hinge Sub-assy, Rear Seat, LH
1995-11 → 1997-09 ended
SXA10,15 —
71302-42011-B0 note Hinge Sub-assy, Rear Seat, LH
1997-09 → —
SXA10,15 —
71302-42020 note Hinge Sub-assy, Rear Seat, LH
1995-11 → —
SXA11,16 —
71321B — Hinge, Rear Seat Cushion, RH
71311-42010 Hinge, Rear Seat Cushion, RH
1995-11 → 1997-09 ended
SXA10,15 —
71311-42010 Hinge, Rear Seat Cushion, RH
1997-09 → —
SXA10,15 —
71322C — Hinge, Rear Seat Cushion, LH
71311-42010 Hinge, Rear Seat Cushion, LH
1995-11 → 1997-09 ended
SXA10,15 —
71324D — Cushion, Rear Seat, RH
71324-42010 Cushion, Rear Seat, RH
1995-11 → 1997-09 ended
SXA10,15 —
71324-42010 Cushion, Rear Seat, RH
1997-09 → —
SXA10,15 —
71324-42020 Cushion, Rear Seat, RH
1995-11 → 1997-09 ended
SXA11,16 —
71324-42020 Cushion, Rear Seat, RH
1997-09 → —
SXA11,16 —
71324E — Cushion, Rear Seat, LH
71324-42010 Cushion, Rear Seat, LH
1995-11 → 1997-09 ended
SXA10,15 —
71324-42020 Cushion, Rear Seat, LH
1995-11 → 1997-09 ended
SXA11,16 —
71328D — Wire, Rear Seat Cushion Support
71328-42020 Wire, Rear Seat Cushion Support
1996-08 → 1997-09 ended
SXA10,15 —
71328E — Wire, Rear Seat Cushion Support
71328-42020 Wire, Rear Seat Cushion Support
1996-08 → 1997-09 ended
SXA10,15 —
71331A — Pin, Rear Seat Hinge
71331-42010 Pin, Rear Seat Hinge
1995-11 → 1996-08 ended
SXA1# —
71331-42010 Pin, Rear Seat Hinge
1997-09 → —
SXA1# —
71331-42010 Pin, Rear Seat Hinge
1996-08 → 1997-09 ended
SXA11,16 —
71331-42010 Pin, Rear Seat Hinge
1996-08 → 1997-09 ended
SXA10,15 —
71334B — Stopper, Rear Seat Leg, RH
71334-42010 Stopper, Rear Seat Leg, RH
1995-11 → 1997-09 ended
SXA11,16 —
71334-42010 Stopper, Rear Seat Leg, RH
1997-09 → —
SXA11,16 —
71334-42020 Stopper, Rear Seat Leg, RH
1995-11 → 1997-09 ended
SXA10,15 —
71334-42020 Stopper, Rear Seat Leg, RH
1997-09 → —
SXA10,15 —
71334C — Stopper, Rear Seat Leg, LH
71334-42010 Stopper, Rear Seat Leg, LH
1995-11 → 1997-09 ended
SXA11,16 —
71334-42020 Stopper, Rear Seat Leg, LH
1995-11 → 1997-09 ended
SXA10,15 —
71335C — Stay, Rear Seat Cushion Link, RH
71335-42011 Stay, Rear Seat Cushion Link, RH
1995-11 → —
SXA10,15 —
71335-42021 Stay, Rear Seat Cushion Link, RH
1995-11 → —
SXA11,16 —
71336A — Stay, Rear Seat Cushion Link, LH
71336-42011 Stay, Rear Seat Cushion Link, LH
1995-11 → —
SXA10,15 —
71336-42021 Stay, Rear Seat Cushion Link, LH
1995-11 → —
SXA11,16 —
71393A — Band, Rear Seat Cushion, RH
71393-42010-B1 note Band, Rear Seat Cushion, RH
1995-11 → 1997-09 ended
SXA10,15 —
71393-42010-B2 note Band, Rear Seat Cushion, RH
1997-09 → 2000-08 ended
SXA10,15 —
71393B — Band, Rear Seat Cushion, LH
71393-42010-B1 note Band, Rear Seat Cushion, LH
1995-11 → 1997-09 ended
SXA10,15 —
71485 — Cover, Rear Seat Hinge
71485-42010-B0 note Cover, Rear Seat Hinge
1995-11 → 1997-09 ended
SXA10,15 —
71485-42010-B1 note Cover, Rear Seat Hinge
1997-09 → 2000-08 ended
SXA10,15 —
71611A — Pad, Rear Seat Cushion, RH
71611-42020 Pad, Rear Seat Cushion, RH
1995-11 → —
SXA11,16 —
71611-42030 Pad, Rear Seat Cushion, RH
1995-11 → —
SXA10,15 —
71612A — Pad, Rear Seat Cushion, LH
71612-42020 Pad, Rear Seat Cushion, LH
1995-11 → —
SXA11,16 —
71612-42030 Pad, Rear Seat Cushion, LH
1995-11 → —
SXA10,15 —
71629 — Cover, Rear Seat Cushion Hinge
71629-42020-B0 note Cover, Rear Seat Cushion Hinge
1995-11 → 1997-09 ended
SXA10,15 —
71629-42020-B1 note Cover, Rear Seat Cushion Hinge
1997-09 → 2000-08 ended
SXA10,15 —
71639 — Cover, Rear Seat Cushion Hinge, LH
71639-42020-B0 note Cover, Rear Seat Cushion Hinge, LH
1995-11 → 1996-08 ended
SXA10,15 —
71639-42020-B5 note Cover, Rear Seat Cushion Hinge, LH
1996-08 → 1997-09 ended
SXA10,15 —
71639-42020-B6 note Cover, Rear Seat Cushion Hinge, LH
1997-09 → 2000-08 ended
SXA10,15 —
71639-42020-B6 note Cover, Rear Seat Cushion Hinge, LH
1996-02 → 1997-09 ended
SXA15 MTM —
71651S — Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71651-42020 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
1995-11 → —
SXA11,16 —
71651-42030 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
1995-11 → —
SXA10,15 —
71652S — Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71652-42020 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
1995-11 → —
SXA11,16 —
71652-42030 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
1995-11 → —
SXA10,15 —
71833A — Cover, Rear Seat Reclining, NO.1 RH
71833-42020-B0 note Cover, Rear Seat Reclining, NO.1 RH
1995-11 → 1997-09 ended
SXA1# —
71833-42020-B1 note Cover, Rear Seat Reclining, NO.1 RH
1997-09 → 2000-08 ended
SXA1# —
71833-42020-B1 note Cover, Rear Seat Reclining, NO.1 RH
1998-08 → 2000-08 ended
SXA11,16 —
71834-42020-B0 note Cover, Rear Seat Reclining, NO.1 RH
1995-11 → 1997-09 ended
SXA11,16 —
71834-42020-B1 note Cover, Rear Seat Reclining, NO.1 RH
1997-09 → 2000-08 ended
SXA11,16 —
71834-42020-B1 note Cover, Rear Seat Reclining, NO.1 RH
1998-08 → 2000-08 ended
SXA11,16 —
71834-42030-B0 note Cover, Rear Seat Reclining, NO.1 RH
1995-11 → 1997-09 ended
SXA10,15 —
71834-42030-B1 note Cover, Rear Seat Reclining, NO.1 RH
1997-09 → 2000-08 ended
SXA10,15 —
71834A — Cover, Rear Seat Reclining, NO.1 LH
71833-42020-B0 note Cover, Rear Seat Reclining, NO.1 LH
1995-11 → 1997-09 ended
SXA11,16 —
71833-42020-B1 note Cover, Rear Seat Reclining, NO.1 LH
1997-09 → 2000-08 ended
SXA11,16 —
71833-42030-B0 note Cover, Rear Seat Reclining, NO.1 LH
1995-11 → 1997-09 ended
SXA10,15 —
71833-42030-B1 note Cover, Rear Seat Reclining, NO.1 LH
1997-09 → 2000-08 ended
SXA10,15 —
71834-42020-B0 note Cover, Rear Seat Reclining, NO.1 LH
1995-11 → 1997-09 ended
SXA1# —
71834-42020-B1 note Cover, Rear Seat Reclining, NO.1 LH
1997-09 → 2000-08 ended
SXA1# —
71931A — Support, Rear Seat Headrest
71930-32020-B0 note Support, Rear Seat Headrest
1995-11 → 1996-10 ended
SXA1# —
71930-44010-B1 note Support, Rear Seat Headrest
1996-10 → 2000-08 ended
SXA1# —
71930-44010-B1 note Support, Rear Seat Headrest
1997-09 → 2000-08 ended
SXA1# —
71931-12040-B0 note Support, Rear Seat Headrest
1996-08 → 2000-08 ended
SXA1# —
71931-12040-B0 note Support, Rear Seat Headrest
1997-09 → 2000-08 ended
SXA1# —
71931-32020-B0 note Support, Rear Seat Headrest
1995-11 → 1996-08 ended
SXA1# —
71940A — Headrest Assy, Rear Seat
71910-42010-B0 note Headrest Assy, Rear Seat
1995-11 → 1996-08 ended
SXA1# —
71910-42011-B5 note Headrest Assy, Rear Seat
1996-08 → 1997-09 ended
SXA1# —
71910-42011-B5 note Headrest Assy, Rear Seat
1997-12 → 1998-08 ended
SXA10,15 SOT —
71910-42011-B5 note Headrest Assy, Rear Seat
1997-09 → —
SXA10,15 HT —
71910-42011-B5 note Headrest Assy, Rear Seat
1998-08 → —
SXA11,16;SXA10,15 SOT —
71910-42040-B1 note Headrest Assy, Rear Seat
1997-09 → 1998-08 ended
SXA1# —
71910-42040-B1 note Headrest Assy, Rear Seat
1998-08 → 1998-12 ended
SXA11,16 —
71910-42040-B1 note Headrest Assy, Rear Seat
1998-12 → —
SXA1# —
72501C — Pipe Sub-assy, Reclining Connecting
72345-42010 Pipe Sub-assy, Reclining Connecting
1995-11 → 1997-09 ended
SXA1# —
72345-42010 Pipe Sub-assy, Reclining Connecting
1997-09 → —
SXA1# —
72501F — Pipe Sub-assy, Reclining Connecting
72345-42010 Pipe Sub-assy, Reclining Connecting
1995-11 → 1997-09 ended
SXA1# —
72507B — Handle Sub-assy, Reclining Release, RH
72507-42030-B0 note Handle Sub-assy, Reclining Release, RH
1995-11 → 1997-09 ended
SXA1# —
72507-42030-B1 note Handle Sub-assy, Reclining Release, RH
1997-09 → 2000-08 ended
SXA1# —
72507C — Handle Sub-assy, Reclining Release, LH
72507-42030-B0 note Handle Sub-assy, Reclining Release, LH
1995-11 → 1997-09 ended
SXA1# —
72601 — Striker Sub-assy, Rear Seat Lock
72601-42010 Striker Sub-assy, Rear Seat Lock
1995-11 → —
SXA10,15 —
72601-42020 Striker Sub-assy, Rear Seat Lock
1995-11 → —
SXA11,16 —
72650F — Lock Assy, Rear Seat, RH
72650-42011 Lock Assy, Rear Seat, RH
1995-11 → —
SXA10,15 —
72650-42021 Lock Assy, Rear Seat, RH
1995-11 → —
SXA11,16 —
72660F — Lock Assy, Rear Seat, LH
72660-42011 Lock Assy, Rear Seat, LH
1995-11 → —
SXA10,15 —
72660-42021 Lock Assy, Rear Seat, LH
1995-11 → —
SXA11,16 —
72691A — Striker, Rear Seat Cushion Lock, NO.1
72691-42010 Striker, Rear Seat Cushion Lock, NO.1
1995-11 → —
SXA10,15 —
72691-42020 Striker, Rear Seat Cushion Lock, NO.1
1995-11 → —
SXA11,16 —
72692 — Striker, Rear Seat Cushion Lock, NO.2
72691-42020 Striker, Rear Seat Cushion Lock, NO.2
1995-11 → —
SXA11,16 —
72692-42010 Striker, Rear Seat Cushion Lock, NO.2
1995-11 → —
SXA10,15 —
72730A — Adjuster Assy, Rear Seat Reclining, RH
72730-42040 note Adjuster Assy, Rear Seat Reclining, RH
1995-11 → —
SXA1# —
72730-42050 note Adjuster Assy, Rear Seat Reclining, RH
1995-11 → —
SXA1# —
72740A — Adjuster Assy, Rear Seat Reclining, LH
72740-42040 note Adjuster Assy, Rear Seat Reclining, LH
1995-11 → —
SXA1# —
72740-42050 note Adjuster Assy, Rear Seat Reclining, LH
1995-11 → —
SXA1# —
72927 — Cover, Rear Seat Cushion Under, RH
72927-42010-B0 note Cover, Rear Seat Cushion Under, RH
1995-11 → 1997-09 ended
SXA10,15 —
72927-42010-B1 note Cover, Rear Seat Cushion Under, RH
1997-09 → 2000-08 ended
SXA10,15 —
72927-42020-B0 note Cover, Rear Seat Cushion Under, RH
1995-11 → 1997-09 ended
SXA11,16 —
72927-42020-B1 note Cover, Rear Seat Cushion Under, RH
1997-09 → 2000-08 ended
SXA11,16 —
72928 — Cover, Rear Seat Cushion Under, LH
72928-42010-B0 note Cover, Rear Seat Cushion Under, LH
1996-08 → 1997-09 ended
SXA10,15 —
72928-42010-B1 note Cover, Rear Seat Cushion Under, LH
1995-11 → 1996-08 ended
SXA10,15 —
72928-42010-B6 note Cover, Rear Seat Cushion Under, LH
1997-09 → 2000-08 ended
SXA10,15 —
72928-42020-B0 note Cover, Rear Seat Cushion Under, LH
1995-11 → 1997-09 ended
SXA11,16 —
72928-42020-B1 note Cover, Rear Seat Cushion Under, LH
1997-09 → 2000-08 ended
SXA11,16 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
