Toyota RAV4

1995-11 → 2000-08 · chassis SXA1# · catalogue 662410 · Europe

Discontinued model Data version 2001-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camshaft & Valve

18 part groups · 2 illustrations

Illustrations

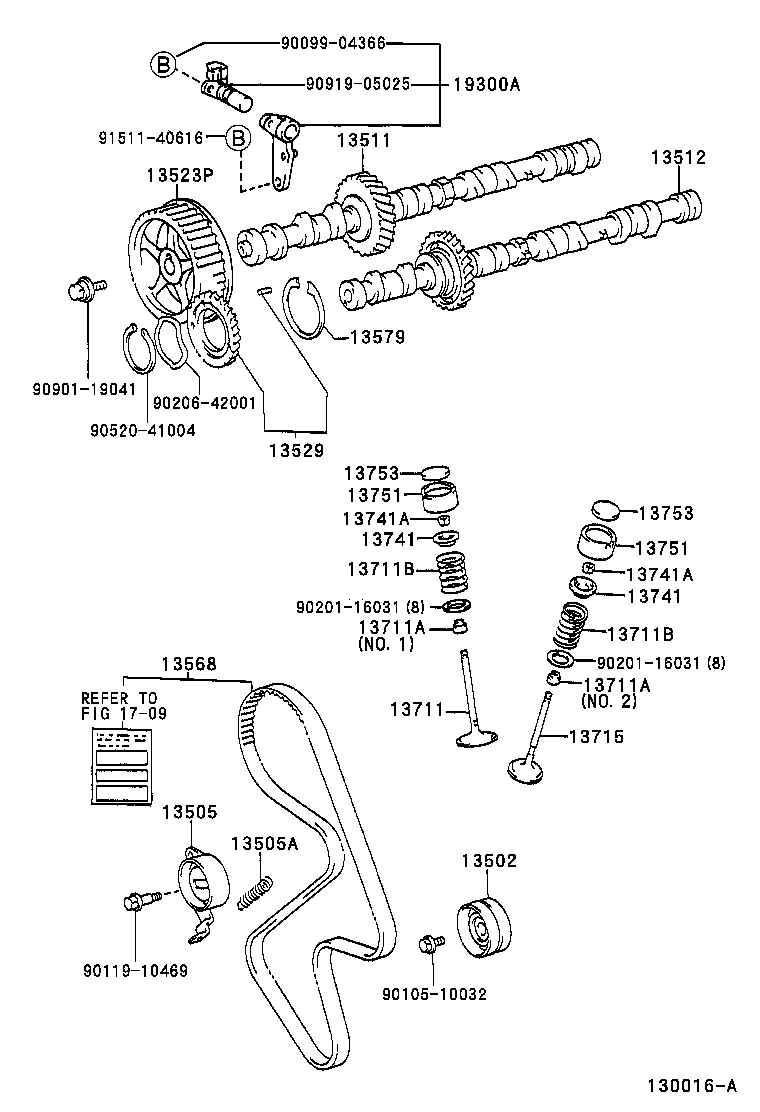

Figure 130007A 130007A 1995-11 → 1997-09 Figure 130016A 130016A 1997-09 → —

Part groups

PNCDescription
13502 Idler Sub-assy, Timing Belt, NO.2
13505 Idler Sub-assy, Timing Belt, NO.1
13505A Spring, Tension(FOR IDLER)
13511 Camshaft
13512 Camshaft, NO.2
13523P Pulley, Camshaft Timing
13529 Gear, Camshaft Sub
13568 Belt, Timing
13579 Washer, Camshaft Timing Gear Bolt
13711 Valve, Intake
13711A Seal OR Ring, O(FOR VALVE STEM OIL)
13711B Spring, Compression(FOR INNER)
13715 Valve, Exhaust
13741 Retainer, Valve Spring
13741A Lock, Valve Spring Retainer
13751 Lifter, Valve
13753 Shim, Valve Adjusting
19300A Sensor Assy, Cam Position
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
