Toyota RAV4

1995-11 → 2000-08 · chassis SXA1# · catalogue 662410 · Europe

Discontinued model Data version 2001-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

19 part groups · 3 illustrations

Illustrations

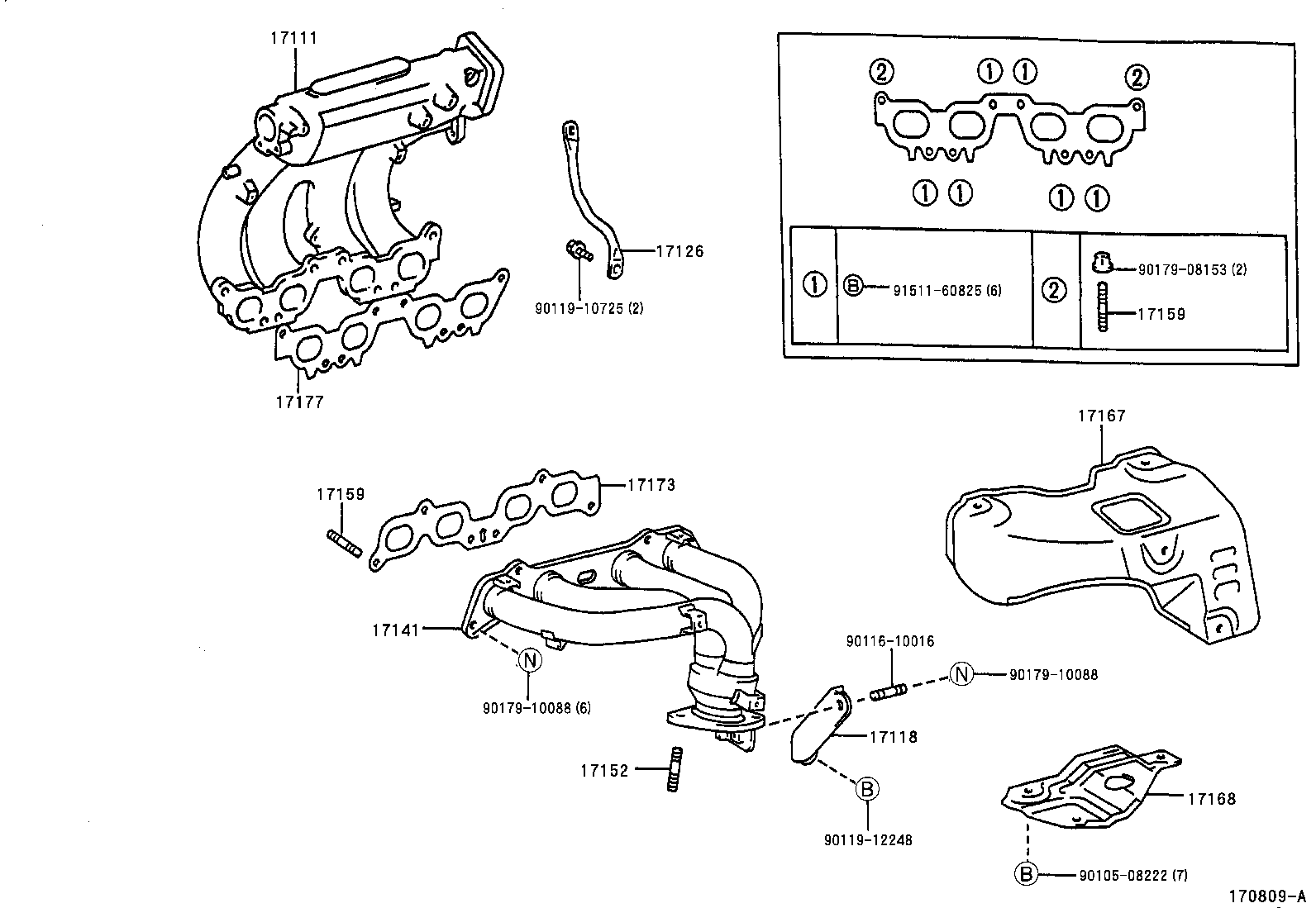

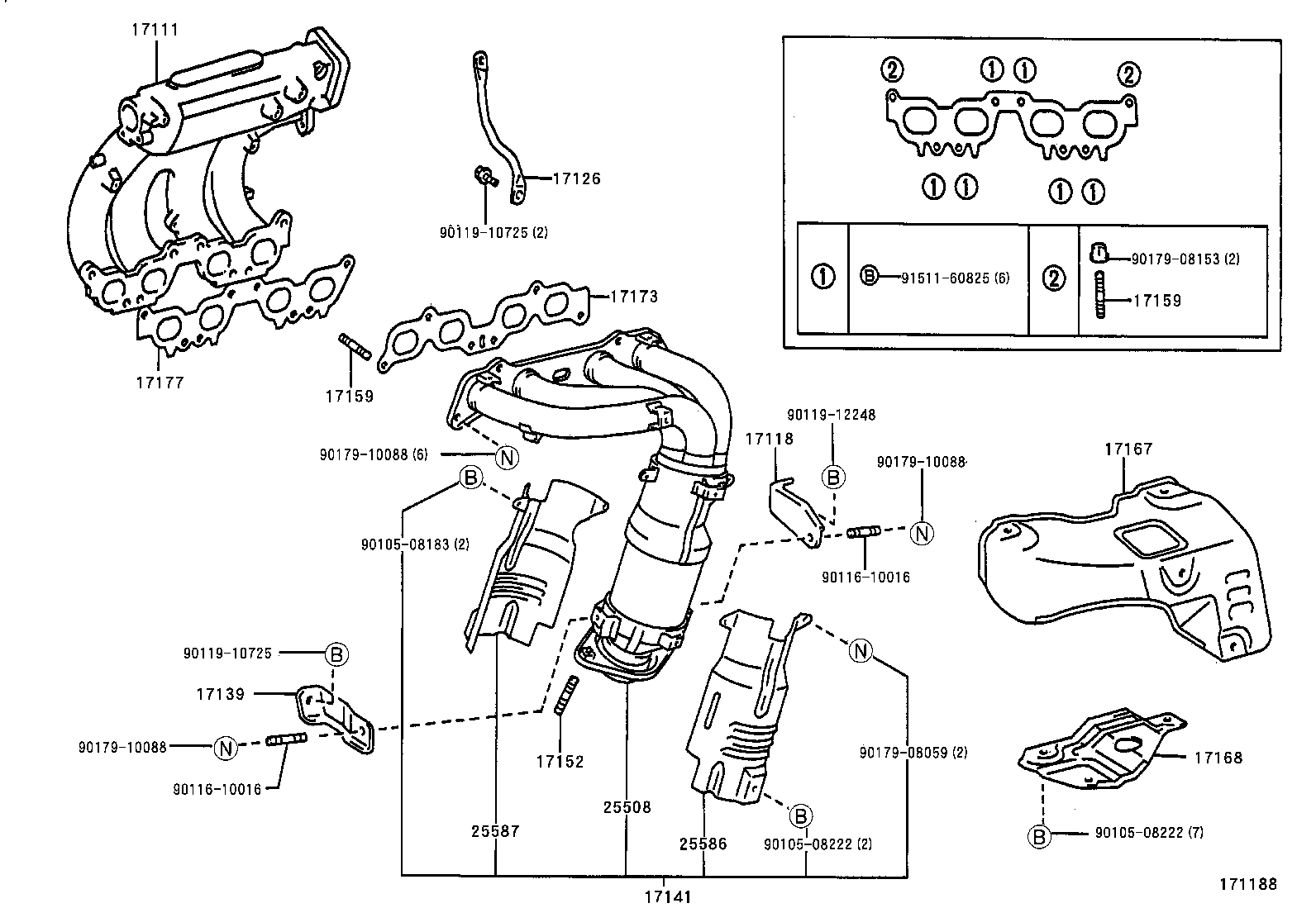

Figure MAJ603A MAJ603A 1995-11 → 1997-09 Figure 170809A 170809A 1997-09 → — Figure 171188 171188 1997-09 → —

Part groups

PNCDescription
17111 Manifold, Intake
17118 Stay, Manifold
17126 Stay, Surge Tank, NO.2
17129H Union, NO.4
17139 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17141D Bolt, Stud(FOR OXYGEN SENSOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
25508 Converter Sub-assy, Manifold
25508A Bolt, Stud(FOR MANIFOLD CONVERTER)
25576 Gasket, Manifold Converter
25586 Insulator, Manifold Converter, NO.1
25587 Insulator, Manifold Converter, NO.2
25591 Bracket, Manifold Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
