Toyota RAV4
1995-11 → 2000-08 · chassis SXA1# · catalogue 662410 · Europe
Discontinued model
Data version 2001-03
Vacuum Piping

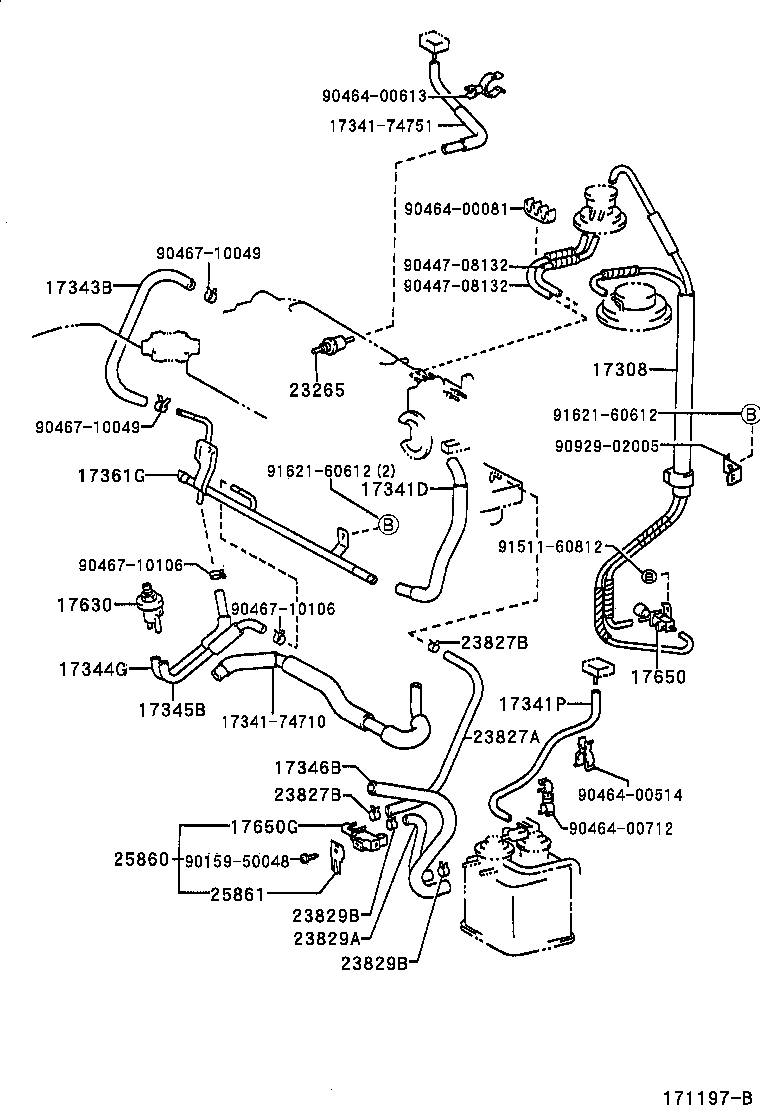

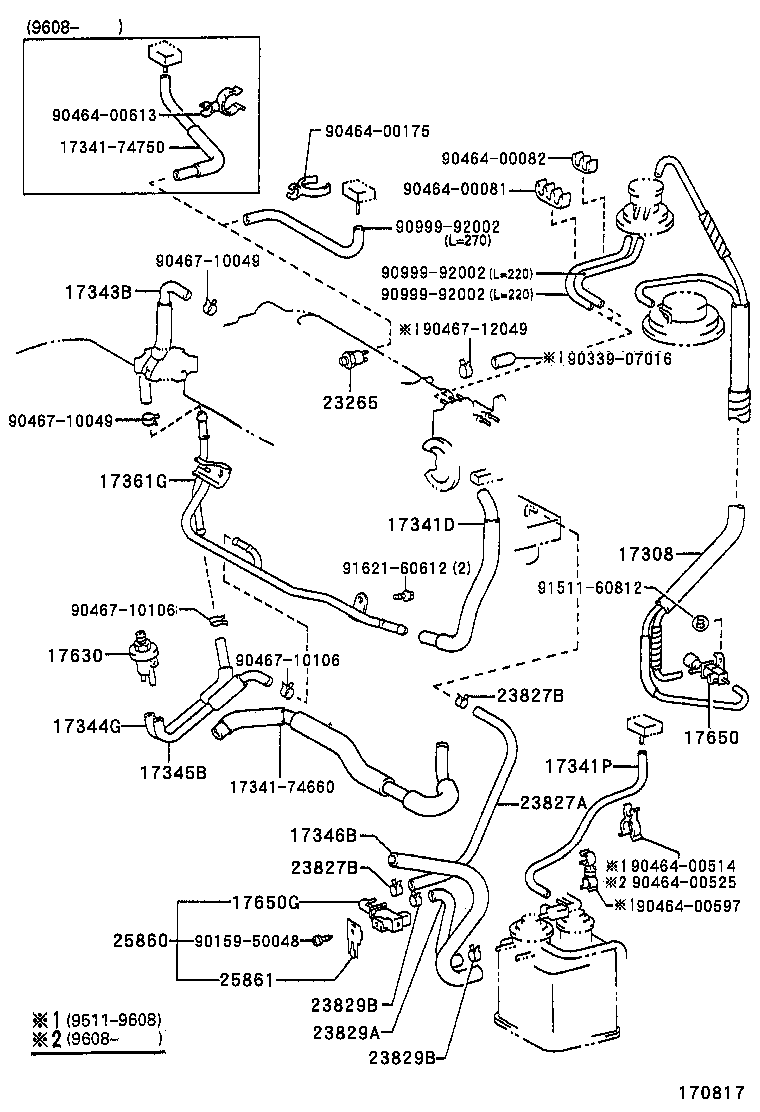

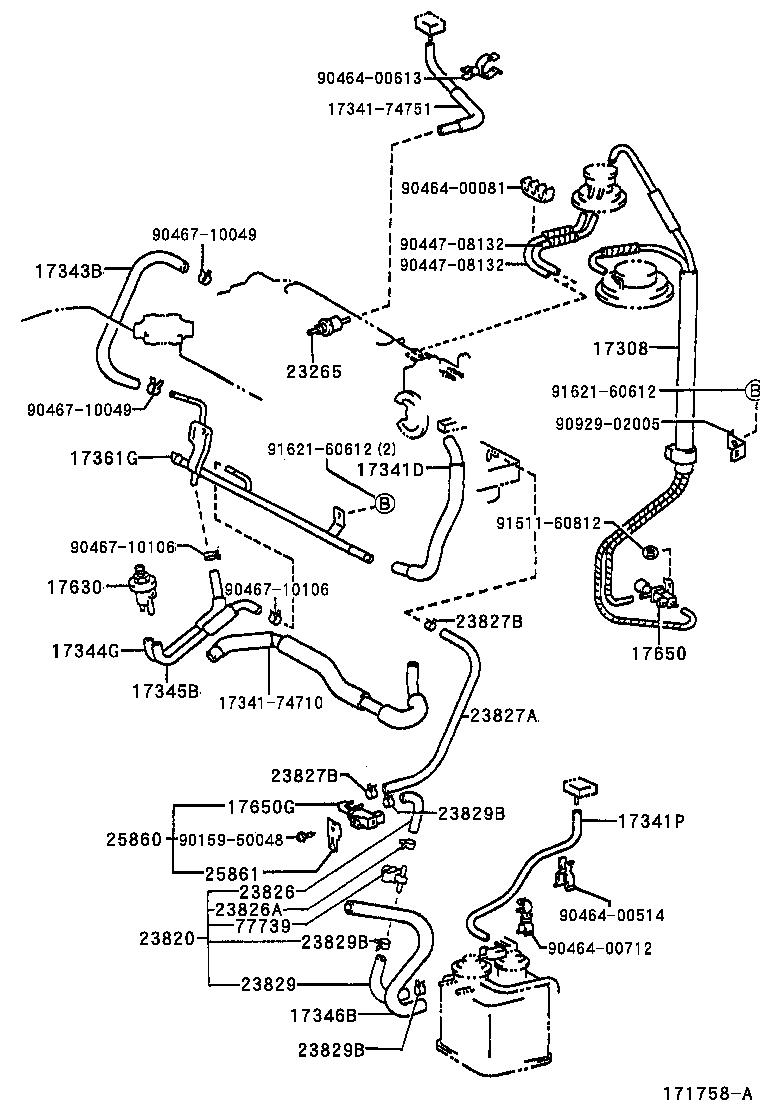

23 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17308 | Hose Sub-assy, Vacuum(FOR IDLE-UP) |
| 17341D | Hose, NO.1(FOR IDLE-UP) |
| 17341P | Hose, Air |
| 17343B | Hose, NO.3(FOR IDLE-UP) |
| 17344G | Hose, Air, NO.4 |
| 17345B | Hose, NO.5(FOR IDLE-UP) |
| 17346B | Hose, Air, NO.6 |
| 17361G | Tube, Air(FOR IDLE-UP) |
| 17630 | Valve Assy, Air Control |
| 17650 | Valve Assy, Vacuum Switching |
| 17650G | Valve, Duty Vacuum Switching |
| 23265 | Filter, Gas, NO.1 |
| 23820 | Hose Assy, Fuel Vapor Feed |
| 23826 | Hose, Fuel Vapor Feed, NO.1 |
| 23826A | Clip(FOR FUEL VAPOR FEED HOSE, NO.1) |
| 23827A | Hose, Fuel Vapor Feed, NO.2 |
| 23827B | Clip(FOR FUEL VAPOR FEED HOSE, NO.2) |
| 23829 | Hose, Fuel Vapor Feed, NO.3 |
| 23829A | Hose, Fuel Vapor Feed |
| 23829B | Clip(FOR FUEL VAPOR FEED HOSE) |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
| 25861 | Bracket, Vacuum Switching Valve |
| 77739 | Valve, Evap Service Port |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
