Toyota RAV4

1995-11 → 2000-08 · chassis SXA1# · catalogue 662410 · Europe

Discontinued model Data version 2001-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

15 part groups · 3 illustrations

Illustrations

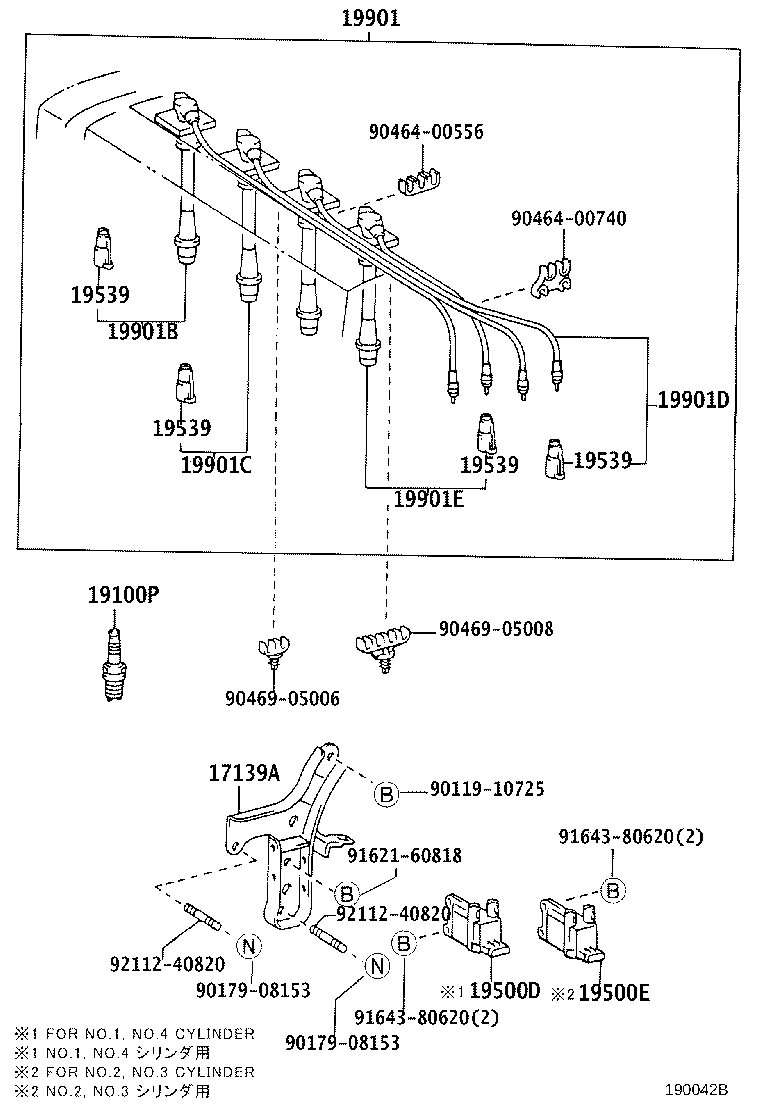

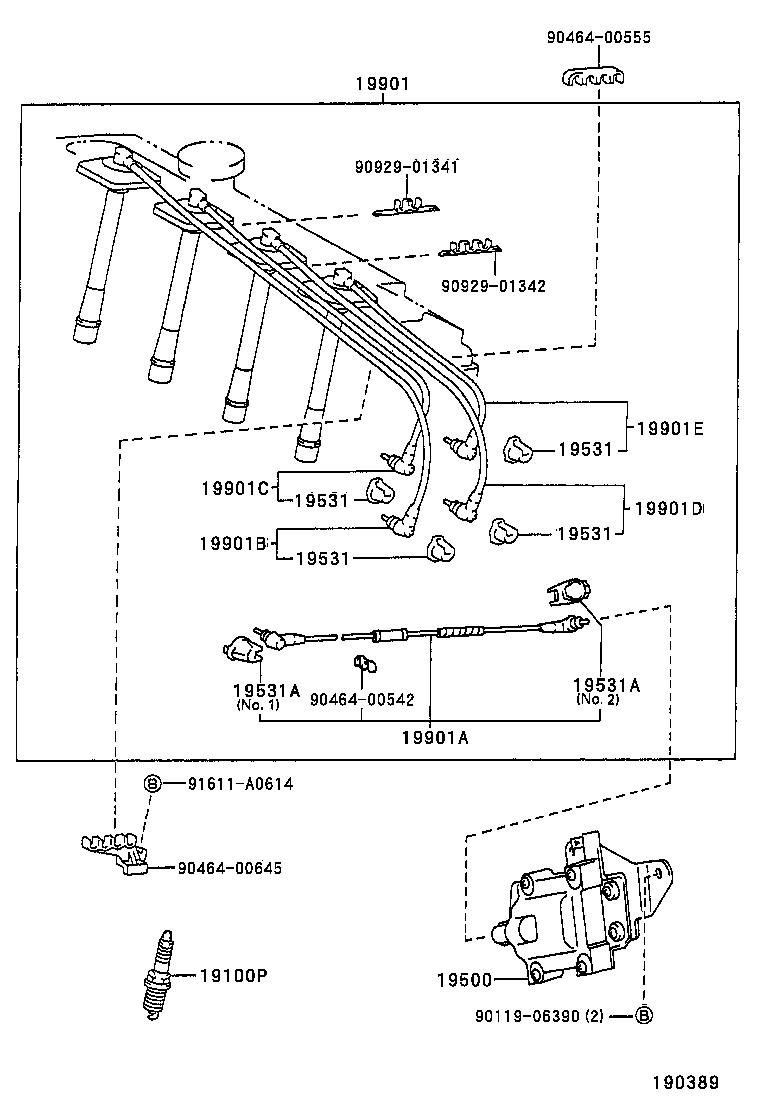

Figure MAJ608 MAJ608 1995-11 → 1996-08 Figure 190389 190389 1996-08 → 1997-09 Figure 190042B 190042B 1997-09 → —

Part groups

PNCDescription
17139A Stay, Manifold, NO.1
19100P Plug, Spark
19500 Coil Assy, Ignition
19500D Coil, Ignition, NO.1
19500E Coil, Ignition, NO.2
19531 Holder, Resistive Cord, NO.1
19531A Holder, Resistive Code, NO.3
19532 Holder, Resistive Code, NO.2
19539 Holder, Resistive Code, NO.4
19901 Cord Set, Coil & Spark, W/Resistive
19901A Cord, Coil Resistive
19901B Cord, Spark Plug Resistive, NO.1
19901C Cord, Spark Plug Resistive, NO.2
19901D Cord, Spark Plug Resistive, NO.3
19901E Cord, Spark Plug Resistive, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
