Toyota RAV4

1995-11 → 2000-08 · chassis SXA1# · catalogue 662410 · Europe

Discontinued model Data version 2001-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive Gear (ATM)

74 part groups · 2 illustrations

Illustrations

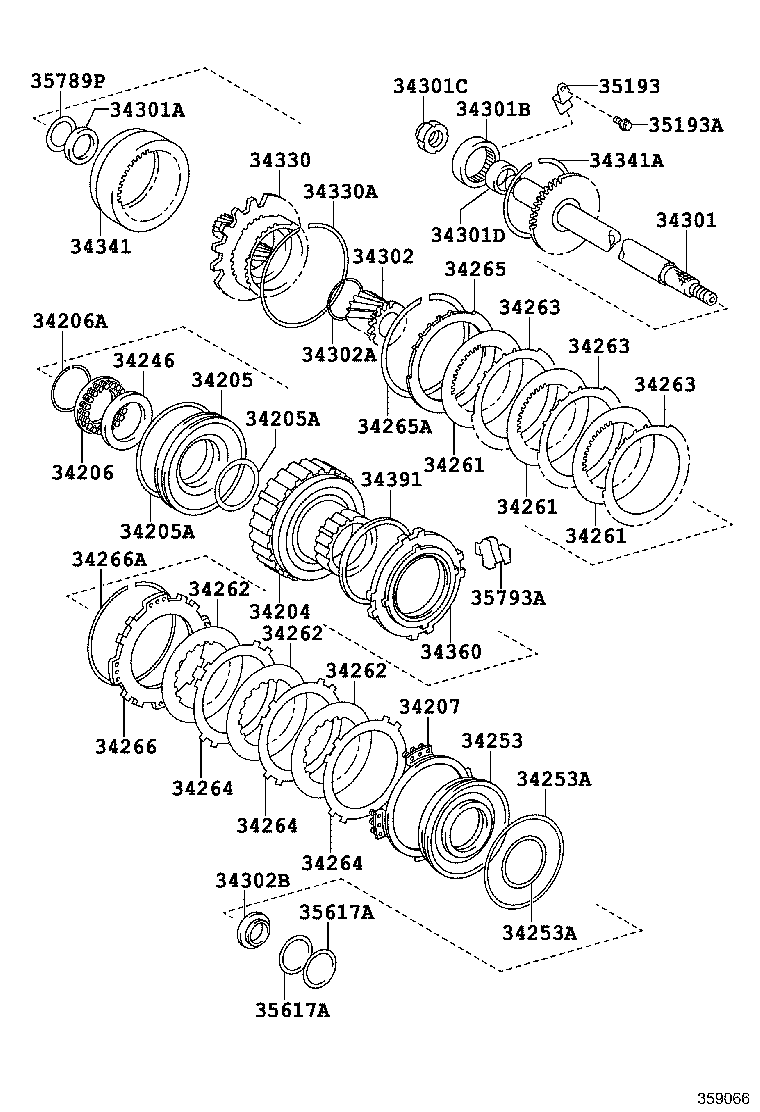

Figure 359065 359065 1995-11 → — Figure 359066 359066 1996-02 → —

Part groups

PNCDescription
34101 Case Sub-assy, Overdrive
34101E Bolt (FOR OVERDRIVE CASE & TRANSAXLE CASE SETTING)
34105 Protector Sub-assy, Overdrive Case
34112 Gasket, Overdrive Case
34204 Drum Sub-assy, Underdrive Clutch
34205 Piston Sub-assy, Underdrive Clutch
34205A Ring, O (FOR UNDERDRIVE CLUTCH PISTON)
34206 Spring Sub-assy, Underdrive Clutch Return
34206A Ring, Shaft Snap (FOR UNDERDRIVE RETURN SPRING)
34207 Spring Sub-assy, Underdrive Brake Return
34246 Plate, Underdrive Clutch Return Spring
34253 Piston, Underdrive Brake
34253A Ring, O (FOR UNDERDRIVE BRAKE PISTON)
34261 Disc, Underdrive Clutch, NO.1
34262 Disc, Underdrive Clutch, NO.2
34263 Plate, Underdrive Clutch, NO.1
34264 Plate, Underdrive Clutch, NO.2
34265 Flange, Underdrive Clutch, NO.1
34265A Ring, Hole Snap (FOR UNDERDRIVE CLUTCH FLANGE NO.1)
34266 Flange, Underdrive Clutch, NO.2
34266A Ring, Hole Snap (FOR UNDERDRIVE CLUTCH FLANGE NO.2)
34301 Shaft Sub-assy, Underdrive Input
34301A Bearing, Needle Roller (FOR UNDERDRIVE INPUT SHAFT)
34301B Bearing, Cylindrical Roller, NO.1 (FOR UNDERDRIVE)
34301C Nut (FOR UNDERDRIVE INPUT SHAFT)
34301D Bearing, Cylindrical Roller, NO.2 (FOR UNDERDRIVE)
34302 Gear Sub-assy, Underdrive Planetary Sun
34302A Ring, Hole Snap (FOR UNDERDRIVE PLANETARY SUN GEAR)
34302B Bearing, Needle Roller(FOR UNDERDRIVE PLANETARY SUN GEAR)
34330 Gear Assy, Underdrive Planetary
34330A Ring, Hole Snap (FOR UNDERDRIVE PLANETARY GEAR)
34341 Gear, Underdrive Planetary Ring
34341A Ring, Hole Snap (FOR UNDERDRIVE PLANETARY RING)
34360 Clutch Assy, Underdrive 1 Way
34391 Washer, Underdrive Clutch Drum Thrust
34601 Drum Sub-assy, Overdrive Direct Clutch
34601G Bearing,Thrust Needle Roller(FOR OVERDRIVE DIRECT CLUTCH)
34602 Piston Sub-assy, Overdrive Direct Clutch
34602A Ring, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)
34603 Spring Sub-assy, Overdrive Brake Return
34603A Ring, Hole Snap (FOR OVERDRIVE BRAKE RETURN SPRING)
34604 Spring Sub-assy, Overdrive Clutch Return
34604A Ring, Hole Snap (FOR OVERDRIVE CLUTCH RETURN SPRING)
34607 Drum Sub-assy, Overdrive Brake
34615 Flange, Overdrive Clutch
34615A Ring, Hole Snap (FOR OVERDRIVE CLUTCH FLANGE)
34622 Piston, Overdrive Brake
34622A Ring, O (FOR OVERDRIVE BRAKE PISTON)
34625 Flange, Overdrive Brake, NO.1
34626 Plate, Overdrive Brake Cushion
34710 Gear Assy, Overdrive Planetary
34710D Bearing, Thrust Needle Roller(FOR OVERDRIVE PLANETARY GEAR)
34710G Bearing, Radial Ball(FOR OVERDRIVE PLANETARY GEAR)
34710H Ring, Hole Snap(FOR OVERDRIVE PLANETARY GEAR BEARING)
34710J Nut(FOR OVERDRIVE PLANETARY GEAR)
34710P Washer(FOR OVERDRIVE PLANETARY GEAR)
34713 Race, 1 Way Clutch Outer (FOR OVERDRIVE)
34714 Clutch, 1 Way(FOR OVERDRIVE)
34714A Ring, Hole Snap(FOR 1 WAY CLUTCH)
34727 Plate, Retaining (FOR OVERDRIVE)
34731 Gear, Overdrive Planetary Ring
34731A Ring, Hole Snap (FOR OVERDRIVE PLANETARY RING GEAR)
34737 Washer, Overdrive Planetary Gear Thrust, NO.3
35193 Retainer, Roller Bearing
35193A Bolt (FOR ROLLER BEARING RETAINER)
35617A Ring, Clutch Drum Oil Seal (FOR OVERDRIVE)
35633D Disc, Clutch (FOR OVERDRIVE DIRECT CLUTCH)
35634C Plate, Clutch (FOR OVERDRIVE DIRECT CLUTCH)
35648C Plate, Clutch (FOR OVERDRIVE BRAKE)
35677B Disc, Clutch (FOR OVERDRIVE BRAKE)
35748A Ring, Intermediate Shaft Oil Seal (FOR OVERDRIVE)
35789H Race, Thrust Bearing (FOR OVERDRIVE CASE)
35789P Race, Thrust Bearing (FOR UNDERDRIVE INPUT SHAFT)
35793A Retainer, Underdrive 1 Way Clutch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
