Toyota RAV4

1995-11 → 2000-08 · chassis SXA1# · catalogue 662410 · Europe

Discontinued model Data version 2001-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

30 part groups · 7 illustrations

Illustrations

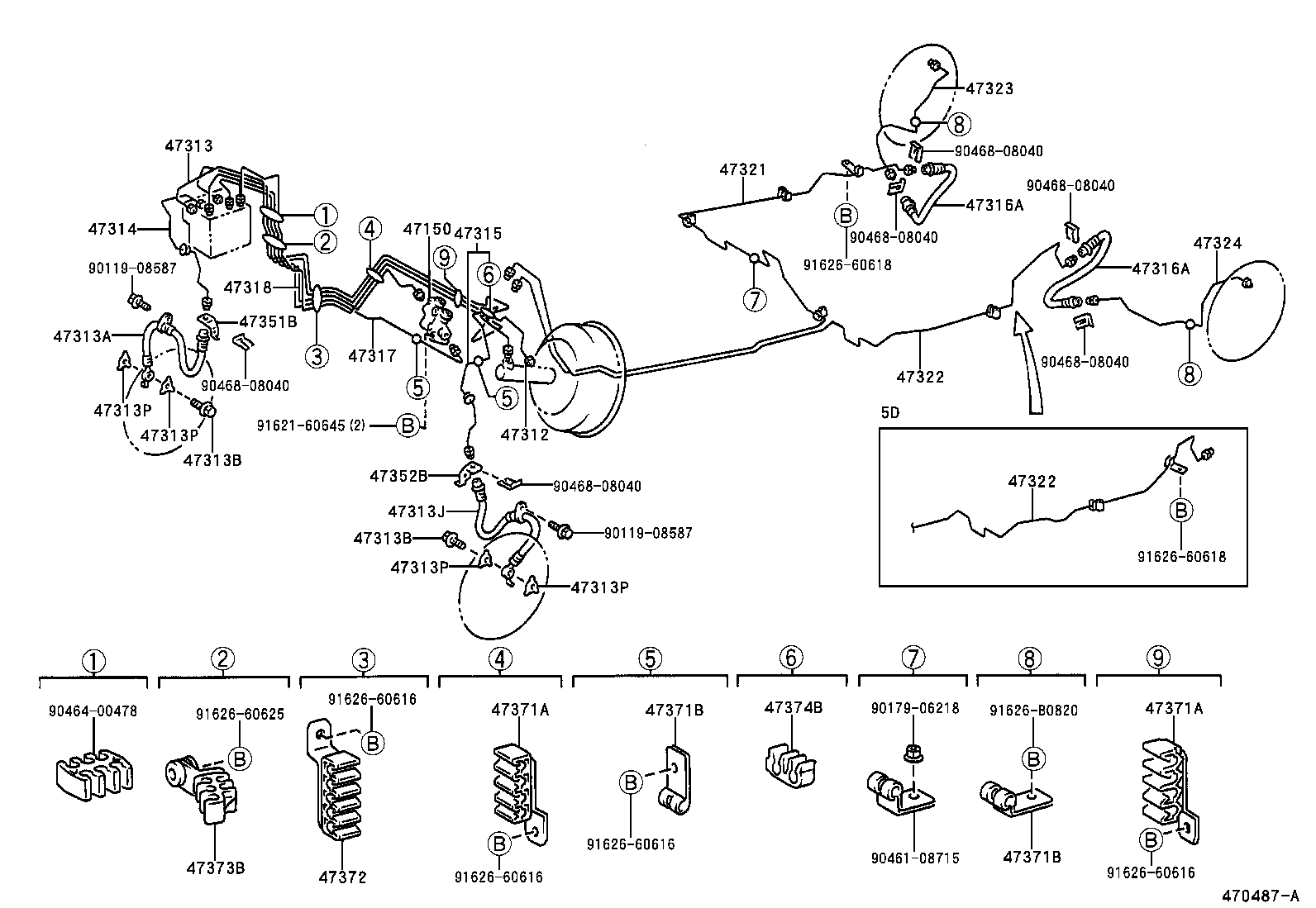

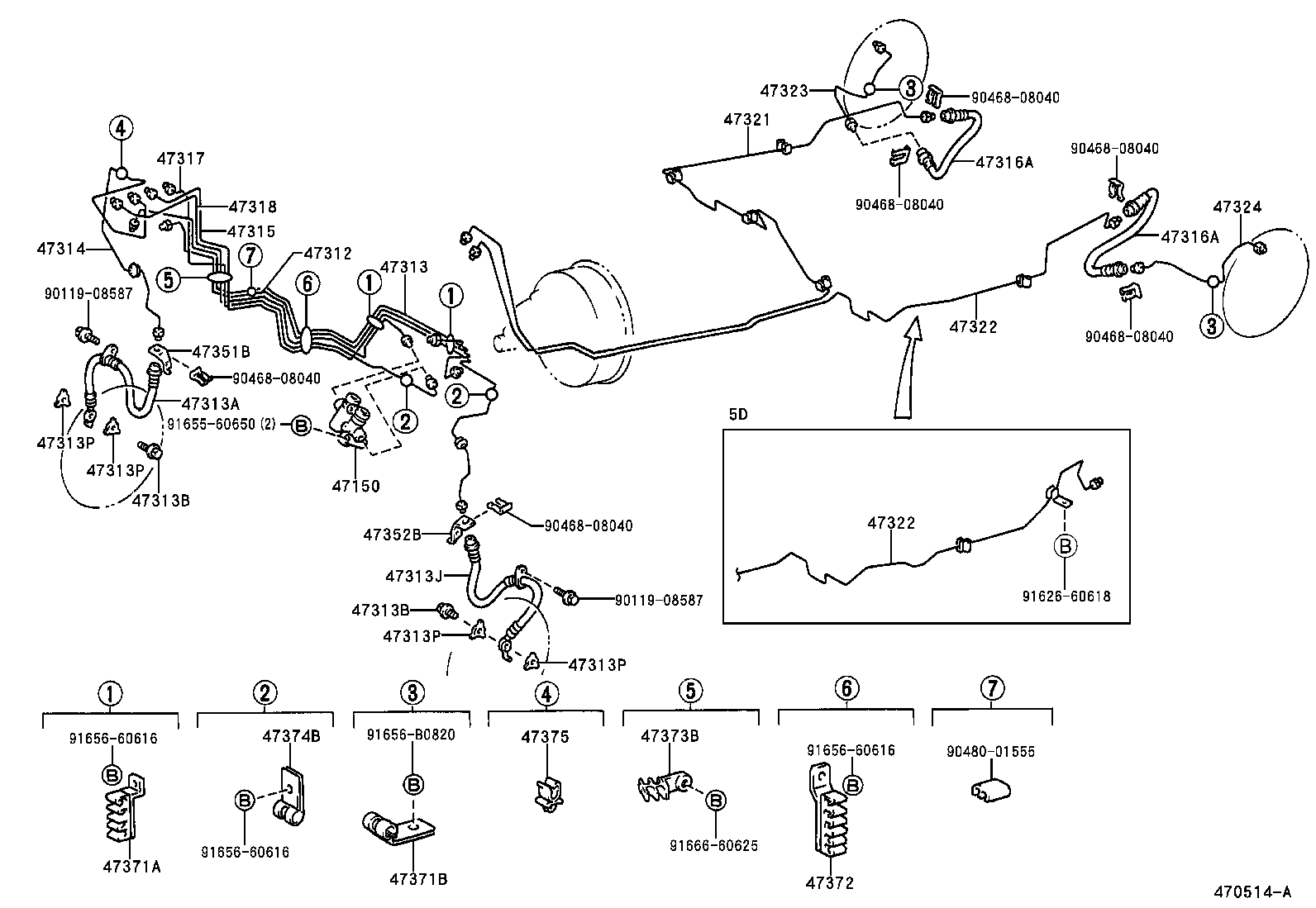

Figure 470485A 470485A 1995-11 → — Figure 470514A 470514A 1995-11 → 1996-08 Figure 470487A 470487A 1996-02 → 1996-08 Figure 470487A 470487A 1996-08 → — Figure 470483 470483 1995-11 → 1996-08 Figure 470484A 470484A 1996-02 → 1996-08 Figure 470484A 470484A 1996-08 → —

Part groups

PNCDescription
44510 Actuator Assy, Brake
44545D Holder, Brake Actuator Bolt
44546A Cushion, Brake Actuator Bolt
44590 Bracket Assy, Brake Actuator
47150 Valve Assy, Proportioning
47311 Tube, Front Brake, NO.1
47311A Way(FOR FRONT BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313J Hose, Flexible, NO.2(FOR FRONT)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47317 Tube, Front Brake, NO.7
47318 Tube, Front Brake, NO.8
47321 Tube, Rear Brake, NO.1
47322 Tube, Rear Brake, NO.2
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47351B Bracket, Flexible Hose, NO.1
47352B Bracket, Flexible Hose, NO.2
47371A Clamp, Brake Tube, NO.1
47371B Clamp, Brake Tube, NO.6
47372 Clamp, Brake Tube, NO.2
47373B Clamp, Brake Tube, NO.3
47374B Clamp, Brake Tube, NO.4
47375 Clamp, Brake Tube, NO.5
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
