Toyota RAV4

1995-11 → 2000-08 · chassis SXA1# · catalogue 662410 · Europe

Discontinued model Data version 2001-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

12 part groups · 2 illustrations

Illustrations

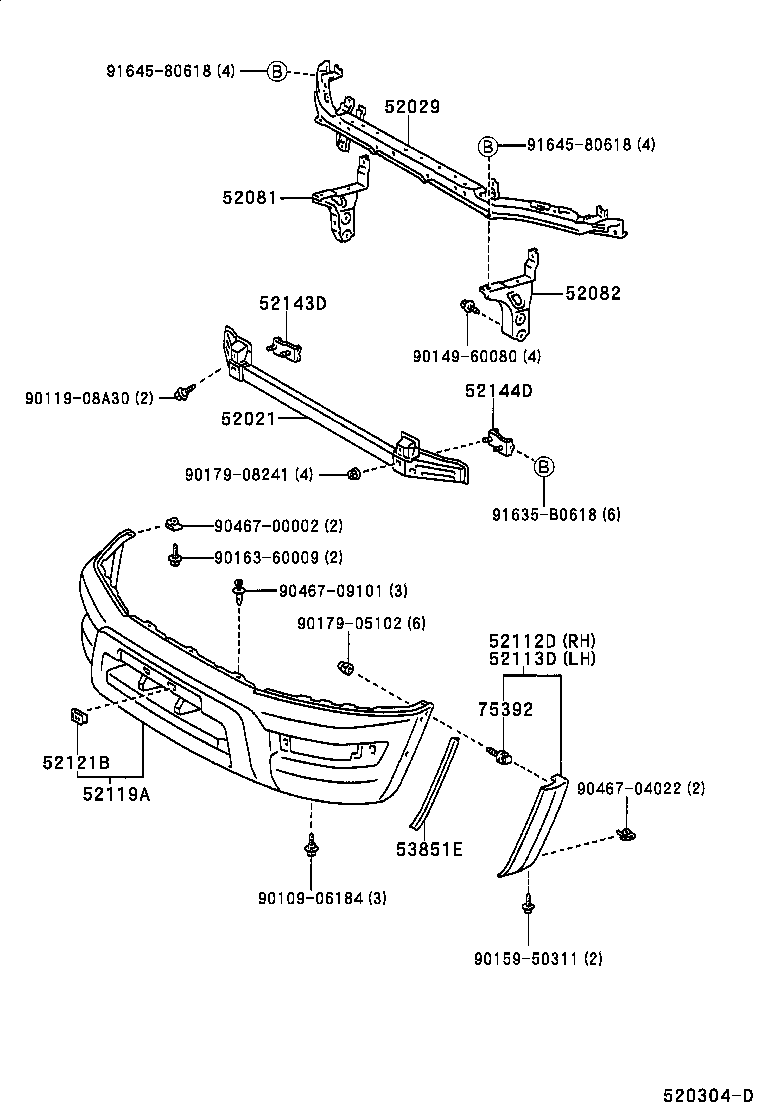

Figure MBZ844B MBZ844B 1995-11 → 1997-09 Figure 520304D 520304D 1997-09 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52029 Reinforcement Sub-assy, Front Bumper, Upper
52081 Stay Sub-assy, Front Bumper
52082 Stay Sub-assy, Front Bumper, LH
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52119A Cover, Front Bumper
52121B Bracket, Front Licence Plate Mounting
52143D Bracket, Front Bumper Side, RH
52144D Bracket, Front Bumper Side, LH
53851E Pad, Front Wheel Opening Extension, NO.1
75392 Retainer, Outside Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
