Toyota RAV4
1995-11 → 2000-08 · chassis SXA1# · catalogue 662410 · Europe
Discontinued model
Data version 2001-03

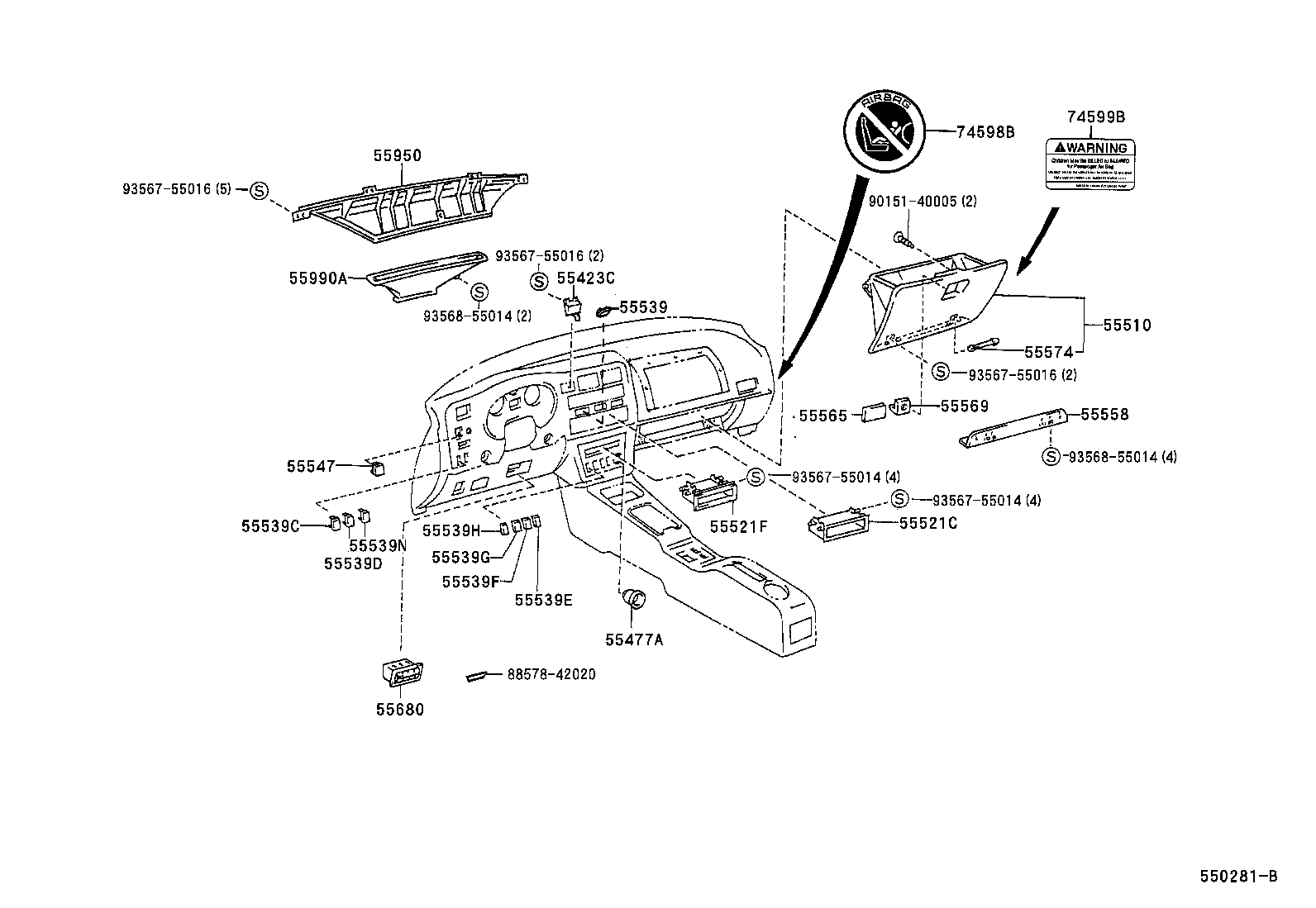

Instrument Panel & Glove Compartment
45 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 50540 | DO0R Assy, Airbag Passenger |
| 55301 | Panel Sub-assy, Instrument |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55331 | Reinforcement, Instrument Panel |
| 55374C | Bracket, Instrument Panel Lower Mounting, NO.1 |
| 55375B | Bracket, Instrument Panel Lower Mounting, NO.2 |
| 55406C | Insert Sub-assy, Instrument Panel, Lower LH |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55412D | Panel, Instrument Cluster Finish, Center |
| 55413D | Panel, Instrument Cluster Finish, Center Lower |
| 55421B | Panel, Instrument Cluster Finish, Upper |
| 55423C | Cover, Clock Opening |
| 55432A | Panel, Instrument Panel Finish, Lower RH |
| 55433C | Panel, Instrument Panel Finish, Lower LH |
| 55437A | Retainer, Instrument Panel Finish Panel, NO.1 |
| 55477A | Bezel, Cigarette Lighter Hole |
| 55510 | Door Assy, Glove Compartment |
| 55521C | Cover, Stereo Opening |
| 55521F | Cover, Stereo Opening, NO.2 |
| 55539 | Cover, Spare Switch Hole |
| 55539C | Cover, Spare Switch Hole |
| 55539D | Cover, Spare Switch Hole |
| 55539E | Cover, Spare Switch Hole |
| 55539F | Cover, Spare Switch Hole |
| 55539G | Cover, Spare Switch Hole |
| 55539H | Cover, Spare Switch Hole |
| 55539N | Cover, Spare Switch Hole |
| 55545 | Cover, Fuse Box Opening |
| 55547 | Cover, Remote Control Mirror Hole |
| 55558 | Reinforcement, Glove Compartment Door |
| 55565 | Handle, Glove Compartment Door Lock |
| 55569 | Cover, Glove Compartment Door Lock |
| 55574 | Shaft, Glove Compartment Door Hinge |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670A | Register Assy, Instrument Panel, Center |
| 55680 | Register Assy, Instrument Panel, Lower NO.1 |
| 55950 | Nozzle Assy, Defroster |
| 55990A | Nozzle Assy, Defroster, Lower |
| 55991 | Bracket, Defroster Duct, NO.1 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
| 74598B | Label, Passenger Airbag Caution |
| 74599B | Label, Driver & Passenger Airbag Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
