Toyota RAV4
1995-11 → 2000-08 · chassis SXA1# · catalogue 662410 · Europe
Discontinued model
Data version 2001-03

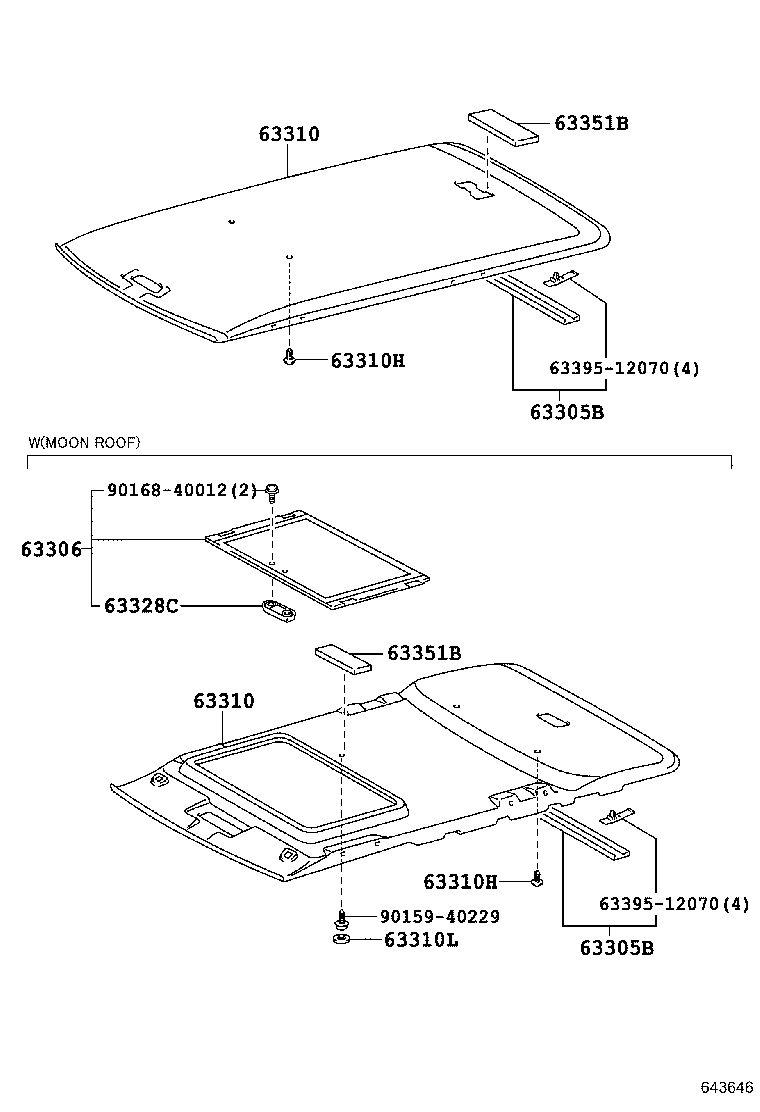

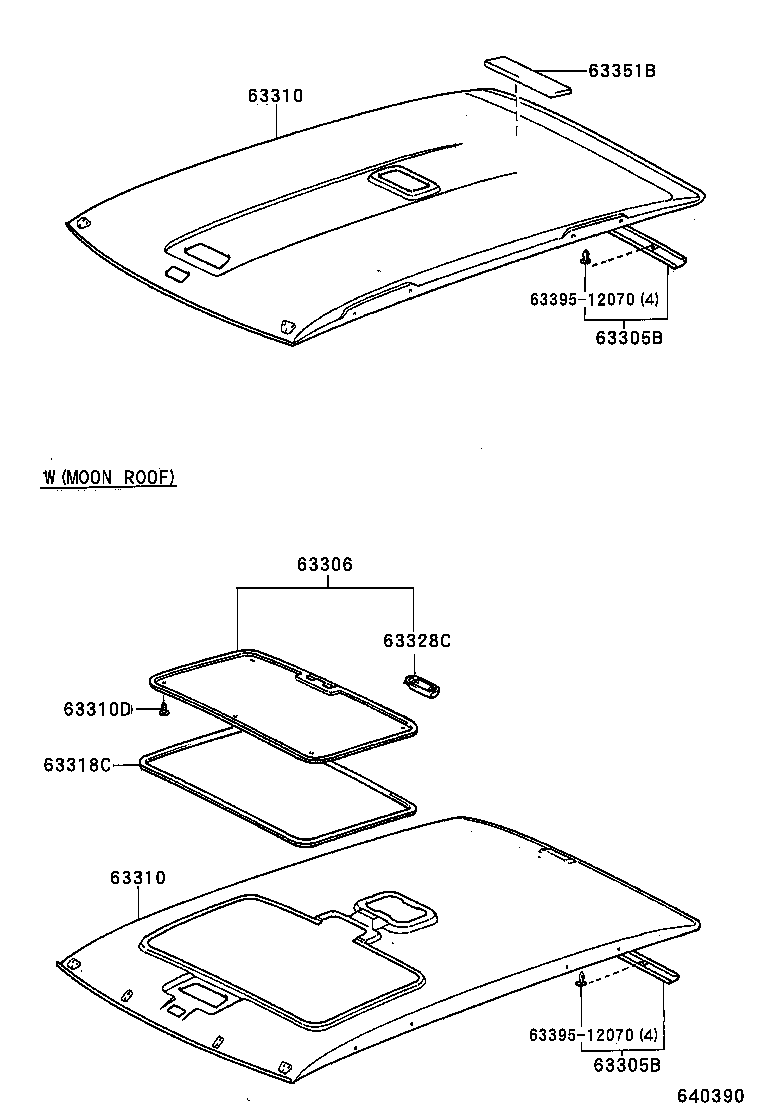

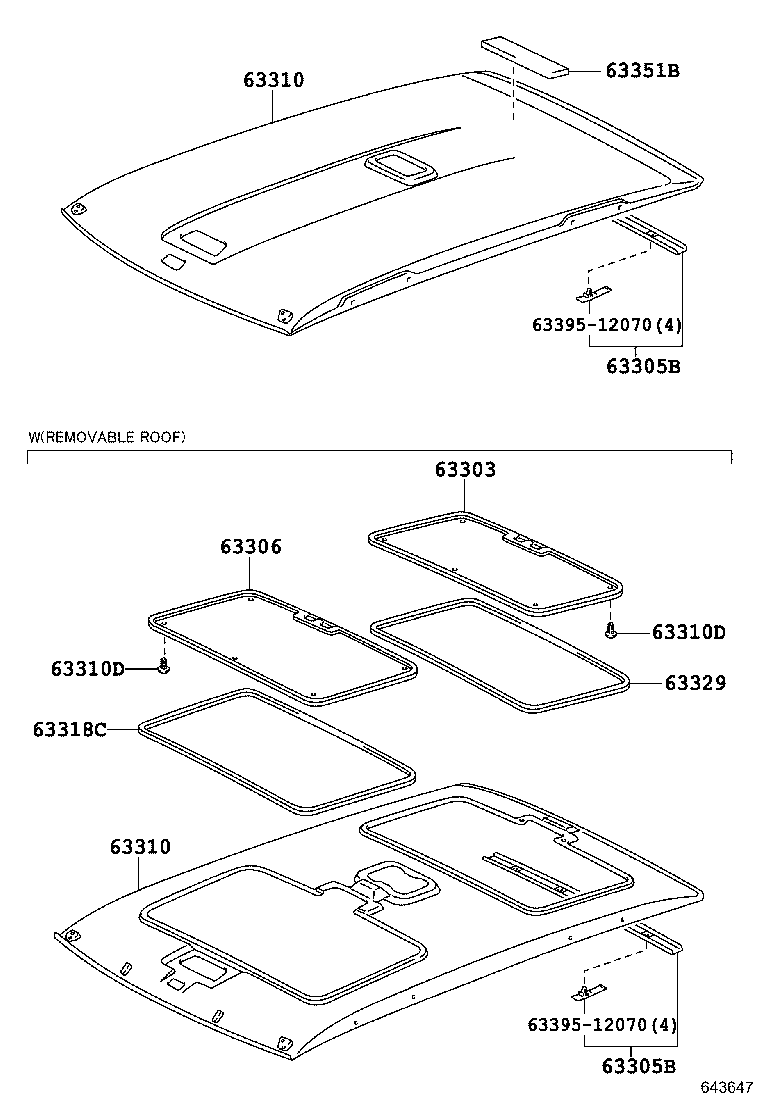

Roof Headlining & Silencer Pad
11 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 63303 | Trim Sub-assy, Sunshade, NO.2 |
| 63305B | Trim Sub-assy, Roof Headlining, Rear |
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63310D | Clip, Roof Headlining |
| 63310H | Clip(FOR ROOF HEADLINING) |
| 63310L | Cap(FOR ROOF HEADLINING) |
| 63318C | Moulding, Sun Roof Opening Trim |
| 63328C | Knob, Sunshade Trim |
| 63329 | Moulding, Sun Roof Opening Trim, NO.2 |
| 63351B | Pad, Roof Headlining |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
