Toyota RAV4

1995-11 → 2000-08 · chassis SXA1# · catalogue 662410 · Europe

Discontinued model Data version 2001-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

15 part groups · 2 illustrations

Illustrations

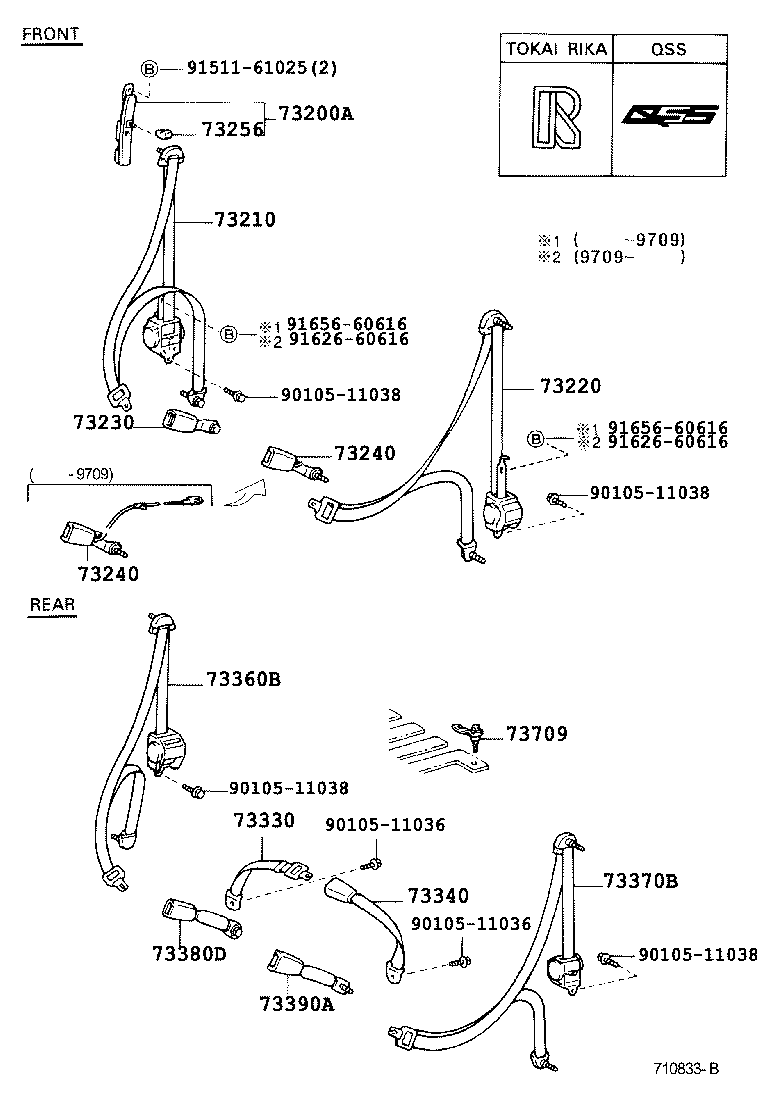

Figure 710832D 710832D 1995-11 → — Figure 710833B 710833B 1995-11 → —

Part groups

PNCDescription
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73256 Knob, Shoulder Belt Anchor Adjust
73330 Belt Assy, Rear Seat Lap Type, RH
73340 Belt Assy, Rear Seat Lap Type, LH
73360B Belt Assy, Rear Seat, Outer
73370B Belt Assy, Rear Seat, Outer
73380D Belt Assy, Rear Seat, Inner
73390A Belt Assy, Rear Seat, Inner
73670A Bracket Assy, Rear Seat Belt Outer Anchor, RH
73680A Bracket Assy, Rear Seat Belt Outer Anchor, LH
73709 Bracket Sub-assy, Tether Anchor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
