Toyota RAV4
1995-11 → 2000-08 · chassis SXA1# · catalogue 662410 · Europe
Discontinued model
Data version 2001-03
Fuel Tank & Tube

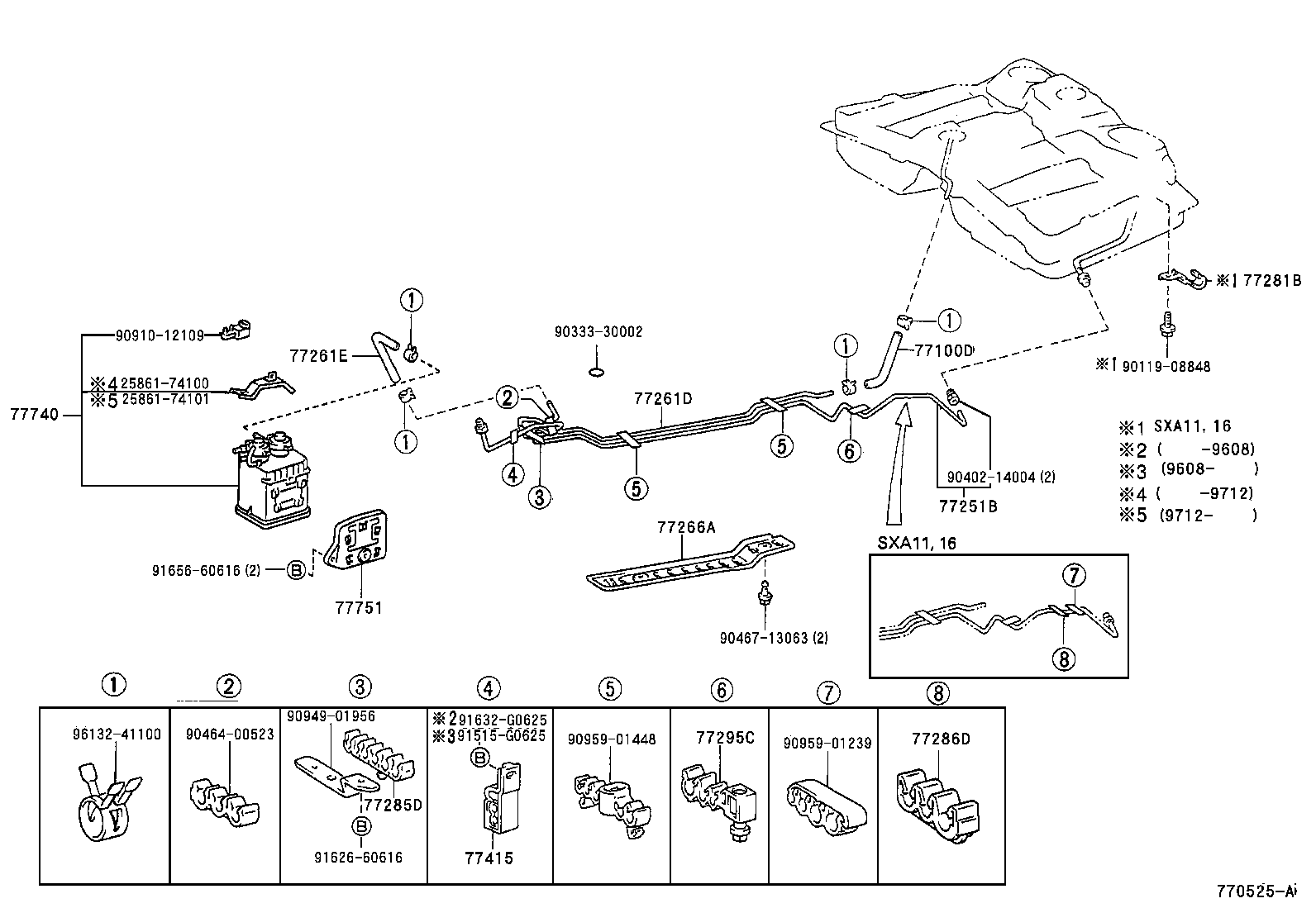

50 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 77011 | Pipe Sub-assy, Fuel Tank Filler, Lower |
| 77012 | Tube Sub-assy, Fuel Tank Breather |
| 77016H | Tube Sub-assy, Fuel Return Vent |
| 77017A | Gasket, Fuel Tank Vent |
| 77017B | Tube Sub-assy, Fuel Tank Vent |
| 77018E | Tube Sub-assy, Fuel Tank Evaporation Vent |
| 77023 | Filter Sub-assy, Fuel Suction Tube |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77037 | Lock Sub-assy, Fuel Filler Opening Lid |
| 77100 | Tank Assy, Fuel |
| 77100D | Hose, Fuel, NO.1(FOR FUEL TANK) |
| 77178 | Gasket, Fuel Tank Filler Pipe, Lower |
| 77179A | Gasket, Fuel Tank Breather Tube |
| 77179B | Gasket, Fuel Tank Evaporation Vent Tube |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77201A | Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE) |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77219 | Cover, Fuel Tank Filler Pipe |
| 77251B | Tube, Fuel Main |
| 77255F | Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE) |
| 77261D | Tube, Fuel Tank TO Canister |
| 77261E | Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE) |
| 77266A | Protector, Fuel Tube, NO.1 |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77281B | Clamp, Fuel Hose(FOR REAR FUEL MAIN) |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77290 | Shield Assy, Fuel Tank Filler Pipe |
| 77293A | Shield, Fuel Tank Filler Pipe, NO.3 |
| 77295C | Grommet, Fuel Tube |
| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77380 | Valve Assy, Fuel Cut Off |
| 77399 | Hanger, Fuel Tank Cap |
| 77415 | Support, Fuel Tube Grommet, NO.5 |
| 77420 | Valve Assy, Fuel Cut Off, NO.2 |
| 77601A | Band Sub-assy, Fuel Tank, NO.1 |
| 77606 | Protector Sub-assy, Fuel Tank, NO.1 |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77642A | Protector, Fuel Tank, NO.2 |
| 77642C | Protector, Fuel Tank, NO.2 |
| 77643A | Protector, Fuel Tank, NO.3 |
| 77658A | Protector, Fuel Tank Edge, NO.1 |
| 77659 | Protector, Fuel Tank Edge, NO.2 |
| 77740 | Canister Assy, Charcoal |
| 77751 | Bracket, Charcoal Canister Base |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
