Toyota RAV4
1995-11 → 2000-08 · chassis SXA1# · catalogue 662410 · Europe
Discontinued model
Data version 2001-03

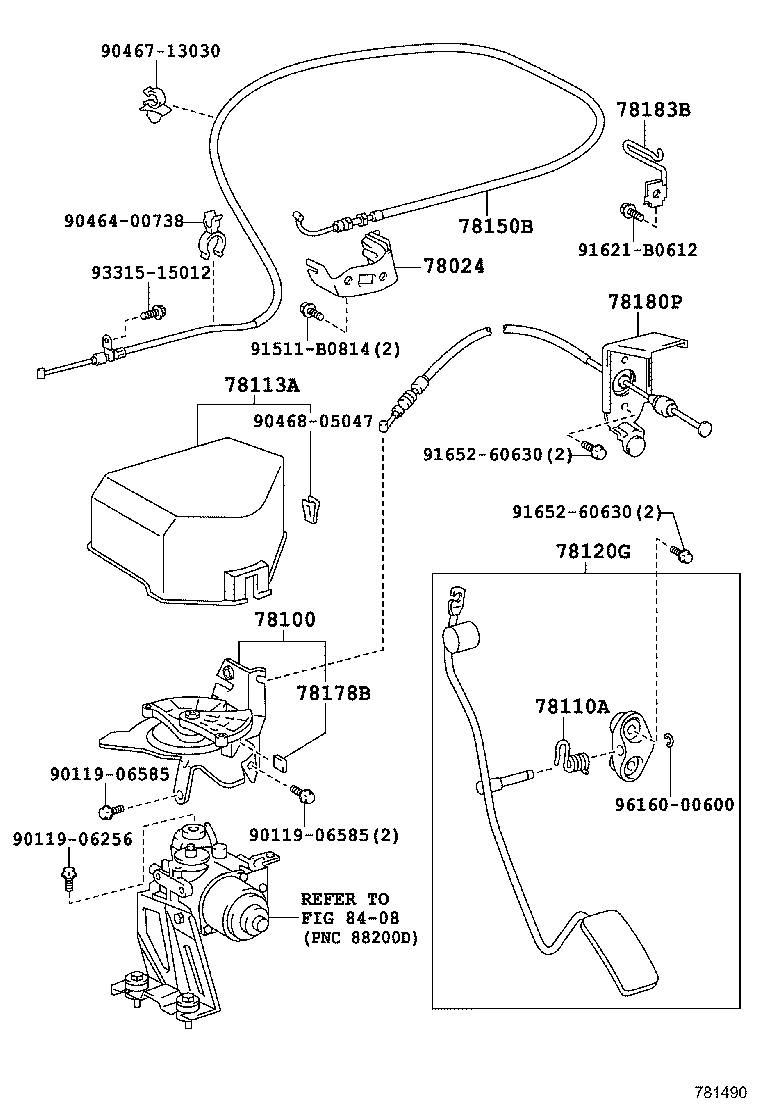

Accelerator Link
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 78024 | Bracket Sub-assy, Accelerator Control Cable |
| 78100 | Link Assy, Accelerator |
| 78110A | Spring (FOR ACCELERATOR PEDAL ROD) |
| 78113A | Cover, Auto Drive Accelerator Link |
| 78120G | Rod Assy, Accelerator Pedal |
| 78150B | Cable Assy, Accelerator Auto Drive |
| 78178B | Damper, Accel Control NO.4 Rod Bracket |
| 78180P | Cable Assy, Accelerator Control |
| 78183B | Clamp, Accelerator Control Cable |
| 78189A | Support, Accelerator Control Cable, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
