Toyota RAV4
1995-11 → 2000-08 · chassis SXA1# · catalogue 662410 · Europe
Discontinued model
Data version 2001-03
Meter
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 82641B | Relay, Integration (FOR METER) |
| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83110 | Speedometer Assy |
| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83138G | Glass, Combination Meter |
| 83159B | Relay Assy, Meter |

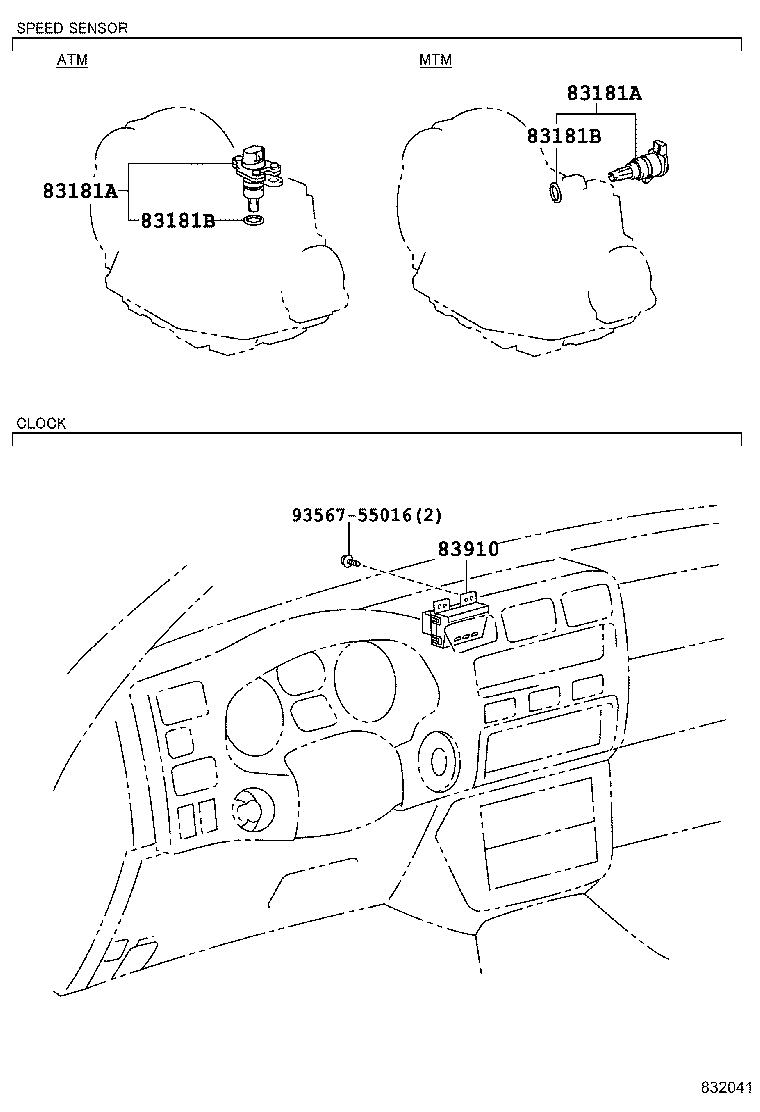

| 83181A | Sensor, Speedometer |
| 83181B | Ring, O (FOR SPEEDOMETER SENSOR) |
| 83242 | Tachometer Assy, Engine |
| 83243B | Gauge Assy, Combination |
| 83247 | Plate, Meter Circuit |
| 83247E | Plate, Mater Circuit, NO.4 |
| 83910 | Clock Assy |
| 83970 | Buzzer Assy, Reverse Warning |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
