Toyota RAV4

1995-11 → 2000-08 · chassis SXA1# · catalogue 662410 · Europe

Discontinued model Data version 2001-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

11 part groups · 3 illustrations

Illustrations

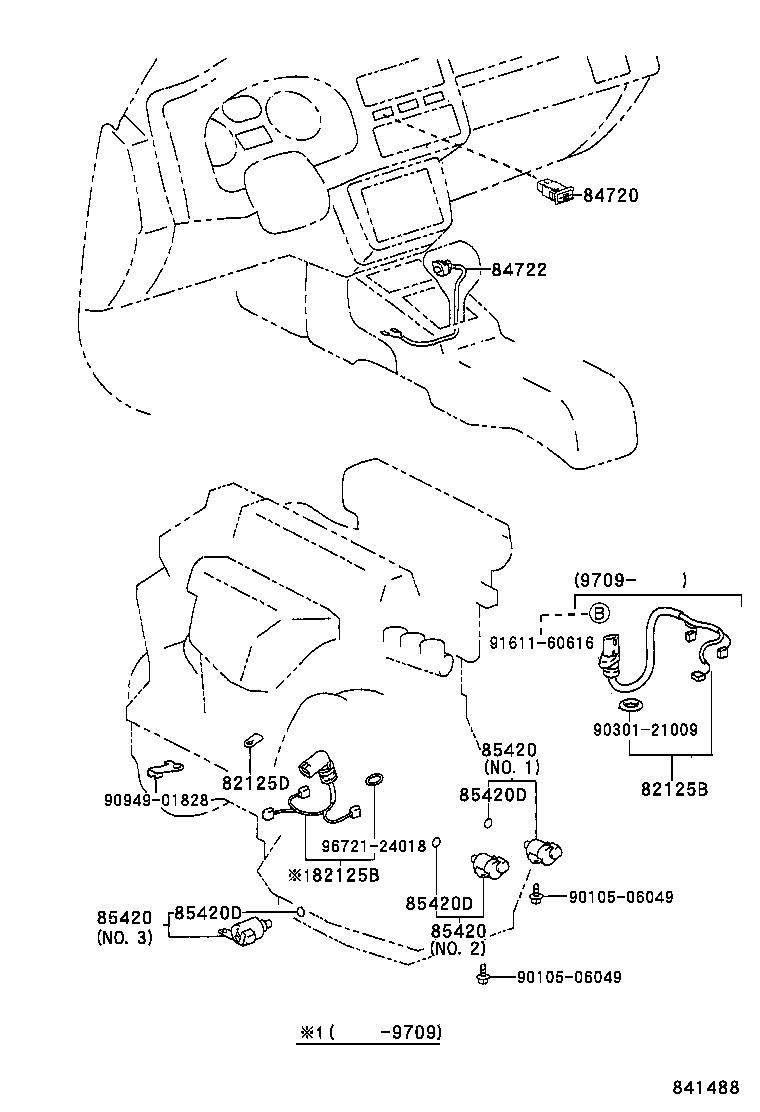

Figure 841487 841487 1995-11 → — Figure 841487 841487 1997-12 → — Figure 841488 841488 1996-02 → —

Part groups

PNCDescription
35299 Spacer, Transmission Revolution Sensor
35517 Plate, Transmission Wire Lock
82125A Wire, Transmission
82125B Wire, Transmission
82125D Plate, Transmission Wire Lock
84720 Switch Assy, Pattern Select
84722 Switch, Transmission Control
85420 Solenoid Assy, Transmission
85420D Ring, O (FOR TRANSMISSION SOLENOID)
89413B Sensor, Transmission Revolution
89428D Switch, Temperature, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
