Toyota RAV4

1995-11 → 2000-08 · chassis SXA1# · catalogue 662410 · Europe

Discontinued model Data version 2001-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

28 part groups · 3 illustrations

Illustrations

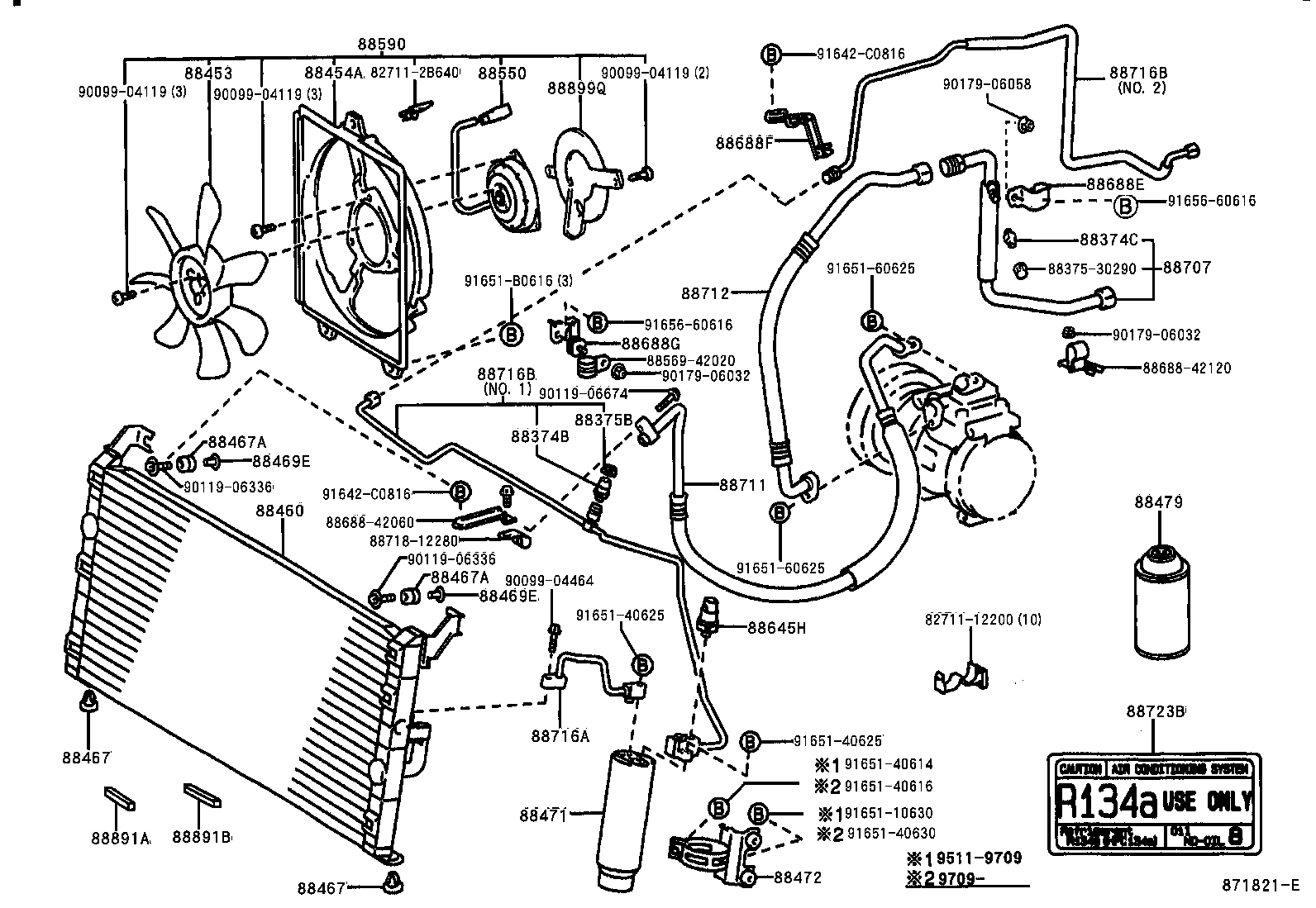

Figure 871820D 871820D 1995-11 → — Figure 871821E 871821E 1995-11 → — Figure MEX571 MEX571 1995-11 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88469E Collar, Condenser Bracket, NO.2
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88645H Switch, Pressure NO.1
88688E Bracket, Cooler Refrigerant Hose, NO.1
88688F Bracket, Cooler Refrigerant Hose, NO.2
88688G Bracket, Cooler Refrigerant Pipe
88707 Pipe Sub-assy, Suction
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88717A Pipe, Cooler Refrigerant Suction, A
88723B Label, Cooler Service Caution
88891A Packing A (FOR COOLER)
88891B Packing B (FOR COOLER)
88899Q Plate, Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
