Toyota RAV4
2000-08 → 2005-11 · chassis ACA2# · catalogue 662420 · Europe
Discontinued model
Data version 2006-06

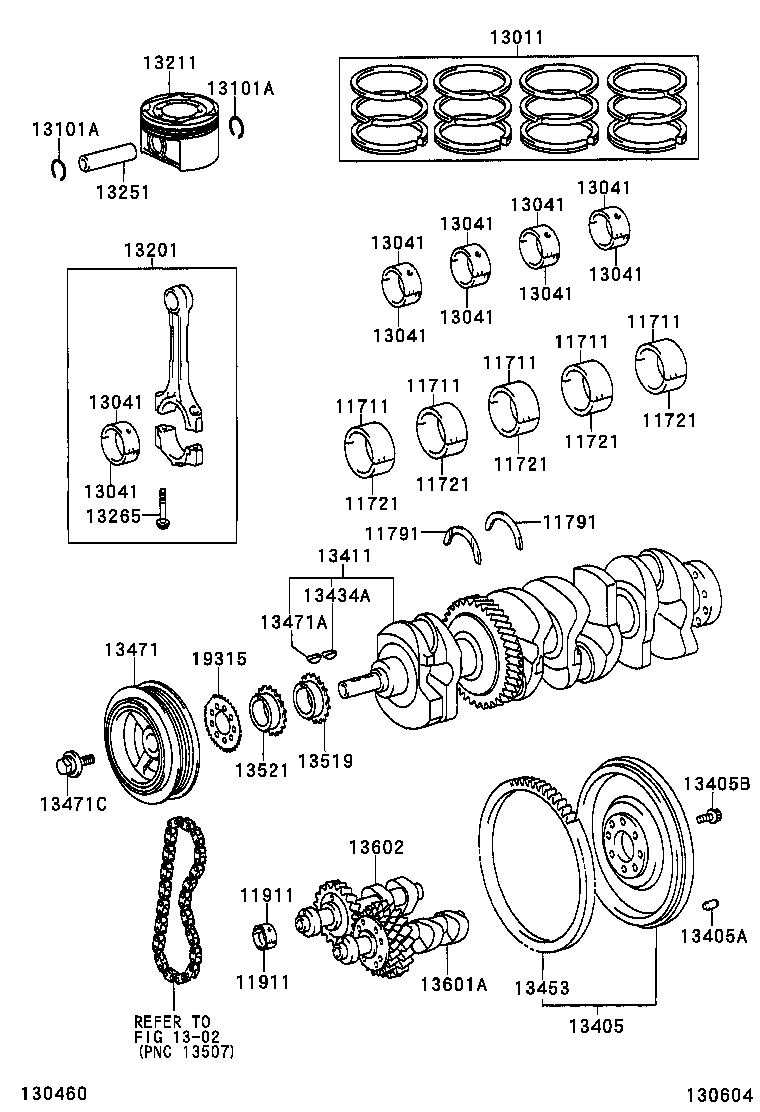

Crankshaft & Piston
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11711 | Bearing, Crankshaft |
| 11721 | Bearing, Crankshaft, NO.2 |
| 11791 | Washer, Crankshaft Thrust, Upper |
| 11911 | Bearing, Balanceshaft, NO.1 |
| 13011 | Ring Set, Piston |
| 13041 | Bearing, Connecting Rod |
| 13101A | Ring, Hole Snap(FOR PISTON PIN) |
| 13201 | Rod Sub-assy, Connecting |
| 13211 | Piston |
| 13251 | Pin, Piston |
| 13265 | Bolt, Connecting Rod |
| 13405 | Flywheel Sub-assy |
| 13405A | Pin, Straight(FOR FLYWHEEL) |
| 13405B | Bolt, Flywheel Setting |
| 13411 | Crankshaft |
| 13434A | Key(FOR OIL PUMP DRIVE SPLINE) |
| 13453 | Gear, Flywheel Ring |
| 13471 | Pulley, Crankshaft |
| 13471A | Key, Crankshaft(FOR CRANKSHAFT PULLEY SET) |
| 13471C | Bolt(FOR CRANKSHAFT PULLEY SET) |
| 13519 | Gear, Oil Pump Drive |
| 13521 | Gear OR Sprocket, Crankshaft Timing |
| 13601A | Balanceshaft Sub-assy, NO.1 |
| 13602 | Balanceshaft Sub-assy, NO.2 |
| 19315 | Plate, Crank Angle Sensor, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
