Engine Oil Pump

10 part groups · 2 illustrations

Illustrations

Figure 150408A

150408A 2000-08 → 2003-07

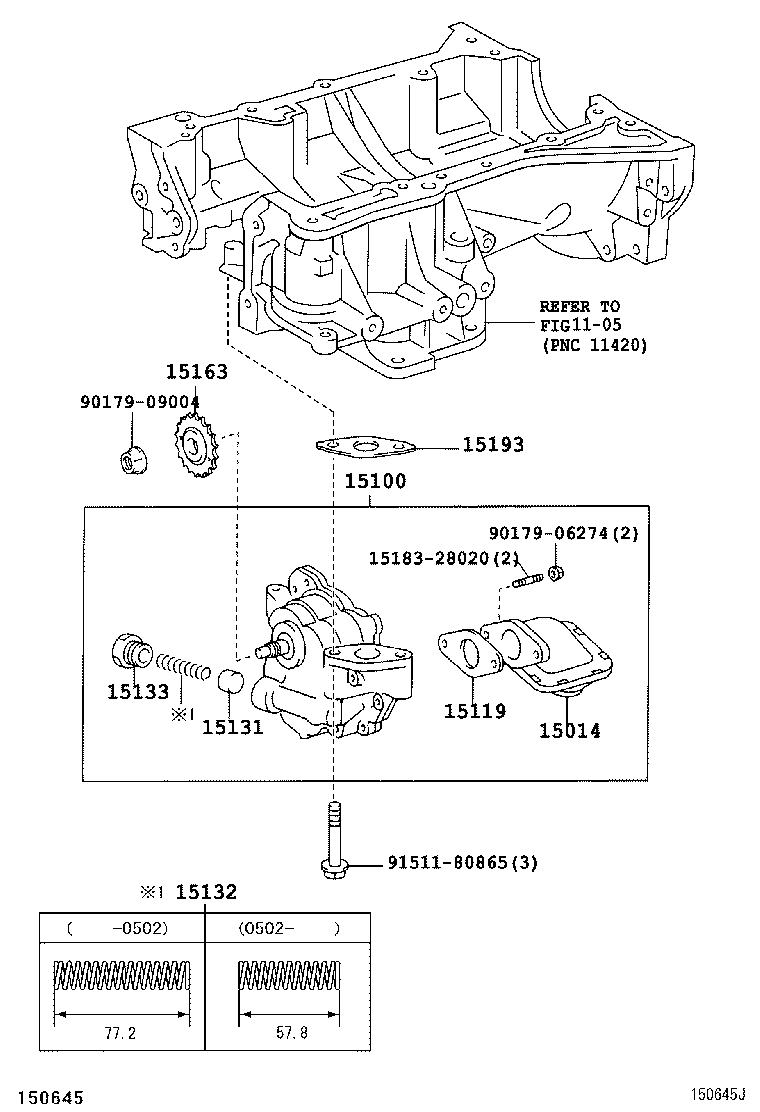

Figure 150645J

150645J 2003-07 → —

Part groups

PNC	Description
15012	Cover Sub-assy, Oil Pump
15014	Strainer Set, Oil Pump
15100	Pump Assy, Oil
15102	Rotor Set, Oil Pump
15119	Gasket, Oil Pump Cover
15131	Valve, Oil Pump Relief
15132	Spring, Oil Pump Relief Valve
15133	Plug, Oil Pump Relief Valve
15163	Gear, Oil Pump Drive Shaft
15193	Gasket, Oil Pump

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
